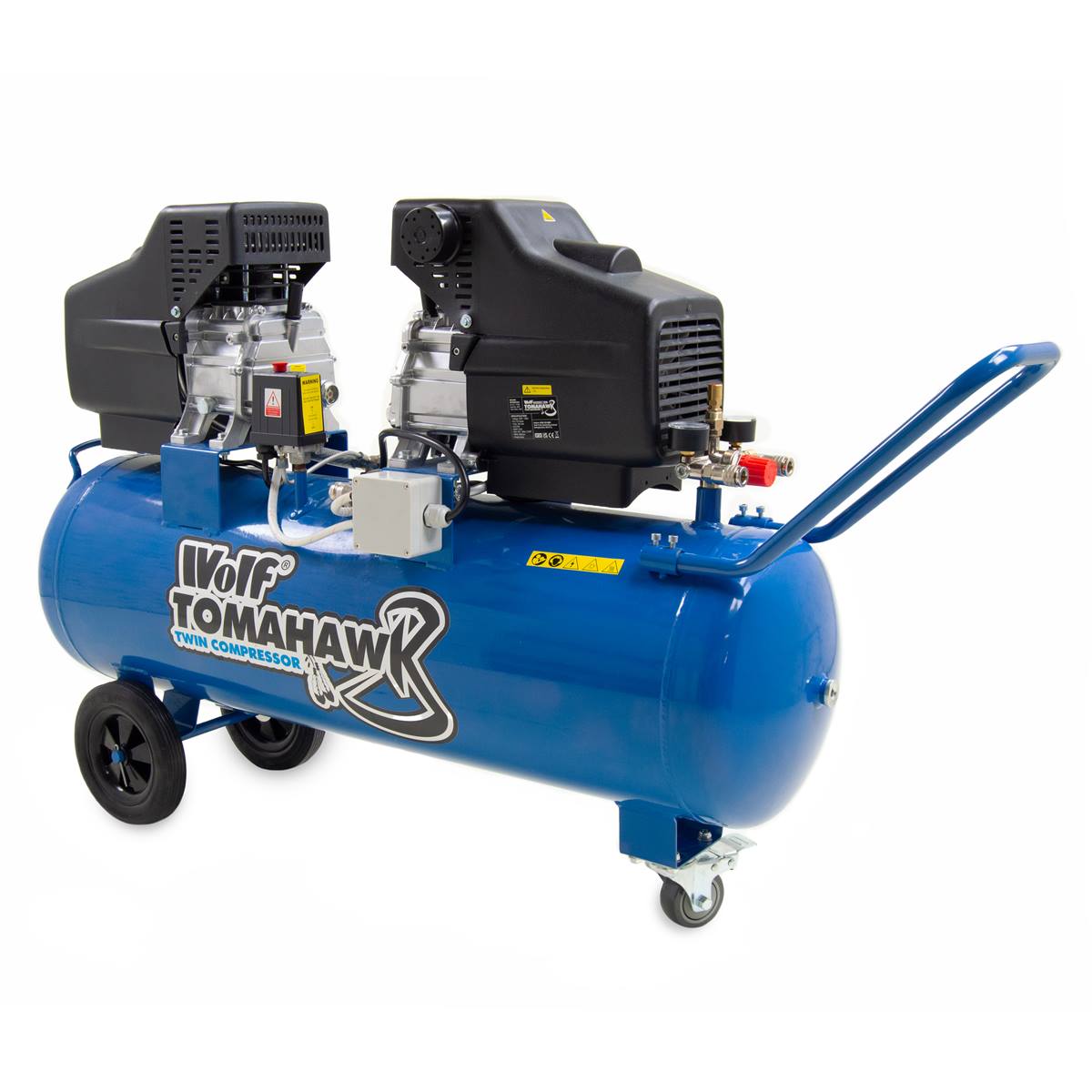

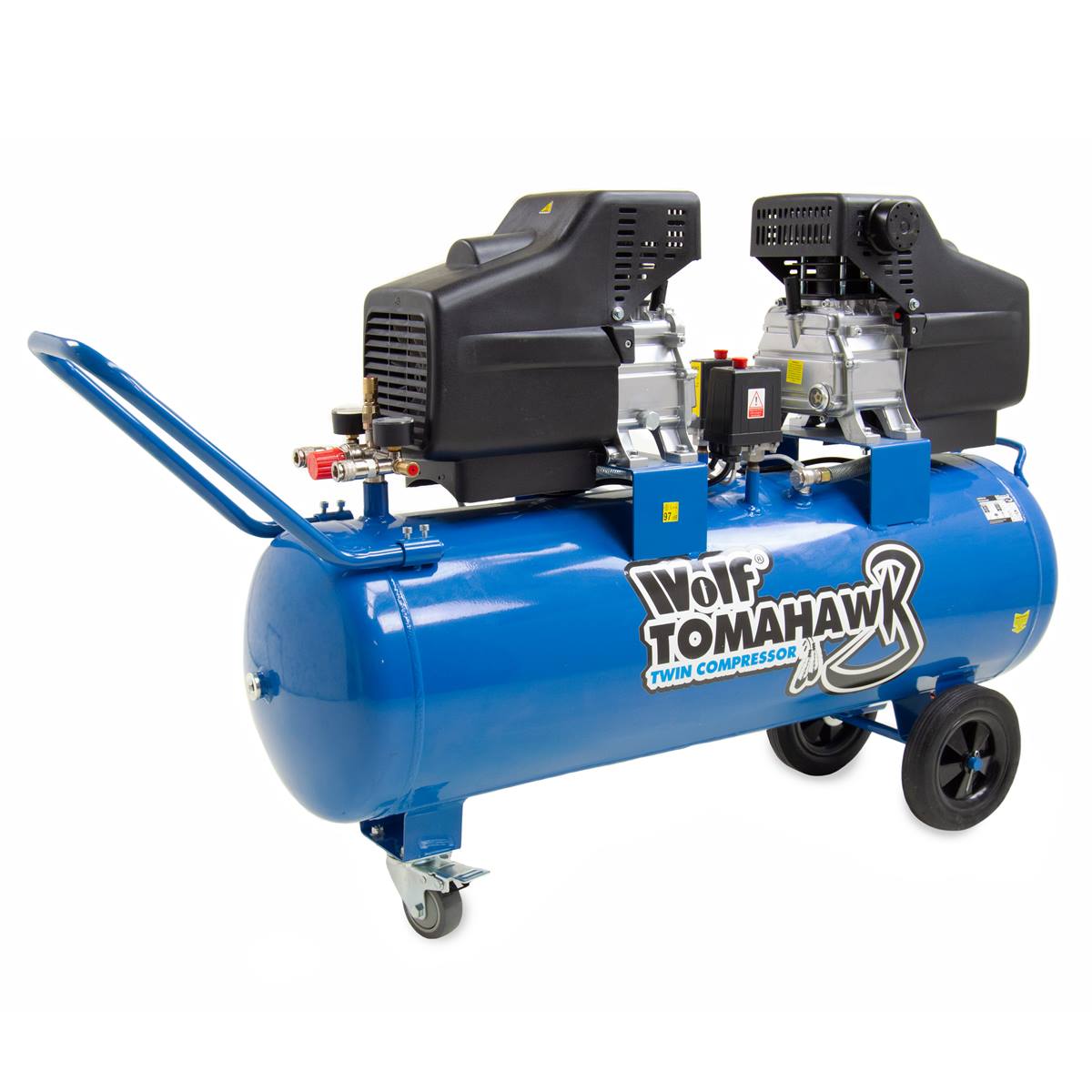

Wolf Tomahawk 100L Air Compressor 19.2 CFM 2 x 2.5HP
Product Code / SKU: 111549
Fitted with 2 x single phase Air Compressor Pump and Motor units for those who need a large volume of compressed air but who don't have access to a 3 phase power supply.
The pump and motor units are individually controlled through their own pressure switch control system and may be operated individually when only 9.6CFM displacement is required or for larger air flow requirements, simultaneously giving a massive 19.2CFM.
// Power: 2 x 2.5HP, 230V Single Phase = 5HP (3.6Kw = 15.7amps @ 230V)
// Dimensions (LxWxH): 1306 x 380 x 820mm (with handle)
// Dimensions (LxWxH): 1030 x 380 x 820mm (without handle)
// Electricity Supply Requirement: Minimum 16amp 230V Single Phase
Please note that this machine MUST NOT be operated from a 13amp plug or power supply - serious damage to the machine and or power supply WILL result. The machine MUST NOT be operated from an extension cable to avoid voltage drop and serious damage to the electric motors.
Specification
Specification
|
Air Receiver Volume: 100L |
Air Displacement: 19.2 CFM |
|
Max. Working Pressure: 8 BAR / 116psi |
Power Source: Electric |
|
Drive Type: Direct |
Horse Power: 2 x 2.5HP |
|
Wattage: 3600w |
Voltage: 230V |
|
Current: 13A |
Pump Speed: 2850rpm |
|
Lubrication Type: Oil Lubricated |

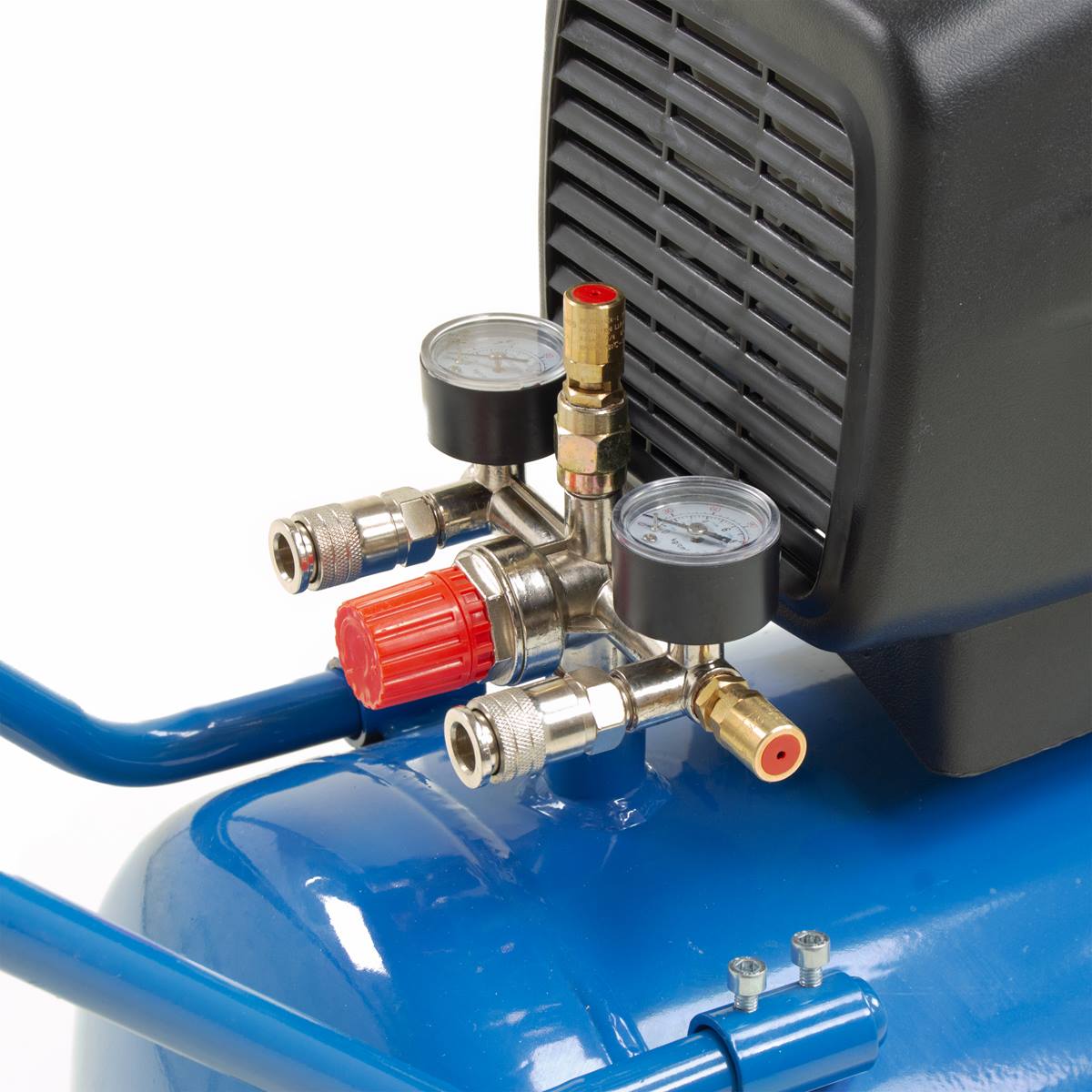

Air Outlets: 2 |
|
Coupler Type: BSP Uni Hi-Flow |
Noise Level: 97 dB(A) |
|
Power Cable Length: 1.9m |
Plug Included: No |
|
IP Rating: IP20 |
Dimensions (LxWxH): 1306 x 380 x 820mm |
|
Weight: 57Kg |
