Wolf Engineer's 5 Speed Pillar Drill with 2.5" Vice
Product Code / SKU: 106300
Introducing the Wolf Engineer's Bench 5-Speed Pillar Drill: a robust and indispensable addition to any toolkit, maintenance department, or workshop. Crafted with durability in mind, this pillar drill features a headstock made from high-quality cast iron, while the base and column are precision-machined from cast steel, ensuring reliability, accuracy, and ease of control.
Key Features:
// Sturdy Construction: Built to last, with a headstock crafted from high-quality cast iron and a base and column made from accurately machined cast steel, ensuring durability and reliability.
// Versatile Chuck: Equipped with a 13mm keyed chuck held in place by a JT hobby-style taper drive shaft, allowing for secure and precise drilling operations.
// Adjustable Depth Gauge: Includes an adjustable depth gauge as standard, ensuring accurate drilling depths and enhanced safety during operation.
// Five-Speed Taper Pulley Arrangement: Features a twin 5-speed taper pulley arrangement powered by a 350W capacitor start induction run 230V electric motor, providing ample power for various drilling tasks.

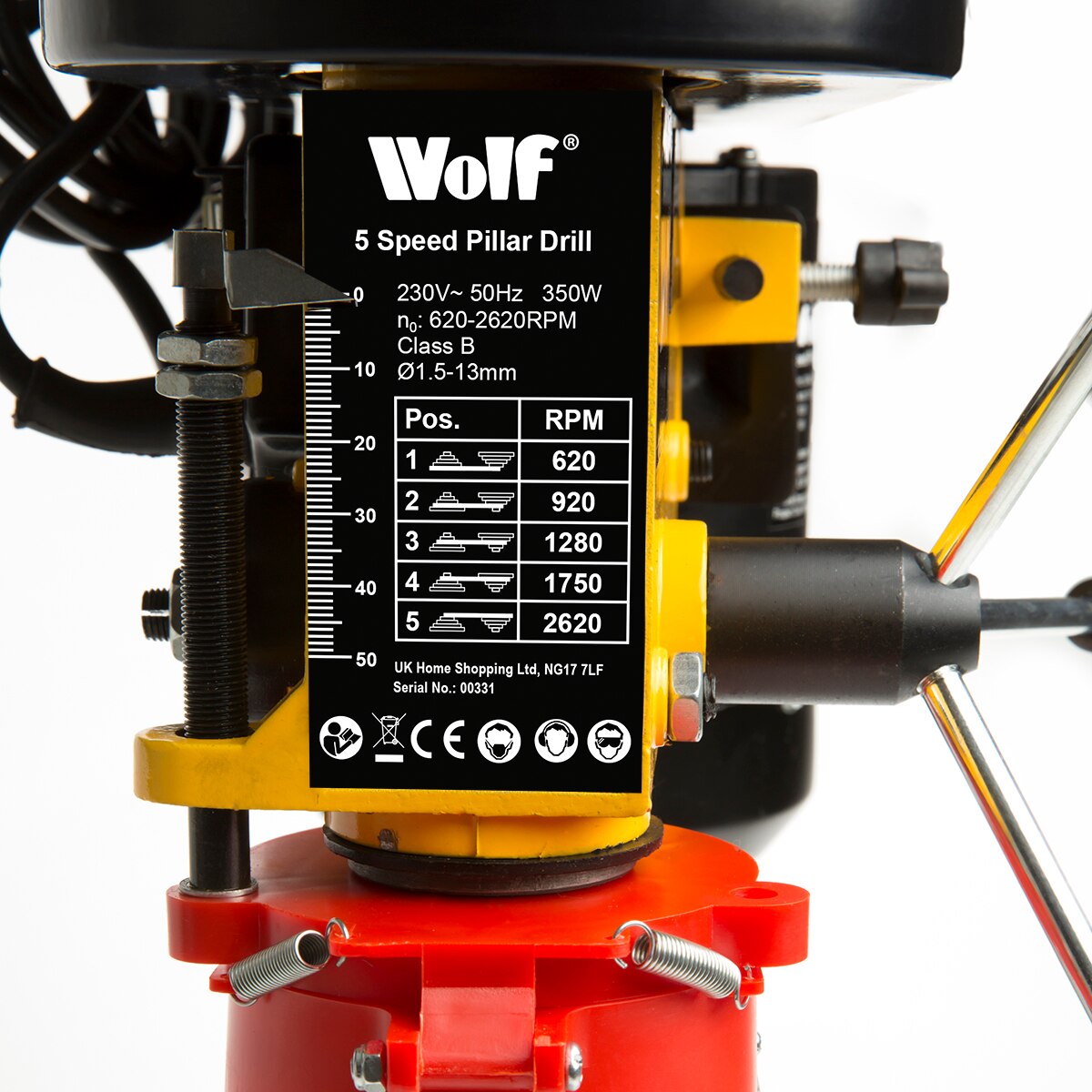

// Easy Speed Adjustment: Changing drill speeds is effortless with a simple tensioning bolt mechanism, allowing for quick adjustment of the drive belt position on the pulleys. Speeds and corresponding pulley arrangements are conveniently displayed on a chart fixed to the headstock.
// Safety Features: Designed with operator safety in mind, including a transparent chuck guard and a top cover enclosing the drive assembly, along with a micro-switch that cuts out the motor when the cover is opened.
Industrial-Style No-Volt Release Switch: Incorporates a no-volt release stop/start switch to prevent the motor from starting up in the event of a power failure, ensuring operator protection.

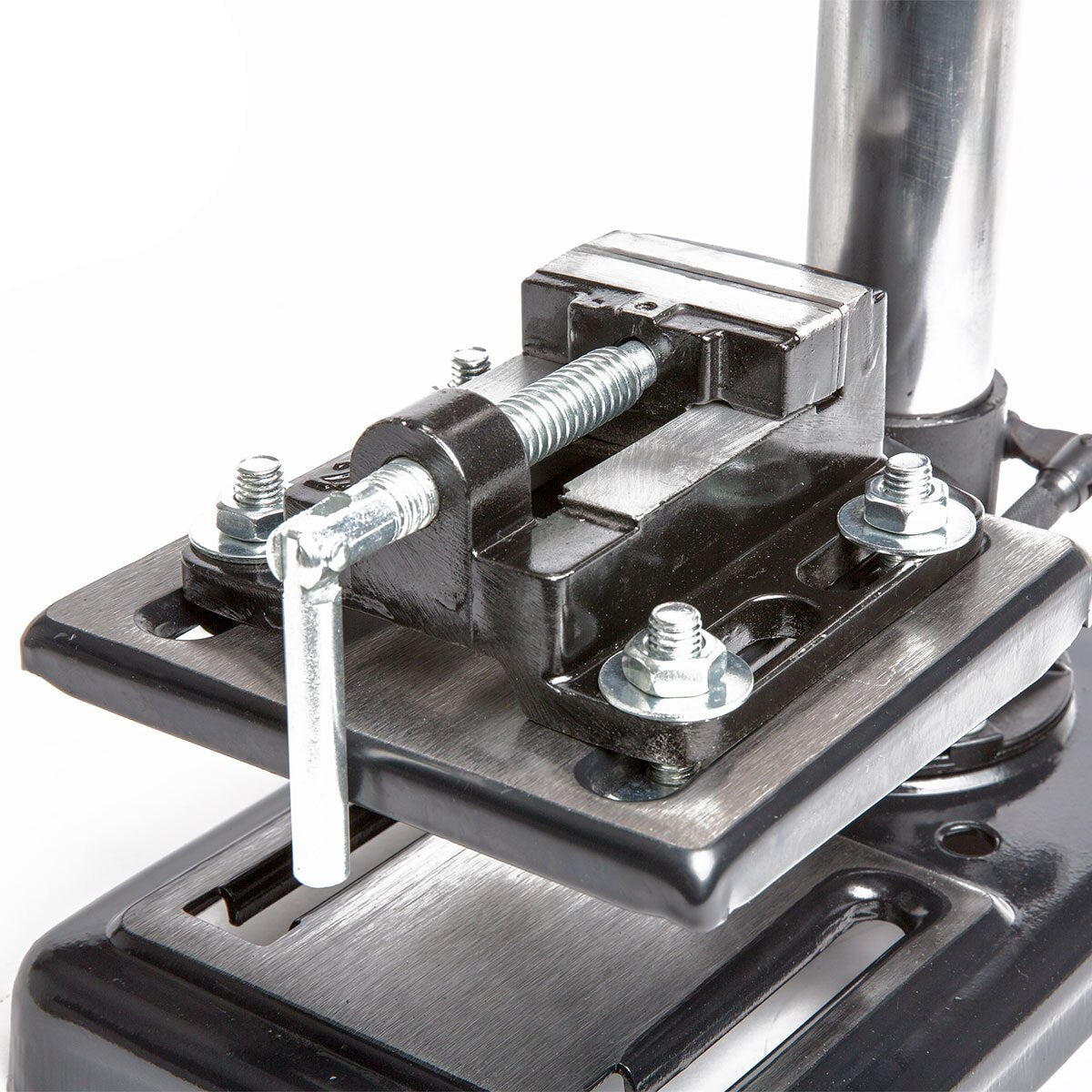

// Versatile Work Surface: Supplied with a cast steel machine vice and fixing bolts, along with a tiltable table that can be adjusted left or right to any degree. The table can also be rotated 360 degrees around the column for added flexibility.
Complete with a 2.5" all-steel engineer's vice and an adjustable chuck guard, the Wolf Engineer's Bench 5-Speed Pillar Drill offers unparalleled functionality and reliability for all drilling needs.
Wattage: 350w |
Voltage: 230V |
Power Source: Corded Electric |
5 Adjustable Speeds: 620, 920, 1280, 1750 and 2620rpm |
Maximum Drilling Capacity: 13mm |
Maximum Drilling Depth: 50mm |
Throat Depth: 105mm |
Chuck Capacity (Diameter): 1.5-13mm |
Table Features: Height Adjustable, 0-45° Left & Right Tilt |
Distance Chuck to Base: 325mm |
Distance Chuck to Table: 200mm |
Power Cable Length: 2m |
Plug Type: UK 3-Pin |
Table Dimensions: 158 x 160mm |
Base Dimensions (Working): 150 x 130mm |
Base Dimensions (Overall): 185 x 300mm |
Overall Height: 575mm |
Weight: 12Kg |
