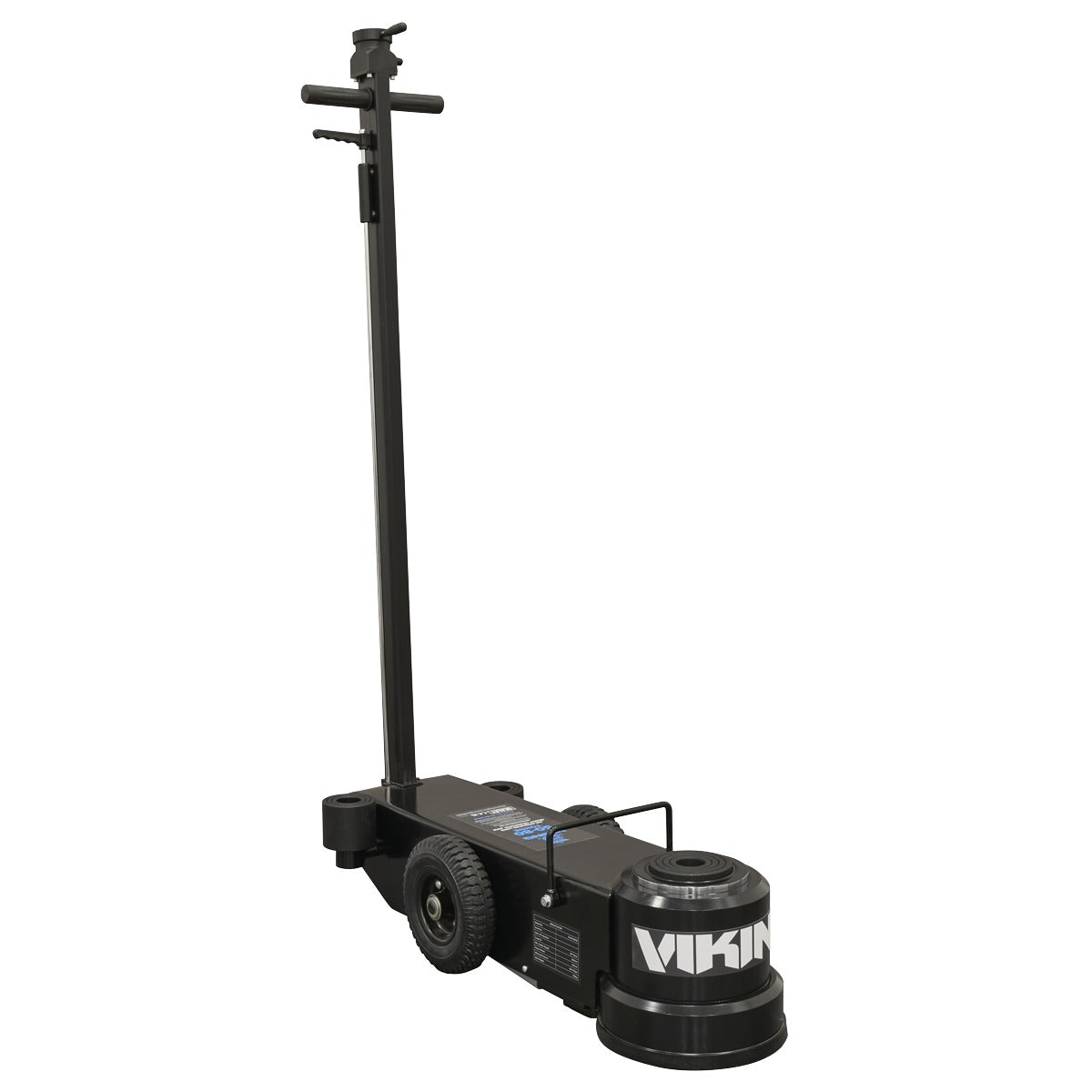

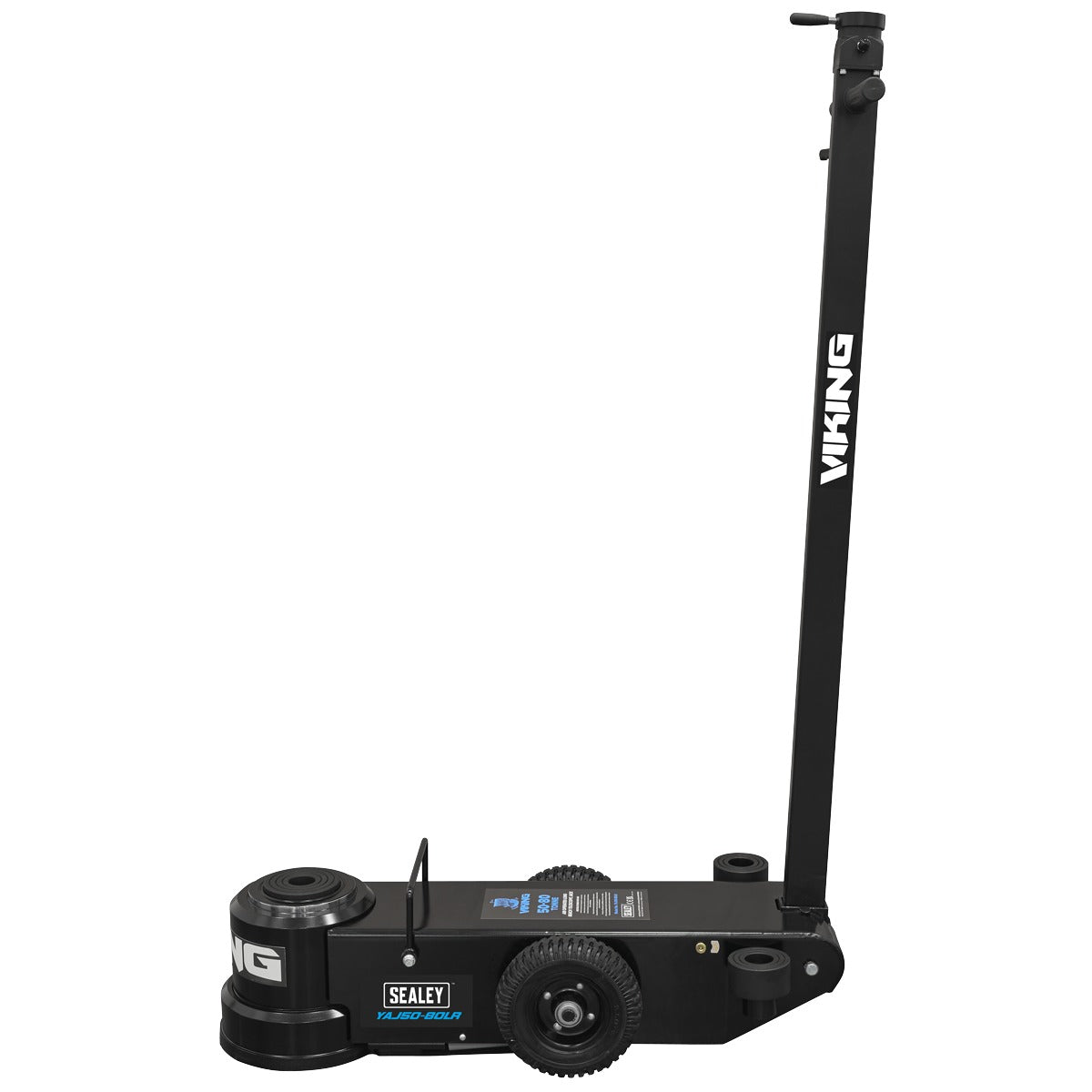

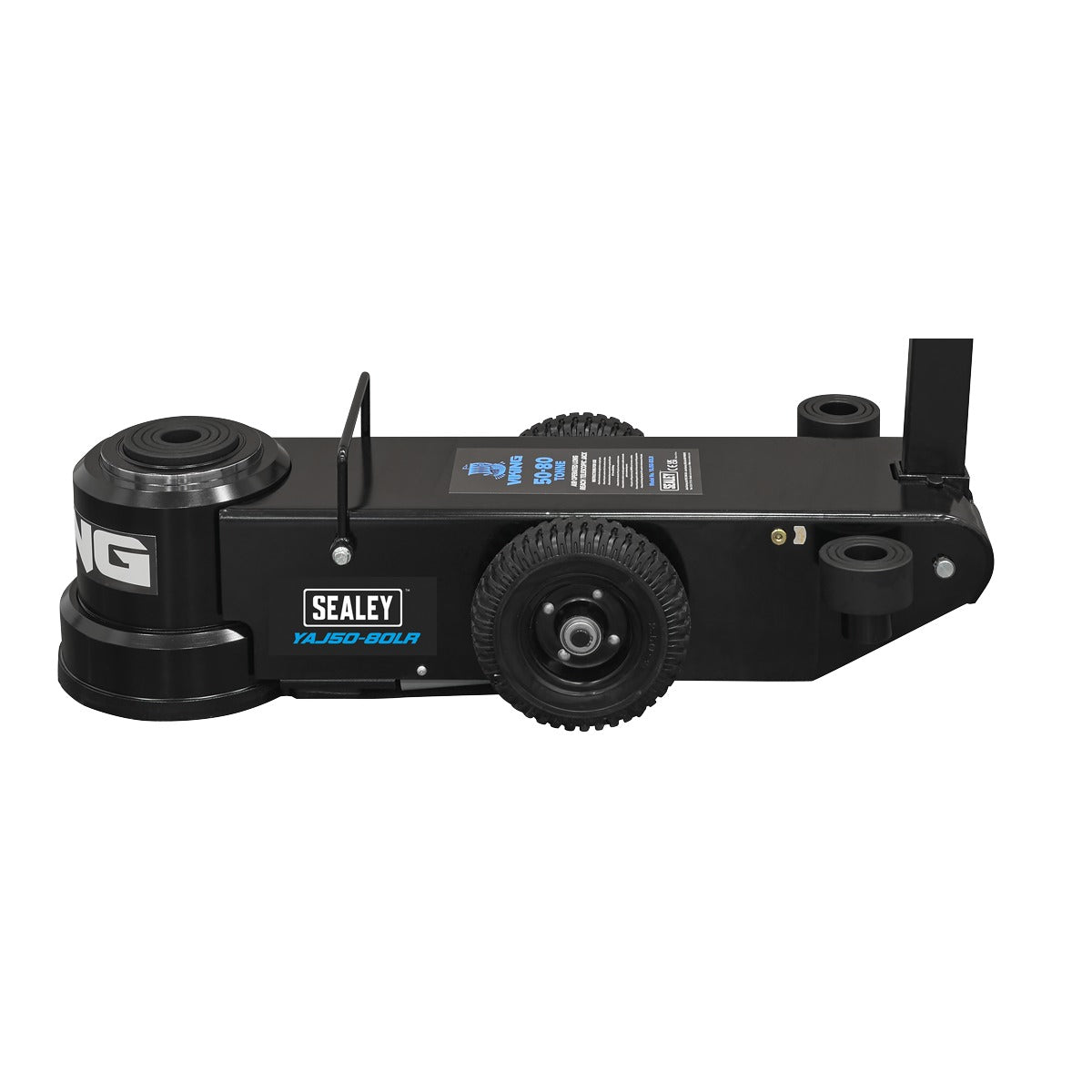

Viking Air Operated Telescopic Long Reach Jack 50-80 Tonne YAJ50-80LR
Product Code / SKU: 180641
Ideal for workshop or roadside use, this jack takes the effort out of lifting heavy plant, tractors and commercial vehicles. For extra safety, features dead man’s handle which also aids controlled lowering speed. Supplied with extensions that close the gap between the saddle of the jack and the jacking point. See table for detailed specification.

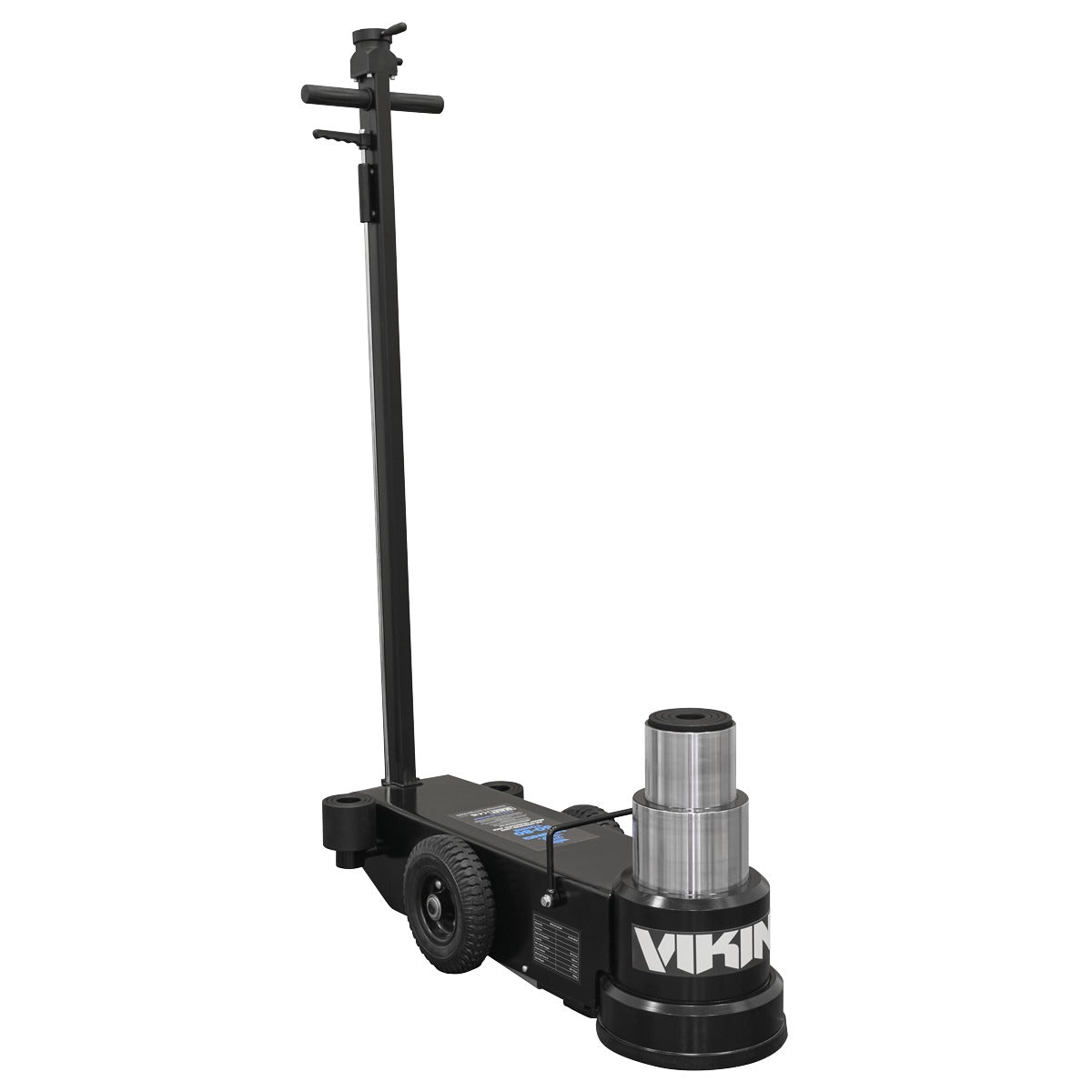

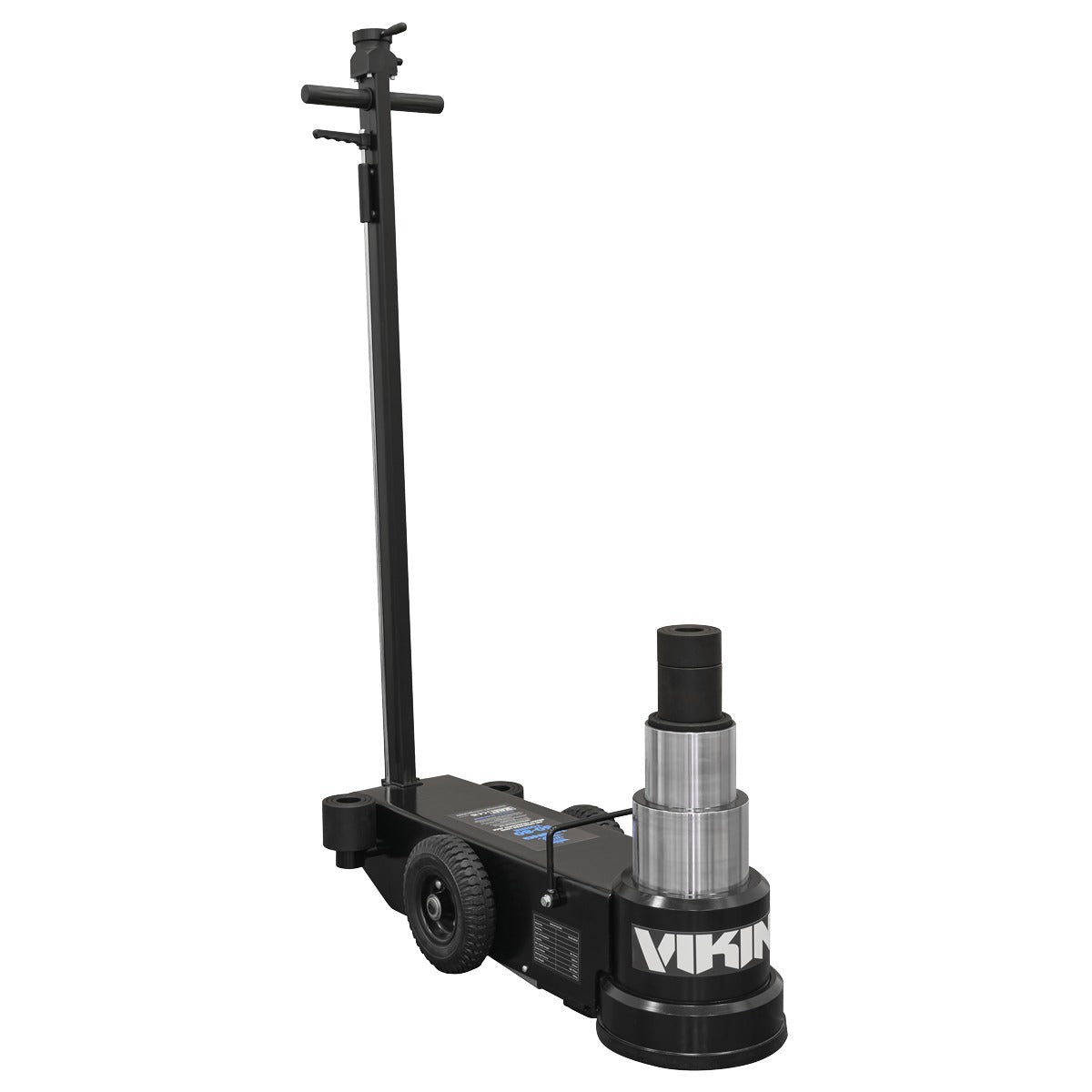

// Powerful and reliable, this 2-stage jack is ideal for workshop or roadside use.

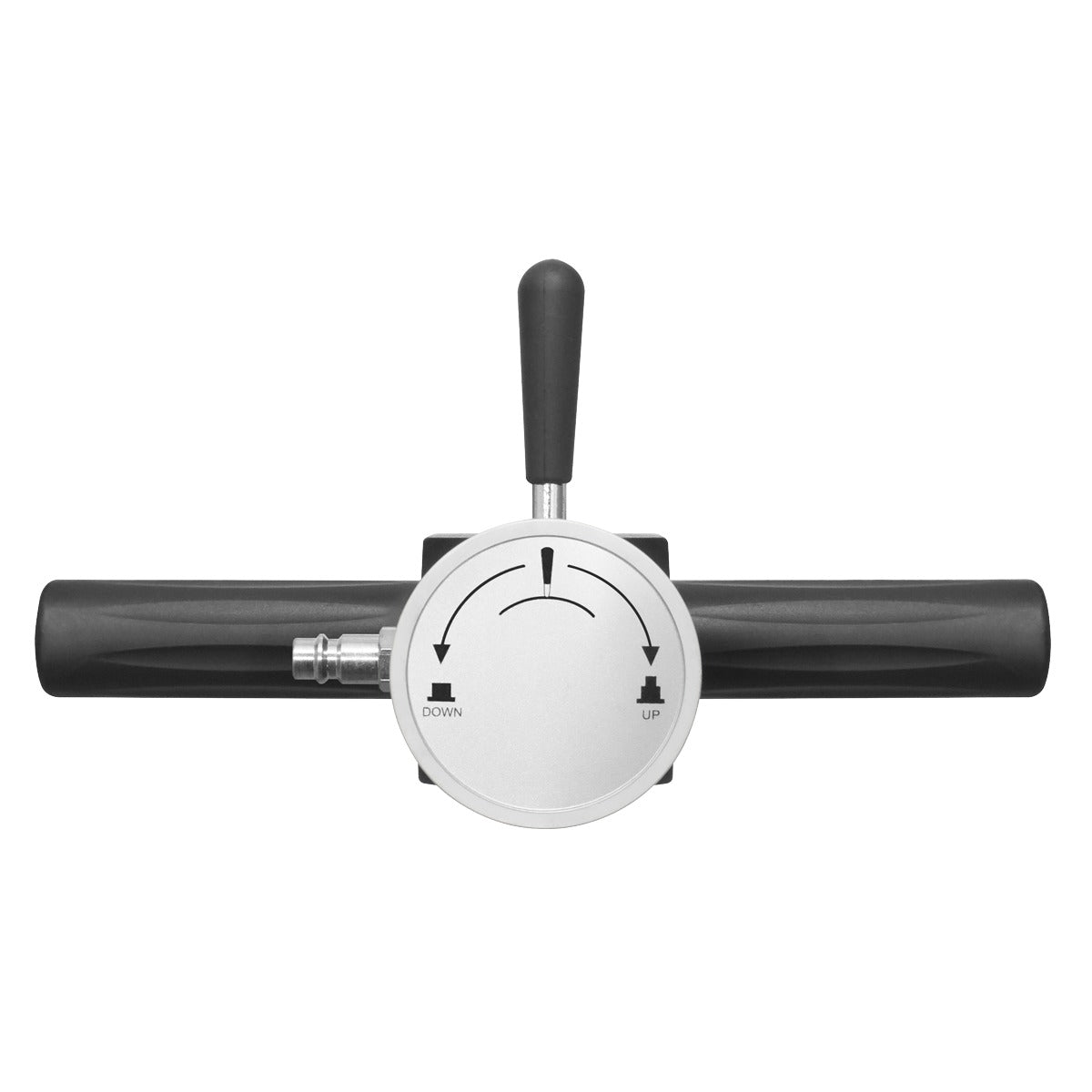

// Spring loaded dead man's control enables safe, controlled lifting/lowering of the vehicle.
// Locks in position and can be used at three different angles to allow improved manoeuvrability and access around the vehicle.
// Ideal for workshop or roadside use, takes the effort out of lifting heavy plant, tractors and commercial vehicles.
// Rapid speed to and from the load, then slower for a controlled lift and release when under load.

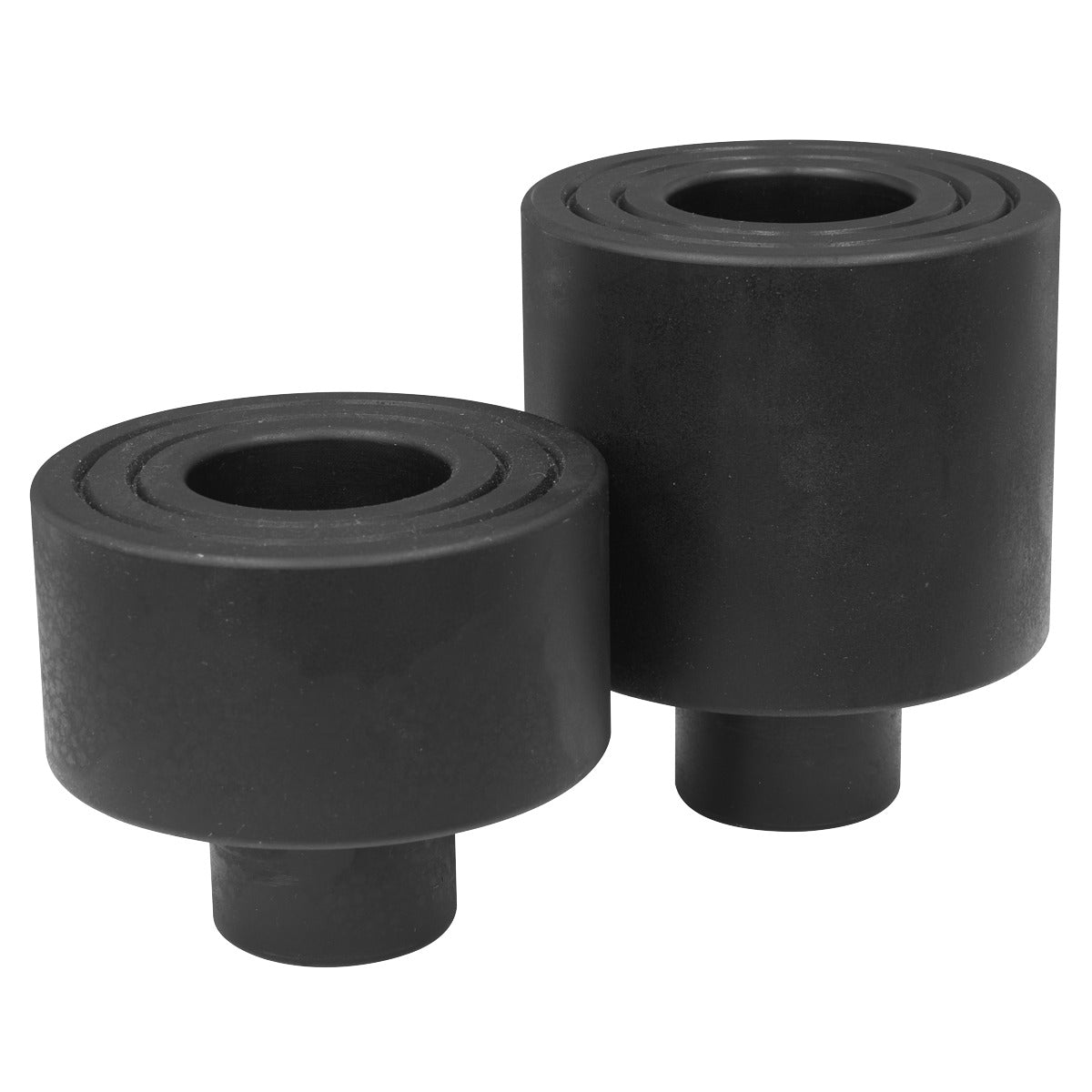

// Supplied with 45mm and 75mm extensions to help close the gap between the saddle of the jack and the jacking point.
// Max. Height (inc. extn.): 563mm @ 50 Tonne, 461mm @ 80 Tonne.
// Air Consumption: 10.5cfm.
// This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
// 3 Year Guarantee.
// Model No. YAJ50-80LR
// Powerful and reliable, this 2-stage jack is ideal for workshop or roadside use.
// Spring loaded dead man's control enables safe, controlled lifting/lowering of the vehicle.
// Locks in position and can be used at three different angles to allow improved manoeuvrability and access around the vehicle.
// Ideal for workshop or roadside use, takes the effort out of lifting heavy plant, tractors and commercial vehicles.
// Rapid speed to and from the load, then slower for a controlled lift and release when under load.
// Supplied with 45mm and 75mm extensions to help close the gap between the saddle of the jack and the jacking point.
// Max. Height (inc. extn.): 563mm @ 50 Tonne, 461mm @ 80 Tonne.
// Air Consumption: 10.5cfm.
// This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
// 3 Year Guarantee.
// Model No. YAJ50-80LR
Specification
Specification
| Model No: YAJ50-80LR |
Brand: Viking |
| Capacity: 80 Tonne |
Chassis Length: 930mm |
| Extensions: 45/75mm |
Maximum Air Pressure: 174psi |
| Maximum Height (inc. Extension)/Capacity-Stage 1 (mm/tonne): 461/80 |
Maximum Height (inc. Extension)/Capacity-Stage 2 (mm/tonne): 563/50 |
| Maximum Length: 2300mm |
Minimum Saddle Height: 230mm |
| Nett Weight: 105kg |
Overall Width: 342mm |
| Piston Stroke: 213mm |
Screw Extension: N/A |
| Width without Wheels: 254mm |
Working Pressure: 130-174psi |
