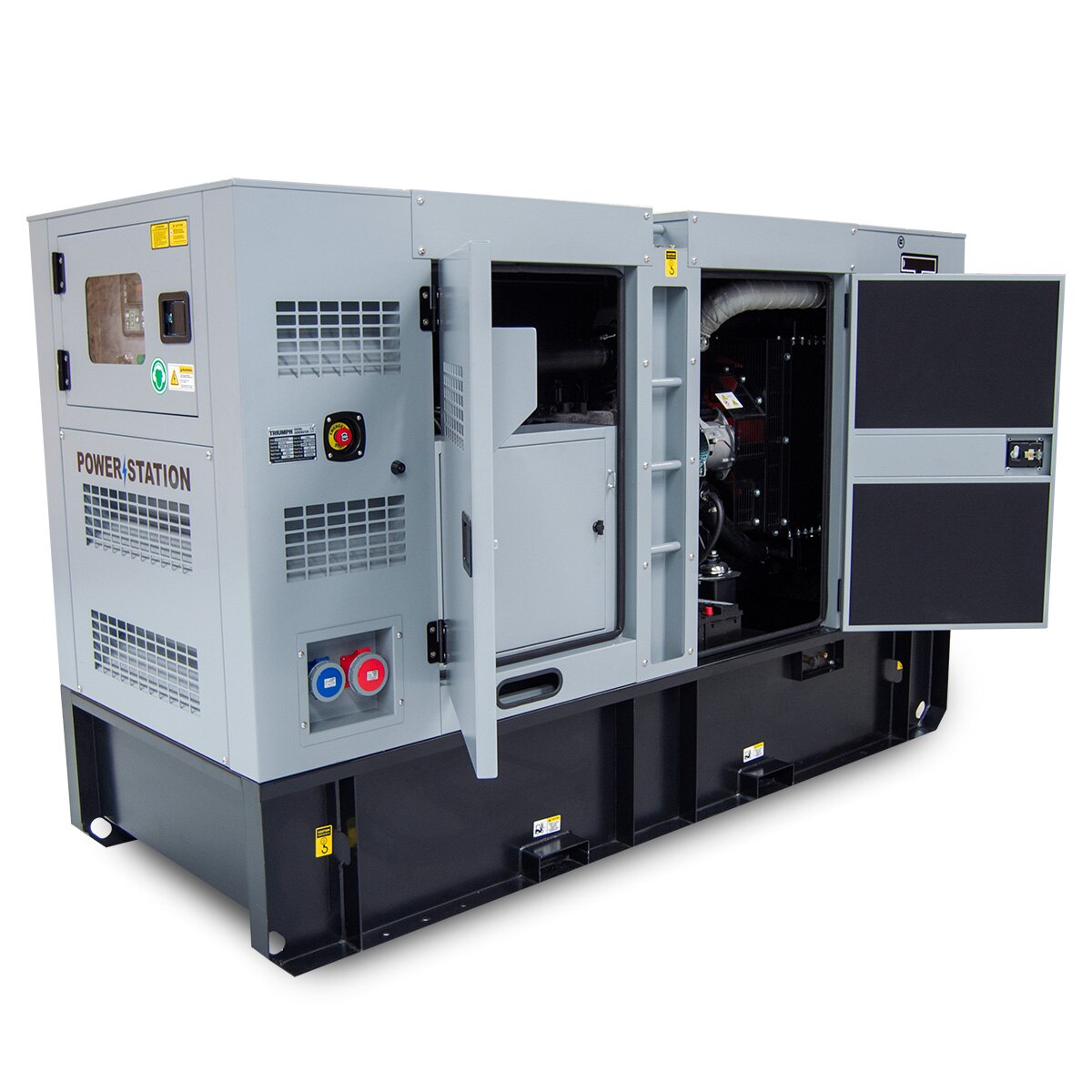

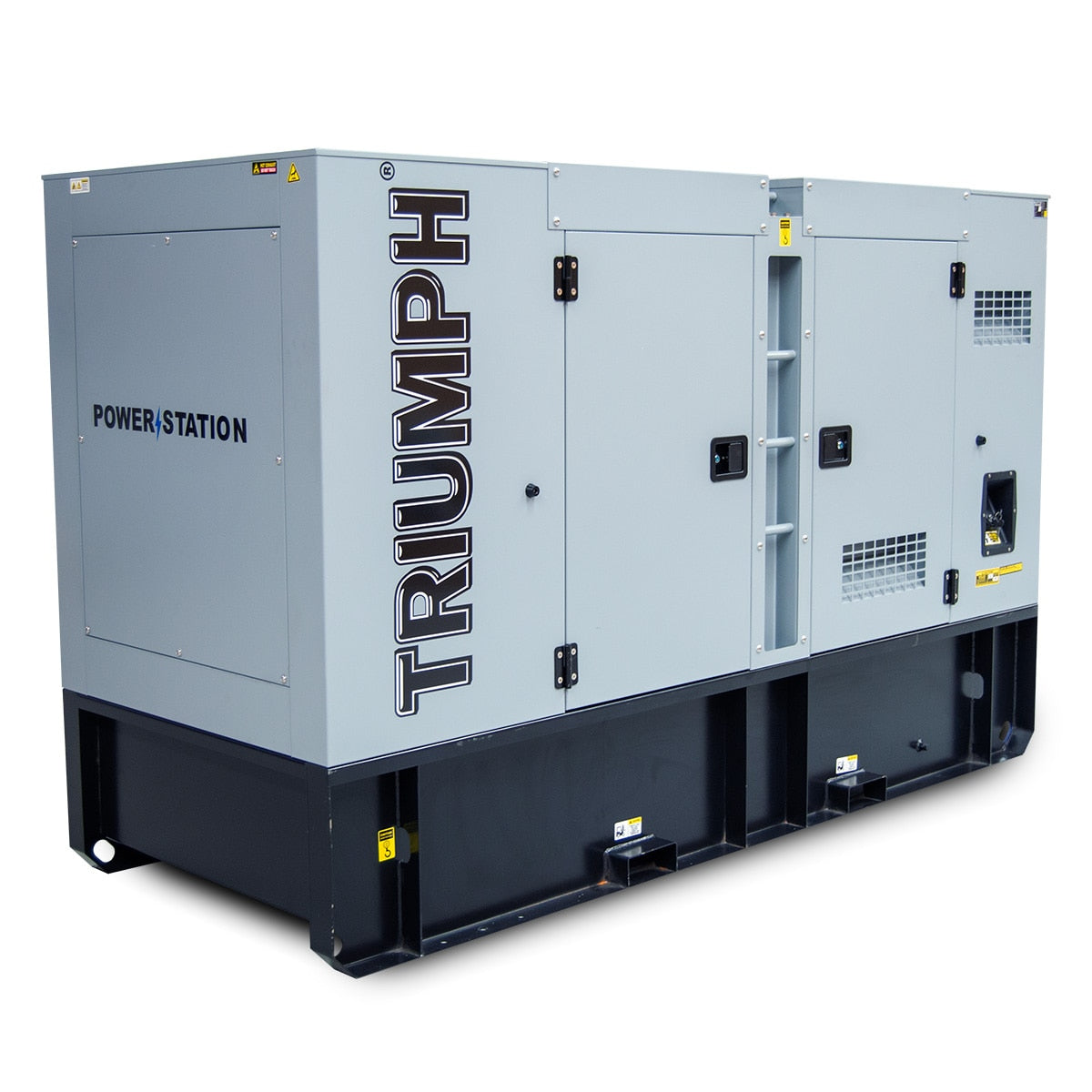

Triumph 110kVA 88kW 400V 3 Phase Diesel Water-Cooled Generator Set
Product Code / SKU: 161733
COLLECTION ONLY - Mansfield, NG18 4TF
This remarkable generator is powered by a reliable and powerful 4-stroke, water-cooled, world famous Cummins diesel engine and has a maximum 3-phase output of 88,000 watts and a single-phase output of 80,000 watts. Equipped with an easy electric push start ignition and housed within a silenced heavy duty steel casing. This powerful generator is fitted with 1 x 230V 32Amp outlet and 1 x 415V 32Amp outlet.

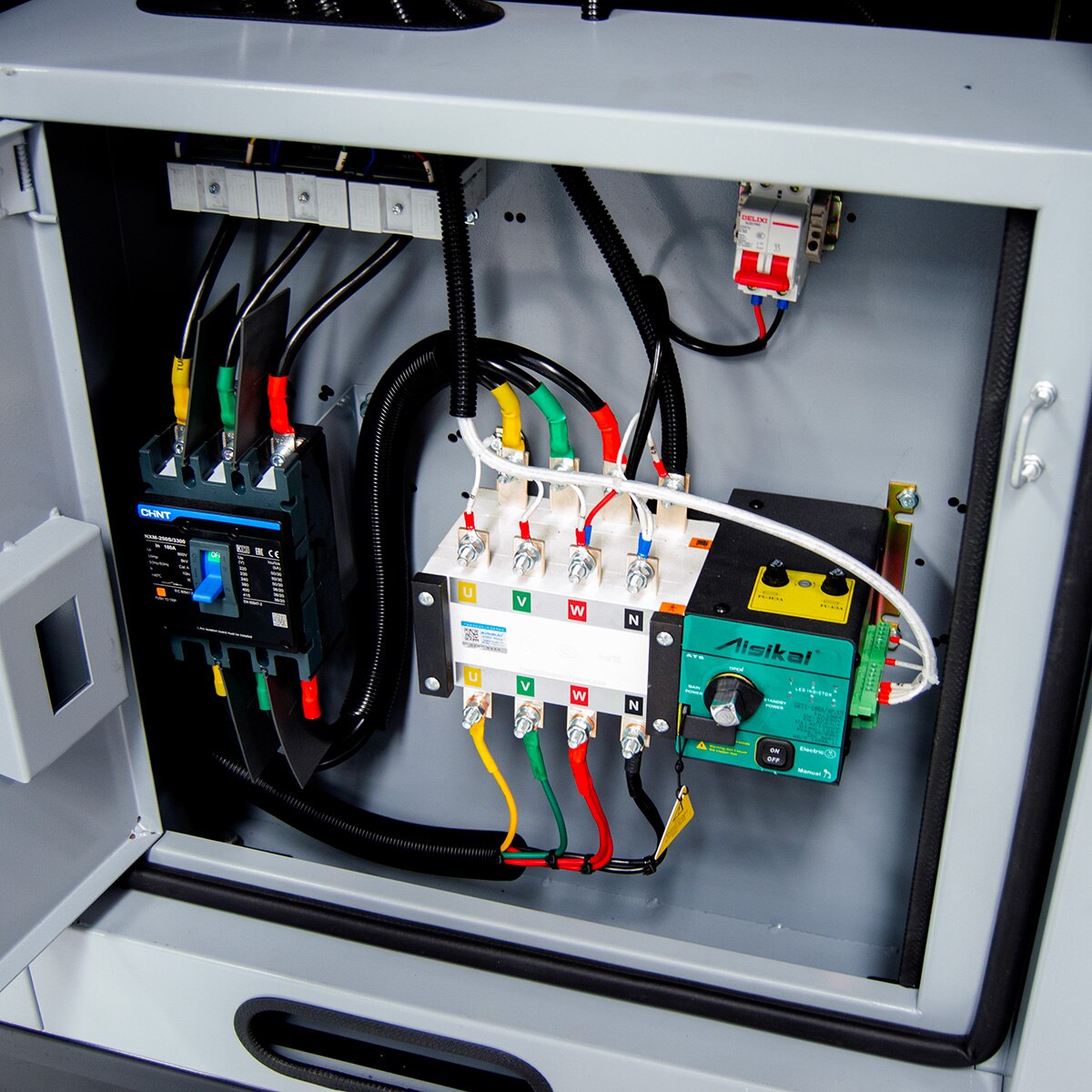

The Triumph Pro-Gen 110KVA generator is equipped with a low oil level shut down system to prevent any unwanted damage to the generator. With an impressive 550-litre capacity fuel tank, the machine will operate for approximately 24 hours @ 1/2 power, allowing you to 'fill and forget' for a typical working day. This generator has an integrated Automatic Transfer Switch (ATS) that senses a power cut and automatically starts the generator. Once power has been restored, the ATS will again, automatically switch back to mains power. The Triumph Pro-Gen 110KVA is the perfect generating set for reliable performance and durability in business and industrial settings.
COLLECTION ONLY - Mansfield, NG18 4TF
// Low Oil Level Shutdown

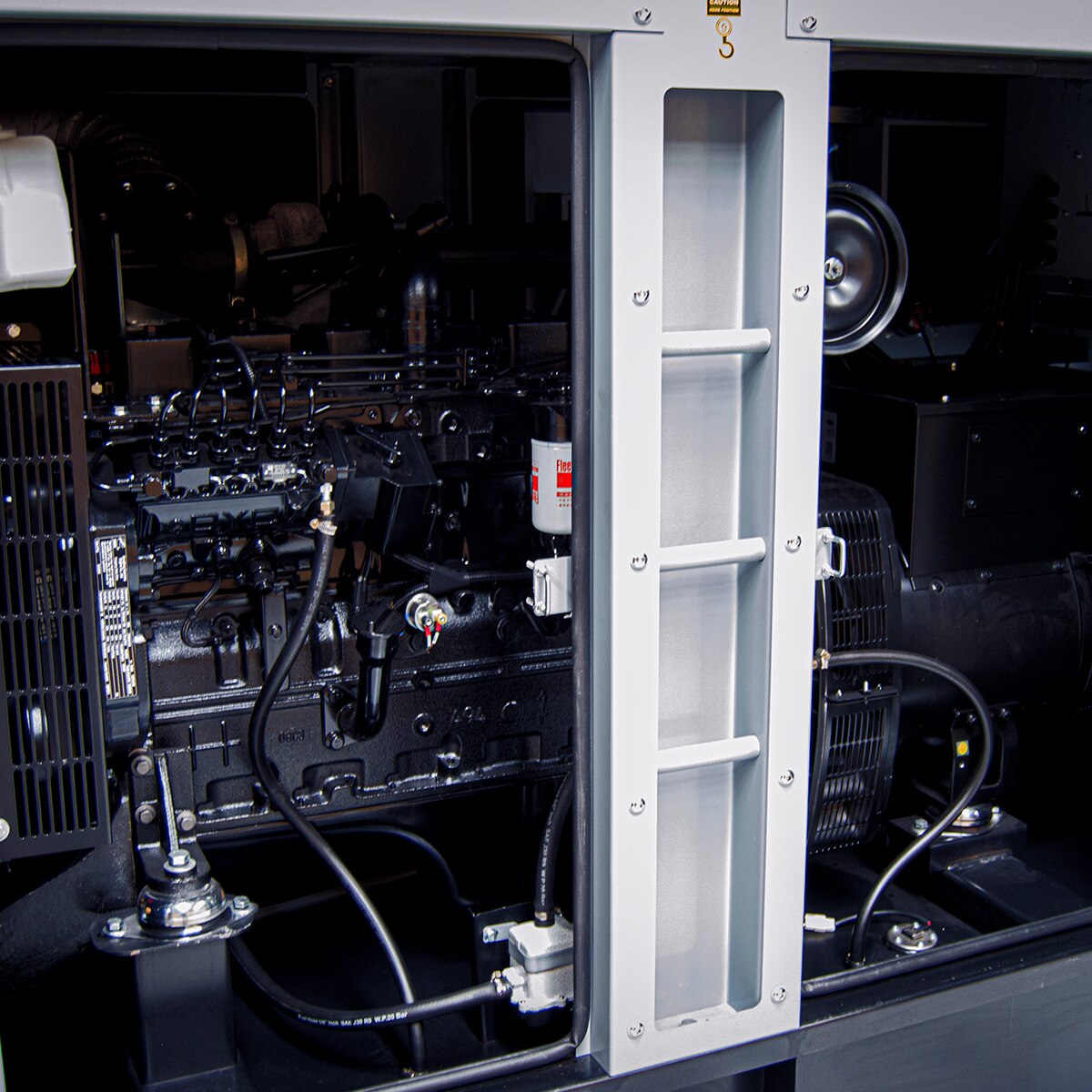

// Powerful Cummins 4-Stroke Diesel Engine
// Impressive 550L capacity "24 Hour" around the clock fuel tank
// Designed for regular use or emergency standby
// Ideal for factories, schools, hospitals, and industry alike

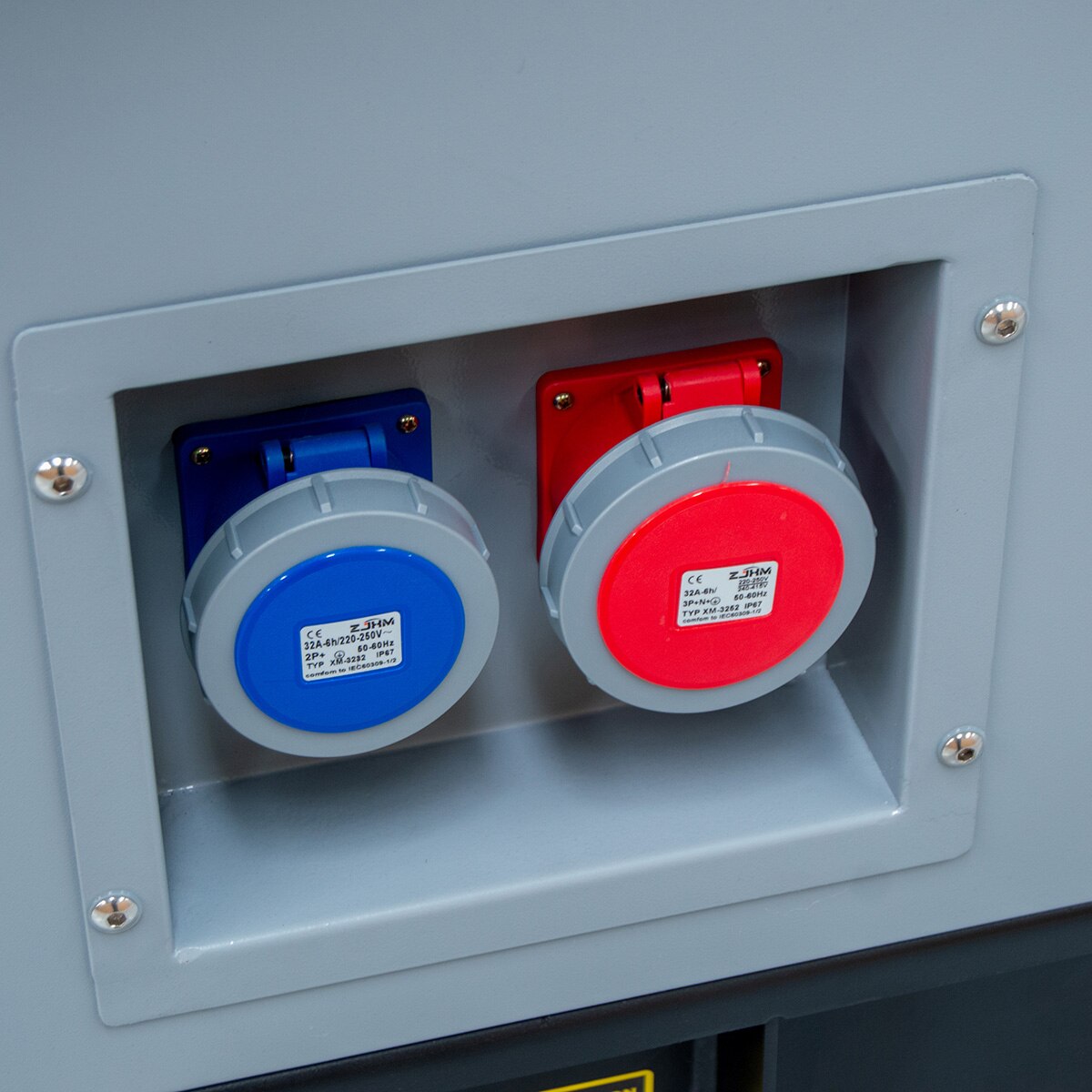

// 1 x 230V 32Amp & 1 x 415V 32Amp Sockets
// Leroy-Somer heavy-duty alternator for quality, reliability and durability
// Electric Push Start Ignition
// Suitable for use with Bio Diesel
// 6 months and 12 months service kits available
COLLECTION ONLY - Mansfield, NG18 4TF
Specification
Specification
|

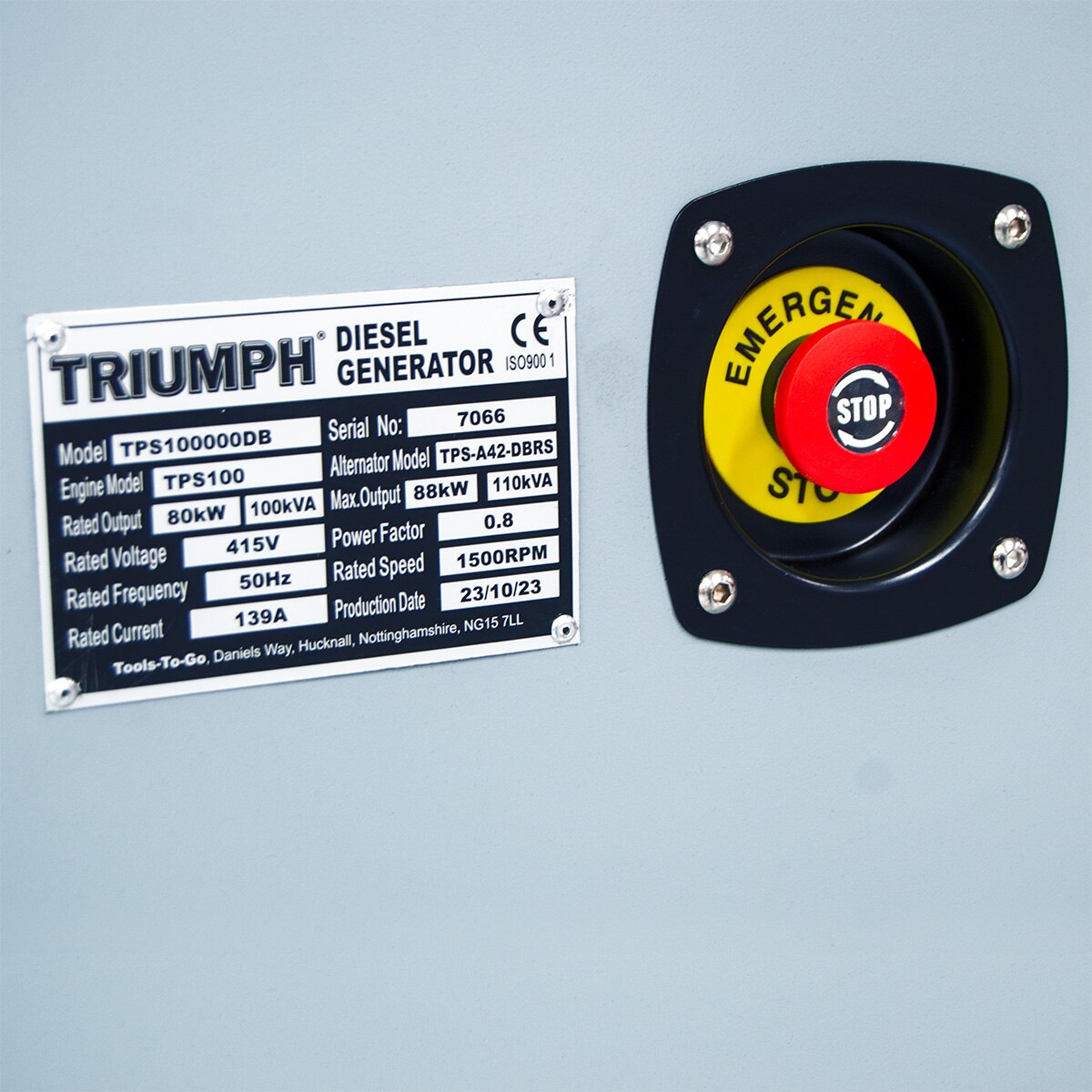

Generator Style: Emergency Standby |

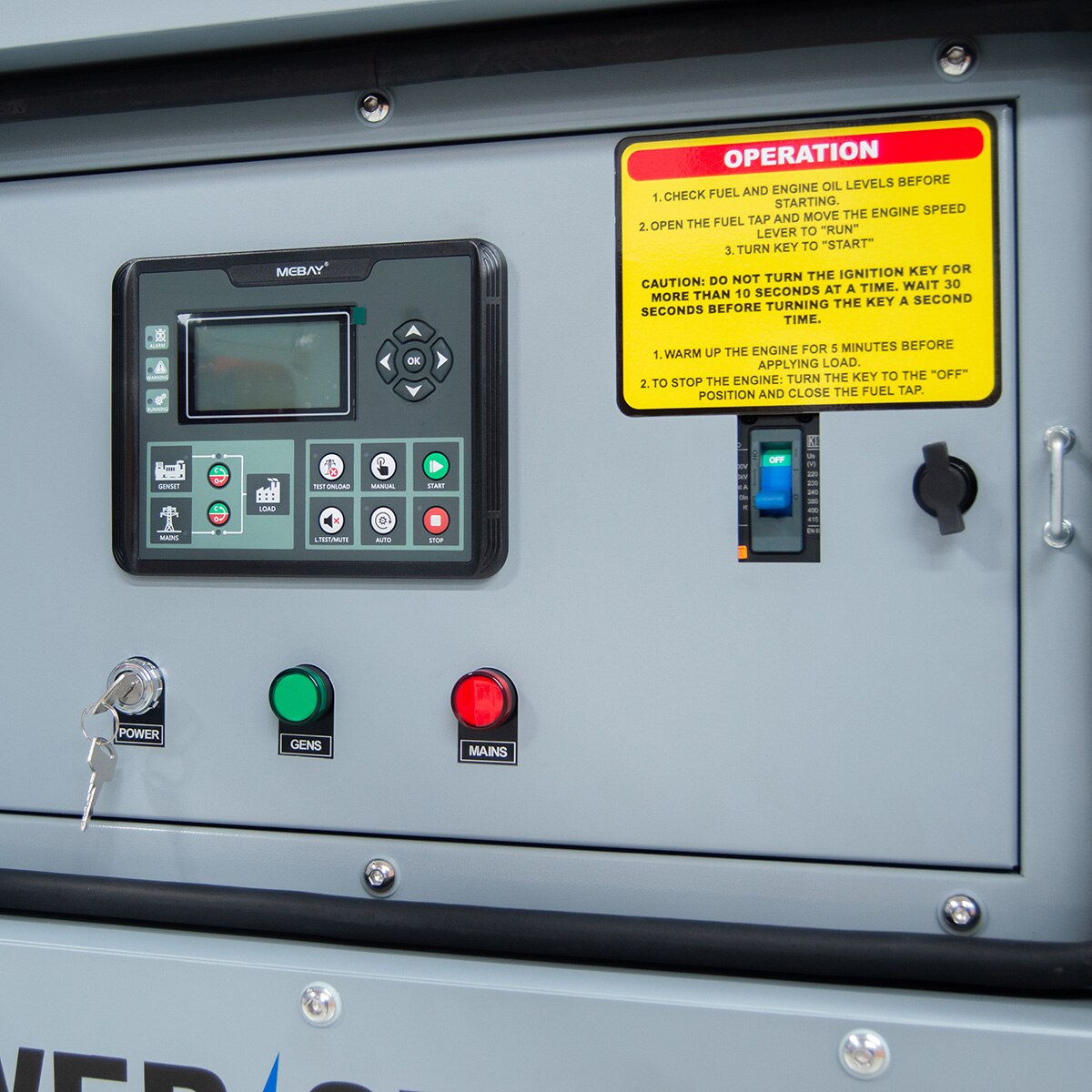

Generator Operation: Fully Automatic (with ATS) |
|
Maximum Output: 110kVA / 88,000w |
Rated Output: 100kVA / 80,000w |
|
Phase: Three |
Outlets: 230V 32A & 415V 32A |
|
Horse Power: 123HP |
Starting System: Electric Start |
|
Power Source: Diesel |
Engine Type: 4-Stroke |
|
No. of Cylinders: 6 |
Output Voltage: 400V - 415V |
|
Frequency: 50Hz |
Rated Current: 139A |
|
Rated Speed: 1500rpm |
Power Factor: 0.8 |
|
Cooling System: Water Cooled |
Run Time @ Half Load: 24 Hours |
|

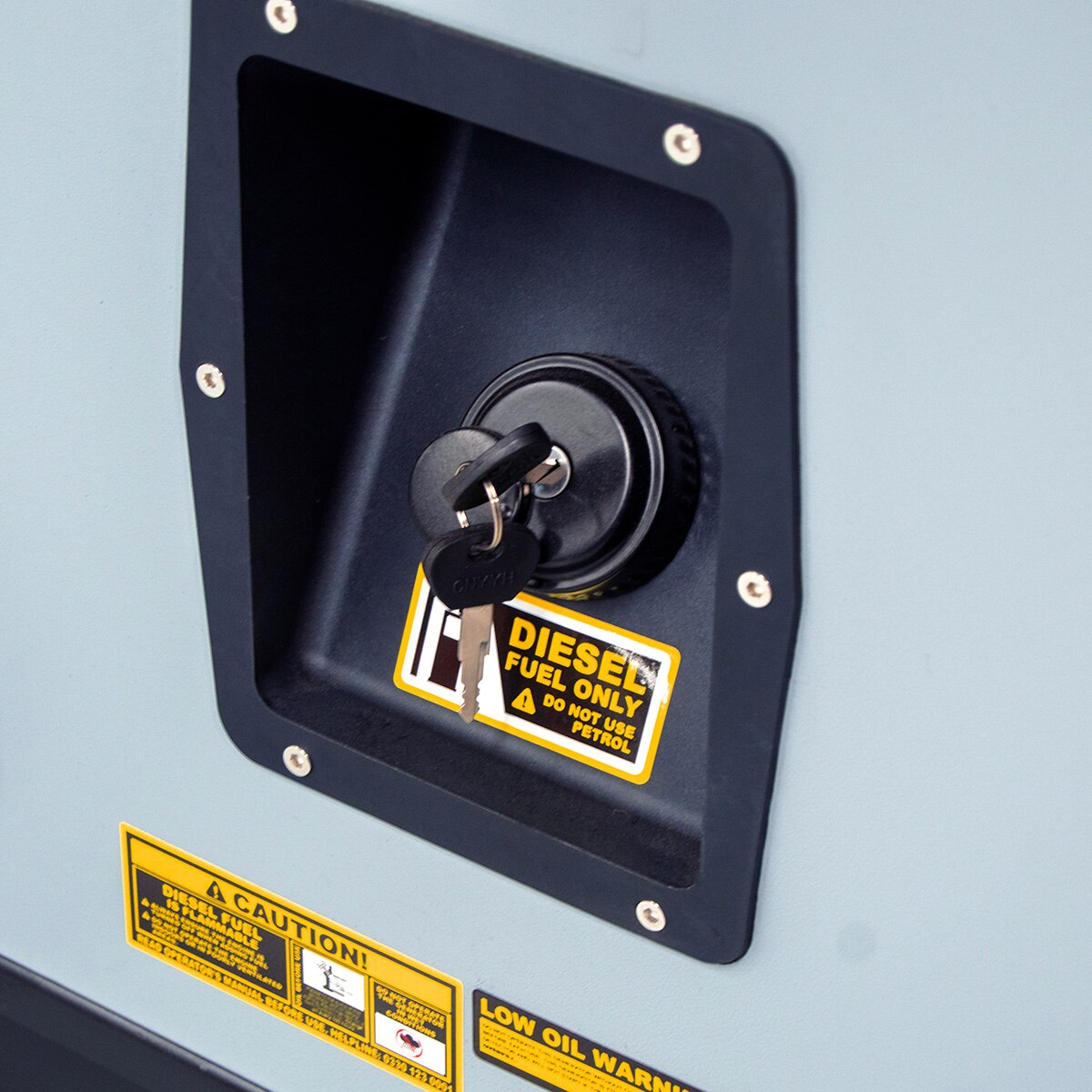

Fuel Tank Capacity: 550L |
Recommended Oil Type: Semi Synthetic |
|
Oil Sump Capacity: 16.4L |
Low Oil Shutdown: Yes |
|
Alternator Model: TPS-A42-DBRS |
ATS Compatible: Yes |
|
Overload Protection: Yes |
Engine Model: TPS100 |
|
Displacement: 5900cc |
Aspiration: Turbocharged |
|
Noise Level: 73 Lwa |
Dimensions (LxWxH): 2880 x 1180 x 1680mm |
|
Weight: 1675Kg |
