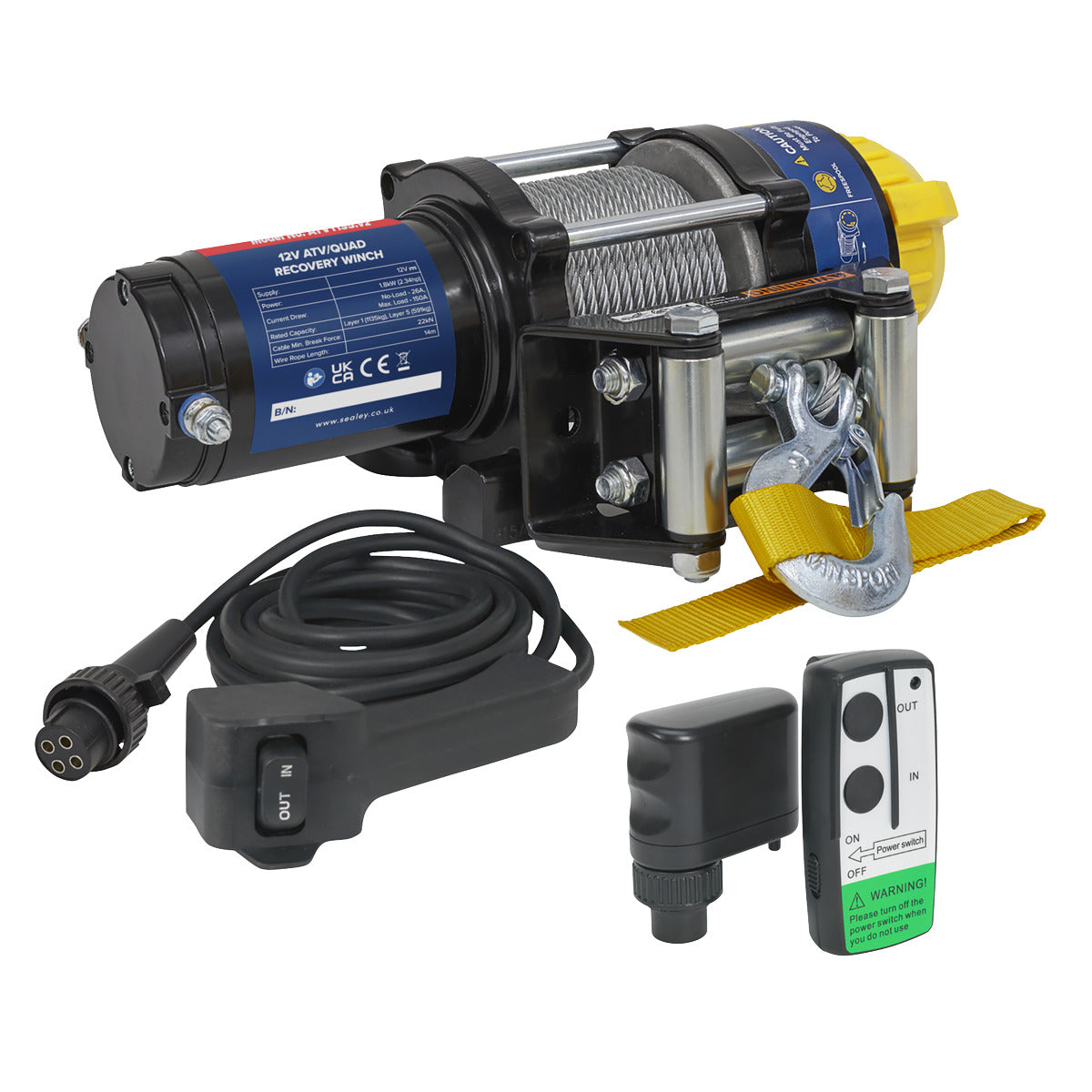

Sealey Wireless Winch ATV1135 Combo Kit ATV1135KIT
Product Code / SKU: 166933
Suitable for ATV and quad bike mounting, this high-speed winch offers a combination of performance with durability. Designed and built with the toughest jobs in mind. High power 12V DC motor with permanent magnet gives first class pulling power. Heavy-duty all-weather housing. 3-Stage planetary gears. Patented unique automatic spring brake, reliable in full load operation. Sliding ring gear clutch. High quality wire rope feeds through 4-way roller fairlead. IP67 rated motor and gearbox.
// Package Includes:
// Model No. - Description

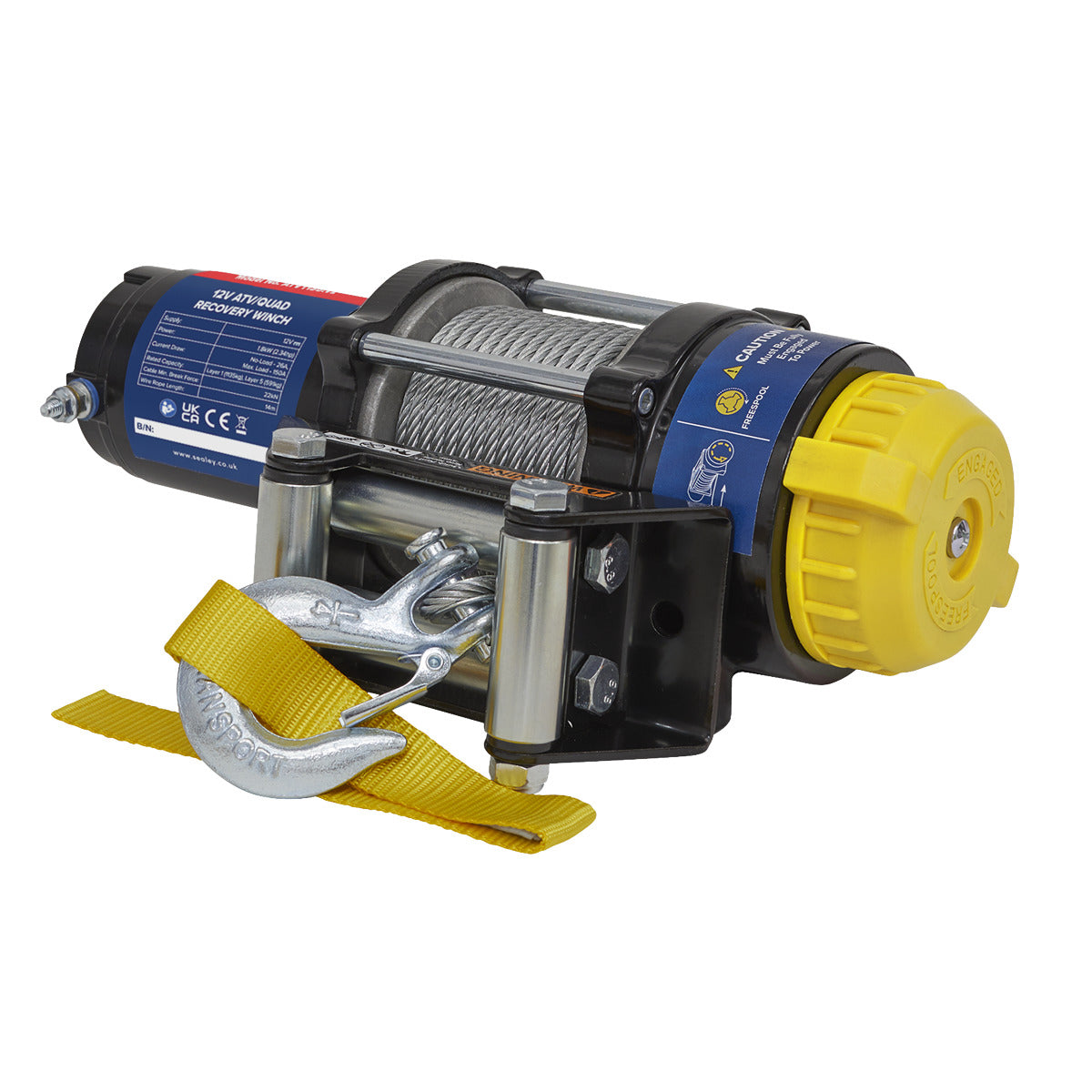

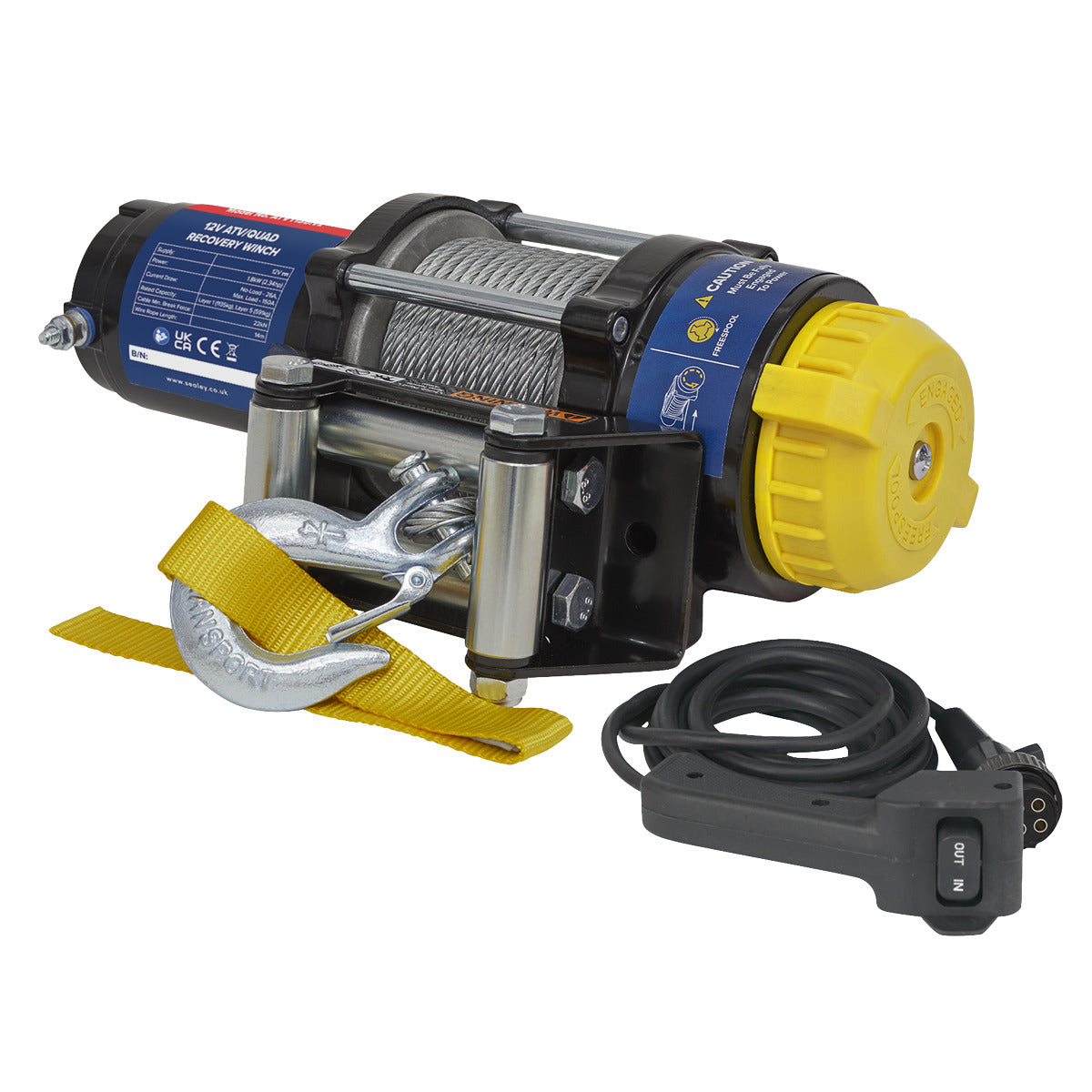

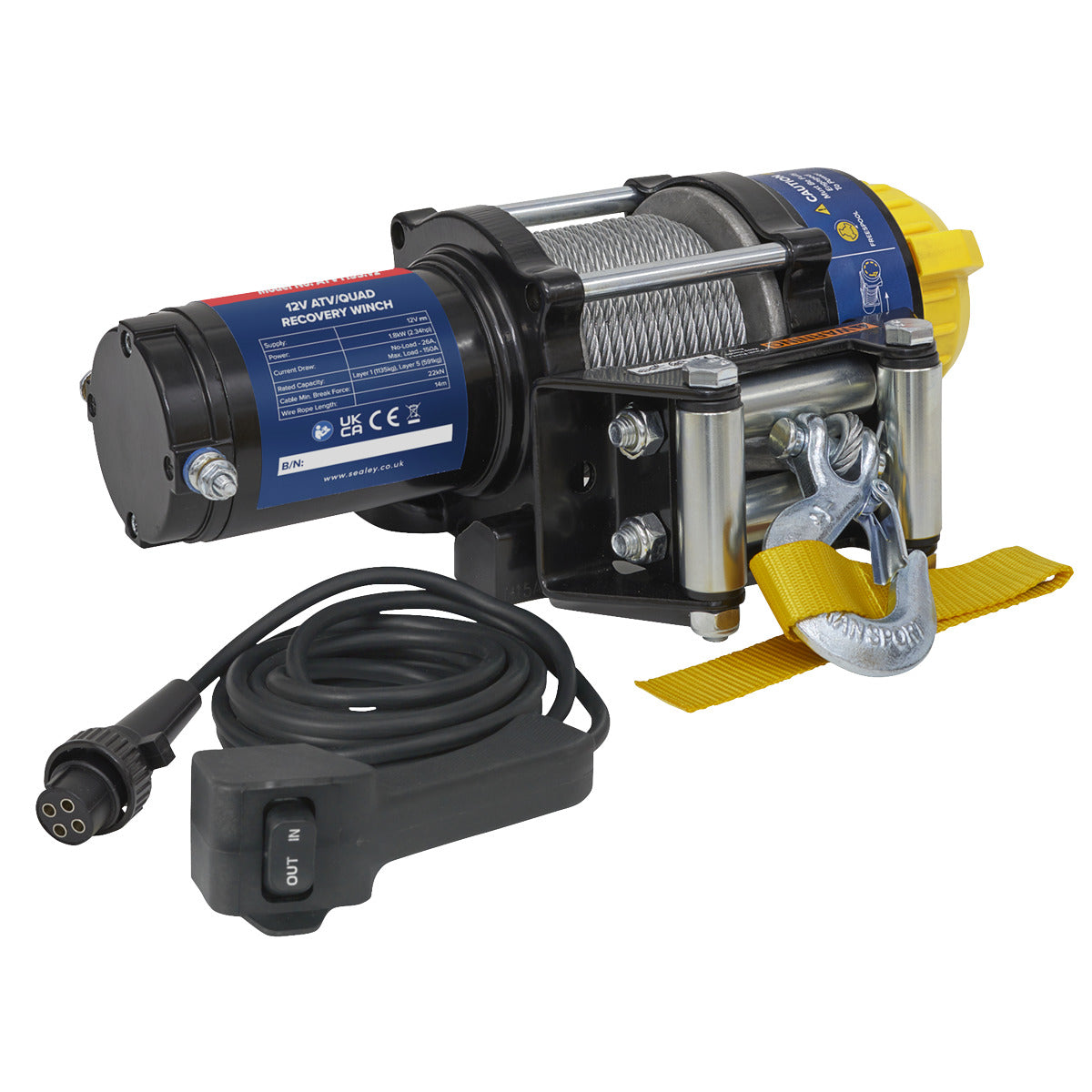

// ATV1135 - 12V ATV/Quad Recovery Winch 1135kg(2500lb) Line Pull

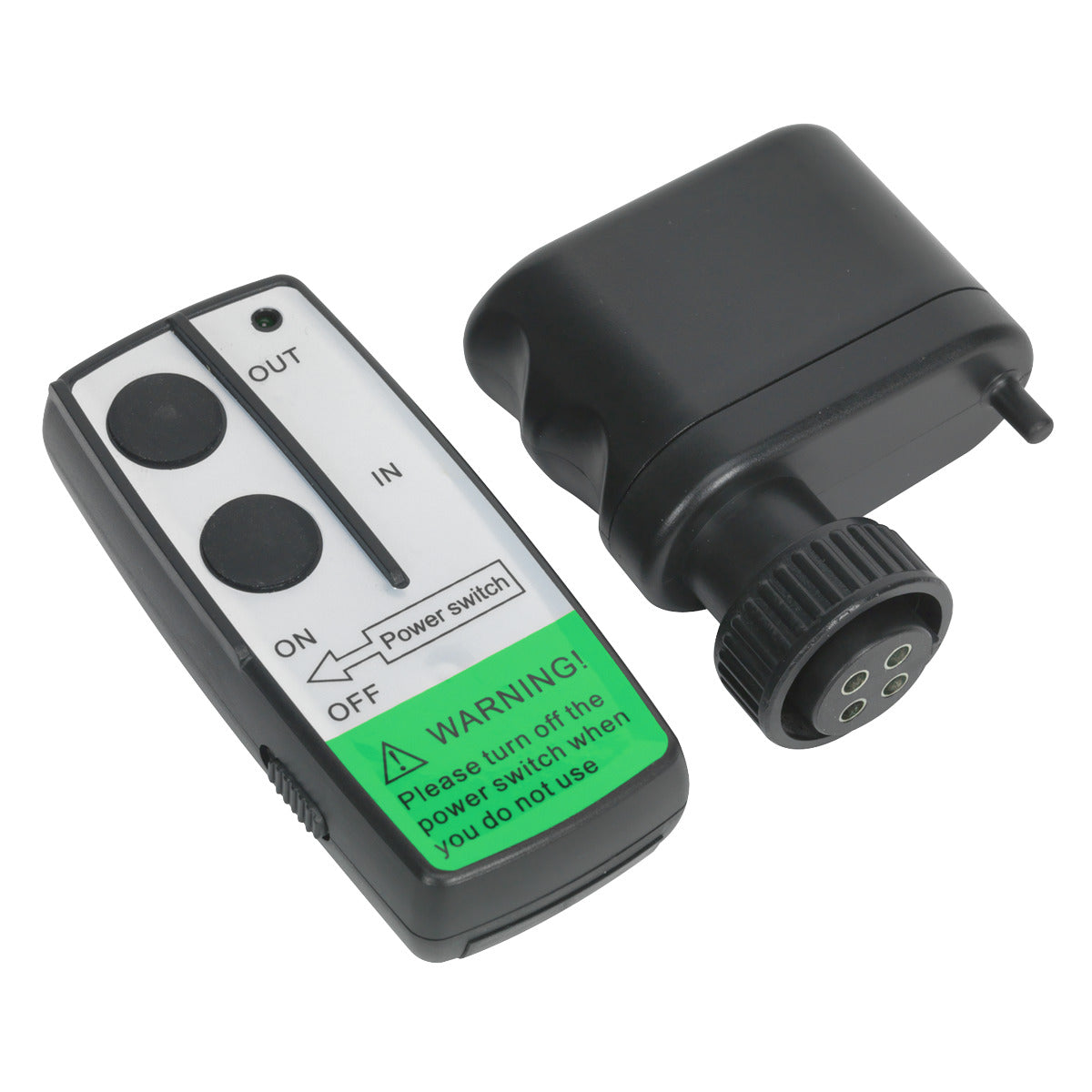

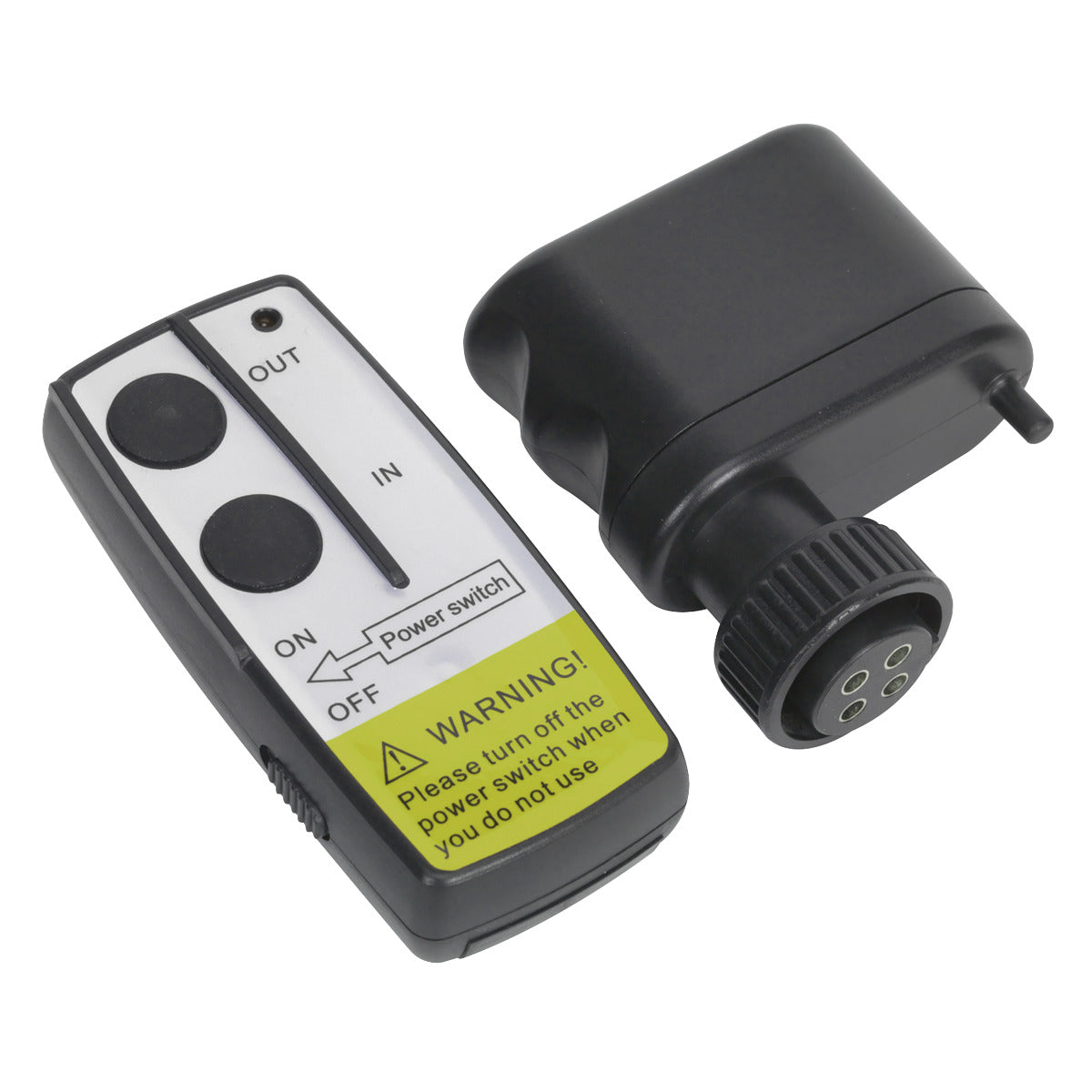

// UWRC01 - 4-Pin Universal Winch Remote Control
// 3 Year guarantee.
// Model No. ATV1135KIT
// Package Includes:
// Model No. - Description
// ATV1135 - 12V ATV/Quad Recovery Winch 1135kg(2500lb) Line Pull
// UWRC01 - 4-Pin Universal Winch Remote Control
// 3 Year guarantee.
// Model No. ATV1135KIT
Specification
Specification
| Model No: ATV1135KIT |
Brand:: Sealey |
| Cable Minimum Brake Force:: 22kN |
Consumable Parts:: ATV1135.WR - Wire Rope (Ø4.8mm x 15.2m) for ATV1135, ATV1135.DR - Dyneema Rope (Ø4.9mm x 15.2m) for ATV1135 |
| Current Draw:: No-Load - 26A, Maximum Load - 150A |
Gear Ratio:: 180:1 |
| Line Pull:: 1135kg(2500lb) |
Line Speed:: No-Load - 4.8m/min, Maximum Load - 1.6m/min |
| Motor Power:: 1.8kW(2.34hp) |
Nett Weight:: 11.9kg |
| Note:: Performance quoted at first layer of cable on drum |
Rated Capacity:: Layer 1: 1135kg, Layer 5: 591kg |
| Supply:: 12V |
