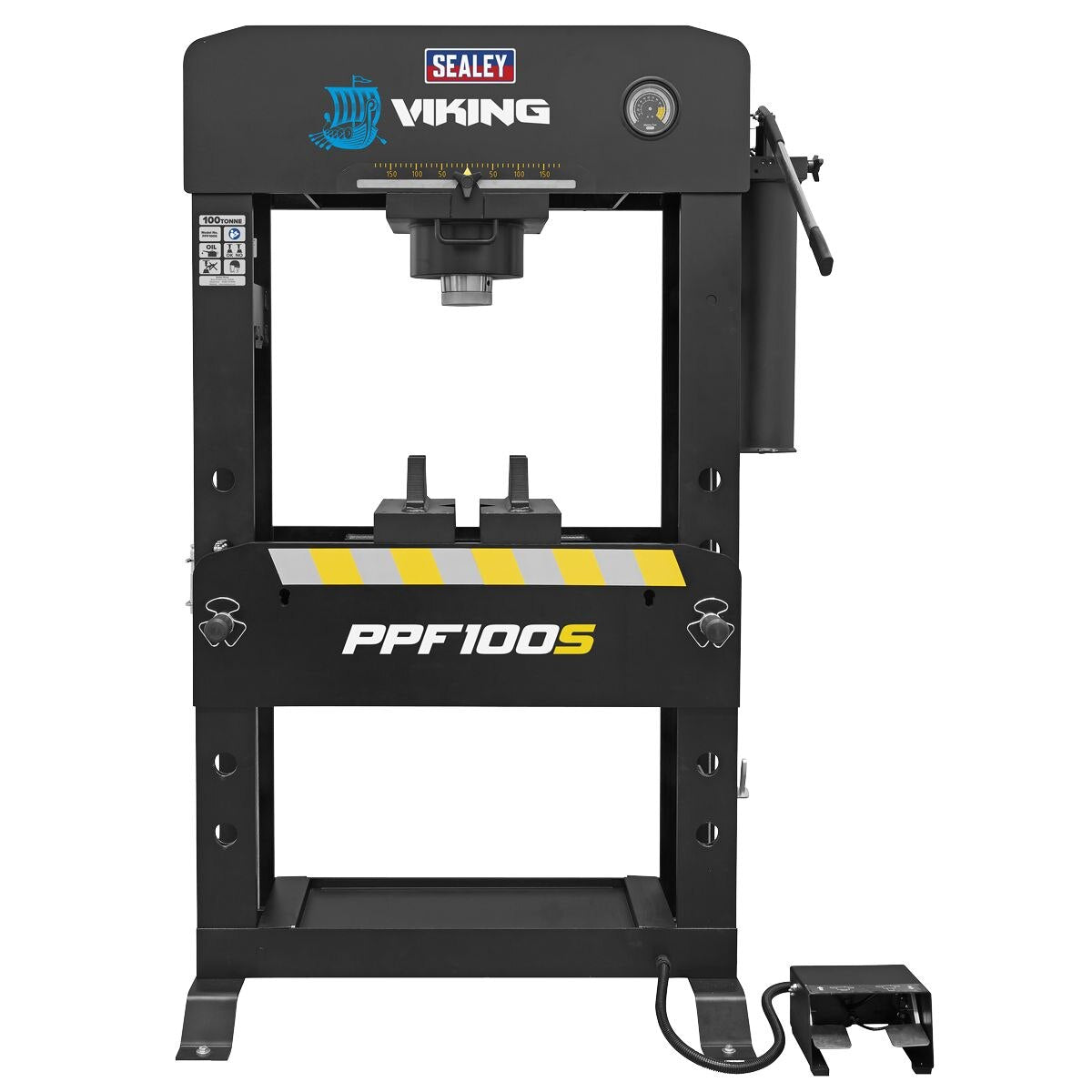

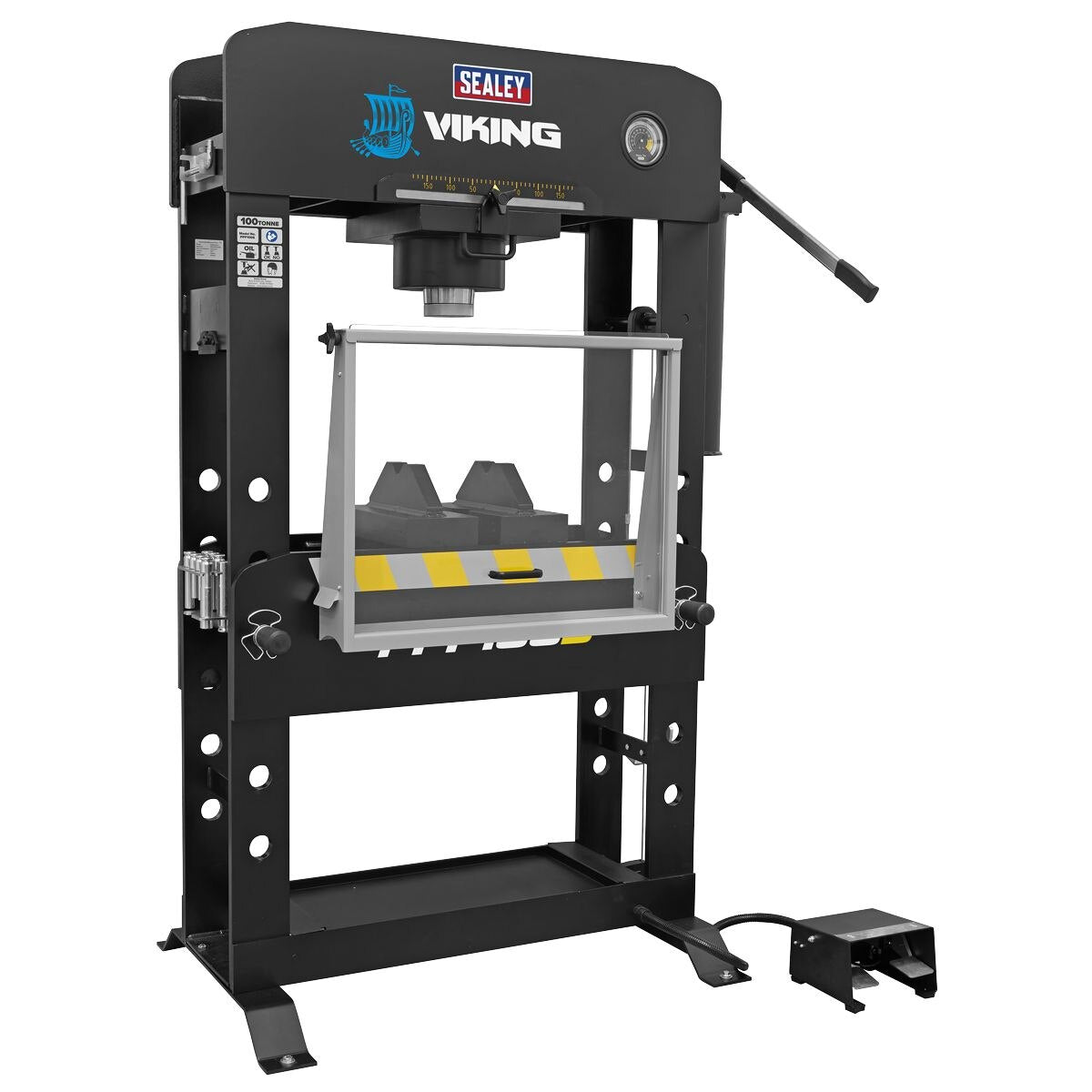

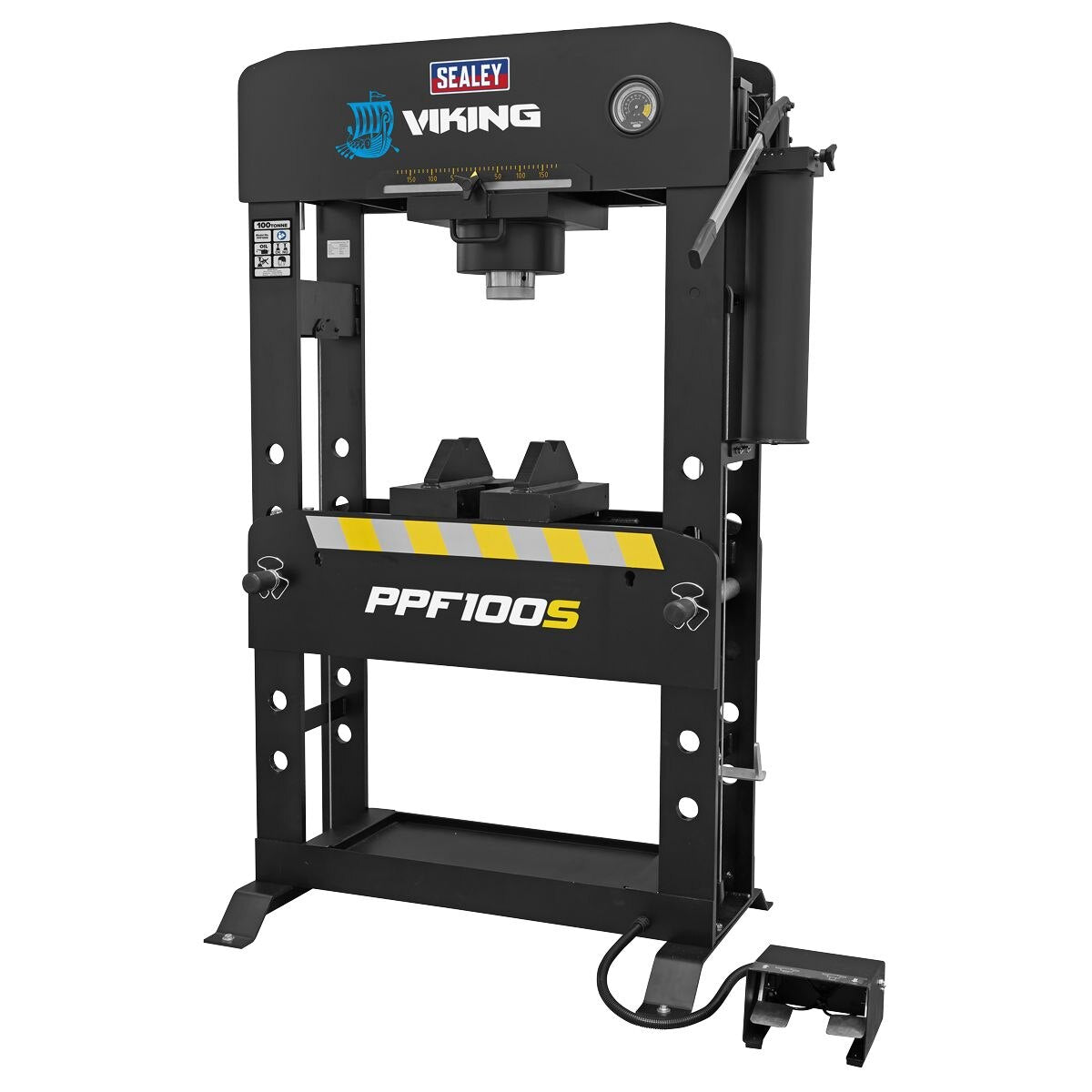

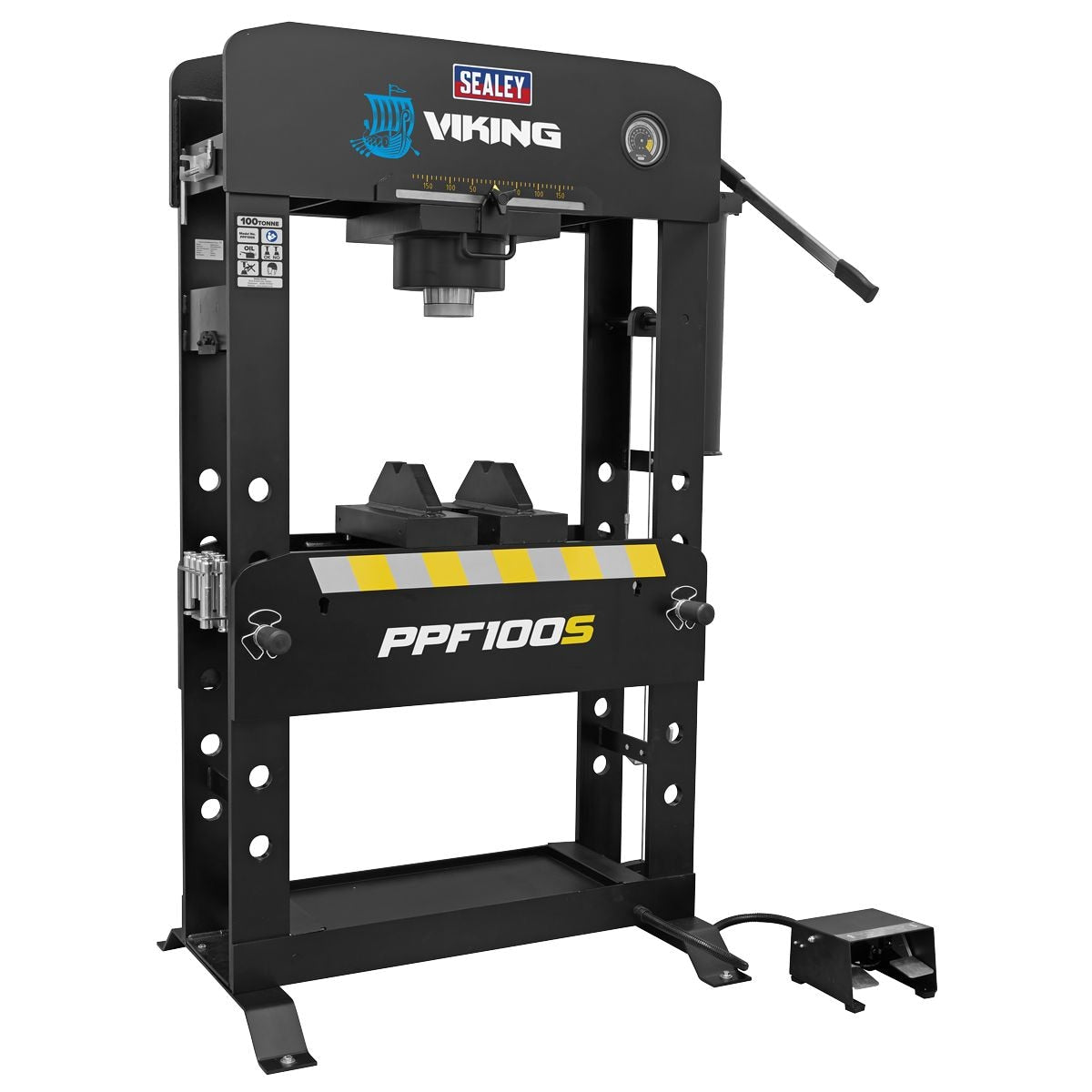

Sealey Viking Floor Type Air/Hydraulic Press with Sliding Ram & Foot Pedal 100 Tonne - PPF100S
Product Code / SKU: 169059

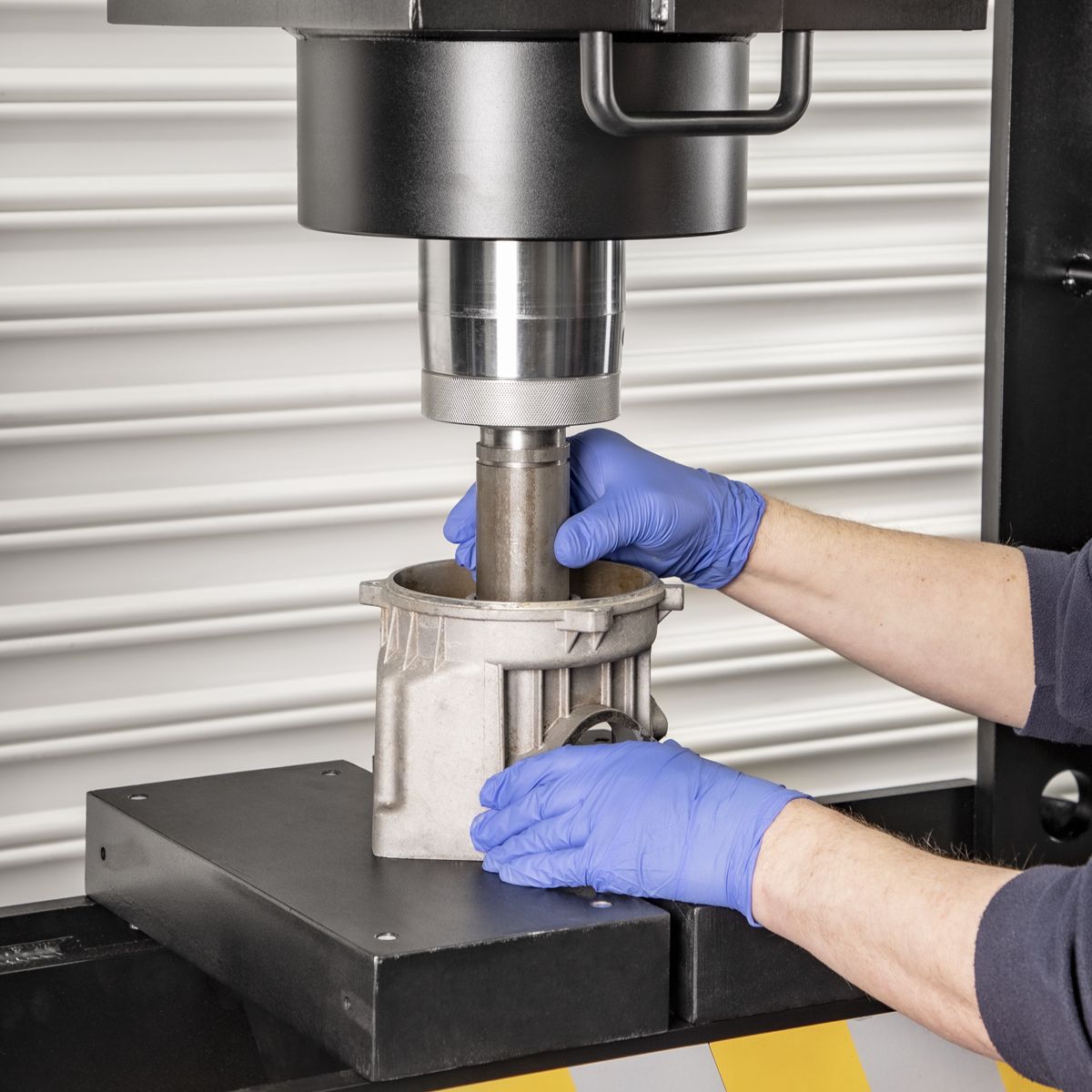

Heavy-duty steel frame construction with integral air motor powering hydraulic pump unit. Adjustable work area with removable tray. Sliding hydraulic ram assembly giving 360mm of lateral travel for off-centre pressing applications. Frame head fitted with ram pressure gauge. Winch assisted press table adjustment. Storage for press pins included in frame (pins not included). Supplied with flat pressing plate/V-blocks. This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
// Table Aperture: 324mm.
// Working Table Width: 1090mm.
// Ram Stroke: 300mm.
// Heavy-duty steel frame construction with integral air motor powering hydraulic pump unit.
// Adjustable work area with removable tray.
// Sliding hydraulic ram assembly giving 360mm of lateral travel for off-centre pressing applications.

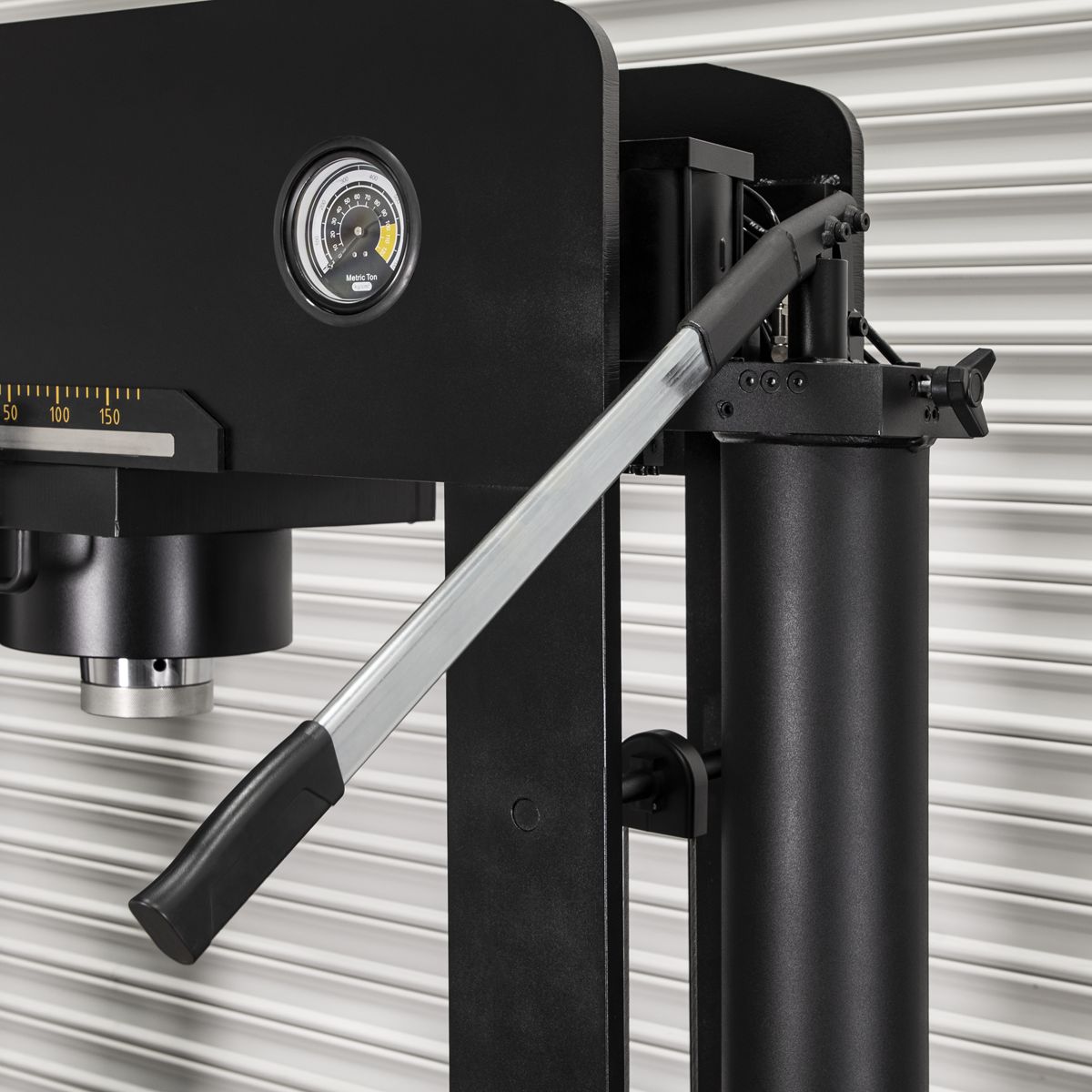

// Frame head fitted with ram pressure gauge.
// Winch assisted press table adjustment.

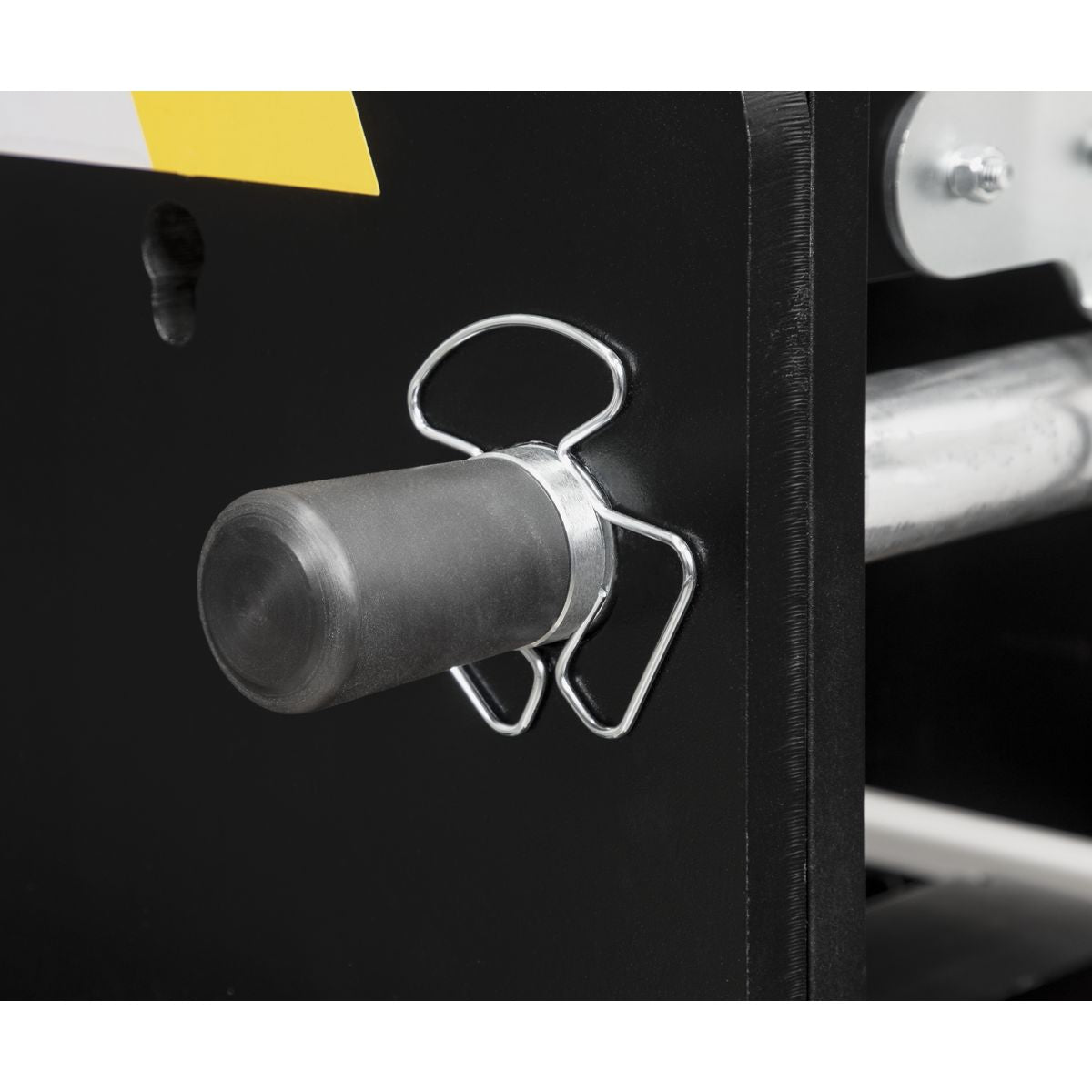

// Storage for press pins included in frame (pins not included).
// Supplied with flat pressing plate/V-blocks.
// This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
// A forklift must be available at the delivery point to unload this item.
// 5 Year guarantee.
// Model No. PPF100S
// Table Aperture: 324mm.
// Working Table Width: 1090mm.
// Ram Stroke: 300mm.
// Heavy-duty steel frame construction with integral air motor powering hydraulic pump unit.
// Adjustable work area with removable tray.
// Sliding hydraulic ram assembly giving 360mm of lateral travel for off-centre pressing applications.
// Frame head fitted with ram pressure gauge.
// Winch assisted press table adjustment.
// Storage for press pins included in frame (pins not included).
// Supplied with flat pressing plate/V-blocks.
// This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
// A forklift must be available at the delivery point to unload this item.
// 5 Year guarantee.
// Model No. PPF100S
Specification
Specification
| Model No: PPF100S |
Air Consumption: 6.5cfm |
| Bench or Floor Mounting: Floor |
Brand: Viking |
| Capacity: 100 Tonne |
Gauge Included: Yes |
| Lateral Ram Travel: 360mm |

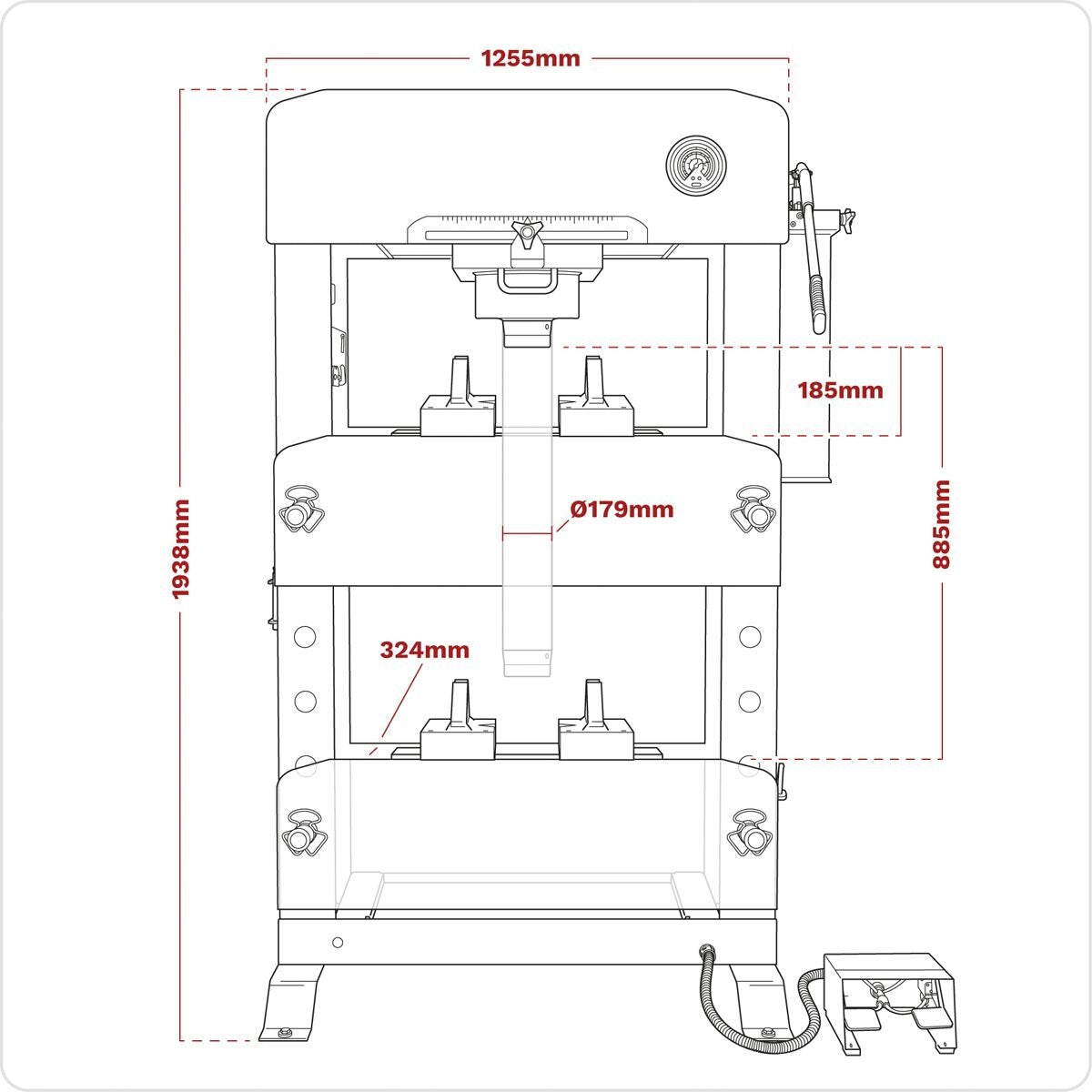

Maximum Height - Ram to Table: 885mm |
| Minimum Height - Ram to Table: 185mm |
Nett Weight: 682kg |
| Operating Table Width: 850mm |
Overall Height: 1938mm |

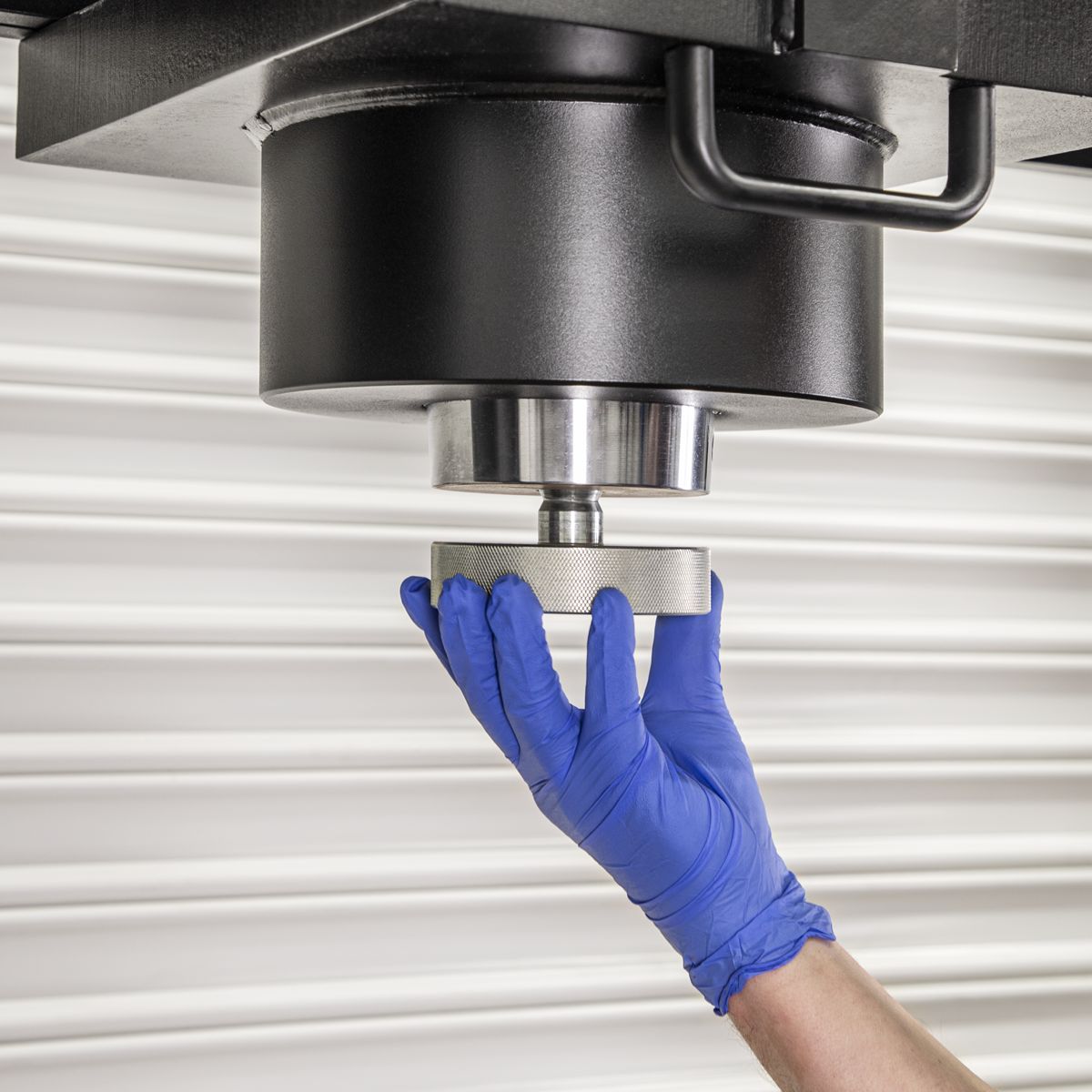

| Ram Diameter: Ø179mm |
Ram Stroke: 300mm |
| Screw Extension: n/a |
Table Aperture: 324mm |
| Type: Air/Hydraulic |
Working Table Depth: 364mm |
| Working Table Width: 1090mm |
