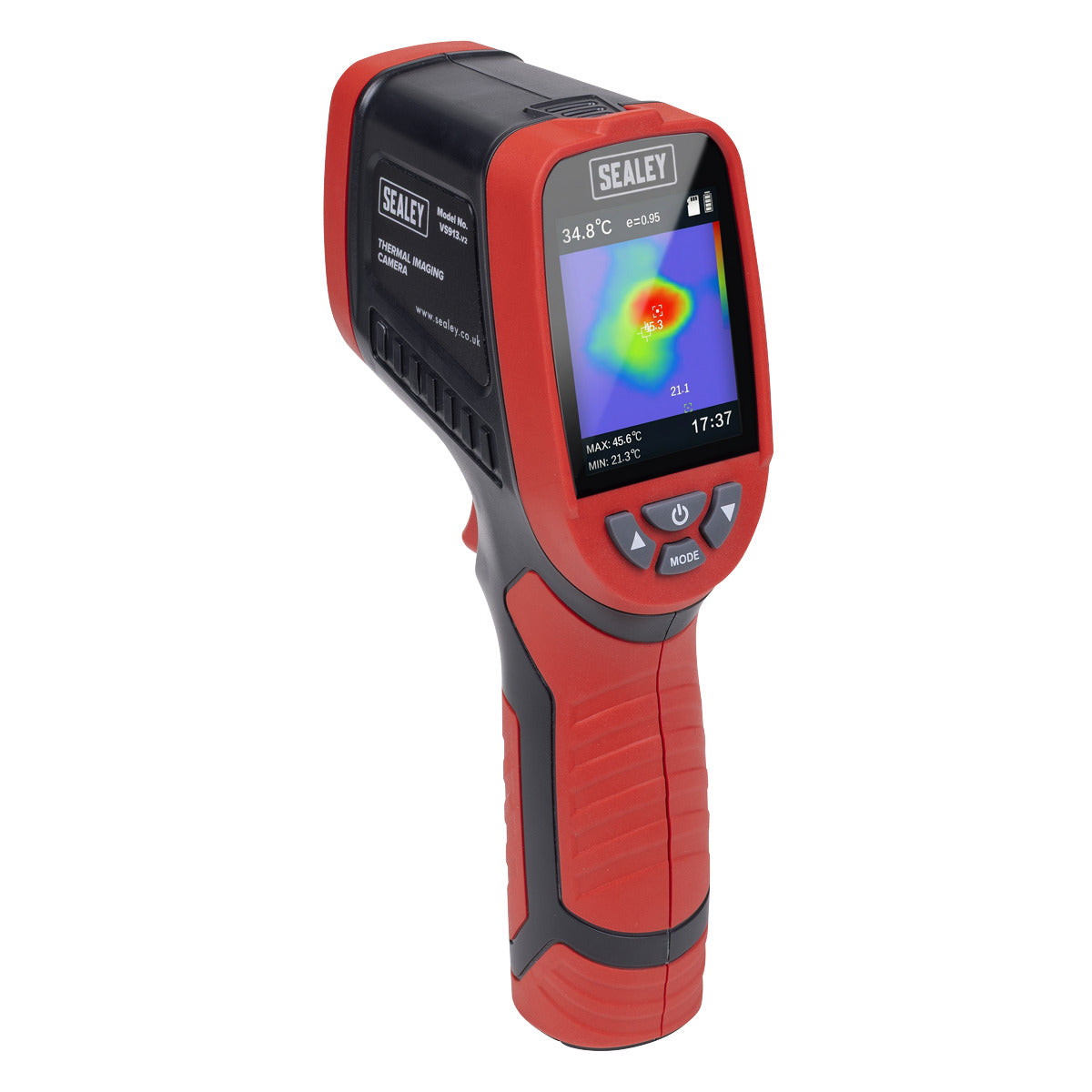

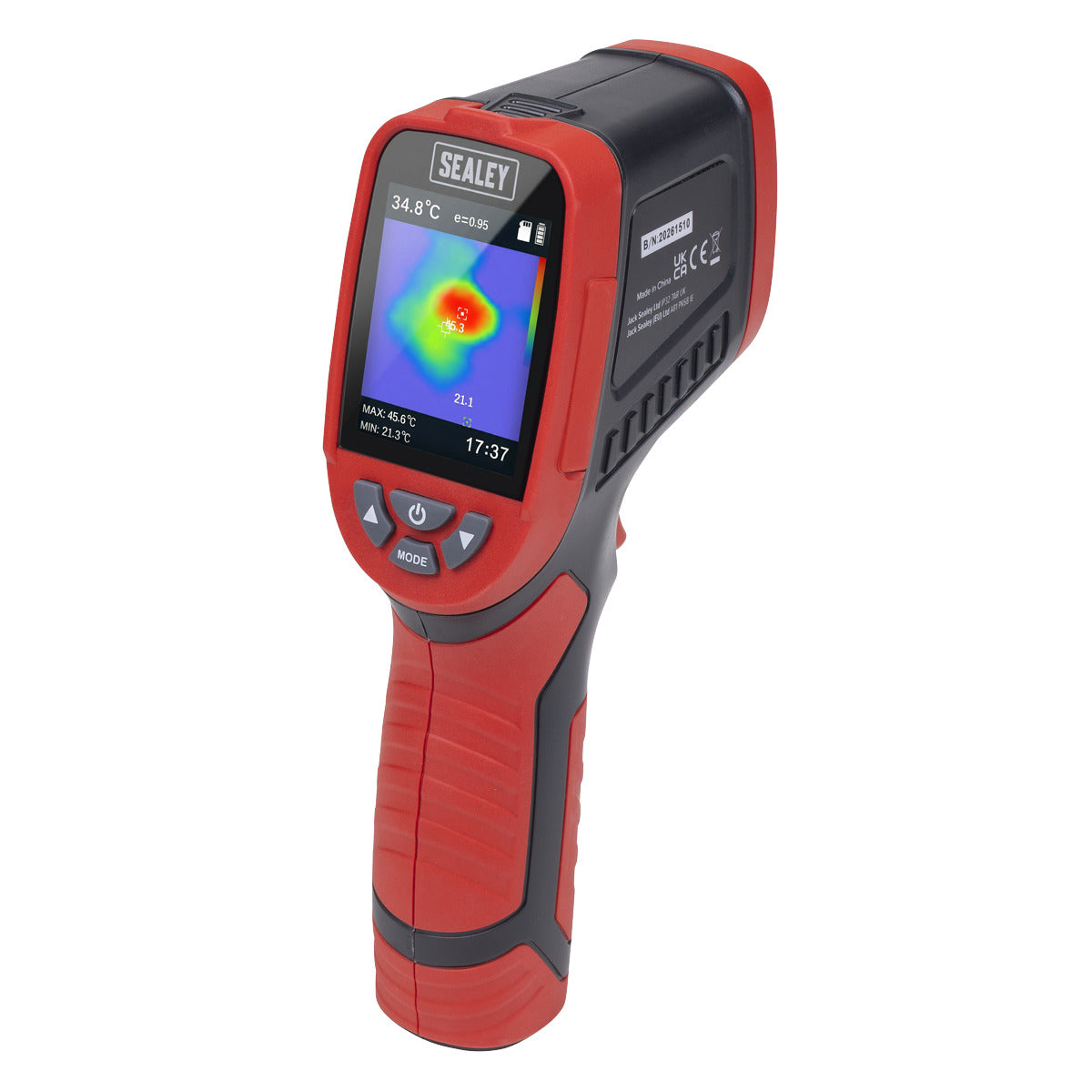

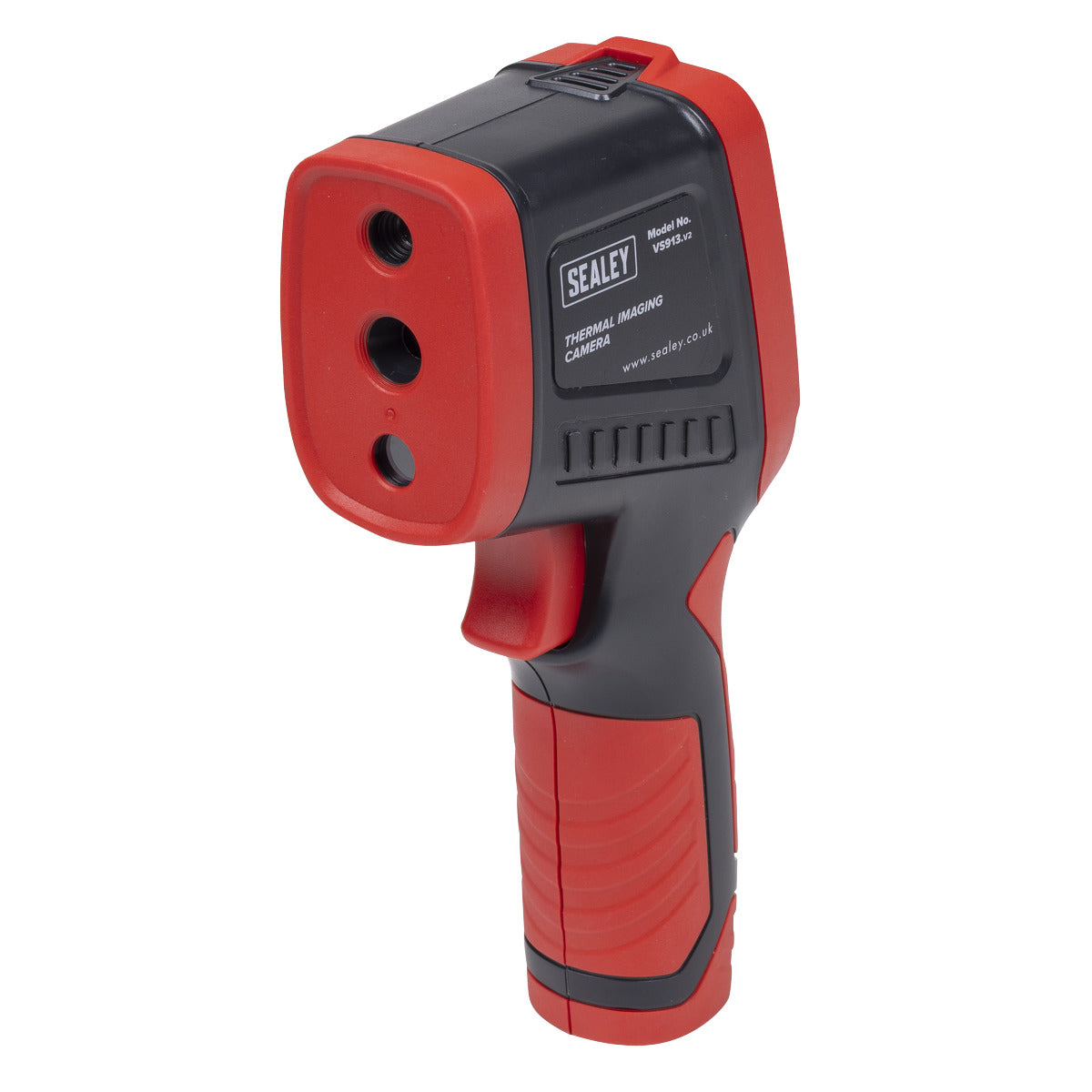

Sealey Thermal Imaging Camera VS913
Product Code / SKU: 171031

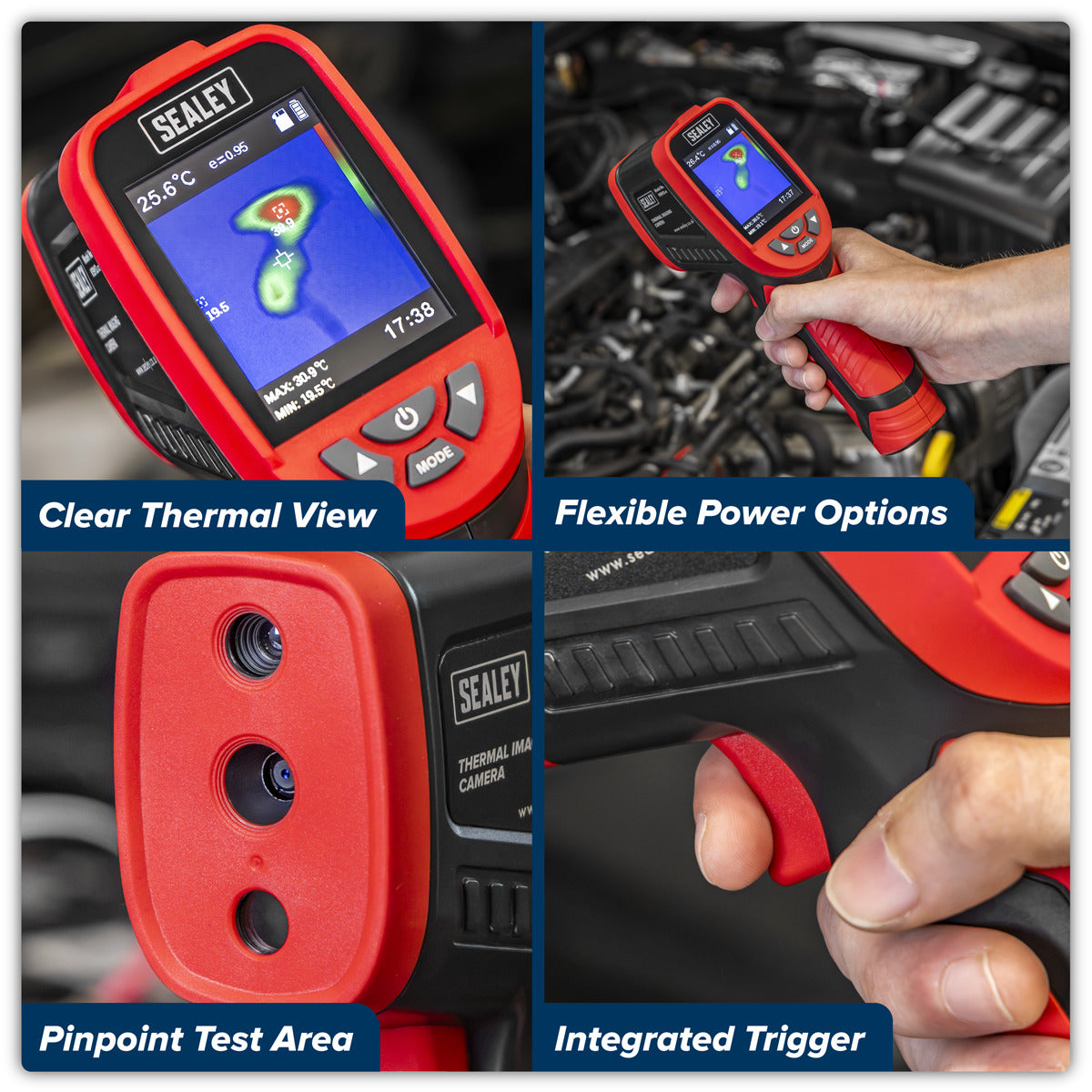

Thermal imaging camera identifies high and low temperature zones with precision. Heat-mapped colour palettes display temperature gradients for fast diagnostics. On-screen cursor pinpoints minimum and maximum temperature variations. Ideal for automotive, building, electrical and HVAC inspections. Clear 60mm screen delivers sharp thermal imaging for accurate diagnostics. Operates via four AA batteries (supplied) or mains power (USB-C cable supplied). Micro SD card enables image and data capture for review and reporting (supplied). Supplied in a storage case.
// Thermal imaging camera identifies high and low temperature zones with precision.

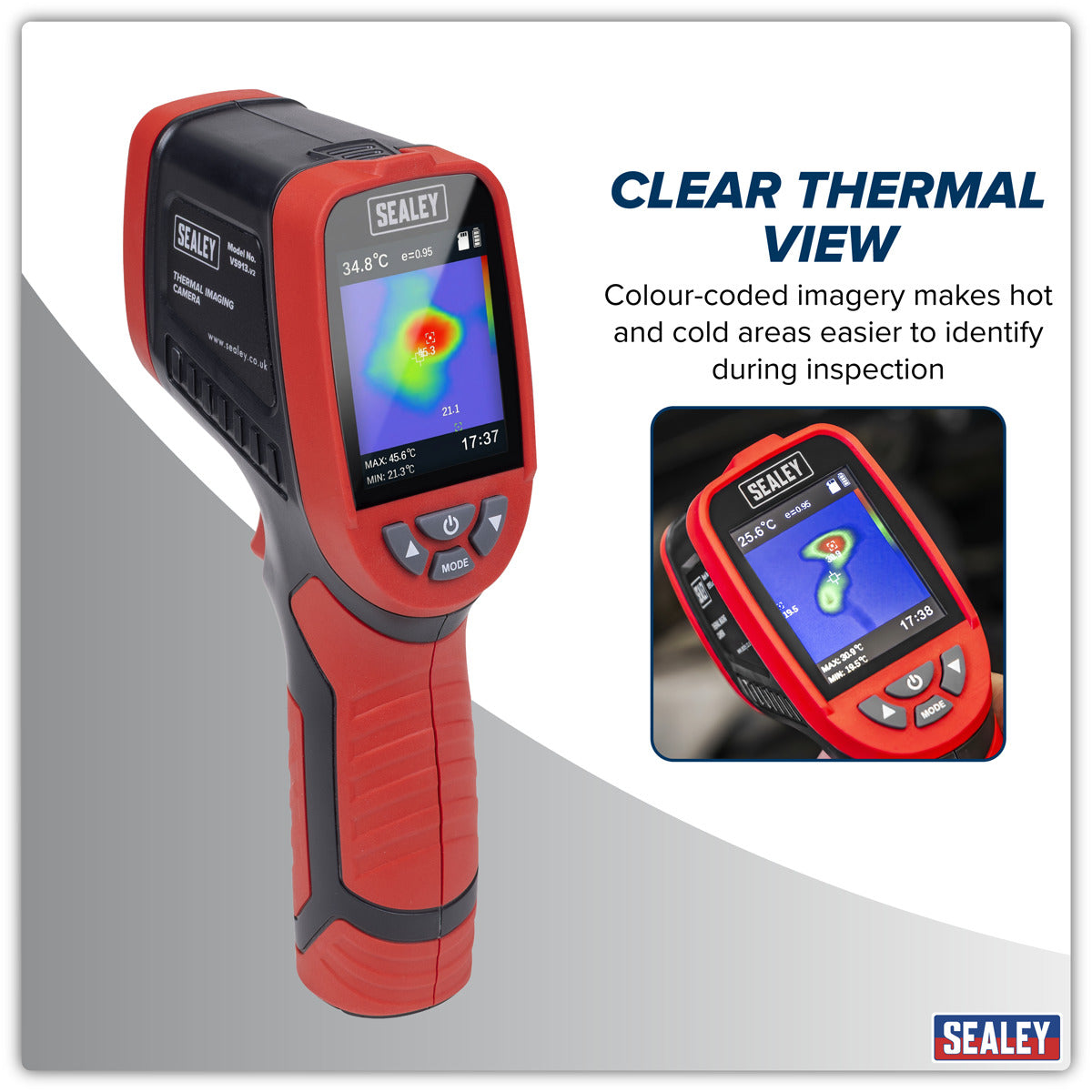

// Heat-mapped colour palettes display temperature gradients for fast diagnostics.

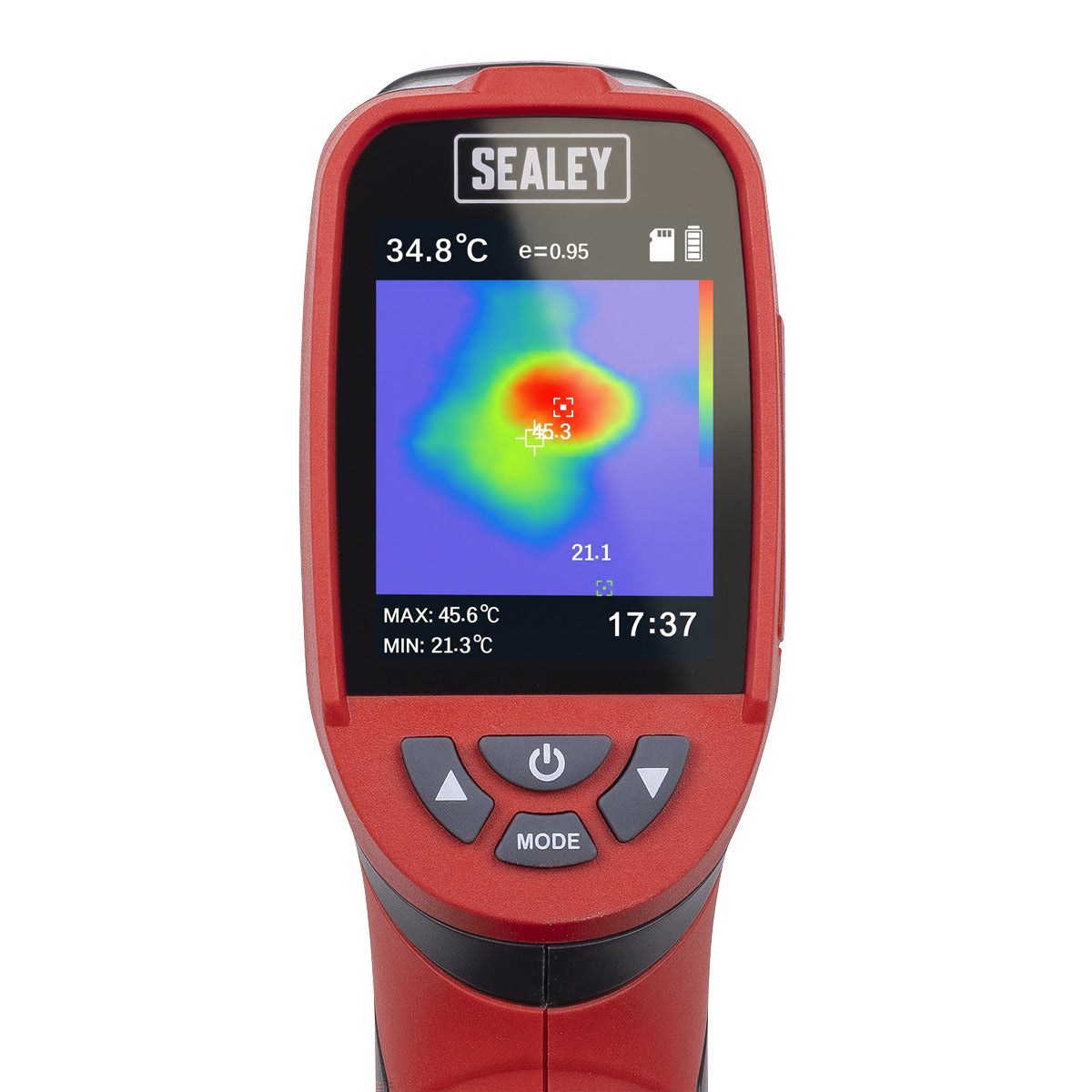

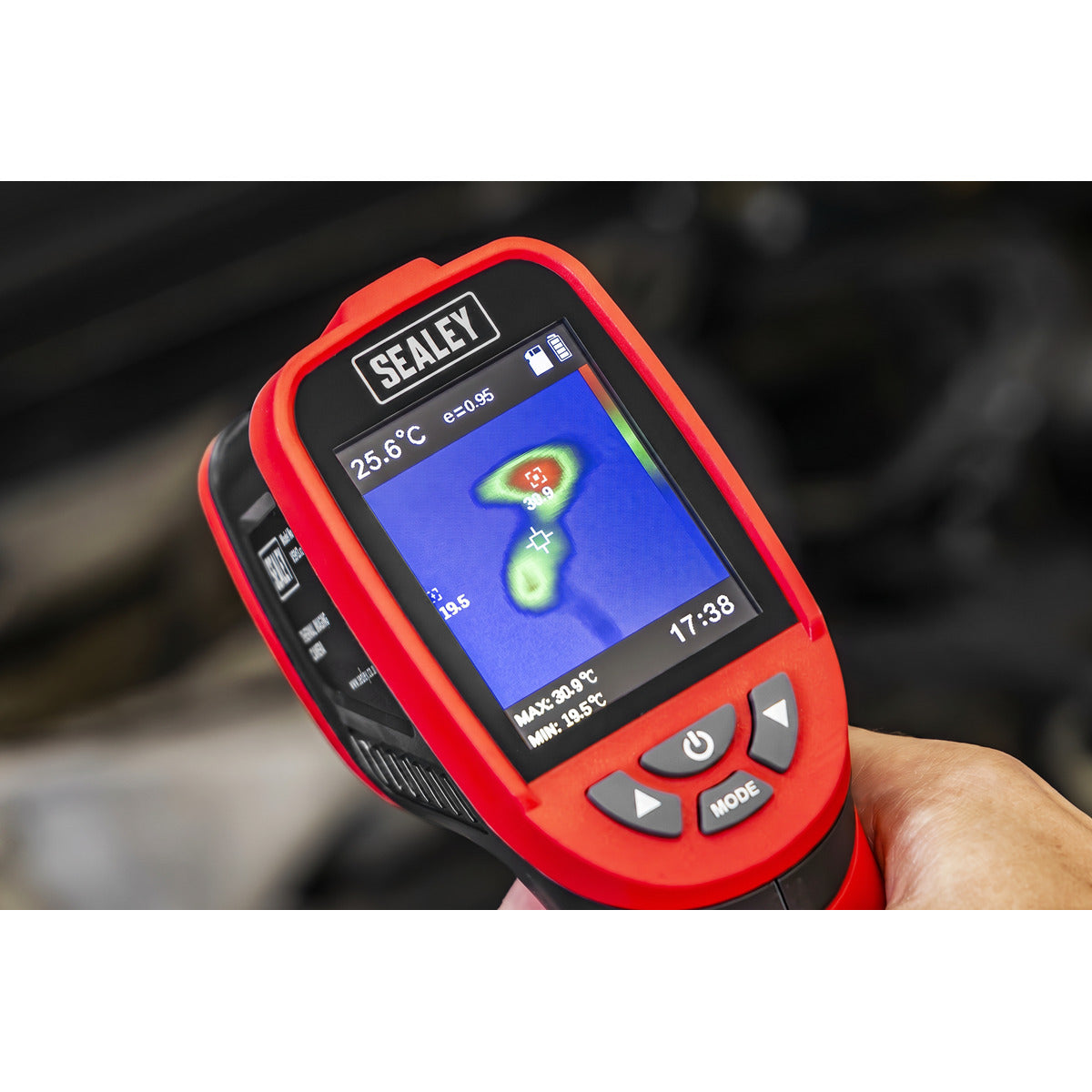

// On-screen cursor pinpoints minimum and maximum temperature variations.

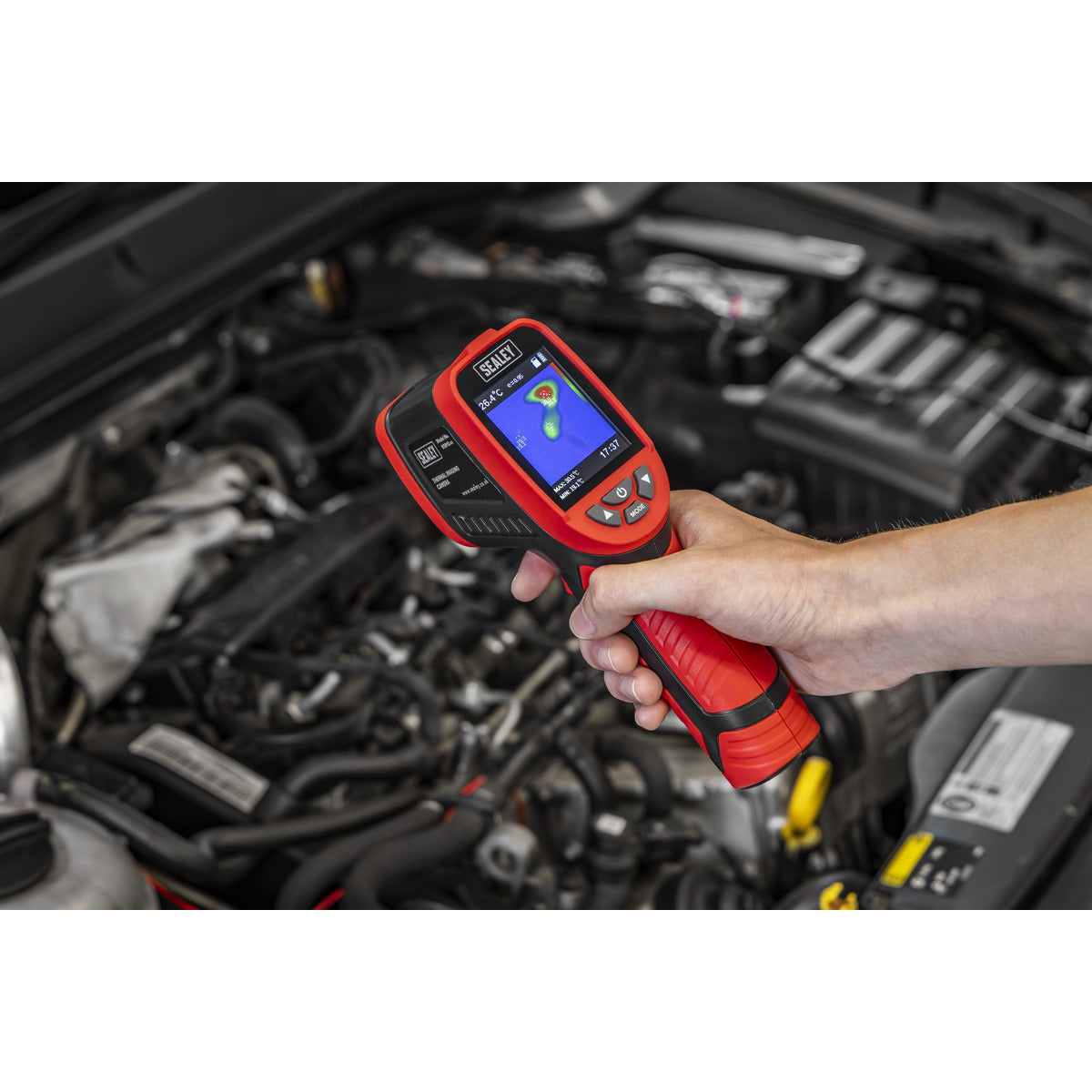

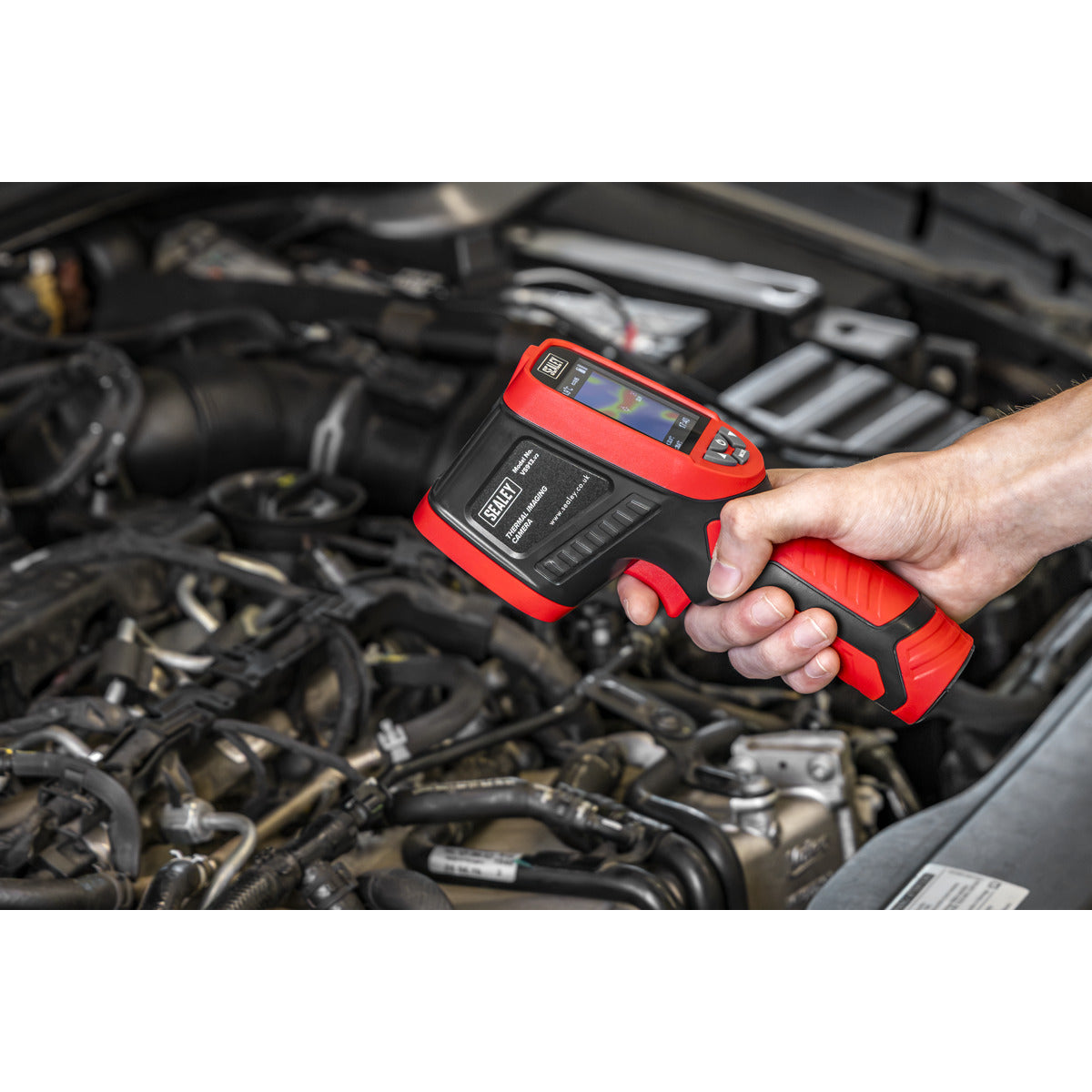

// Ideal for automotive, building, electrical and HVAC inspections.
// Clear 60mm screen delivers sharp thermal imaging for accurate diagnostics.

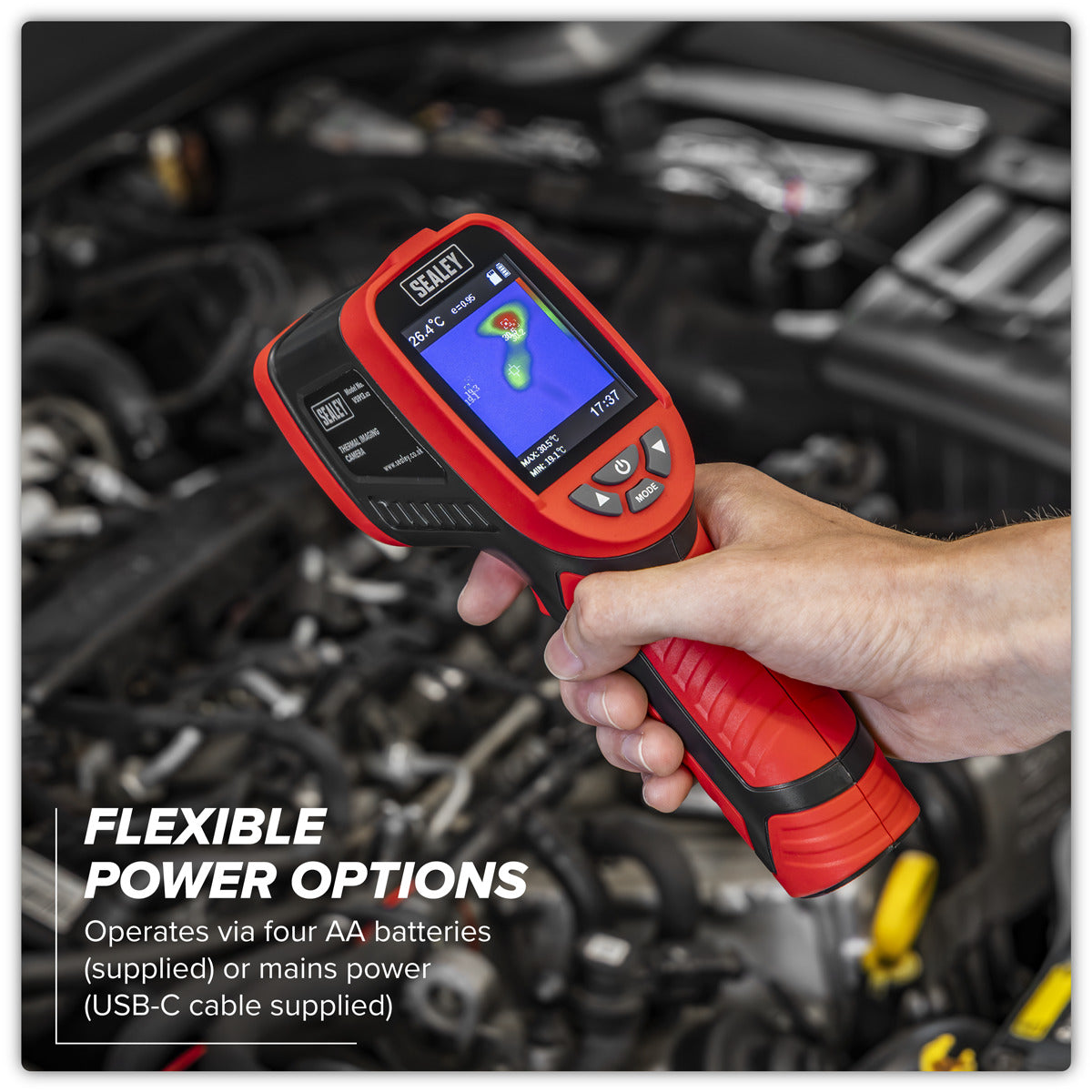

// Operates via four AA batteries (supplied) or mains power (USB-C cable supplied)
// Micro SD card enables image and data capture for review and reporting (supplied).

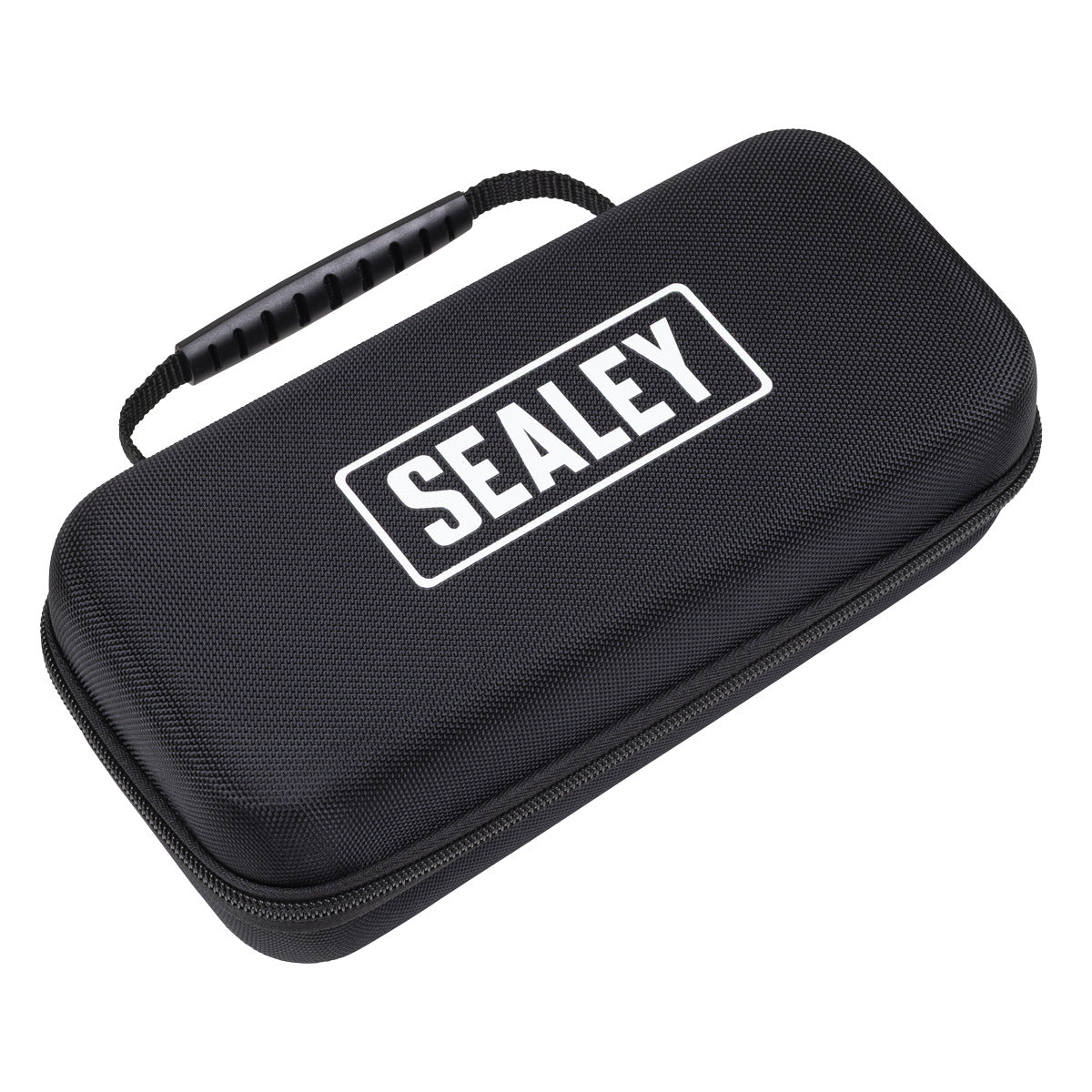

// Supplied in a storage case.
// Model No. VS913
// Thermal imaging camera identifies high and low temperature zones with precision.
// Heat-mapped colour palettes display temperature gradients for fast diagnostics.
// On-screen cursor pinpoints minimum and maximum temperature variations.
// Ideal for automotive, building, electrical and HVAC inspections.
// Clear 60mm screen delivers sharp thermal imaging for accurate diagnostics.
// Operates via four AA batteries (supplied) or mains power (USB-C cable supplied)
// Micro SD card enables image and data capture for review and reporting (supplied).
// Supplied in a storage case.
// Model No. VS913
Specification
Specification
| Model No: VS913 |
Battery Run Time: 12hrs |
| Brand: Sealey |
Colour Palette: Rainbow, Iron Red, Ink Color, Black & White, Ocean Blue |
| Emissivity: 0.1 to 1 Adjustable |
Field of Vision: 32° x 32° |
| Image Mix (Camera to Thermal): 0%, 25%, 50%, 75%, 100% |
Memory Capacity: 8GB SD Memory Card (Supplied) Supporting up to 16GB |
| Nett Weight: 0.32kg |
Power Source: 4 x AA (supplied) |
| Resolution: Infrared Image 33 x 33 (1089 Pixels)-Camera Image 3 Mega Pixels |
Accuracy: >0°C ±2% or reading ±2°C/3.6°F; <0°C; ±3°C/5.4°F |
| Auto-Power-Off: Selectable: 3min/5min/10min |
Display Screen: 60mm TFT Colour Display |
| File Format: BMP |
Focus Mode: Fixed |
| Image Capture Frequency: 9Hz |
Storage: 8g Standard 8GB MIcro SD card, supporting up to 16GB |
| Storage Conditions: -30°C to 60°C/-22°F to 140°F; 10 to 85%RH (non-condensing) |
Power Supply: 4 x LR6 AA Batteries or Type-C USB power supply |
| Thermal Sensitiviity: 0.15°C/0.27°F |
Visual Image Resolution: 3 Megapixel |
| Screen Size: 60mm |
Wavelength Range: 8-14um |
| Working Conditions: -5°C to 40°C/23°F to 104°F; 10 to 85%RH (non-condensing) |
Temperature Range: -20°C to 480°C (-4°F - 896°F) |
