Sealey Single Phase Site Transformer 10kVA 110V - WST10000
Product Code / SKU: 171304
110V Transformer with tool rated performance suitable for intermittent running of power tools and continuous running of lighting products within specified capacity. IP44 Rated unit with steel case and heavy-duty handles to aid positioning. Fitted with miniature circuit breaker to prevent overload. Supplied with 2 x 32A/110V sockets and 4 x 16A/110V sockets.
// Site transformer produces a maximum output of 10kVA and is designed to be used with a single phase 230V supply.

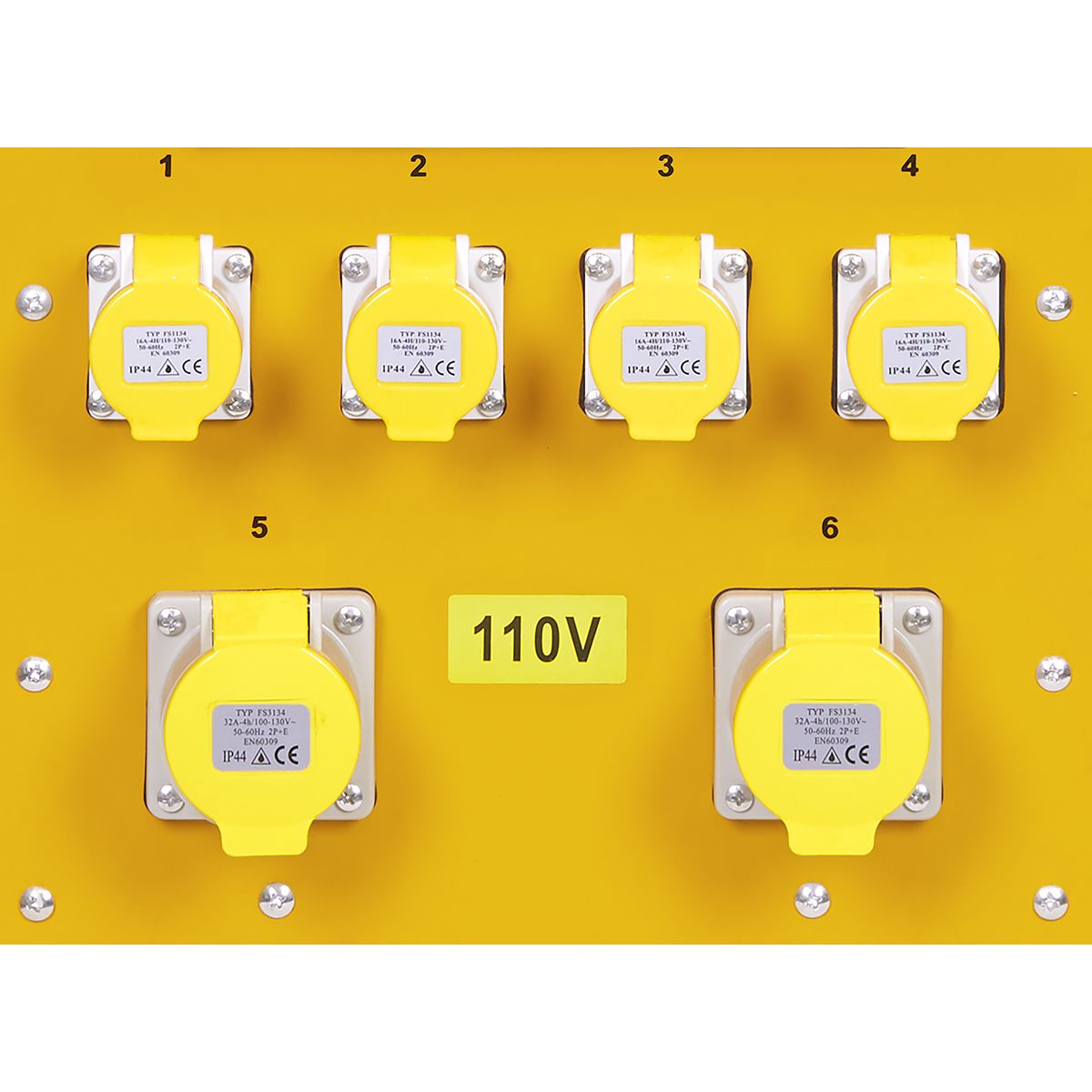

// Features 4 x 16A socket outlets for individual 110V products and 2 x 32A outlets for heavy/larger site electrical machines.
// Max. Rating 10,000VA, continuous rating 7000VA, duty cycle 5min on/30min off.

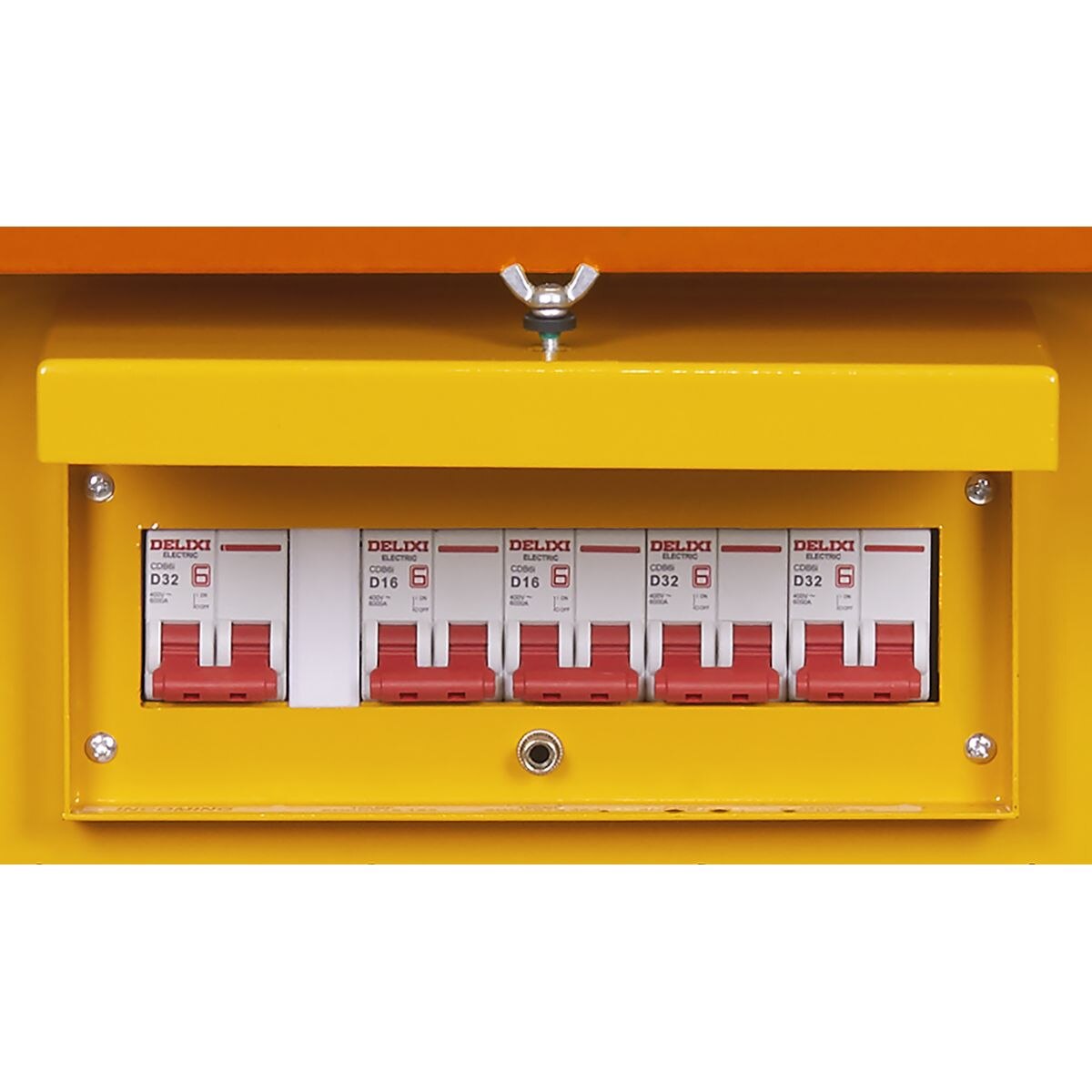

// Miniature circuit breaker to prevent overload.
// Steel case rated IP44 with heavy-duty handles to aid positioning.
// Centre tapped earth for extra safety.
// Model No. WST10000
// Site transformer produces a maximum output of 10kVA and is designed to be used with a single phase 230V supply.
// Features 4 x 16A socket outlets for individual 110V products and 2 x 32A outlets for heavy/larger site electrical machines.
// Max. Rating 10,000VA, continuous rating 7000VA, duty cycle 5min on/30min off.
// Miniature circuit breaker to prevent overload.
// Steel case rated IP44 with heavy-duty handles to aid positioning.
// Centre tapped earth for extra safety.
// Model No. WST10000
Specification
Specification
| Model No: WST10000 |
Brand: Sealey |
| Continuous Rating: 7000VA |
Nett Weight: 69.52kg |
| Output: 4 x 110V ~ 16A 2 x 110V ~ 32A |
Power Factor: 0.93 COSφ |
| IP Rating: IP44 |
Average Temperature: ta: 20°C – 30°C |
| Earth Type: Centre Tapped to Earth |
MCB Input/Output: Input: 1 x MCB 32A 2-pole Type D Output: 2 x MCB 32A 2-pole Type D + 2 x MCB 16A 2-pole Type D |
| Sockets: 2 x 32A/110V sockets 4 x 16A/110V |
