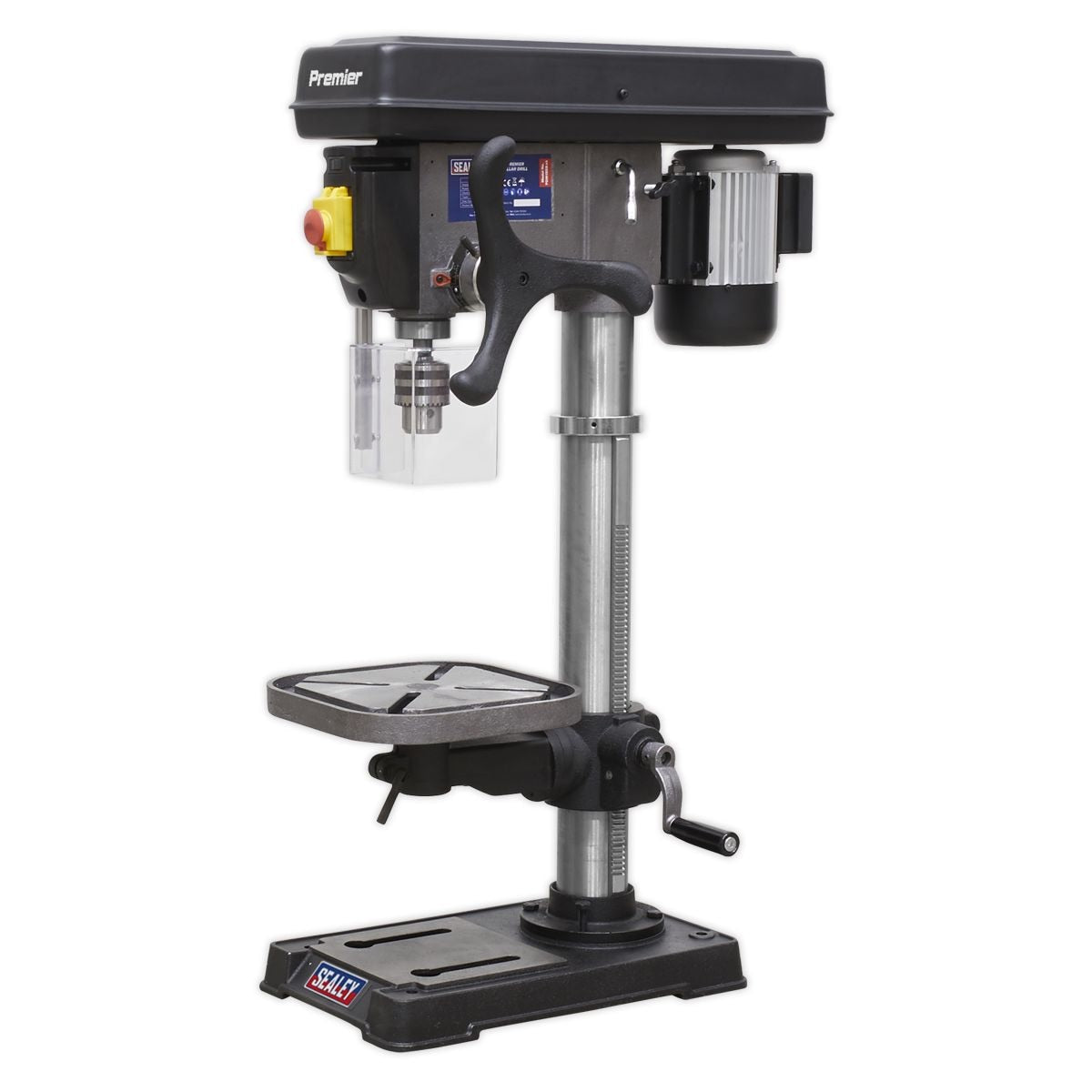

Sealey Premier Bench Mounting Pillar Drill 16-Speed 370W 230V - PDM155B
Product Code / SKU: 169002
One of a comprehensive range of Premier bench mounting pillar drills for the professional workshop. Features heavy-duty aluminium-bodied motor for long and reliable performance. No-volt release switch to prevent inadvertent start-up and pulley cover protected by microswitch to prevent drill operating when cover is open. Fitted with an integral work light which illuminates the drilling table giving operator a clear view of the drilling process (bulb not included). Supplied with an electrically inter-locked chuck guard. Large sized square table fitted with precision rack and pinion height adjustment.
// 16mm(5/8") Capacity chuck, MT2.
// Fitted with no-load voltage switch and locking cover to prevent accidental starting.
// Supplied with an electrically inter-locked chuck guard.
// Integral work light (bulb not included).
// Height: 1050mm.
// Spindle Centre to Column: 190mm.
// High torque heavy-duty aluminium-bodied induction motors.
// Motor Power: 370W.
// Column Diameter: Ø80mm.
// Spindle Travel: 80mm.
// Weight: 55kg.
// 3 Year guarantee.
// Model No. PDM155B
// 16mm(5/8") Capacity chuck, MT2.
// Fitted with no-load voltage switch and locking cover to prevent accidental starting.
// Supplied with an electrically inter-locked chuck guard.
// Integral work light (bulb not included).
// Height: 1050mm.
// Spindle Centre to Column: 190mm.
// High torque heavy-duty aluminium-bodied induction motors.
// Motor Power: 370W.
// Column Diameter: Ø80mm.
// Spindle Travel: 80mm.
// Weight: 55kg.
// 3 Year guarantee.
// Model No. PDM155B
Specification
Specification
| Model No: PDM155B |
Base Size: 495 x 290mm |
| Brand: Premier |
Collar Diameter: Ø60mm |
| Column Diameter: Ø80mm |
Drilling Capacity (Chuck Size): 16mm |
| Integral Work Light: Yes |
Maximum Distance Spindle to Base: 660mm |
| Maximum Distance Spindle to Table: 475mm |
Motor Power (Start): 370W(600W) |
| Nett Weight: 55kg |
Number of Speeds: 16 |
| Optional Accessories: PDM/KC - Keyless Pillar Drill Chuck 16mm |
Overall Height: 1050mm |
| Speed Range: 190-3000rpm |
Spindle Centre to Column: 190mm |
| Spindle Nose Taper: MT2 |
Spindle Travel: 80mm |
| Supply: 230V |
Swing: 380mm |
| Working Base Surface Size: 205 x 200mm |
Working Table Surface Size: 290 x 290mm |
