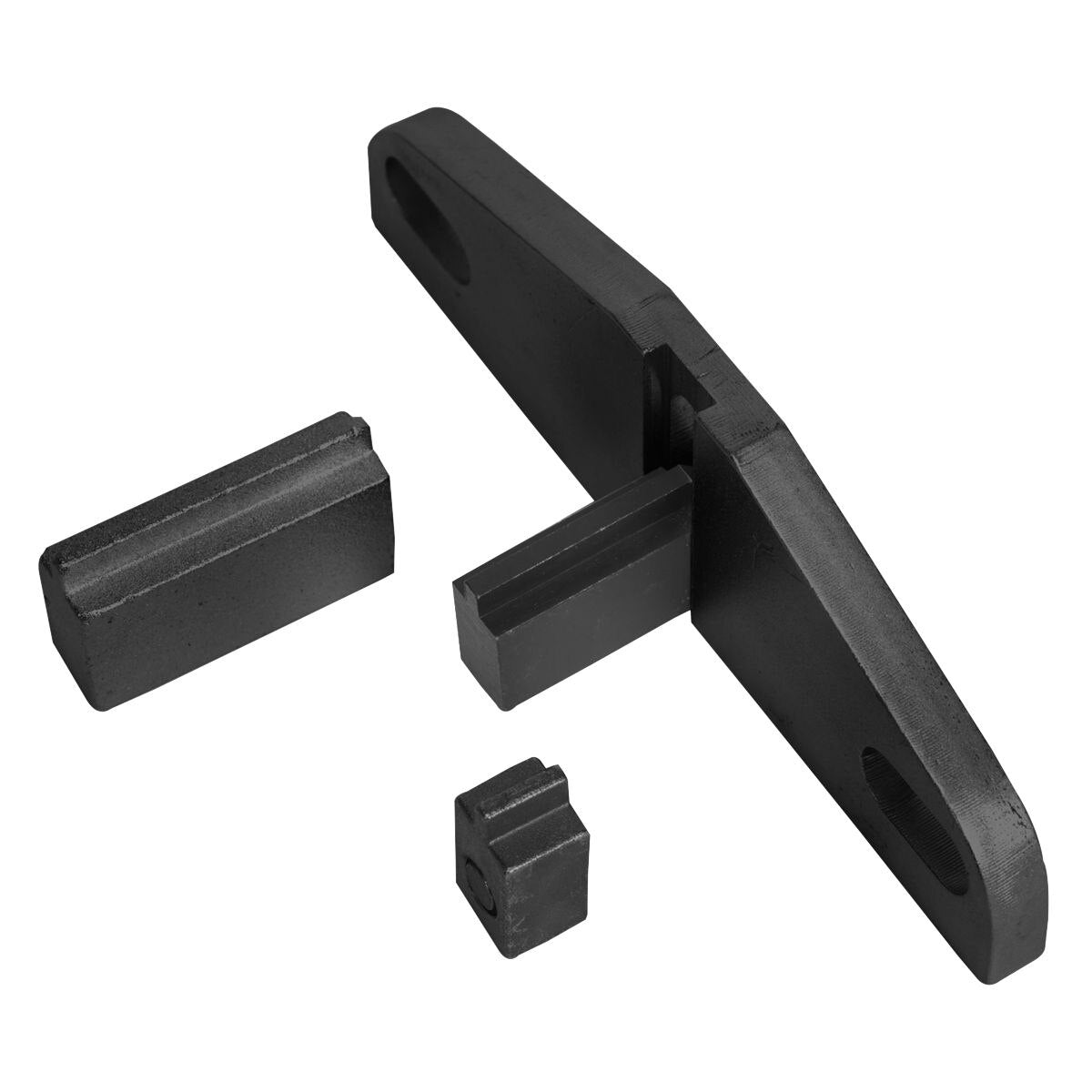

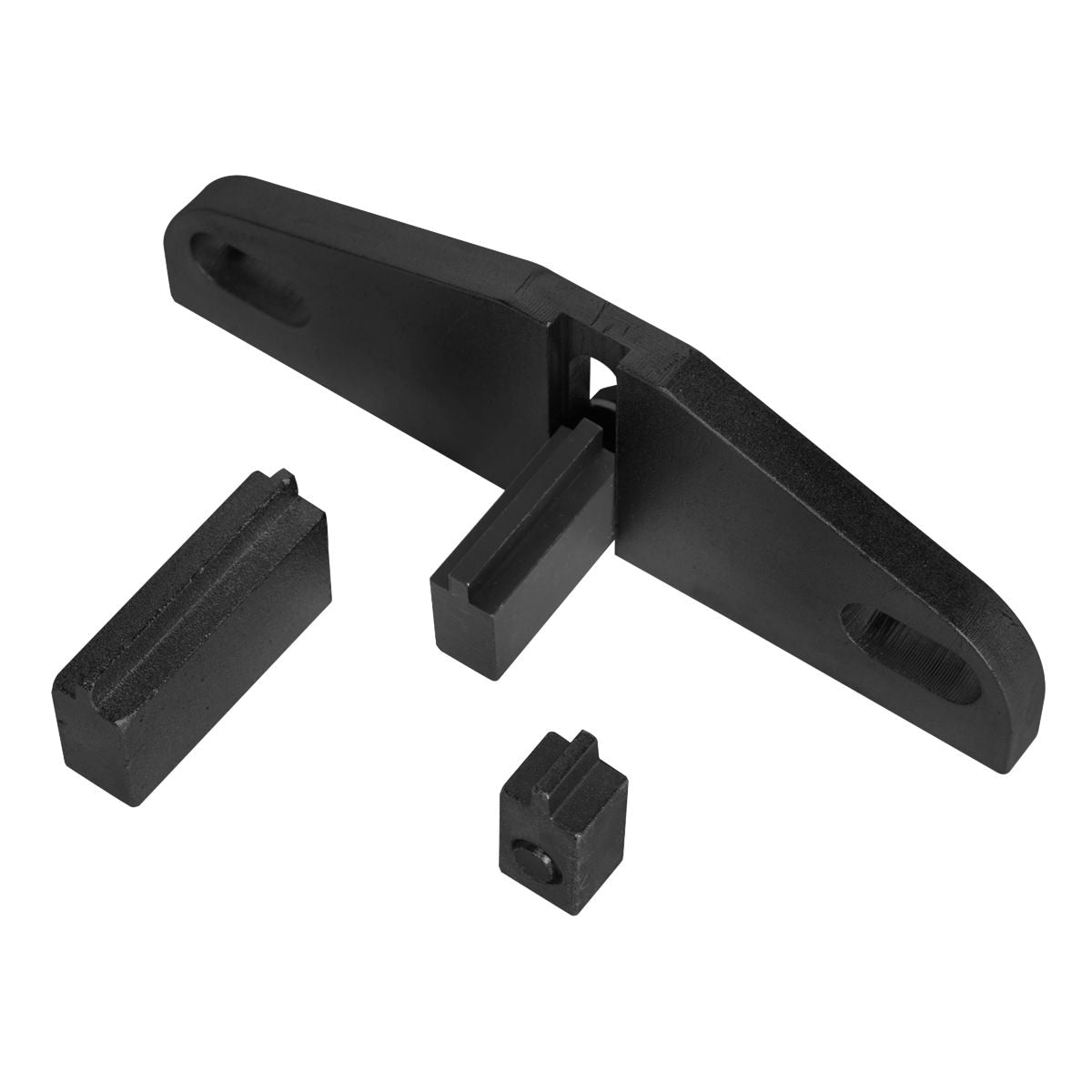

Sealey Petrol/Diesel Engine Flywheel Locking Tool Set - for Ford - Belt Drive - VSE5945
Product Code / SKU: 171140
Associated tool for use in conjunction with a number of Ford timing tool kits for locking the crankshaft in timed position by locating into flywheel. Also suitable for counter-holding crankshaft when releasing or tightening crankshaft pulley bolts. Used on a wide range of Ford engines, particularly diesel 1.8TDdi/TDCi and 2.0TDCi, petrol 1.6Ti-VCT and later 1.25/1.4 16v Duratec.
// Associated tool for use in conjunction with a number of Ford timing tool kits for locking the crankshaft in timed position by locating into flywheel.
// Also suitable for counter-holding crankshaft when releasing or tightening crankshaft pulley bolts.
// Used on a wide range of Ford engines, particularly diesel 1.8TDdi/TDCi and 2.0TDCi, petrol 1.6Ti-VCT and later 1.25/1.4 16v Duratec.
// FORD OEM: 303-393A, 303-393-01, 303-393-02
// Model No. VSE5945
// Associated tool for use in conjunction with a number of Ford timing tool kits for locking the crankshaft in timed position by locating into flywheel.
// Also suitable for counter-holding crankshaft when releasing or tightening crankshaft pulley bolts.
// Used on a wide range of Ford engines, particularly diesel 1.8TDdi/TDCi and 2.0TDCi, petrol 1.6Ti-VCT and later 1.25/1.4 16v Duratec.
// FORD OEM: 303-393A, 303-393-01, 303-393-02
// Model No. VSE5945
Specification
Specification
| Model No: VSE5945 |
Ford: Courier (00-02), C-Max (03-18), Fiesta (00-13), Fusion (02-12), Focus (98-18), Focus C-Max (03-07), Galaxy (06-18), Grand C-Max (10-18), Kuga (06-10), Mondeo (07-15), S-Max (06-18), Tourneo Connect (02-13), Transit Connect (02-13) |
| Brand: Sealey |
1.4: ASDA, ASDB |
| 1.4TDCi: F6JA, F6JB, F6JC |
1.5: UNCJ, UNCK |
| 1.6TDCi: G8DA, G8DB, G8DC, HHDA, HHDB, HHJA, HHJB |
1.6: FYDA, FYDB, FYDC, FYDD, FYDH, FYJA, FYJB, FYJC, HWDA, HWDB, HXDA, HXDB, HXJA, HXJB, IQDA, IQDB, IQDC, KGBA, MUDA, MUDD, PNBA, PNDA, RHBA, SHDA, SHDB, SHDC, SIDA, XTDA, XTDB |
| 1.8D: BHDA, BHDB, C9DA, C9DB, C9DC, RTN, RTP, RTQ, RWPA, RWPC |
1.8TDCi: BHPA,F9DA, F9DB, FFDA, FFBA, FFWA, HCPA, HCBP, KHBA, KKDA, KKDB, P7PA, P9PA, P9PB, QYBA, QYWA, R2PA, R3PA |
| 2.0TDCi: AZWA, AZWC, G6DA, G6DB, G6DC, QXWA, QXWB |
Nett Weight: 0.32kg |
| OEM Tools: 303-393A, 303-393-01, 303-393-02 |
Adaptor Lengths: 11, 29, 42mm |
