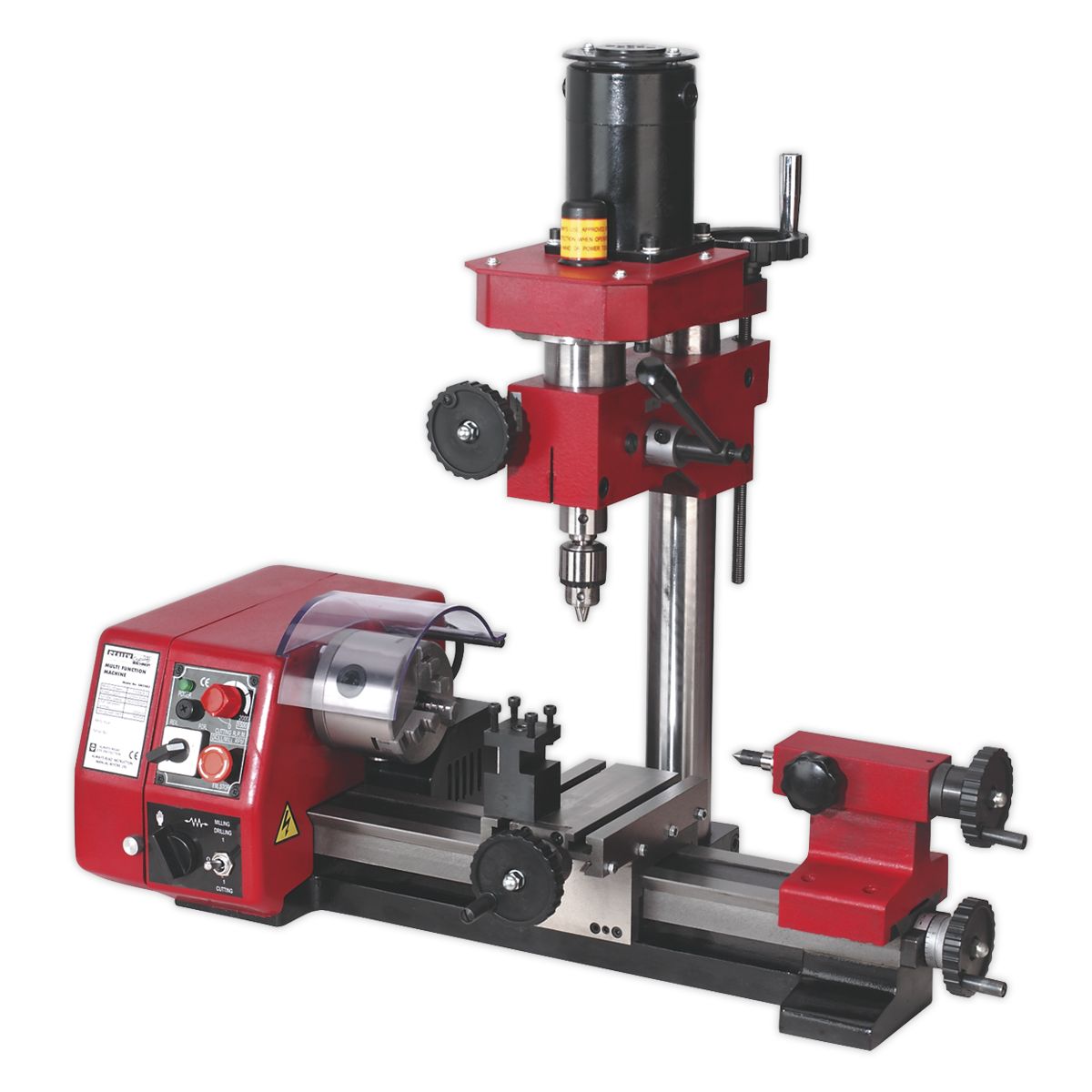

Sealey Mini Lathe & Drilling Machine - SM2503
Product Code / SKU: 170084
Bench mounting multifunction mini drill, mill and lathe with variable speed giving flexibility to handle most materials. Features two 150W motors, one to operate the drill/mill and the other to power the lathe. The lathe cutting feed can be power driven or advanced manually. Thread cutting may also be undertaken with the optional thread cutting kit. Supplied with Metric graduated scales and all necessary tools required for setting and adjusting. An optional stand is available, order Model No. SM3002ST.
// Bench mounting multifunction mini drill, mill and lathe with variable speed giving flexibility to handle most materials.
// Features two 150W motors, one to operate the drill/mill and the other to power the lathe.
// The lathe cutting feed can be power driven or advanced manually.
// Thread cutting may also be undertaken with the optional thread cutting kit.
// Supplied with Metric graduated scales and all necessary tools required for setting and adjusting.
// Complies with Machinery Directive and is fully CE approved.
// Optional stand available, order Model No. SM3002ST.
// Model No. SM2503
// Bench mounting multifunction mini drill, mill and lathe with variable speed giving flexibility to handle most materials.
// Features two 150W motors, one to operate the drill/mill and the other to power the lathe.
// The lathe cutting feed can be power driven or advanced manually.
// Thread cutting may also be undertaken with the optional thread cutting kit.
// Supplied with Metric graduated scales and all necessary tools required for setting and adjusting.
// Complies with Machinery Directive and is fully CE approved.
// Optional stand available, order Model No. SM3002ST.
// Model No. SM2503
Specification
Specification
| Model No: SM2503 |
Brand: Sealey |
| Nett Weight: 39.2kg |
Swing Over Bed: 140mm |
| Distance Between Centres: 250mm |
Spindle Hole Taper: MT2 |
| Cross Slide Travel: 61mm |
Tailstock Taper: MT1 |
| Spindle Speed (Variable): 100-2000rpm |
Range of Metric Threads: 5 Pitches (0.5-1.25mm) |
| Maximum Drilling/Milling Capacity: 10mm |
Drilling/Milling Spindle Travel: 30mm |
| Drilling/Milling Spindle Speed: 100-1300rpm |
T-Slot: 8mm |
| Distance from Spindle to Table: 180mm |
Distance from Spindle Centre to Column: 100mm |
| Motor Power: 2 x 150W - 230V |
Weight: 39.2kg |
