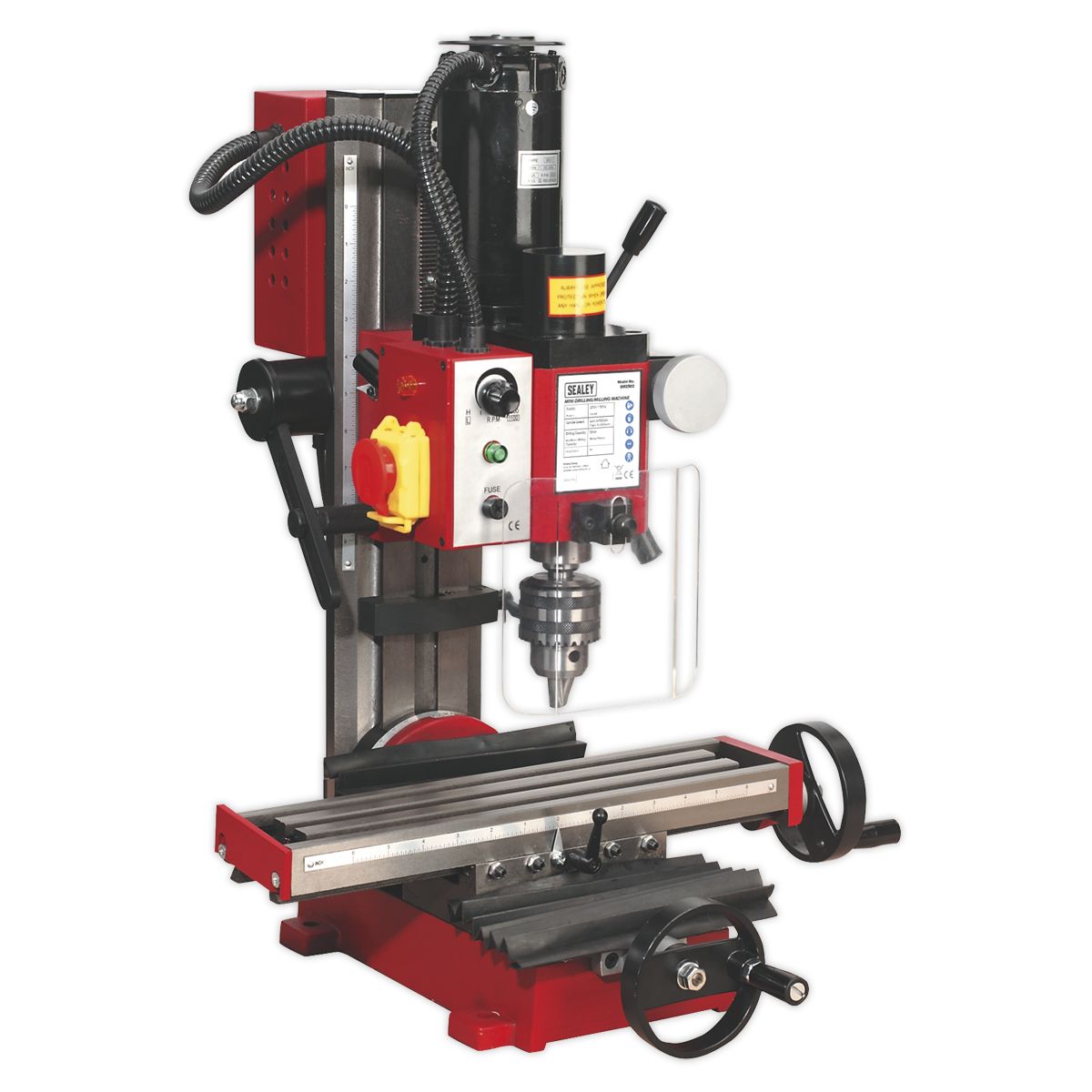

Sealey Mini Drilling & Milling Machine - SM2502
Product Code / SKU: 170077
Bench mounting mini drilling/milling machine with the flexibility to handle most materials. Features include a 350W motor, variable speed drive, working table with T-slots to enable clamping of workpieces and metric graduated compound scales. The machine also incorporates a tilting column which allows drilling/milling of workpiece at ±45° from vertical. Supplied with 13mm chuck accessory kit for adjusting and setting. An optional stand is available, order Model No. SM3002ST.
// Bench mounting machine with the flexibility to handle most materials.
// Features include a 350W motor, variable speed drive, working table with T-slots to enable clamping of workpieces and metric graduated compound scales.

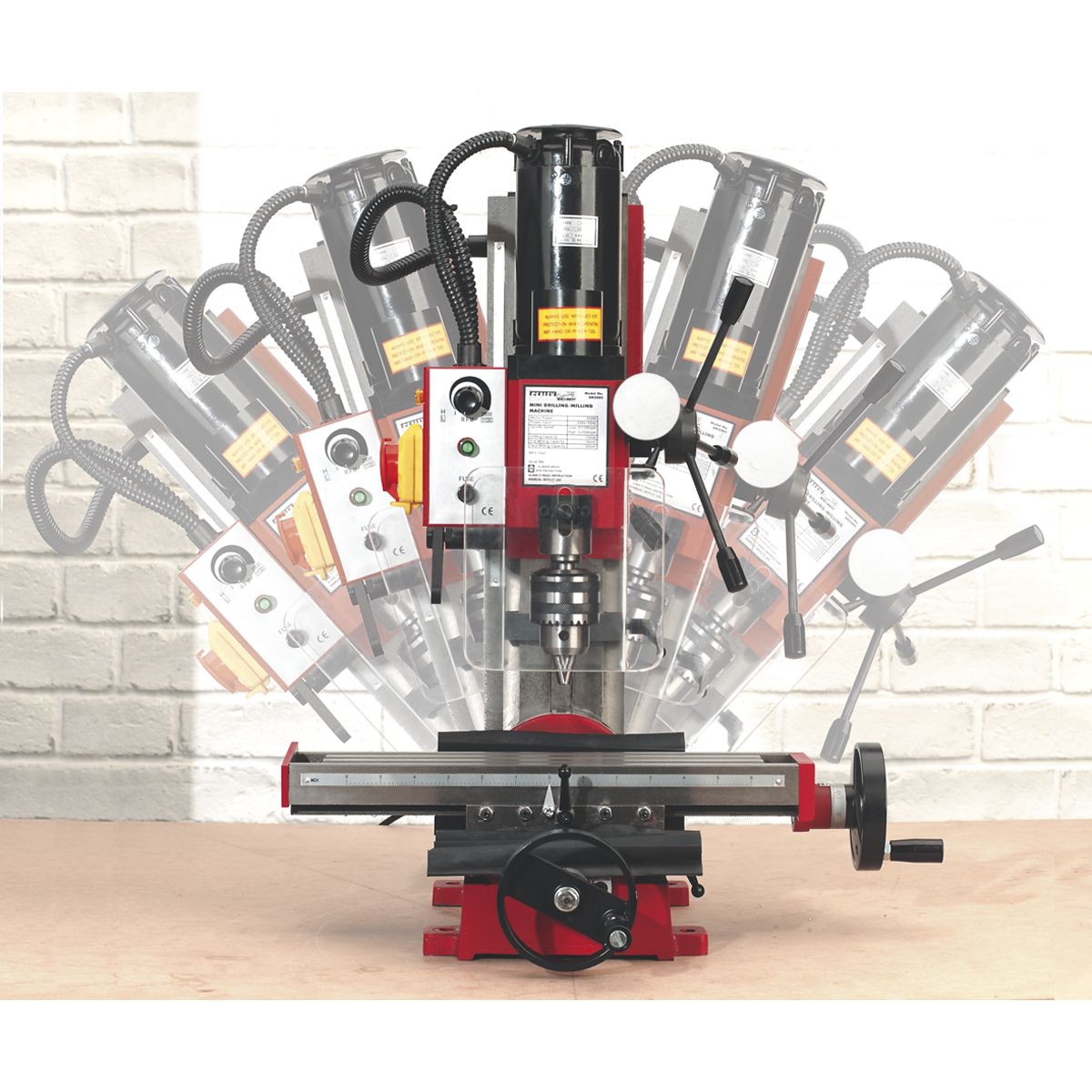

// Incorporates a tilting column which allows drilling/milling of workpiece at ±45° from vertical.
// Supplied with 13mm chuck and accessory kit for adjusting and setting.
// An optional stand is available, order Model No. SM3002ST.
// Model No. SM2502
// Bench mounting machine with the flexibility to handle most materials.
// Features include a 350W motor, variable speed drive, working table with T-slots to enable clamping of workpieces and metric graduated compound scales.
// Incorporates a tilting column which allows drilling/milling of workpiece at ±45° from vertical.
// Supplied with 13mm chuck and accessory kit for adjusting and setting.
// An optional stand is available, order Model No. SM3002ST.
// Model No. SM2502
Specification
Specification
| Model No: SM2502 |
Brand: Sealey |
| Cross Axis: 100mm |
Drilling Capacity (Chuck Size): 13mm |
| End Mill Capacity: 16mm |
Face Mill Capacity: 30mm |
| Headstock Travel: 180mm |
Longitudinal Axis: 220mm |
| Motor Power: 350W |
Nett Weight: 68kg |
| Spindle Nose Taper: MT3 |
Spindle Speed - High Range: 0-2500rpm |
| Spindle Speed - Low Range: 0-1100rpm |
Spindle Tilt Angle: ±45° |
| Supply: 230V |
T-Slot: 12mm |
