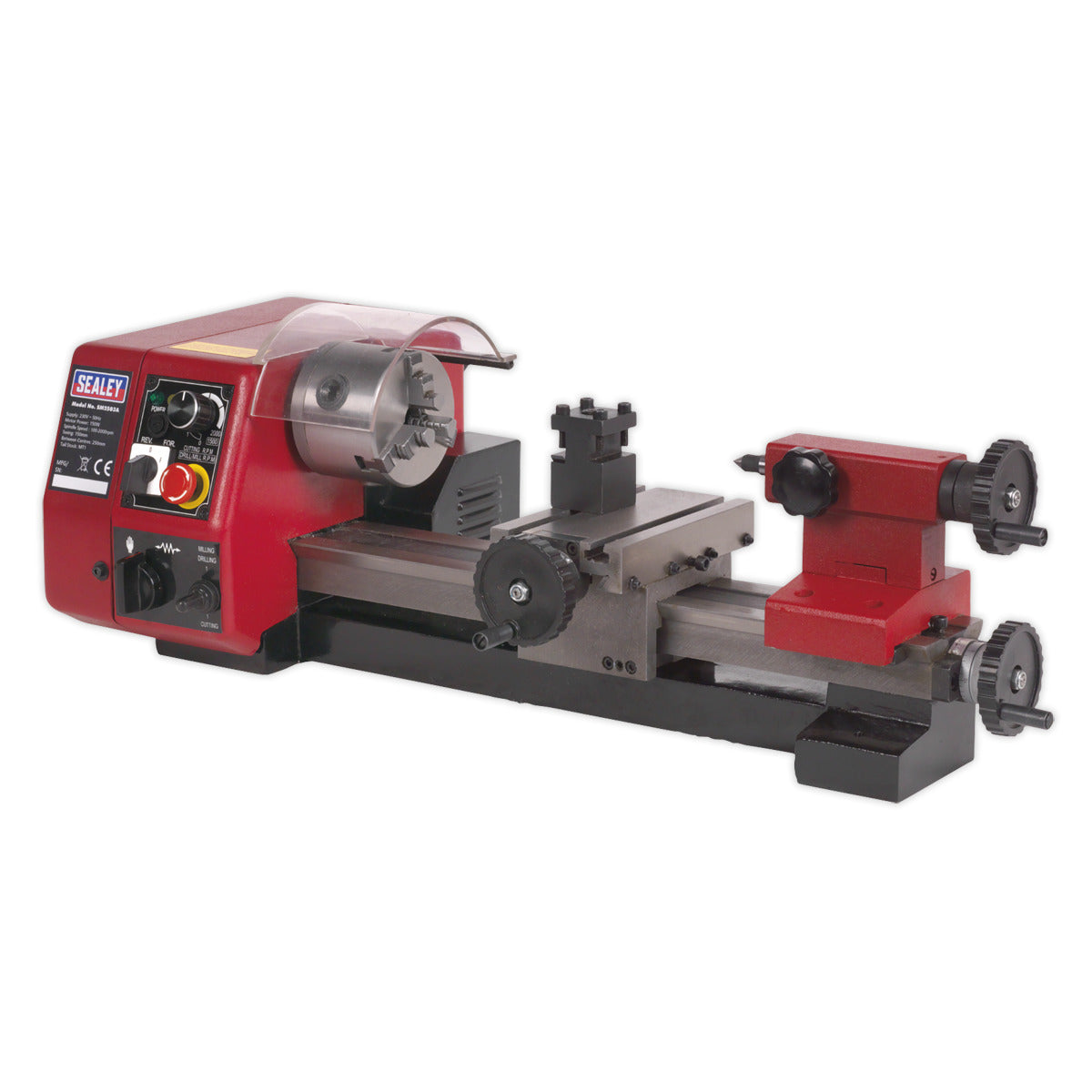

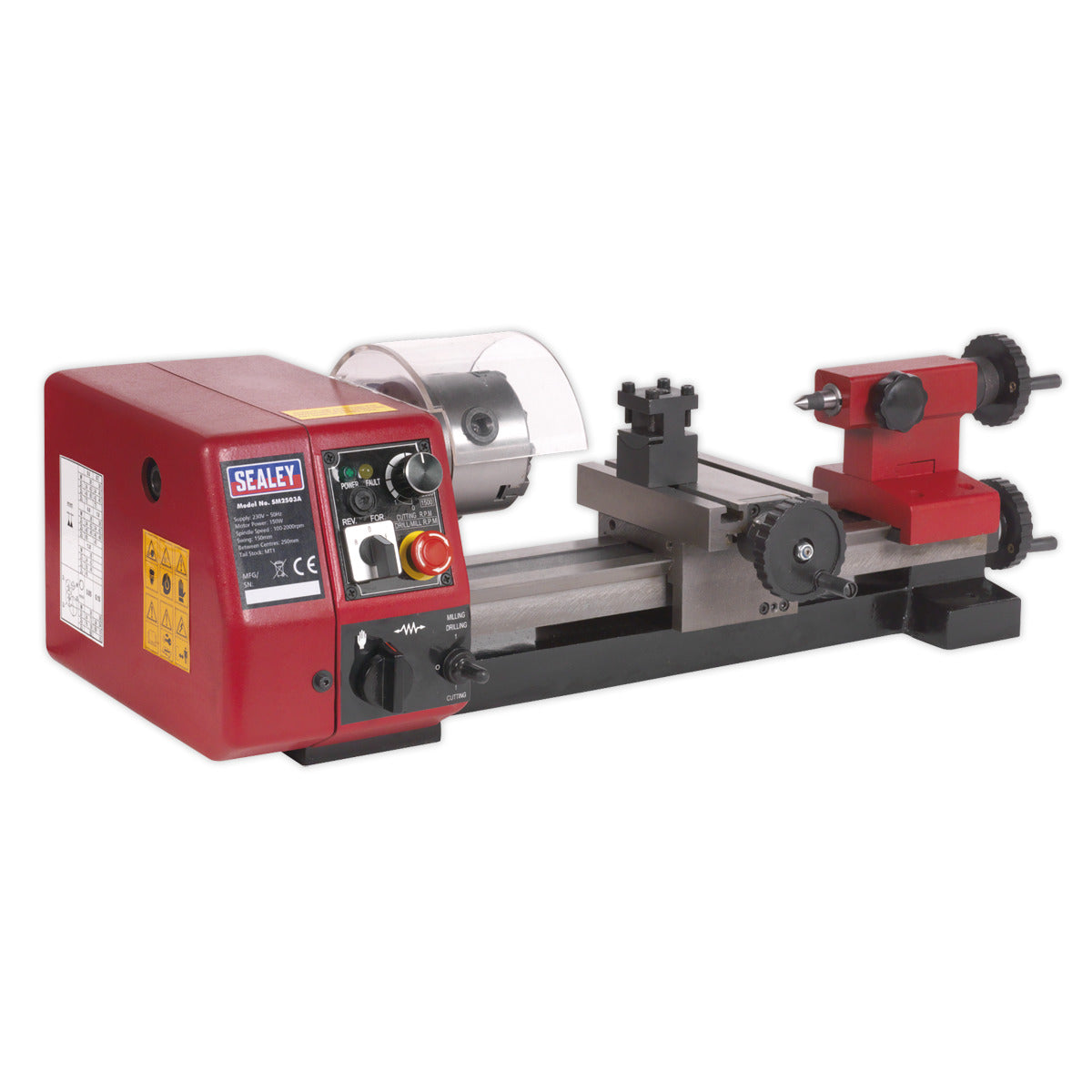

Sealey Metalworking Mini Lathe 250mm SM2503A
Product Code / SKU: 170085
Bench mounting miniature lathe, small enough to fit into the corner of a workshop and light enough to be truly portable. Construction is predominately cast iron and steel. Fitted with 150W high torque motor. The capacities are 150mm swing over bed and 250mm between centres. Features variable speed control, manual or powered lead screw feed and overload protection. Supplied with Ø80mm 3-jaw self-centring chuck, tailstock centre and service tools. An extensive range of accessories are available, for the full range see page XXX and XXX. Option to upgrade with a mill/drill head - order Model No. SM2503B.
// Bench mounting miniature lathe, small enough to fit into the corner of a workshop.
// Light enough to be portable.
// Construction is predominately cast iron and steel.
// Fitted with 150W high torque motor.
// Capacities: 150mm swing over bed and 250mm between centres.
// Features variable speed control, manual or powered lead screw feed, overload protection.
// Extensive range of accessories available.
// Supplied with Ø80mm 3-jaw self-centring chuck, tailstock centre and service tools.
// Option to upgrade with a mill/drill head - order Model No. SM2503B.
// Model No. SM2503A
// Bench mounting miniature lathe, small enough to fit into the corner of a workshop.
// Light enough to be portable.
// Construction is predominately cast iron and steel.
// Fitted with 150W high torque motor.
// Capacities: 150mm swing over bed and 250mm between centres.
// Features variable speed control, manual or powered lead screw feed, overload protection.
// Extensive range of accessories available.
// Supplied with Ø80mm 3-jaw self-centring chuck, tailstock centre and service tools.
// Option to upgrade with a mill/drill head - order Model No. SM2503B.
// Model No. SM2503A
Specification
Specification
| Model No: SM2503A |
Brand: Sealey |
| Nett Weight: 26.2kg |
Swing Over Bed: 150mm |
| Distance Between Centres: 250mm |
Spindle Hole Taper: MT2 |
| Cross Slide Travel: 50mm |
Tailstock Taper: MT1 |
| Spindle Speed (Variable): 100-2000rpm |
Range of Metric Threads: 5 Pitches (0.5-1.25mm) |
| Motor Power: 150W - 230V |
Weight: 26.2kg |
