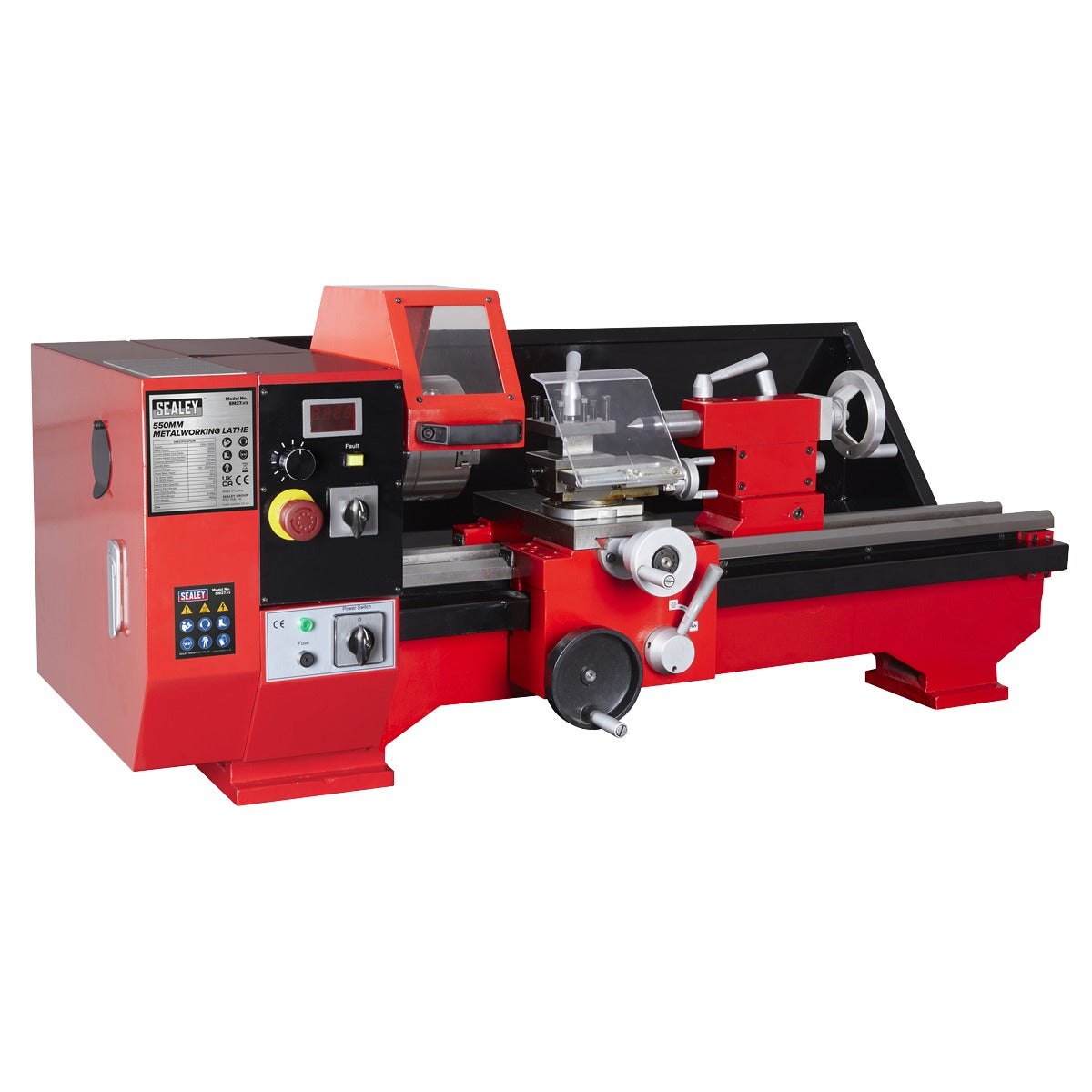

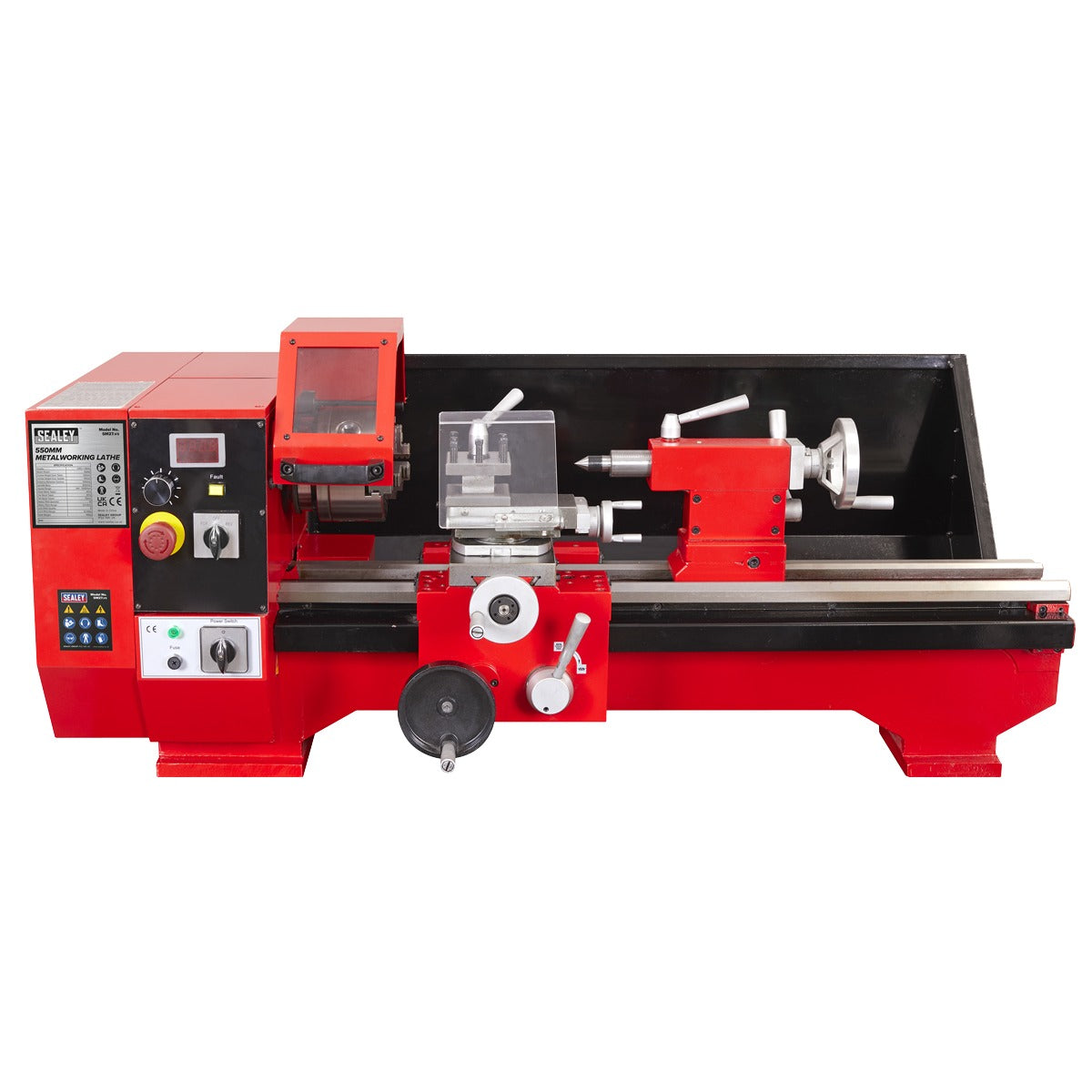

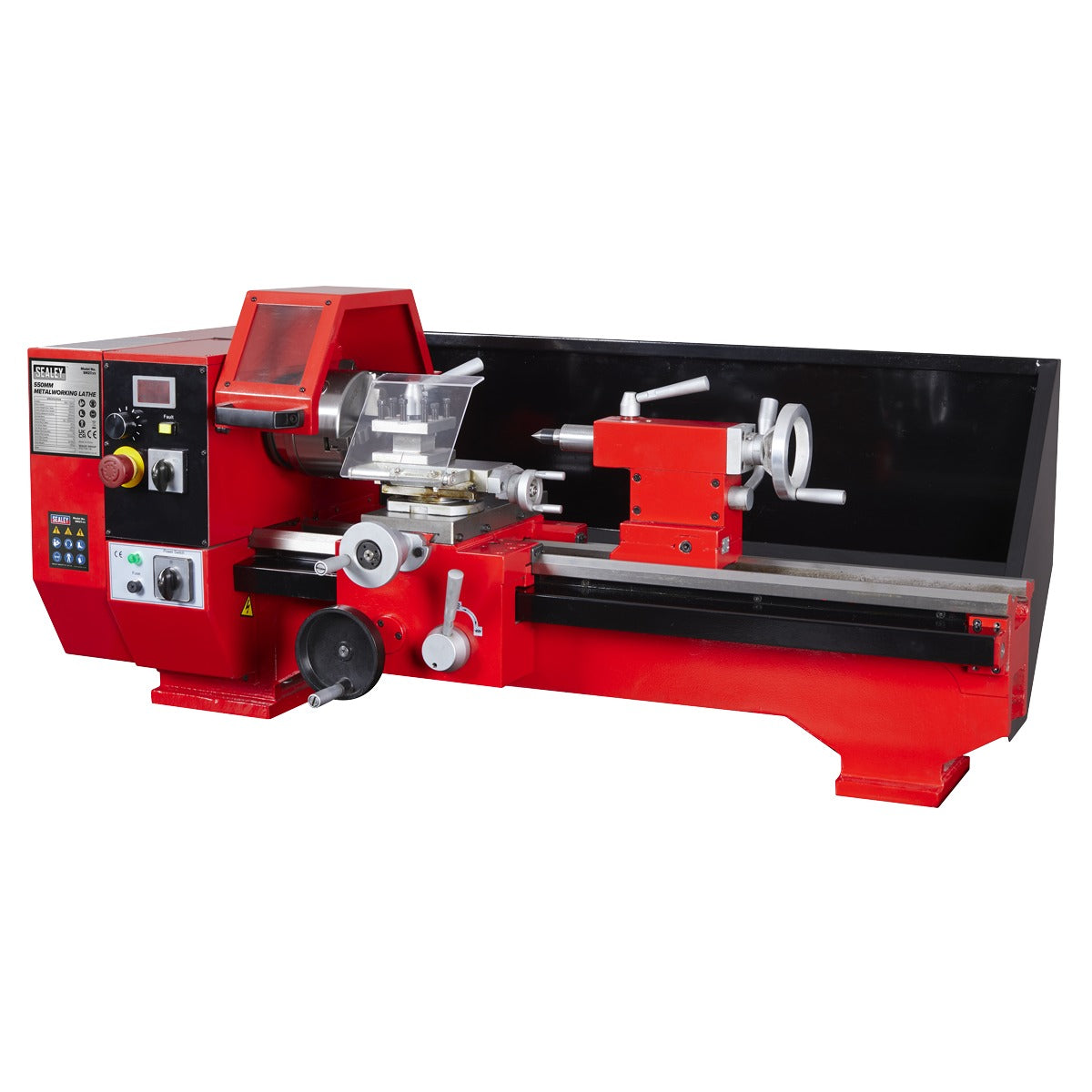

Sealey Metalworking Lathe 550mm Between Centres SM27
Product Code / SKU: 176730
Quality workshop lathe suitable for a wide range of turning and drilling applications. Features power feed for even surface finish and thread cutting. 4-Way tool post mounted on compound slide mechanism enables fast interchange of cutting tools with accurate feed. Powered by 550W motor through infinitely variable speed gearbox. SM27ST stand is an optional accessory and is available to be purchased separately.
// High quality workshop lathe suitable for a wide range of turning and drilling applications.
// 550W Motor through infinitely variable speed gearbox.
// 3-Jaw self-centring chuck and dead centre.
// Power feed for even surface finish and thread cutting.
// 4-Way tool post mounted on compound slide mechanism enables fast interchange of cutting tools with accurate feed.

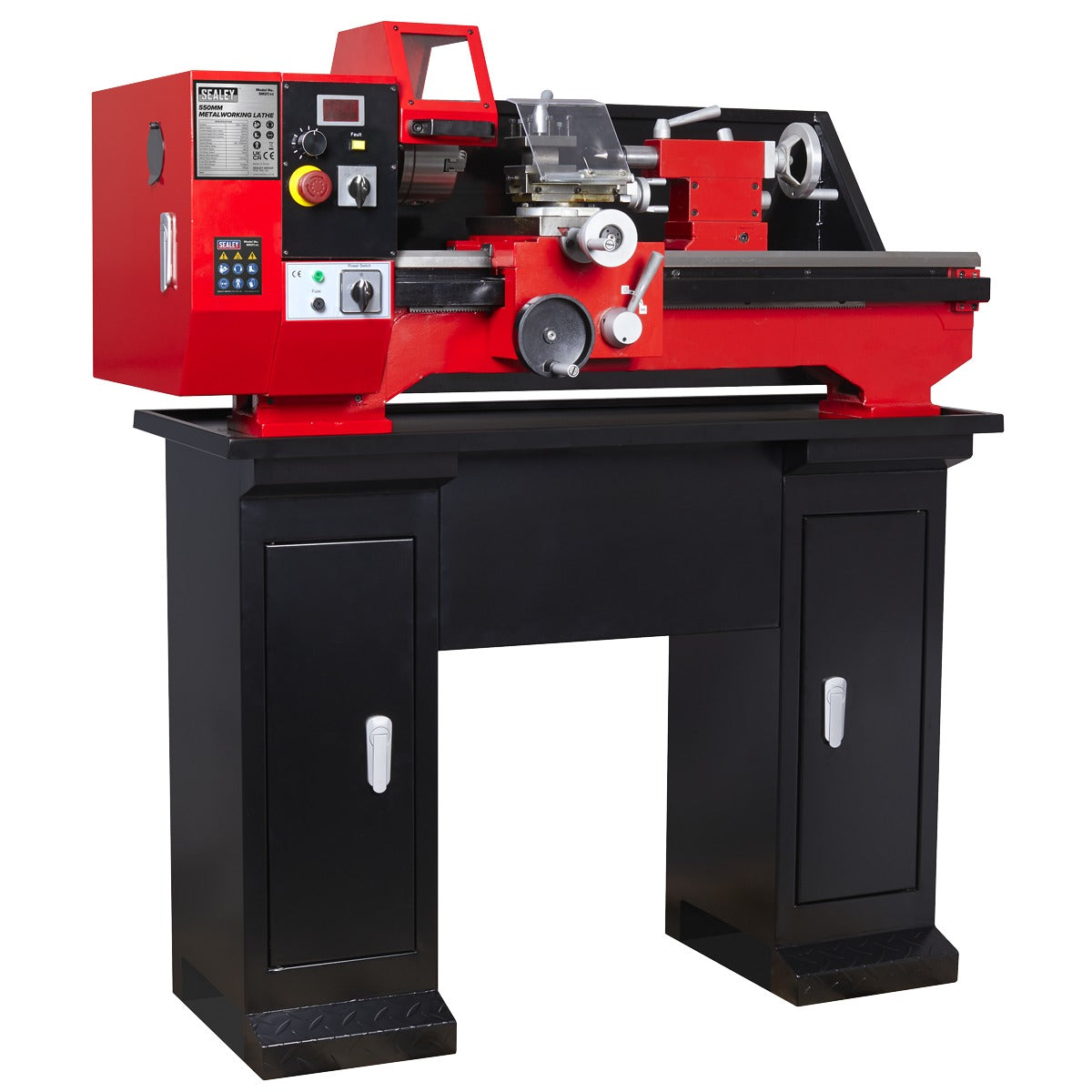

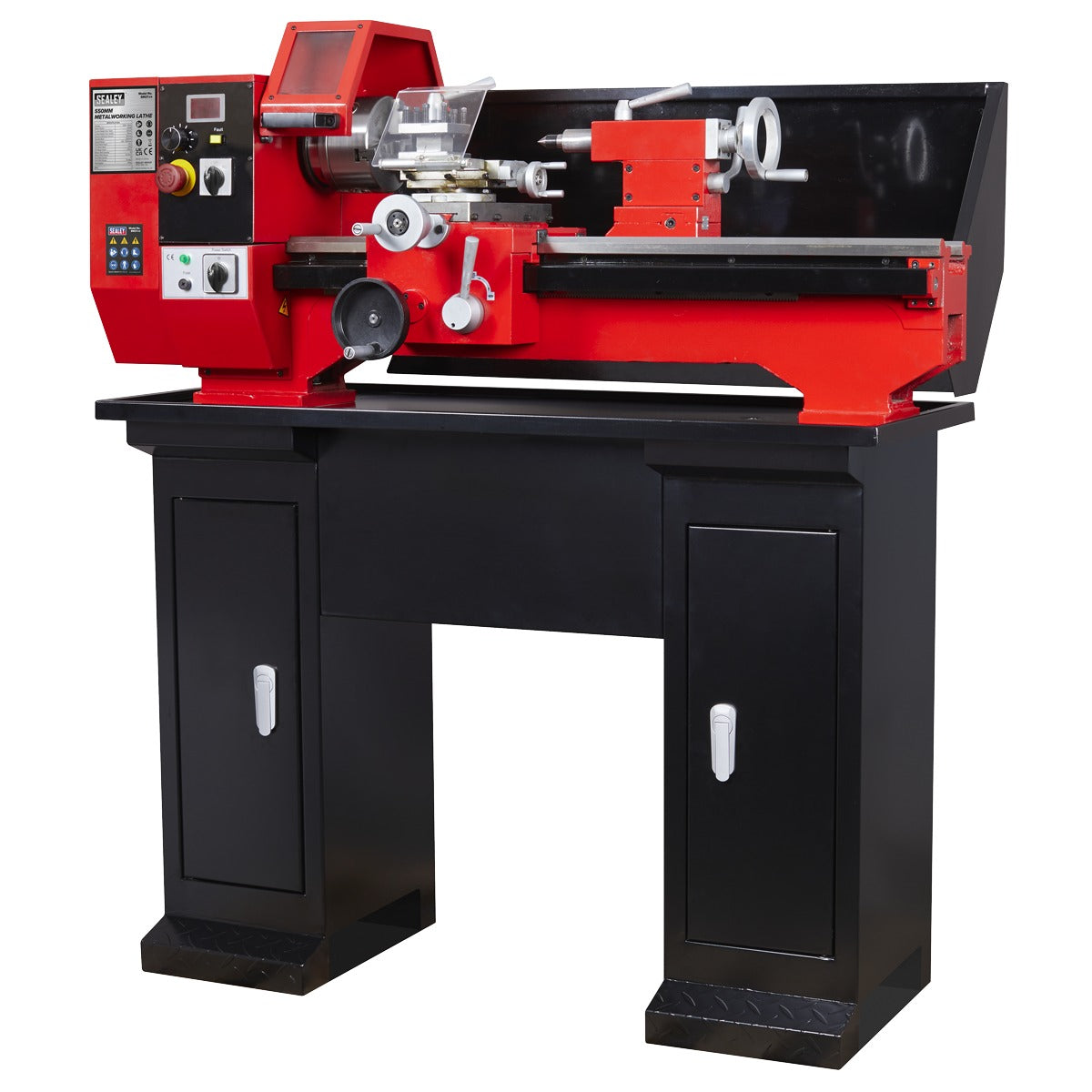

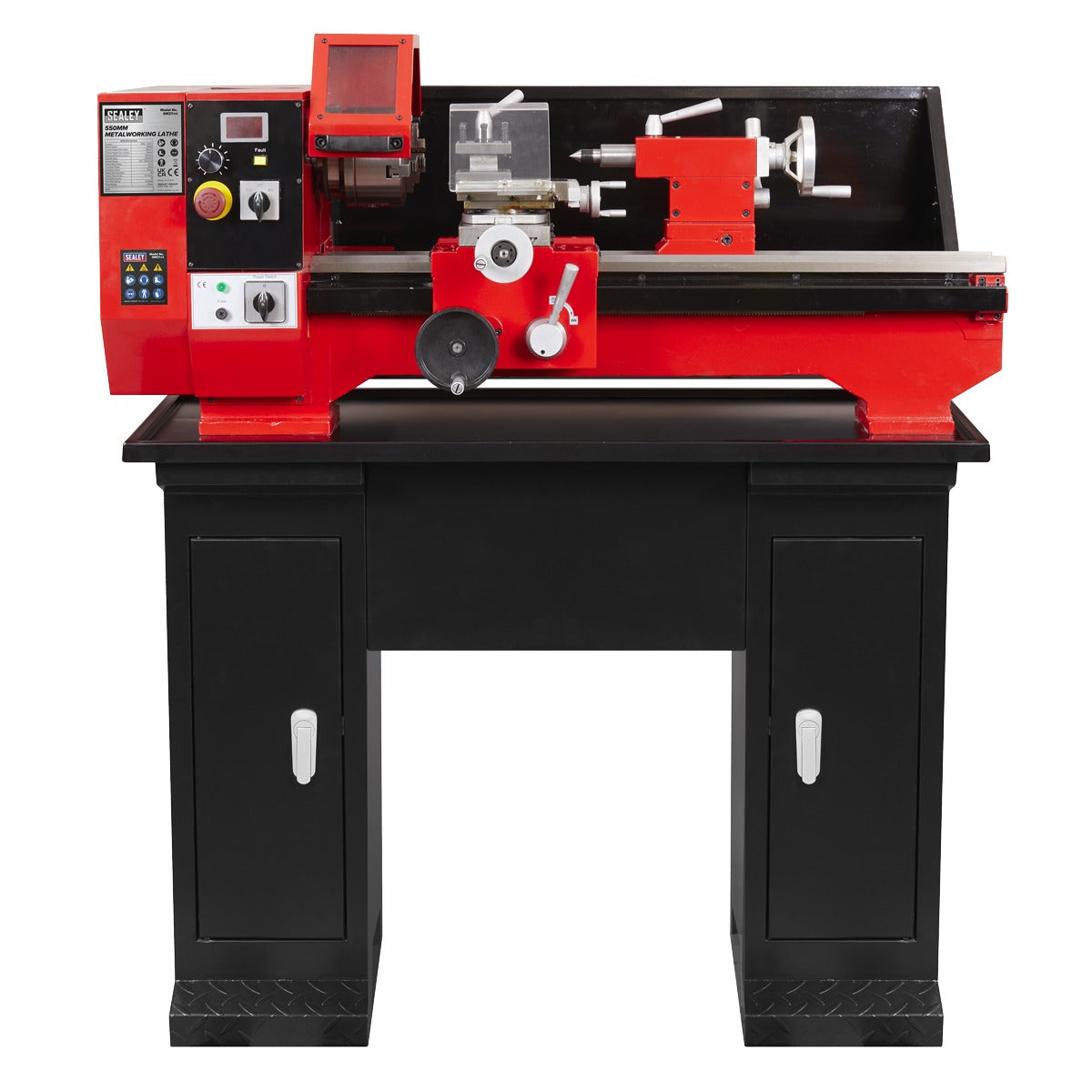

// Workshop stand available as an optional extra, order Model No. SM27ST.
// Spindle speed (Variable speed): 100-2000rpm.
// Motor output power: 550W.
// Distance between centres: 550mm.
// Hole through spindle: 26mm.
// Spindle taper: MT4.
// Tailstock taper: MT2.
// Cross slide travel: 110mm.
// Compound travel: 75mm.
// This item is heavy. Extra assistance must be provided at the delivery point to help.
// Model No. SM27
// High quality workshop lathe suitable for a wide range of turning and drilling applications.
// 550W Motor through infinitely variable speed gearbox.
// 3-Jaw self-centring chuck and dead centre.
// Power feed for even surface finish and thread cutting.
// 4-Way tool post mounted on compound slide mechanism enables fast interchange of cutting tools with accurate feed.
// Workshop stand available as an optional extra, order Model No. SM27ST.
// Spindle speed (Variable speed): 100-2000rpm.
// Motor output power: 550W.
// Distance between centres: 550mm.
// Hole through spindle: 26mm.
// Spindle taper: MT4.
// Tailstock taper: MT2.
// Cross slide travel: 110mm.
// Compound travel: 75mm.
// This item is heavy. Extra assistance must be provided at the delivery point to help.
// Model No. SM27
Specification
Specification
| Model No: SM27 |
Brand: Sealey |
| Nett Weight: 145kg |
Centre Height Over Table: 120mm |
| Centre Height Over Saddle: 110mm |
Distance Between Centres: 550mm |
| Spindle Bore: Ø26mm |
Speed Range: 100-2000rpm |
| Head Stock Taper: MT4 |
Tail Stock Taper: MT2 |
| Tail Stock Travel: 70mm |
Metric Pitch Quantity: 12 |
| Metric Pitch Range: 0.4-3mm |
Inch Pitch Quantity: 8 |
| Inch Pitch Range: 10-44tpi |
Motor Power: 550W |
| Supply: 230V |
