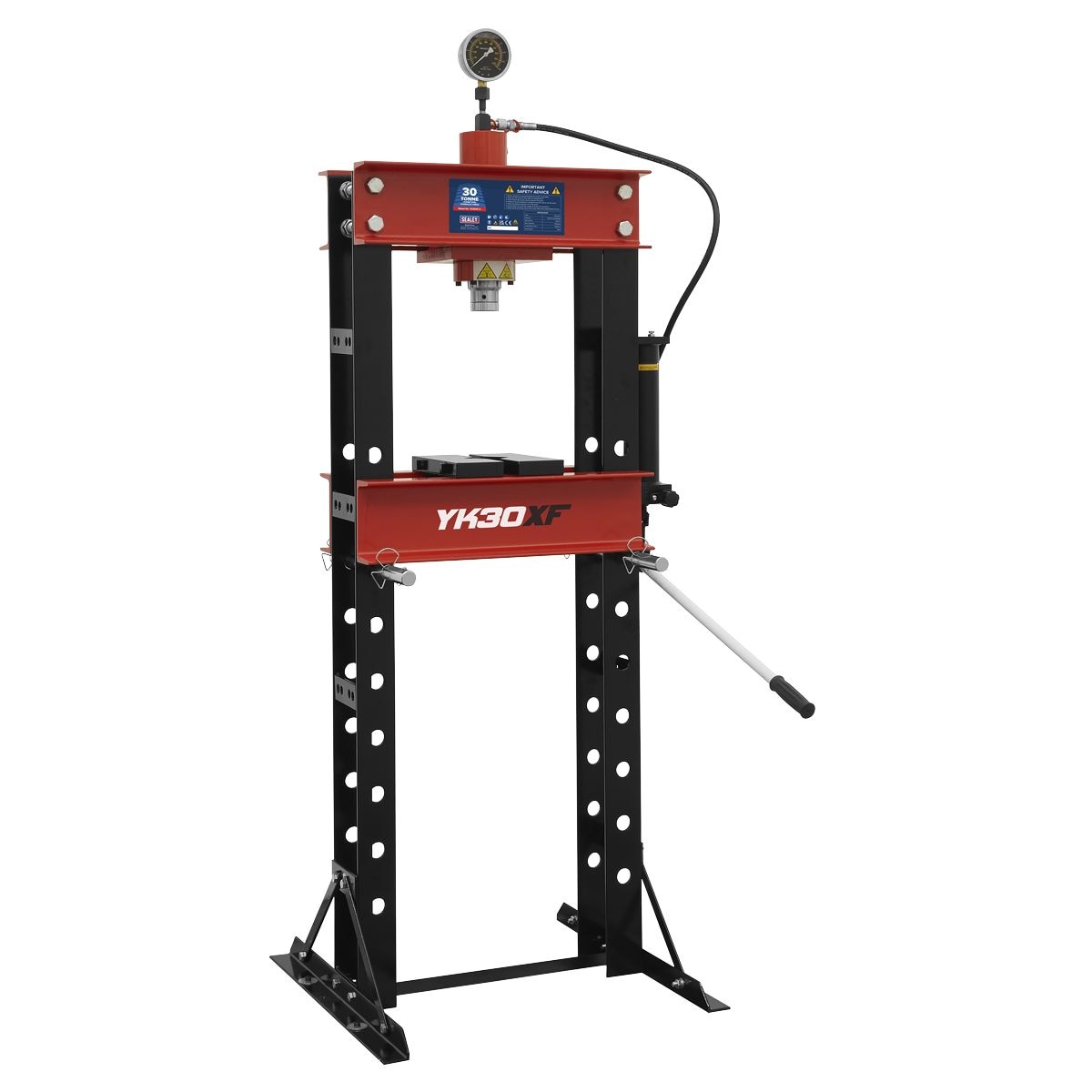

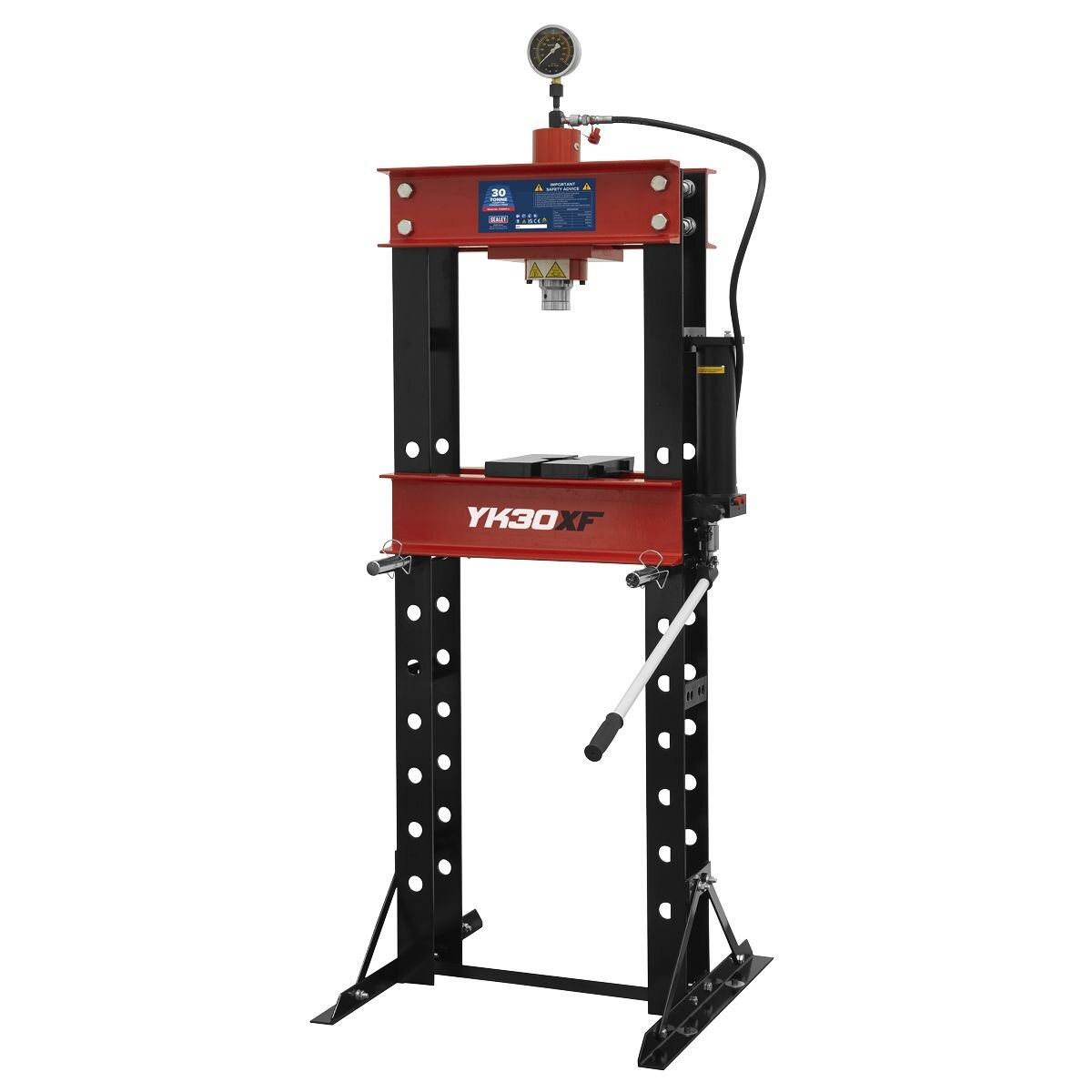

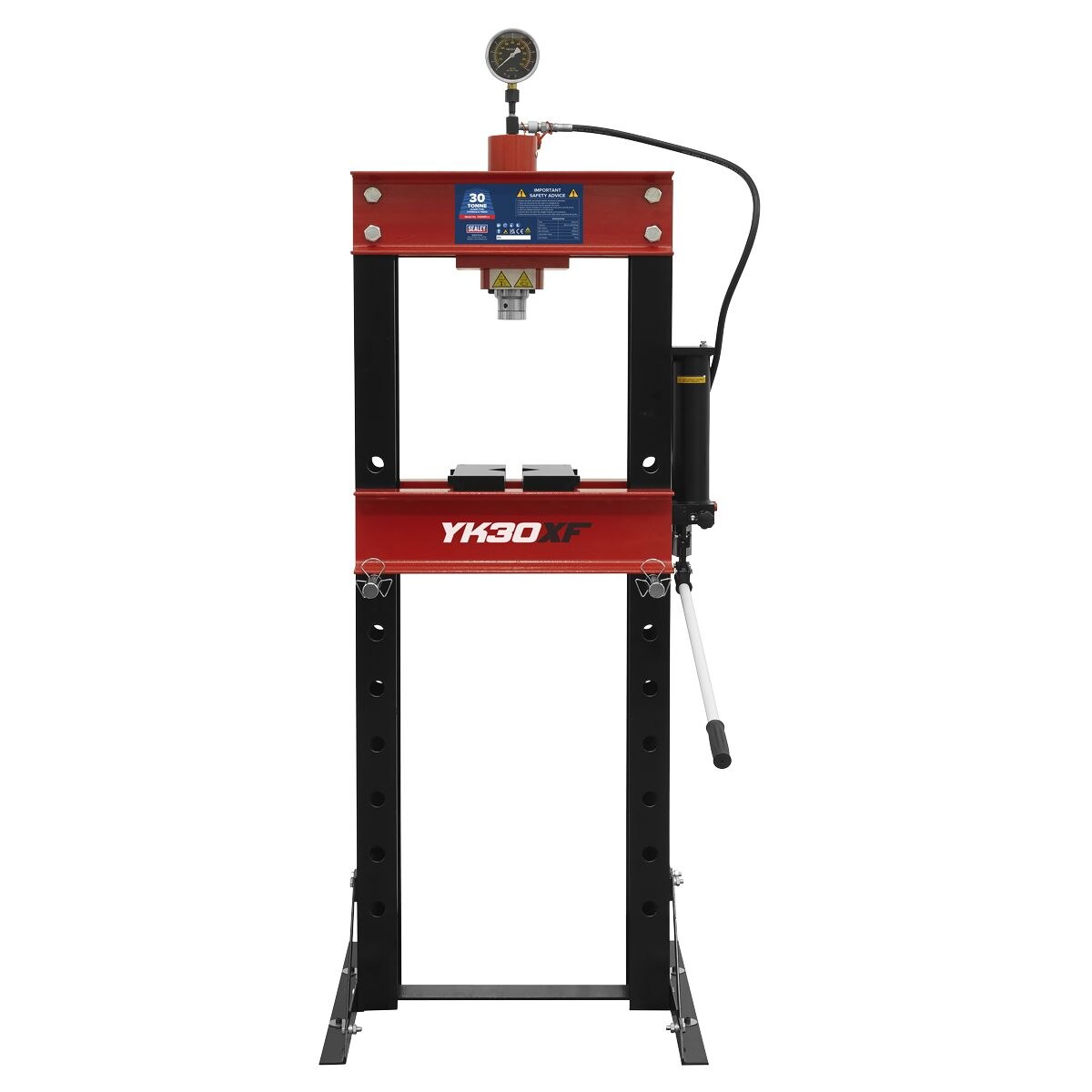

Sealey Hydraulic Floor Type Press 30 Tonne - YK30XF
Product Code / SKU: 171345
Steel frame construction with side mounted hydraulic pump unit. Sliding hydraulic ram assembly giving 200mm of lateral travel for off-centre pressing applications. Includes flat pressing plate/V-blocks. Fitted with ram pressure gauge.
// Table Aperture: 154mm.
// Working Table Width: 617mm.
// Ram Stroke: 170mm.
// Overall Height: 1907mm.
// Steel frame construction with side mounted hydraulic pump unit.
// Sliding hydraulic ram assembly giving 200mm of lateral travel for off-centre pressing applications.
// Includes flat pressing plate/V-blocks.
// Fitted with ram pressure gauge.
// This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
// Model No. YK30XF
// Table Aperture: 154mm.
// Working Table Width: 617mm.
// Ram Stroke: 170mm.
// Overall Height: 1907mm.
// Steel frame construction with side mounted hydraulic pump unit.
// Sliding hydraulic ram assembly giving 200mm of lateral travel for off-centre pressing applications.
// Includes flat pressing plate/V-blocks.
// Fitted with ram pressure gauge.
// This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
// Model No. YK30XF

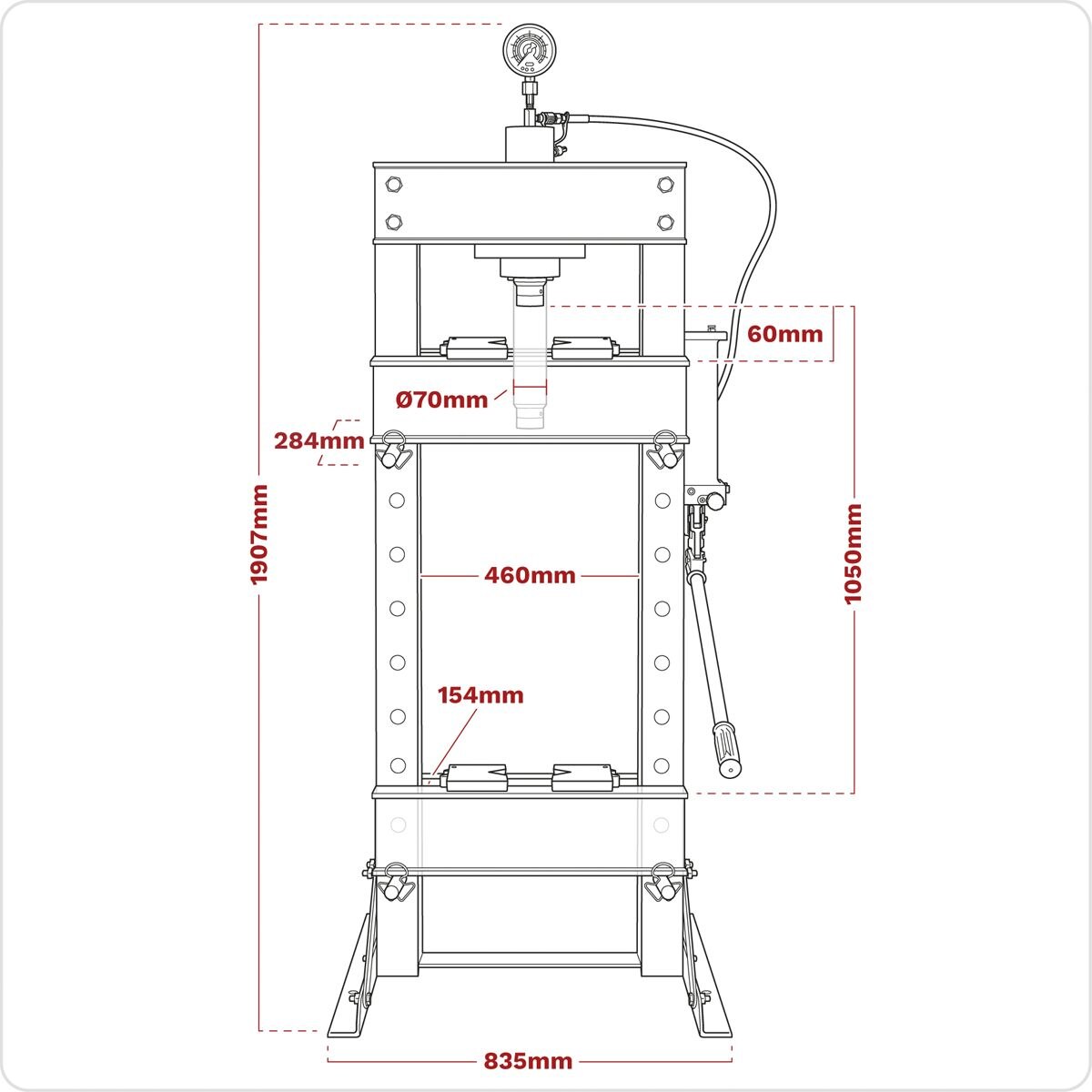

Specification
Specification
| Model No: YK30XF |
Bench or Floor Mounting: Floor |
| Brand: Sealey |
Capacity: 30 Tonne |
| Gauge Included: Yes |
Lateral Ram Travel: 200mm |
| Maximum Height - Ram to Table: 1050mm |
Minimum Height - Ram to Table: 60mm |
| Nett Weight: 141.5kg |
Operating Table Width: 460mm |
| Optional Accessories: YKPP8 - Press Pin Set |
Overall Height: 1907mm |
| Ram Diameter: Ø70mm |
Ram Stroke: 170mm |
| Table Aperture: 154mm |
Type: Hydraulic |
| Working Table Depth: 284mm |
Working Table Width: 617mm |
