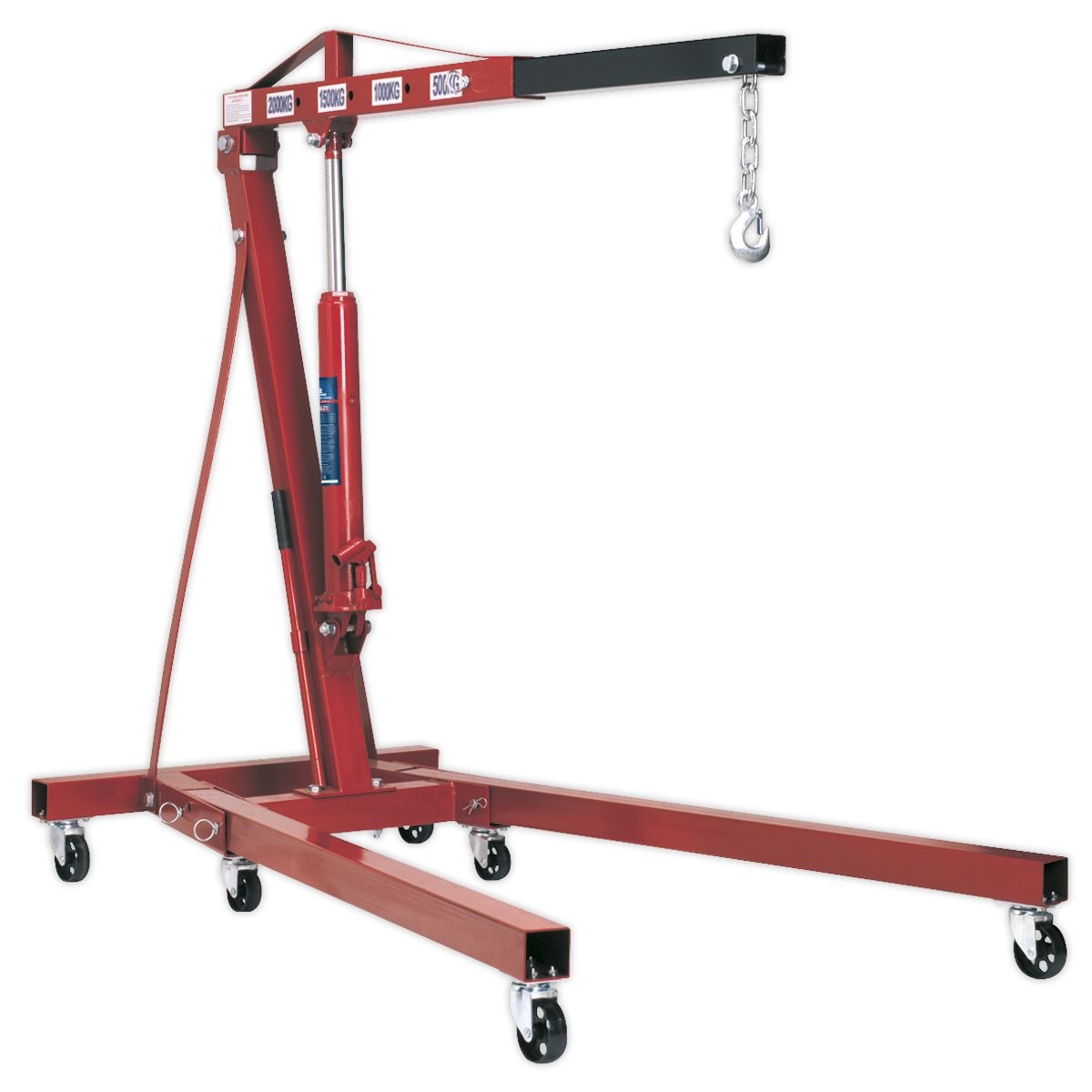

Sealey Folding Engine Crane 2 Tonne - PH20
Product Code / SKU: 169020
Economy model, folds for easy storage. Lifts 2000kg at 860mm jib extension. Six heavy-duty castor wheels. Folds for easy storage, freeing valuable workshop space when not in use. Pump access from the side for safe handling of heavy loads. Delivered in knock-down form, some self-assembly is required. This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
// Lifts 2000kg at 860mm jib extension.
// Six heavy-duty castor wheels.

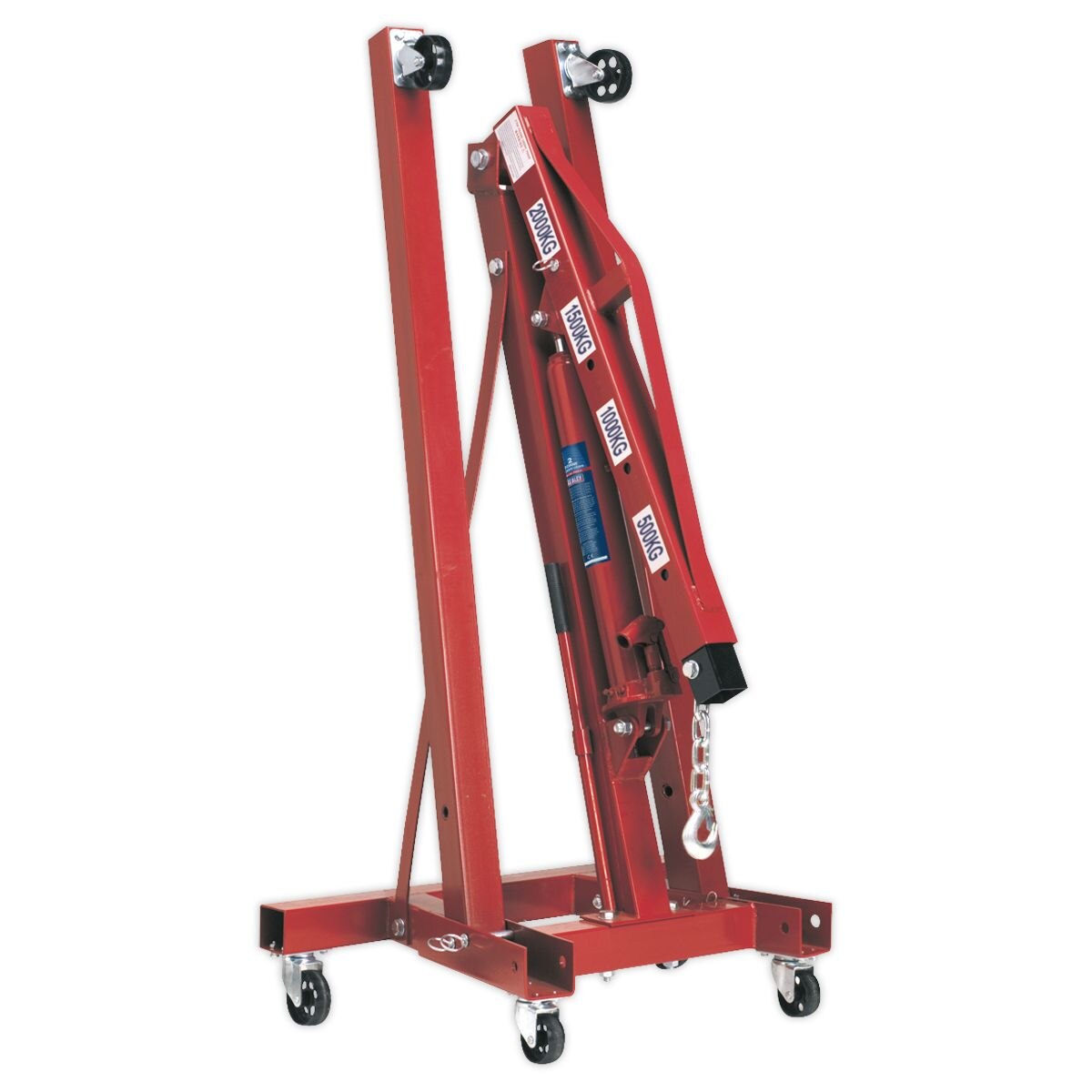

// Folds for easy storage, freeing valuable workshop space when not in use.
// Pump access from the side for safe handling of heavy loads.
// Delivered in knock-down form for reduced freight cost.
// This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
// Model No. PH20
// Lifts 2000kg at 860mm jib extension.
// Six heavy-duty castor wheels.
// Folds for easy storage, freeing valuable workshop space when not in use.
// Pump access from the side for safe handling of heavy loads.
// Delivered in knock-down form for reduced freight cost.
// This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
// Model No. PH20
Specification
Specification
| Model No: PH20 |
Brand: Sealey |
| Height Jib Down: 1460mm |
Height Legs Folded: 1565mm |
| Height of Frame: 185mm |
Length of Jib Position 1: 860mm |
| Length of Jib Position 2: 1020mm |
Length of Jib Position 3: 1180mm |
| Length of Jib Position 4: 1340mm |
Length of Jib Position 5: n/a |
| Length: 1750mm |
Lifting Capacity in Position 1: 2000kg |
| Lifting Capacity in Position 2: 1500kg |
Lifting Capacity in Position 3: 1000kg |
| Lifting Capacity in Position 4: 500kg |
Max. Lift Ht at Jib Position 1: 1820mm |
| Max. Lift Ht at Jib Position 2: 1940mm |
Max. Lift Ht at Jib Position 3: 2080mm |
| Max. Lift Ht at Jib Position 4: 2210mm |
Nett Weight: 79.65kg |
| Rear Width: 850mm |
Width Front Frame: 1055mm |
| Width Inside Front Frame: 915mm |
