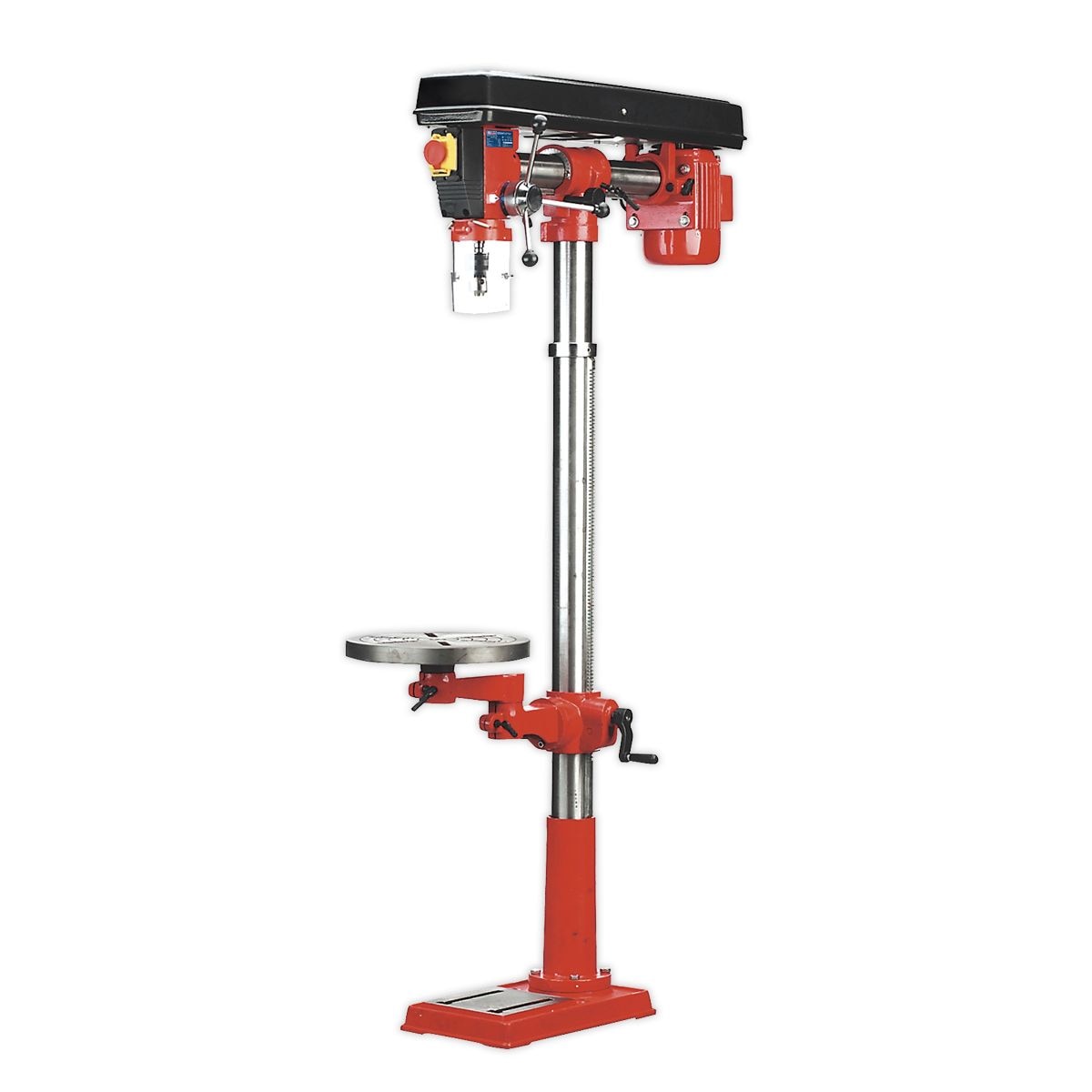

Sealey Floor Standing Radial Pillar Drill 5-Speed 550W/230V - GDM1630FR
Product Code / SKU: 168266

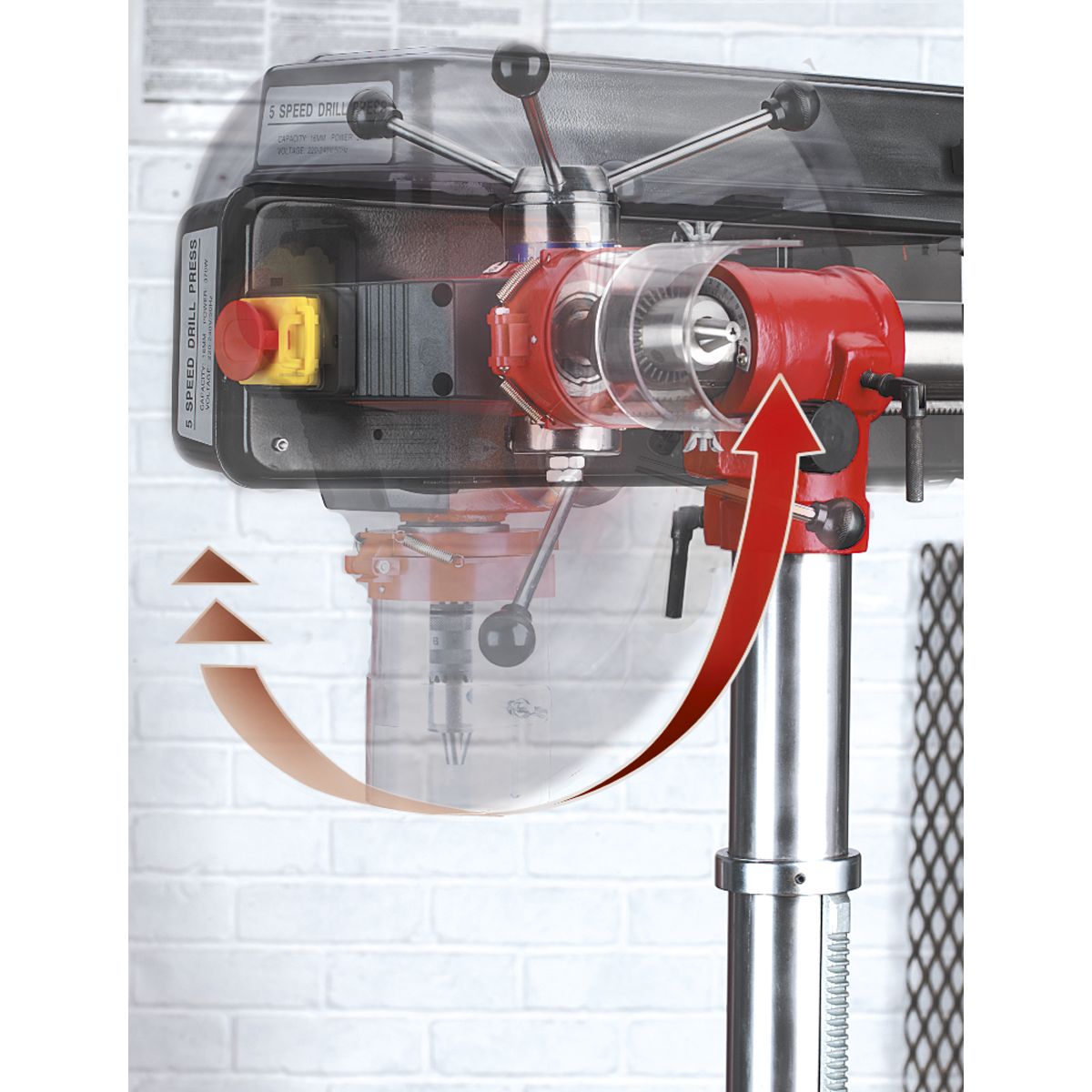

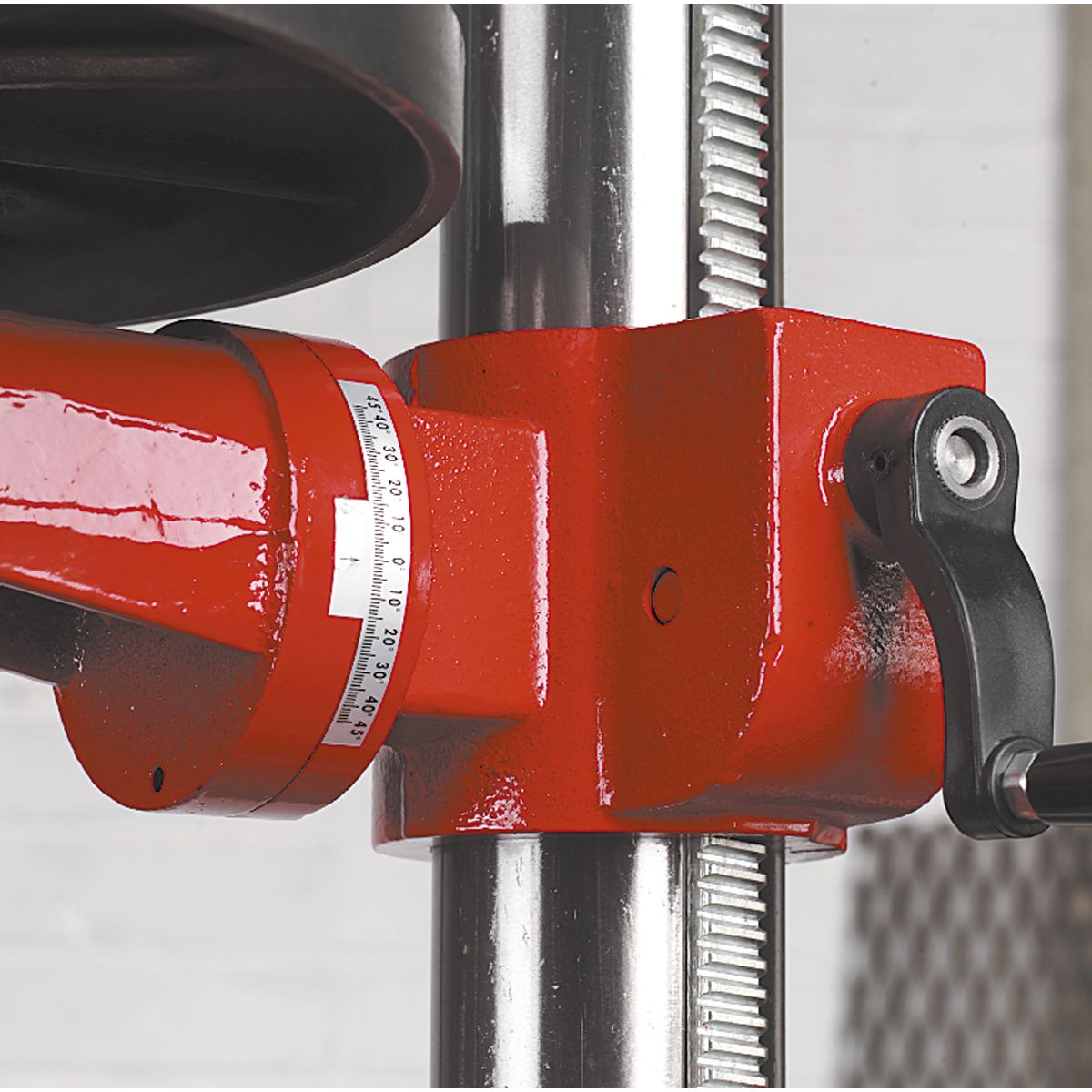

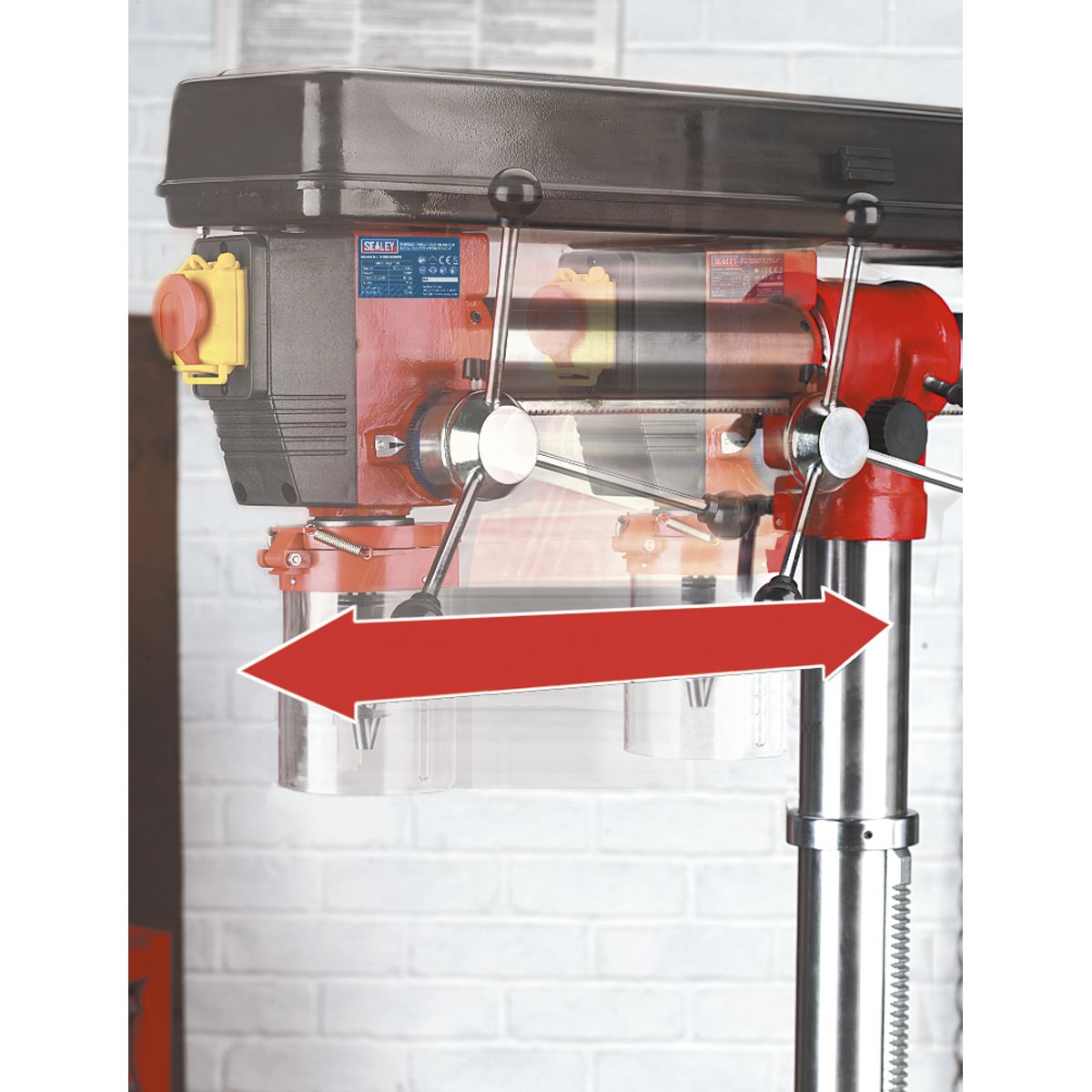

Heavy-duty construction. Safety devices fitted include a no-volt release switch and pulley cover cut-out microswitch. Radial feature allows off-table drilling and angle drilling. Features a maximum throat depth of 420mm. Radial arm controlled by rack and pinion assembly allowing fine positioning of drill bit. Mortise attachment available, order Model No. MA10. Also available as floor standing type - Model No. GDM1630FR.
// 16mm(5/8") Capacity chuck, MT2.

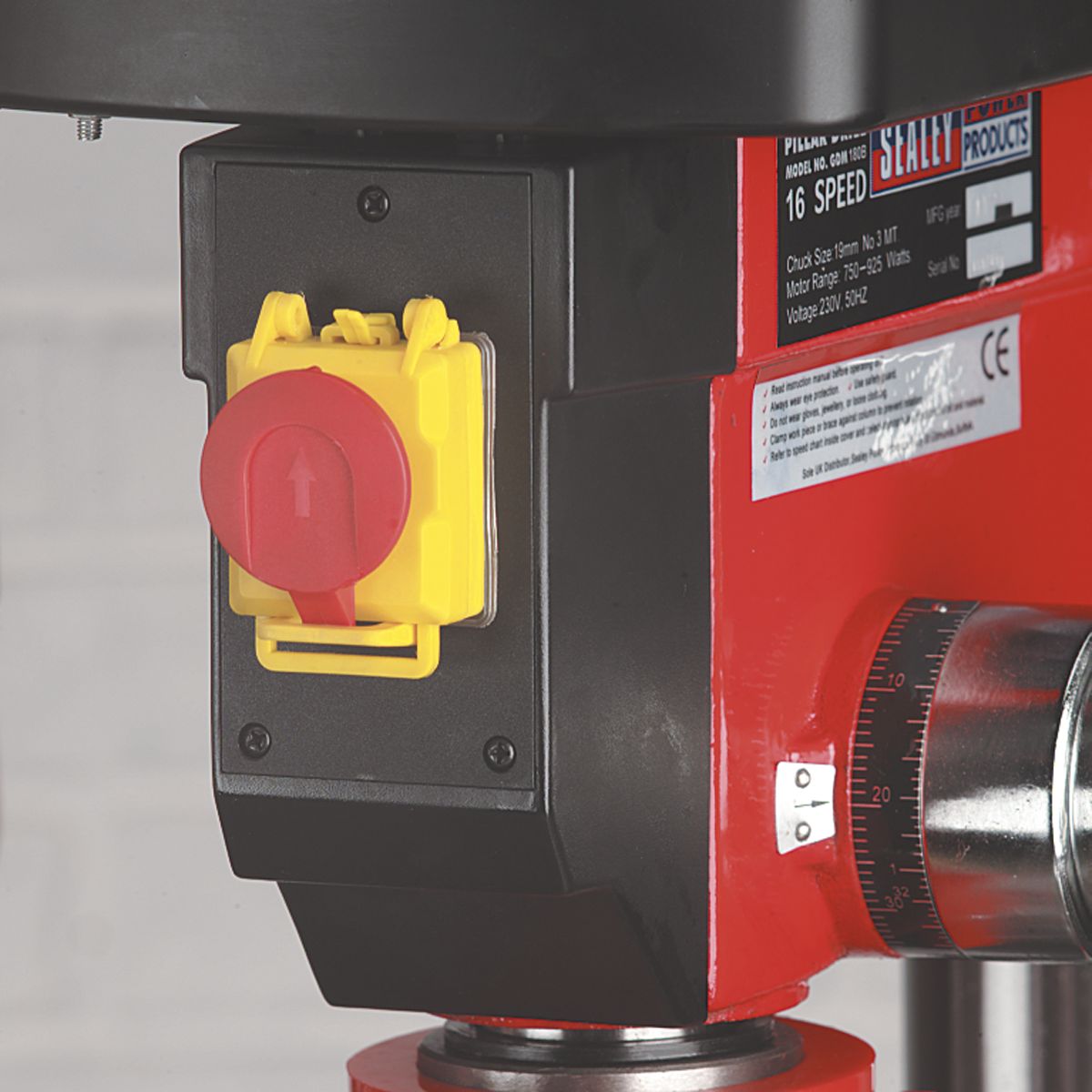

// Fitted with no-load voltage switch and locking cover to prevent accidental starting.
// Height: 1620mm.
// Spindle Centre to Column - Max: 420mm.
// Motor Power: 550W.
// Column Diameter: 70mm.
// Spindle Travel: 80mm.
// Weight: 59kg.
// Model No. GDM1630FR
// 16mm(5/8") Capacity chuck, MT2.
// Fitted with no-load voltage switch and locking cover to prevent accidental starting.
// Height: 1620mm.
// Spindle Centre to Column - Max: 420mm.
// Motor Power: 550W.
// Column Diameter: 70mm.
// Spindle Travel: 80mm.
// Weight: 59kg.
// Model No. GDM1630FR
Specification
Specification
| Model No: GDM1630FR |
Base Size: 420 x 250mm |
| Brand: Sealey |
Collar Diameter: Ø60mm |
| Column Diameter: Ø70mm |
Drilling Capacity (Chuck Size): 16mm |
| Maximum Distance Spindle to Base: 1280mm |
Maximum Distance Spindle to Table: 830mm |
| Motor Power: 550W |
Nett Weight: 59kg |
| Number of Speeds: 5 |
Optional Accessories: GDMX/KC - Keyless Pillar Drill Chuck 16mm |
| Overall Height: 1620mm |
Radial Arm Travel: 285mm |
| Speed Range: 500-2450rpm |
Spindle Centre to Column: 420mm |
| Spindle Nose Taper: MT2 |
Spindle Travel: 80mm |
| Supply: 230V |
Swing: 840mm |
| Working Base Surface Size: 210 x 190mm |
Working Table Surface Size: Ø310mm |
