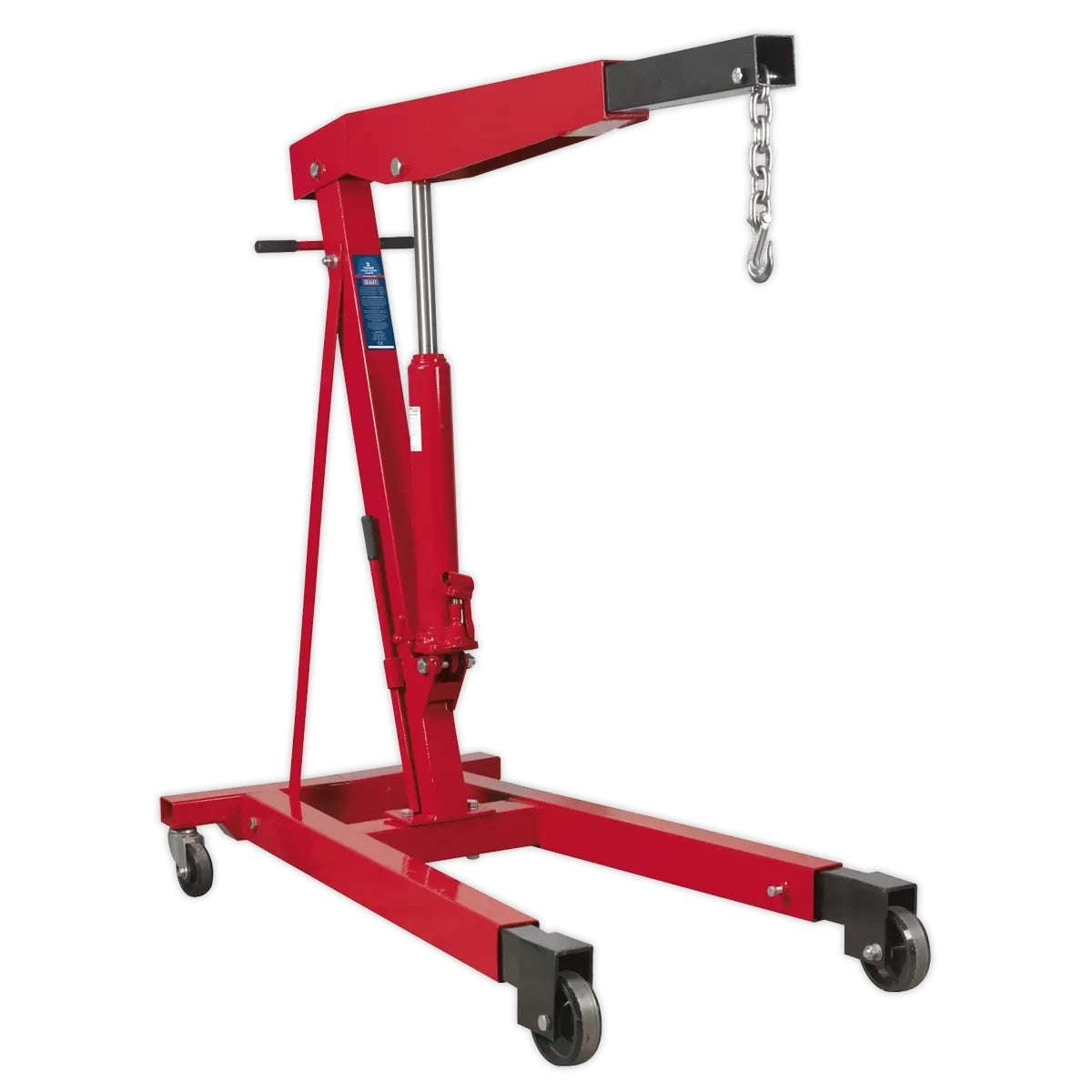

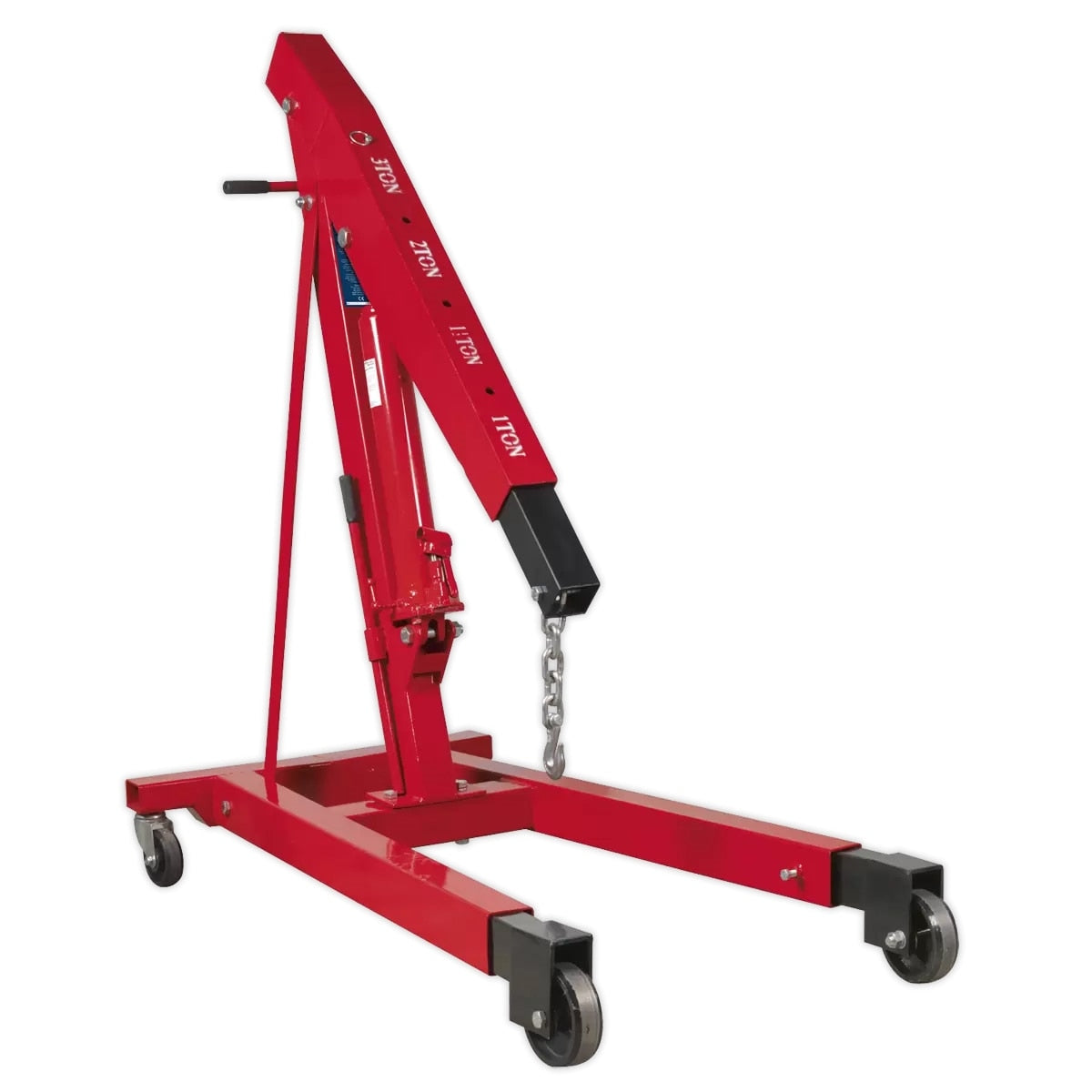

Sealey Fixed Frame Engine Crane with Extendable Legs 3 Tonne - PH30
Product Code / SKU: 169023
Weighs 155kg and is perfect for heavy commercial, industrial and workshop use. Extendable heavy-duty legs for improved stability, particularly when operating at maximum jib extensions. Beam can be set in 4-positions with a capacity of 1000kg at its full extension of 1820mm. Heavy-duty castors and pump access from side, for safe handling of heavy loads. Delivered in knock-down form for reduced freight cost. Some self-assembly required.
// Lifts 3000kg at 1200mm jib extension.
// Heavy-duty fixed front wheels and rear castors.
// Perfect for heavy commercial, industrial and workshop use.

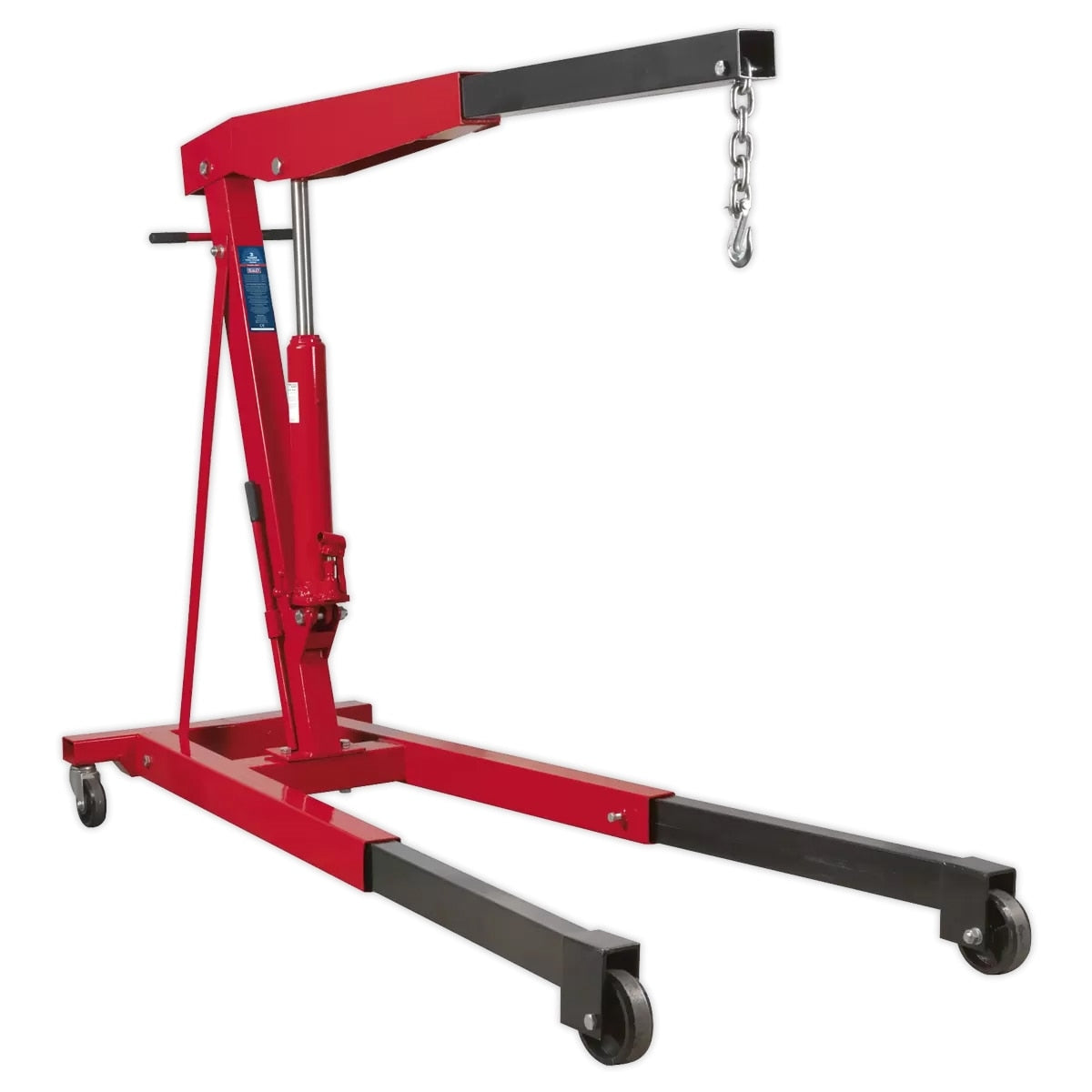

// Extendable legs for improved stability, particularly when operating at maximum jib extensions.
// Pump access from the side for safe handling of heavy loads.
// Delivered in knock-down form for reduced freight cost.
// This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
// Model No. PH30
// Lifts 3000kg at 1200mm jib extension.
// Heavy-duty fixed front wheels and rear castors.
// Perfect for heavy commercial, industrial and workshop use.
// Extendable legs for improved stability, particularly when operating at maximum jib extensions.
// Pump access from the side for safe handling of heavy loads.
// Delivered in knock-down form for reduced freight cost.
// This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
// Model No. PH30
Specification
Specification
| Model No: PH30 |
Brand: Sealey |
| Height Jib Down: 1610mm |
Height Legs Folded: N/A |
| Height of Frame: 195mm |
Length Legs Extended: 950mm |
| Length of Jib Position 1: 1200mm |
Length of Jib Position 2: 1400mm |
| Length of Jib Position 3: 1610mm |
Length of Jib Position 4: 1820mm |
| Length of Jib Position 5: n/a |
Length: 1555mm |
| Lifting Capacity in Position 1: 3000kg |
Lifting Capacity in Position 2: 2000kg |
| Lifting Capacity in Position 3: 1500kg |
Lifting Capacity in Position 4: 1000kg |
| Lifting Capacity in Position 5: n/a |
Max. Lift Ht at Jib Position 1: 1880mm |
| Max. Lift Ht at Jib Position 2: 1970mm |
Max. Lift Ht at Jib Position 3: 2010mm |
| Max. Lift Ht at Jib Position 4: 2220mm |
Max. Lift Ht at Jib Position 5: n/a |
| Nett Weight: 155kg |
Note: Legs Extended |
| Rear Width: 780mm |
Width Front Frame: 855mm |
| Width Inside Front Frame: 700mm |
