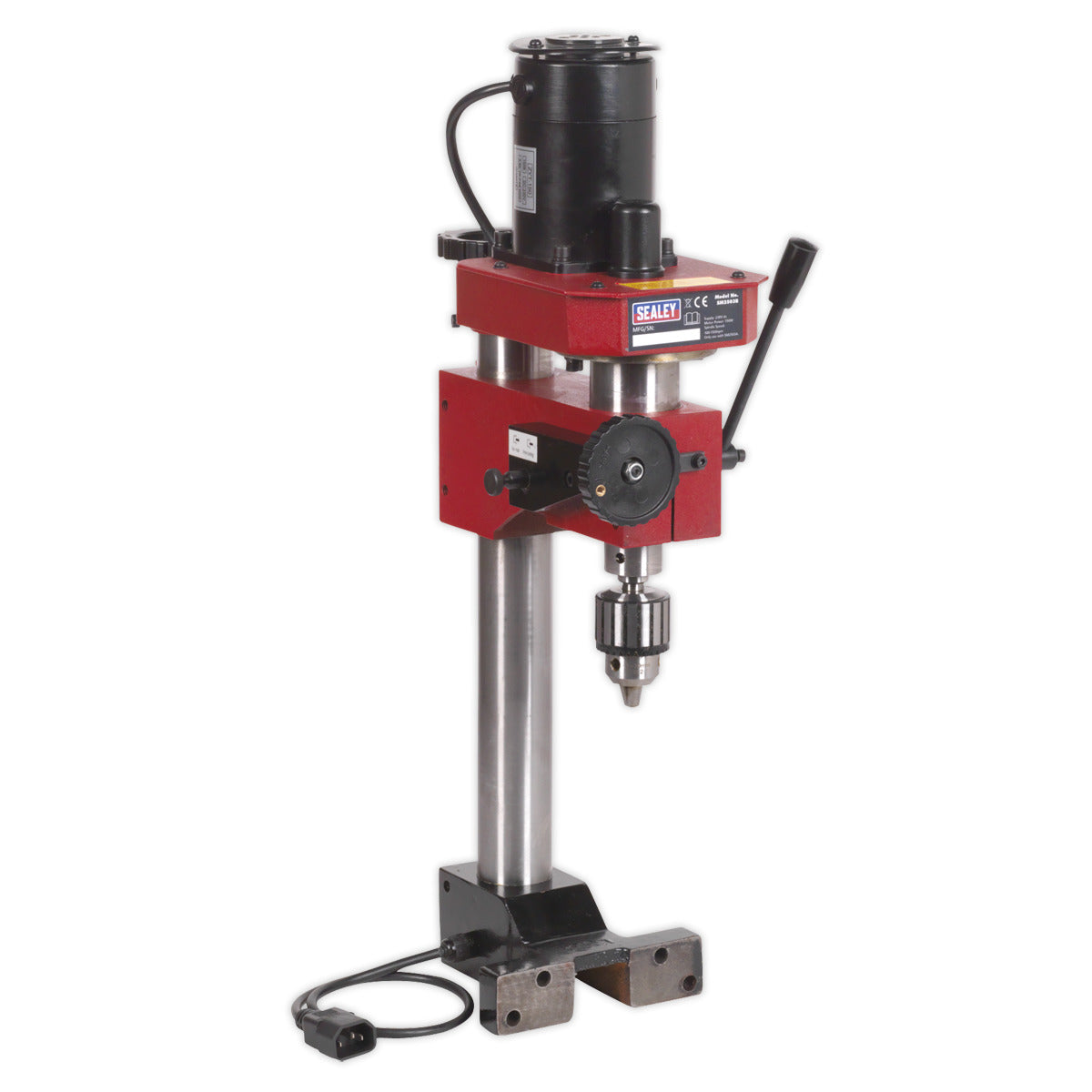

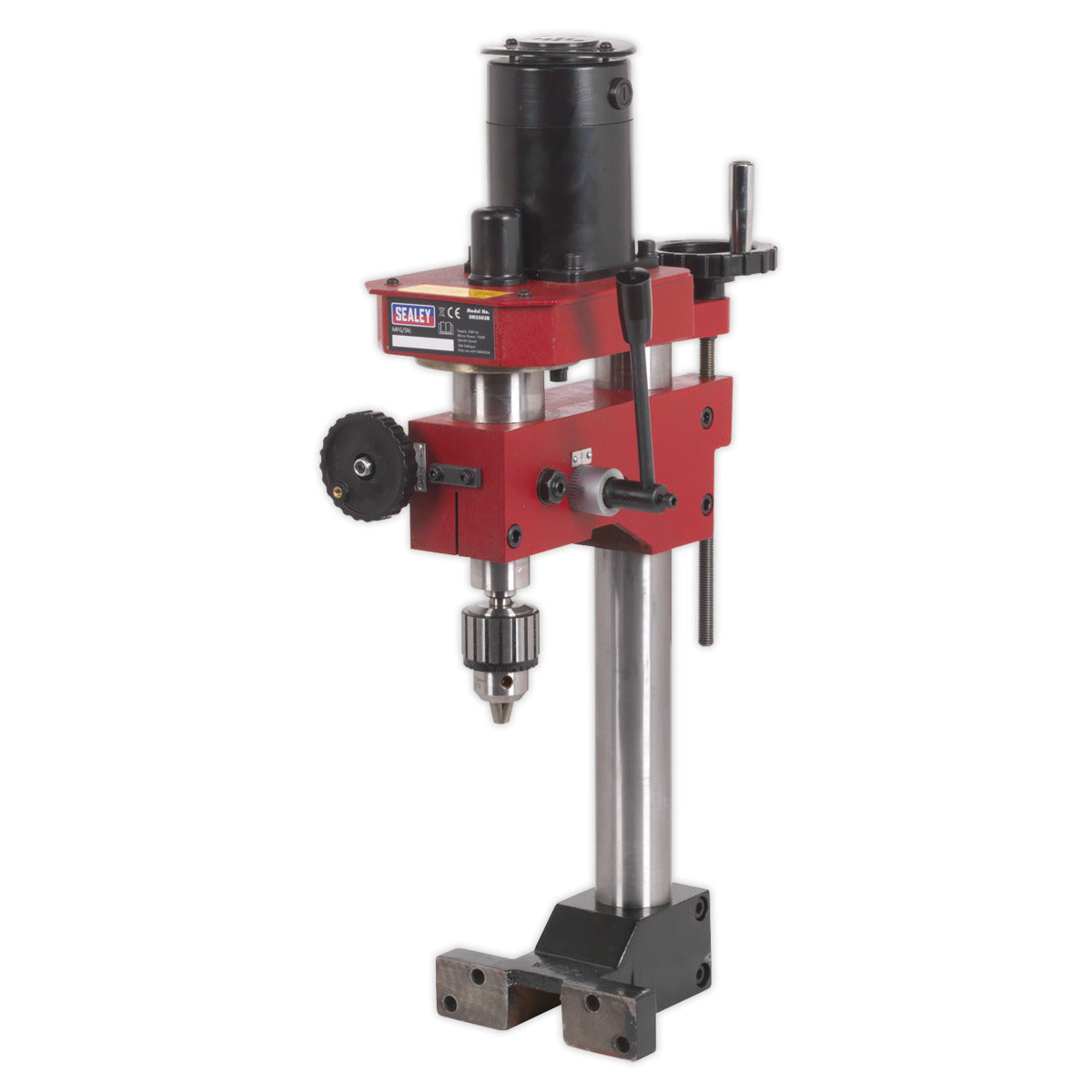

Sealey Drill Head for Mini Lathe SM2503A SM2503B
Product Code / SKU: 170086
Transforms Model No. SM2503A Metalworking Mini Lathe into a lathe/mill drill combination. Easily retrofitted, this drill head offers the flexibility to handle most materials. This space efficient, versatile lathe mill/drill machine features a 150W motor.
// Transforms Model No. SM2503A into a Lathe/Mill Drill combination.
// Easily retrofitted.
// Offers the flexibility to handle most materials.
// Features 150W motor.
// Drilling/Milling Spindle Speed/Travel: 100-1500rpm/30mm.
// Maximum Drilling/Milling Capacity: 10mm.
// Creates space efficient, versatile lathe mill/drill machine.
// Model No. SM2503B
// Transforms Model No. SM2503A into a Lathe/Mill Drill combination.
// Easily retrofitted.
// Offers the flexibility to handle most materials.
// Features 150W motor.
// Drilling/Milling Spindle Speed/Travel: 100-1500rpm/30mm.
// Maximum Drilling/Milling Capacity: 10mm.
// Creates space efficient, versatile lathe mill/drill machine.
// Model No. SM2503B
Specification
Specification
| Model No: SM2503B |
Brand: Sealey |
| Distance from Spindle Centre to Column: 100mm |
Distance from Spindle to Table: 180mm |
| Drilling/Milling Spindle Speed: 100-1300rpm |
Drilling/Milling Spindle Travel: 30mm |
| Maximum Drilling/Milling Capacity: 10mm |
Motor Power: 150W - 230V |
| Nett Weight: 14kg |
Spindle Taper: MT2 |
| T-Slot: 8mm |
