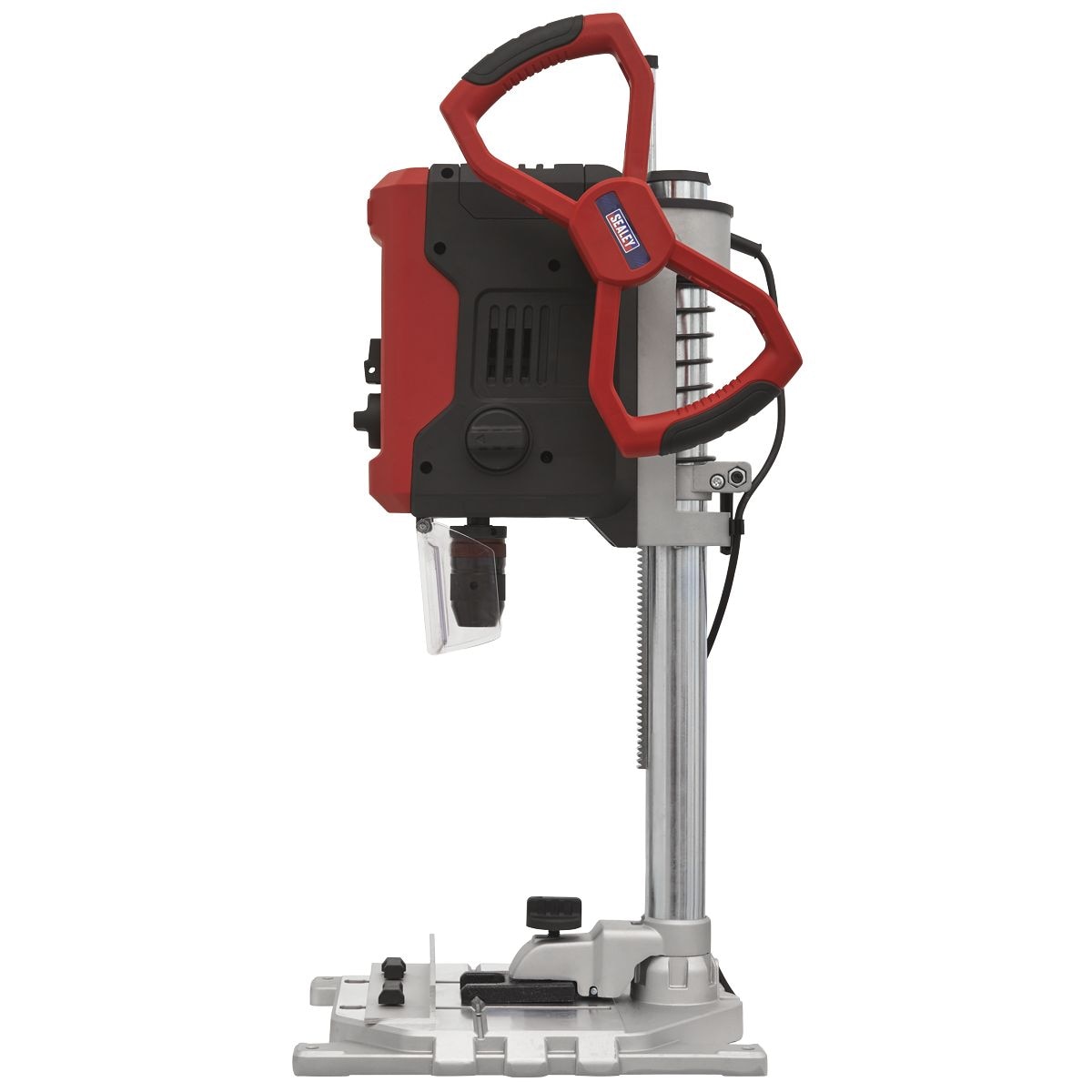

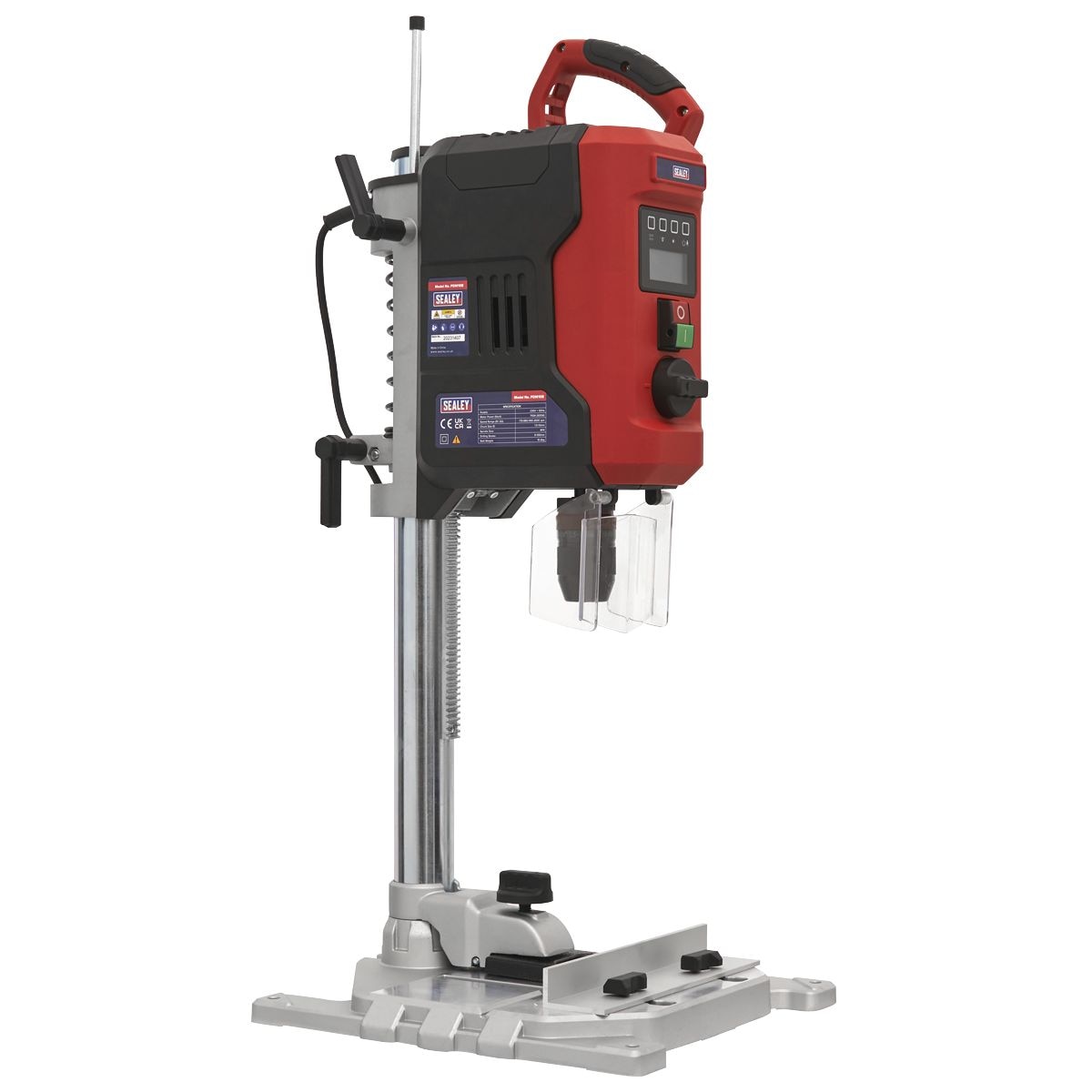

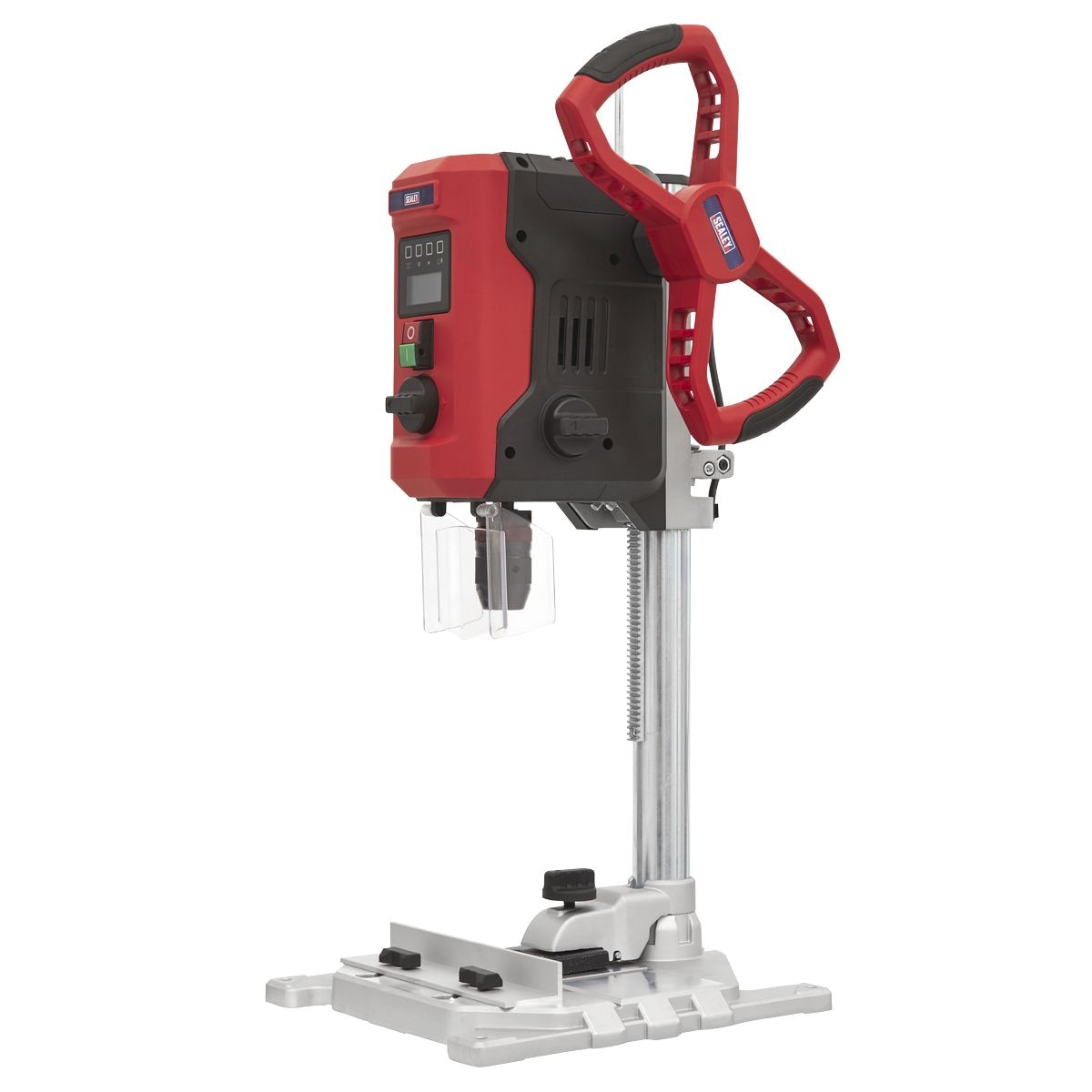

Sealey Bench Mounting Pillar Drill with Digital Display & Laser Guide 720W - PDM10B
Product Code / SKU: 169000
Great workspace illumination and accuracy thanks to the integrated LED light and laser. Easy-to-read LCD display shows rpm as well as spindle travel for exact drilling depth. Parallel guide and vertical clamp on base. Superior control from two gears giving speed adjustment from 170 to 880rpm and 490 to 2600rpm. Convenient quick release chuck.
// Great workspace illumination and accuracy thanks to the integrated LED light and laser.

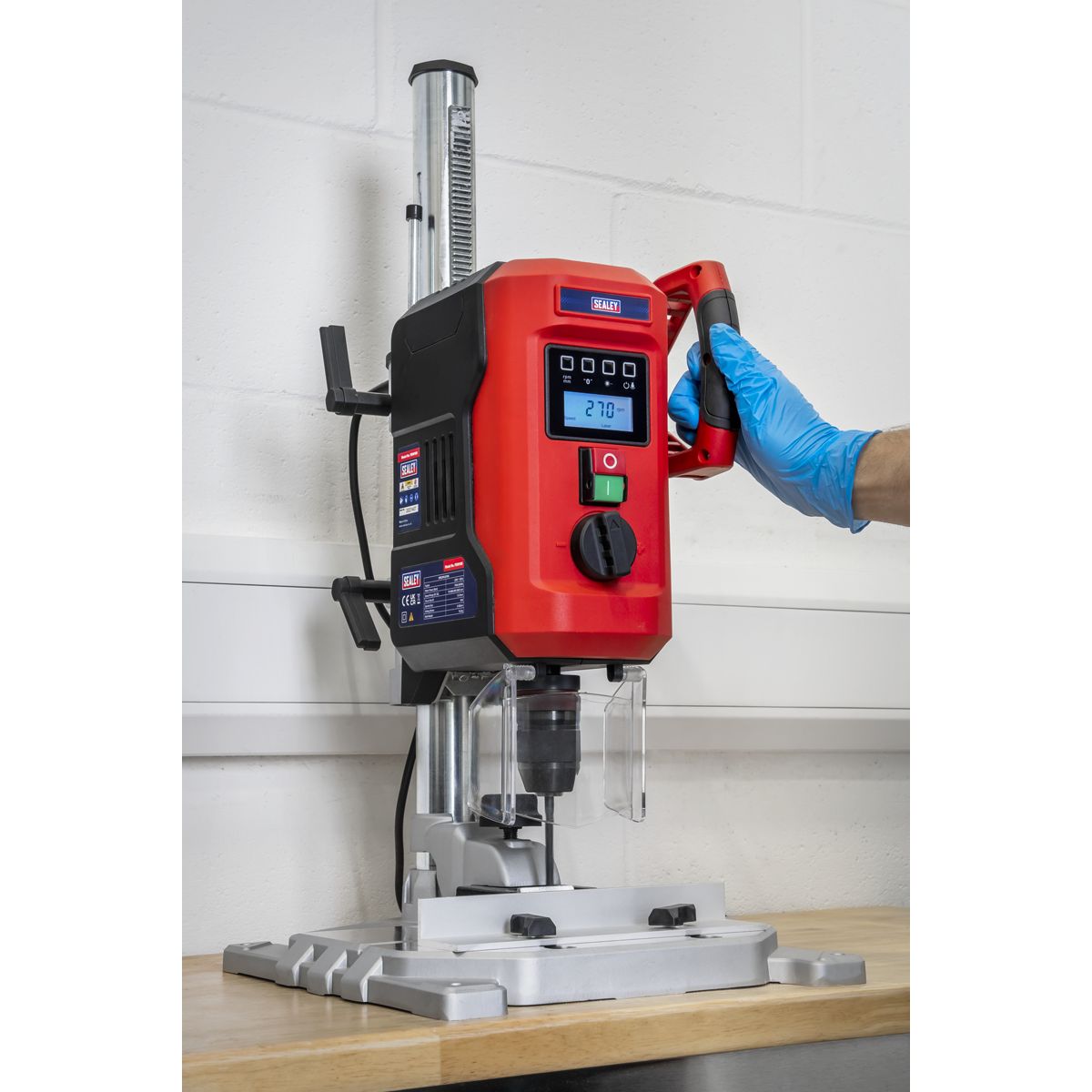

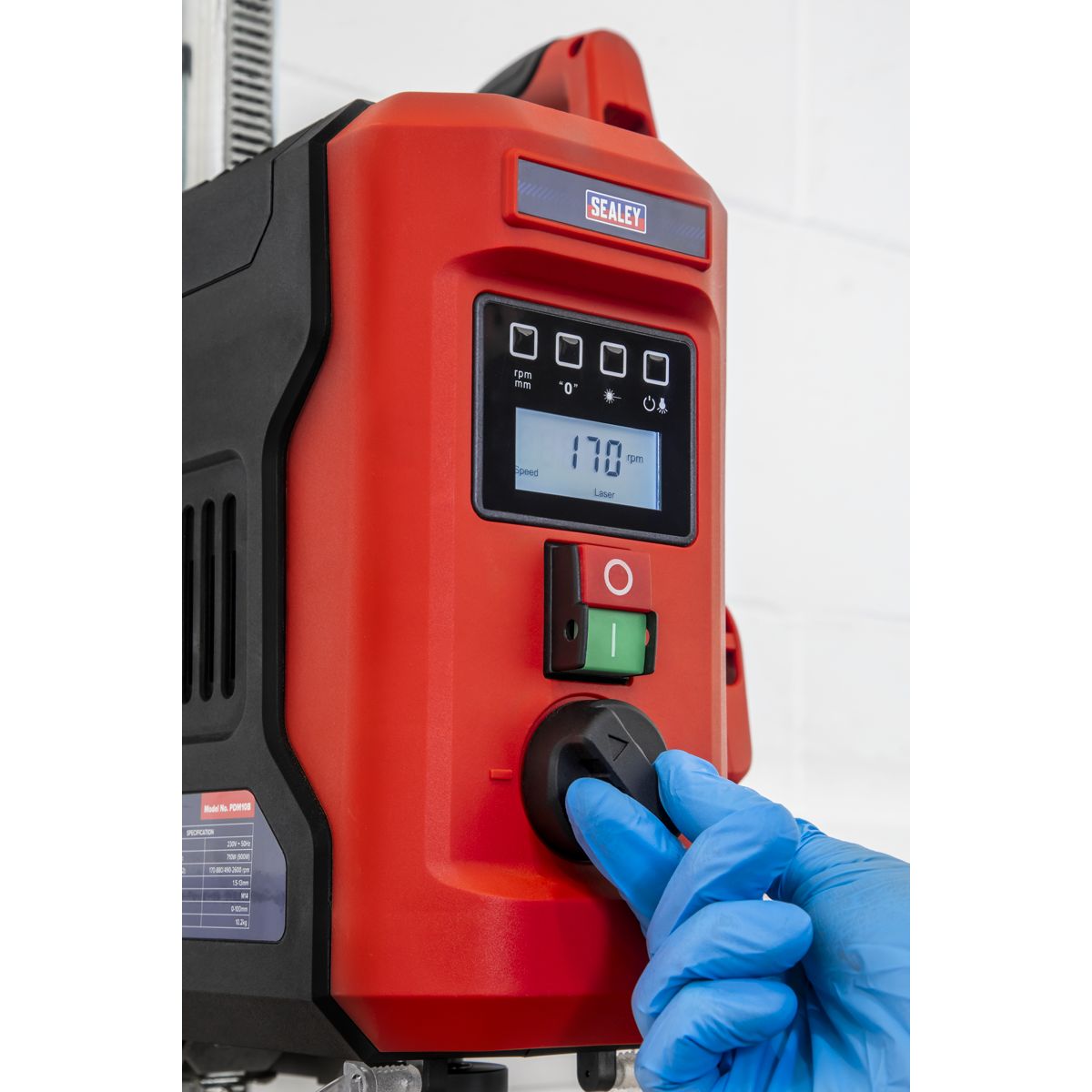

// Easy-to-read LCD display shows rpm as well as spindle travel for exact drilling depth (maximum 100mm stroke).

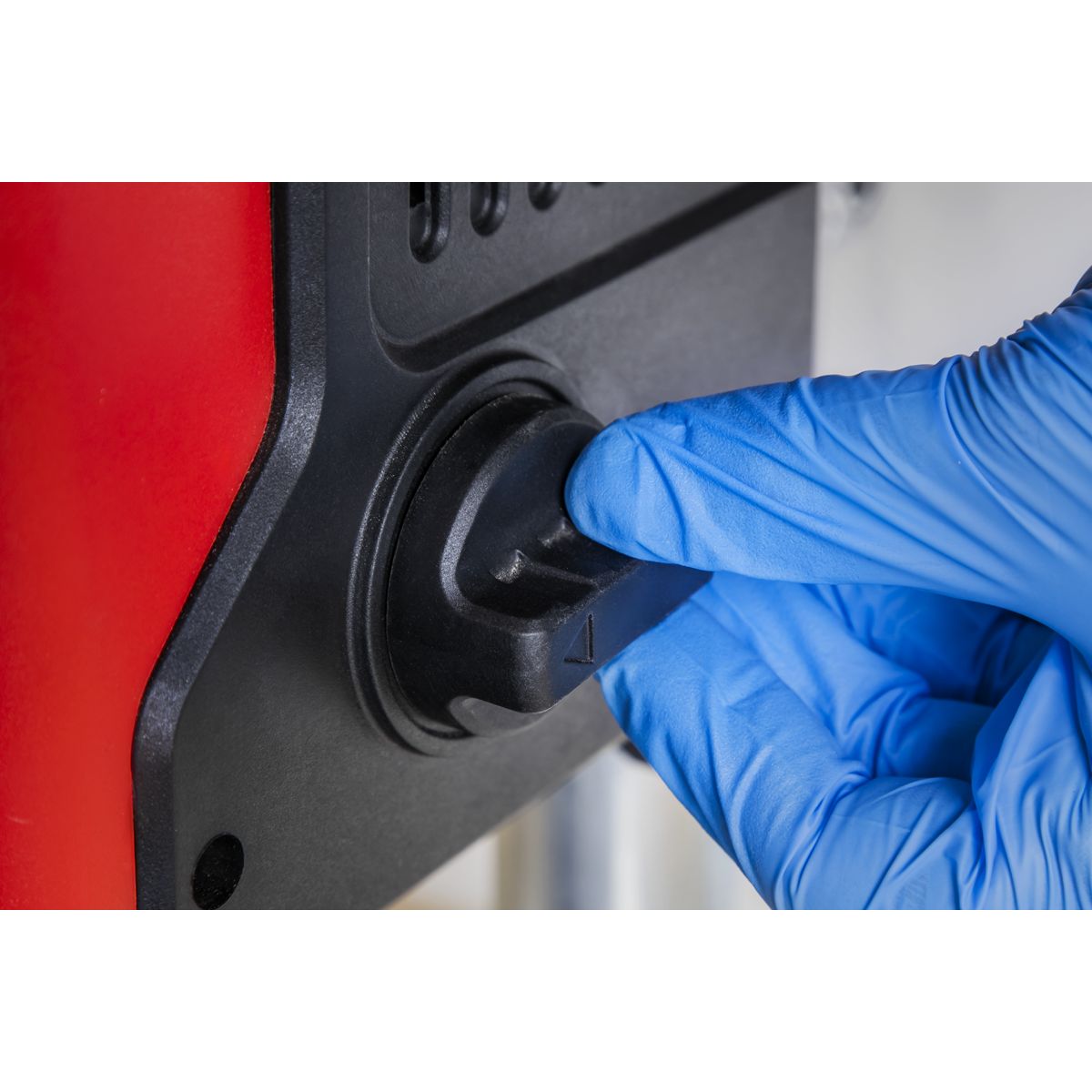

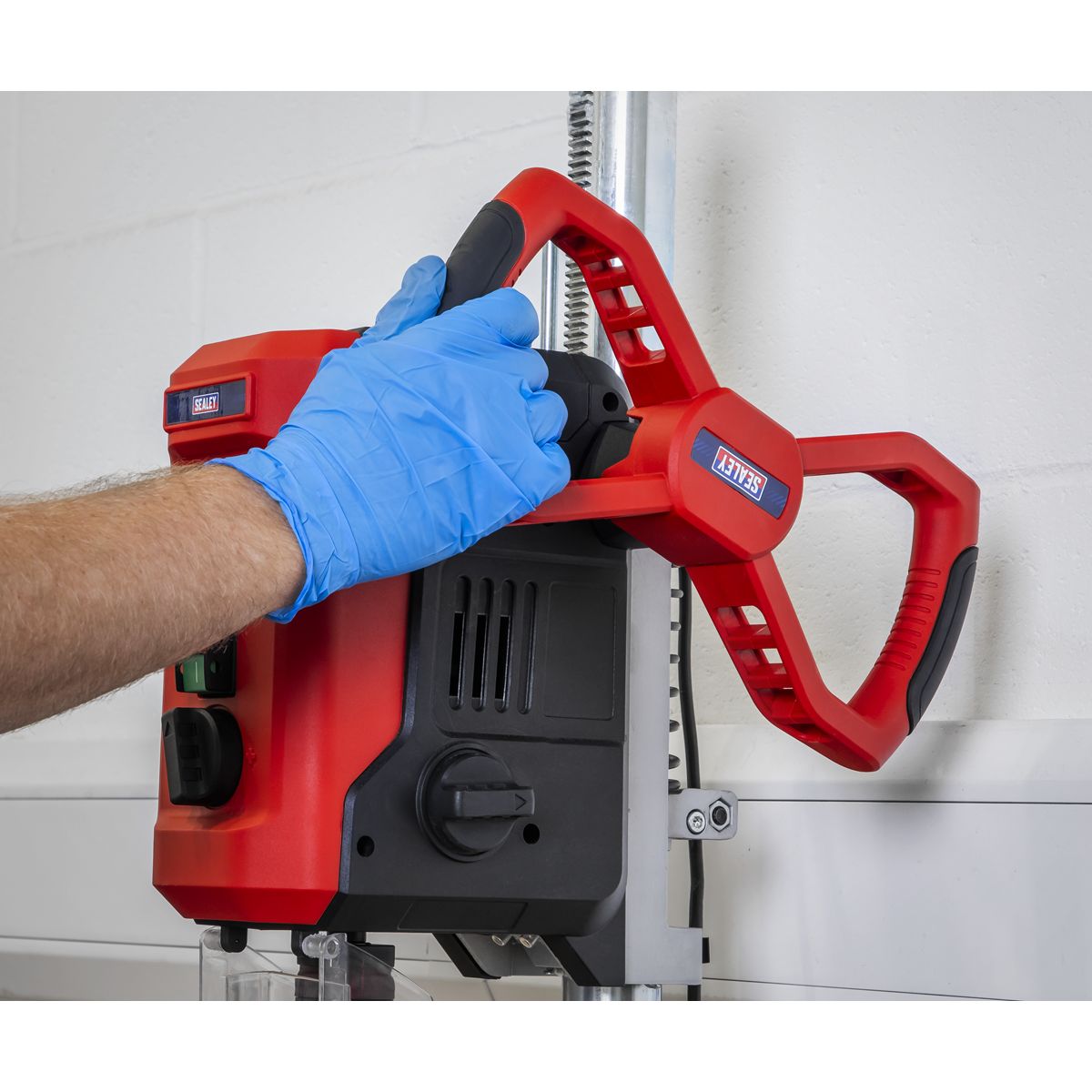

// Superior control from two gears giving speed adjustment from 170 to 880rpm and 490 to 2600rpm.

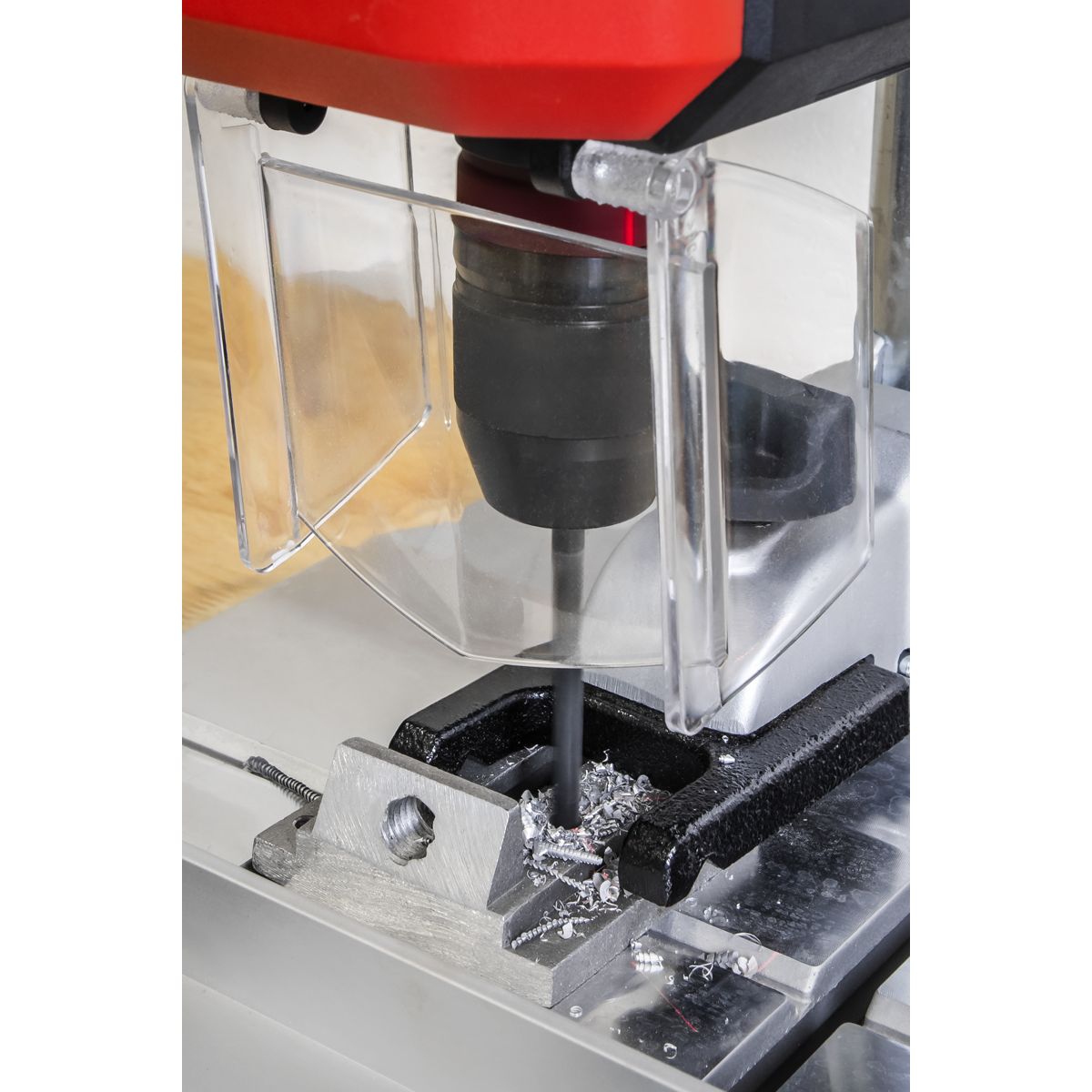

// Convenient quick release 1.5 to 13mm chuck.
// Maximum throat distance is 280mm.
// Wide (300 x 330mm) aluminium base gives increased stability and is corrosion-free.

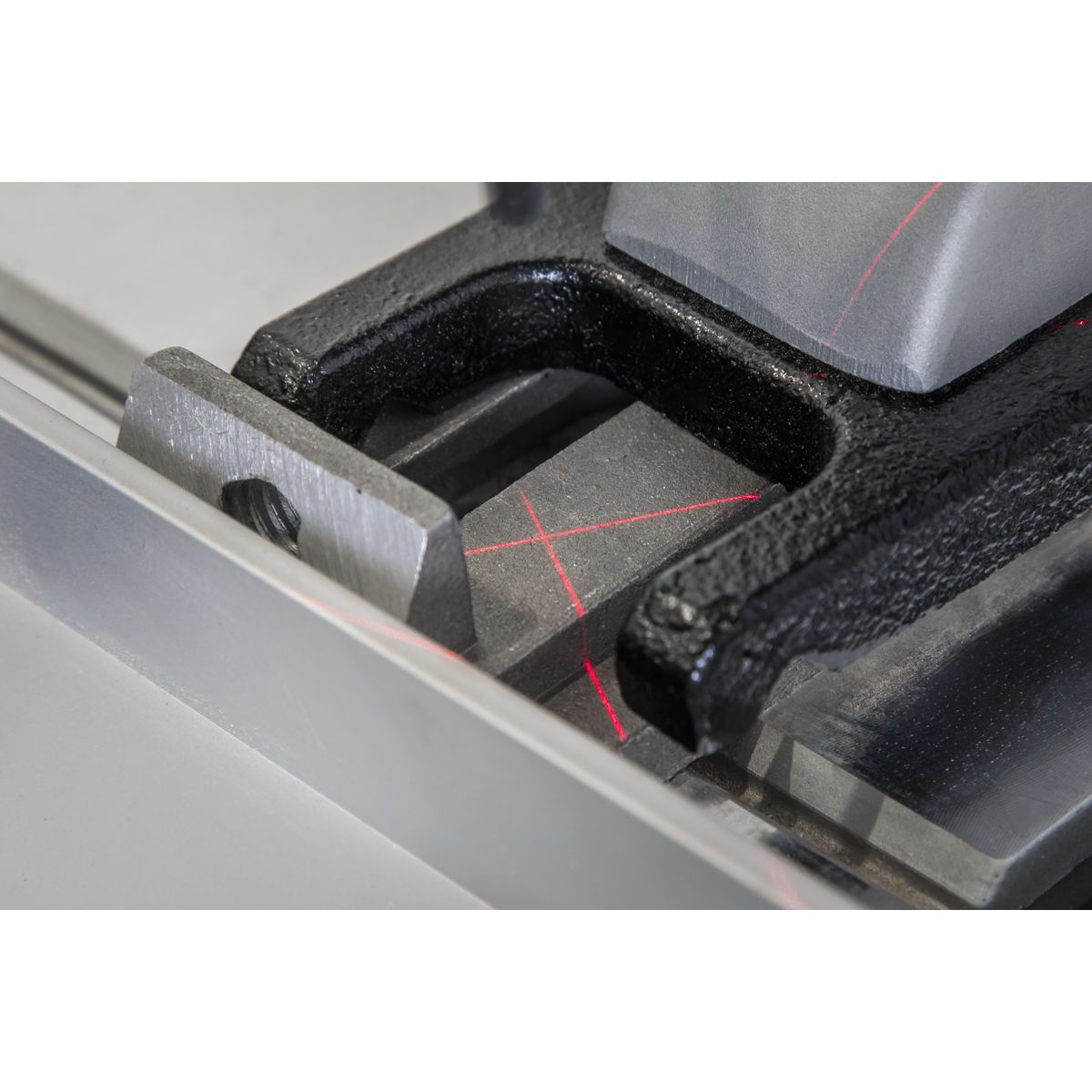

// Integrated laser for easy and precise drilling.
// Integrated LED for perfect illumination.
// Digital display for accurate drilling.
// Model No. PDM10B
// Great workspace illumination and accuracy thanks to the integrated LED light and laser.
// Easy-to-read LCD display shows rpm as well as spindle travel for exact drilling depth (maximum 100mm stroke).
// Superior control from two gears giving speed adjustment from 170 to 880rpm and 490 to 2600rpm.
// Convenient quick release 1.5 to 13mm chuck.
// Maximum throat distance is 280mm.
// Wide (300 x 330mm) aluminium base gives increased stability and is corrosion-free.
// Integrated laser for easy and precise drilling.
// Integrated LED for perfect illumination.
// Digital display for accurate drilling.
// Model No. PDM10B
Specification
Specification
| Model No: PDM10B |
Base Size: 330mm x 300mm |
| Brand: Sealey |
Collar Diameter: Ø43mm |
| Column Diameter: Ø46mm |
Drilling Capacity (Chuck Size): 13mm |
| Integral Work Light: Yes, Including Laser Guide. |
Maximum Distance Spindle to Base: 280mm |
| Maximum Distance Spindle to Table: N/A |
Motor Power (Start): 720W(900W) |
| Nett Weight: 10.2kg |
Number of Speeds: 2 Variable Speed Range : First : 170-880/min. Second : 490-2600/min |
| Optional Accessories: N/A |
Overall Height: 760mm |
| Speed Range: 170-880/min, 490-2600/min |
Spindle Centre to Column: 125mm |
| Spindle Nose Taper: N/A |
Spindle Travel: 100mm |
| Supply: 230V |
Swing: 250mm |
| Working Table Surface Size: N/A |
