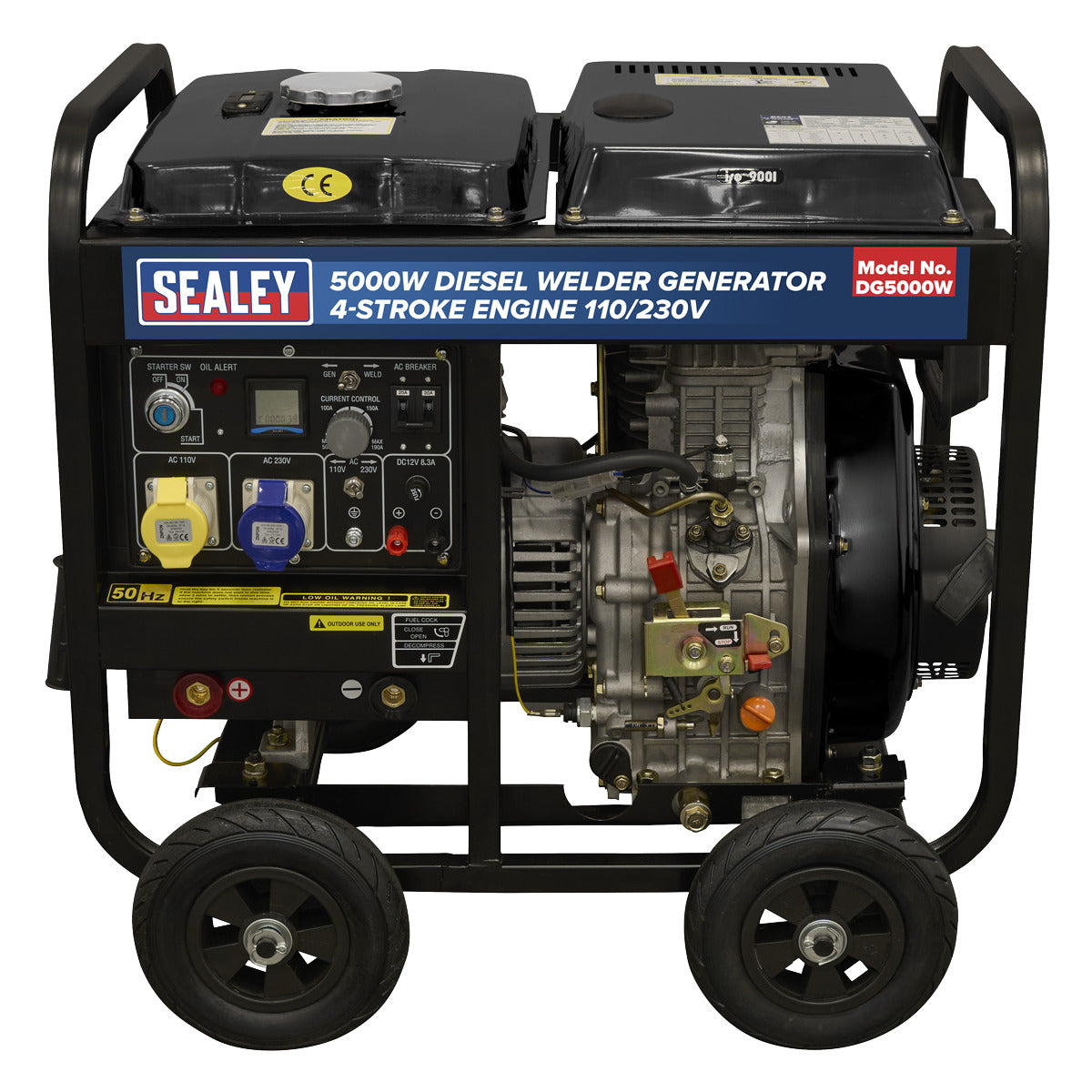

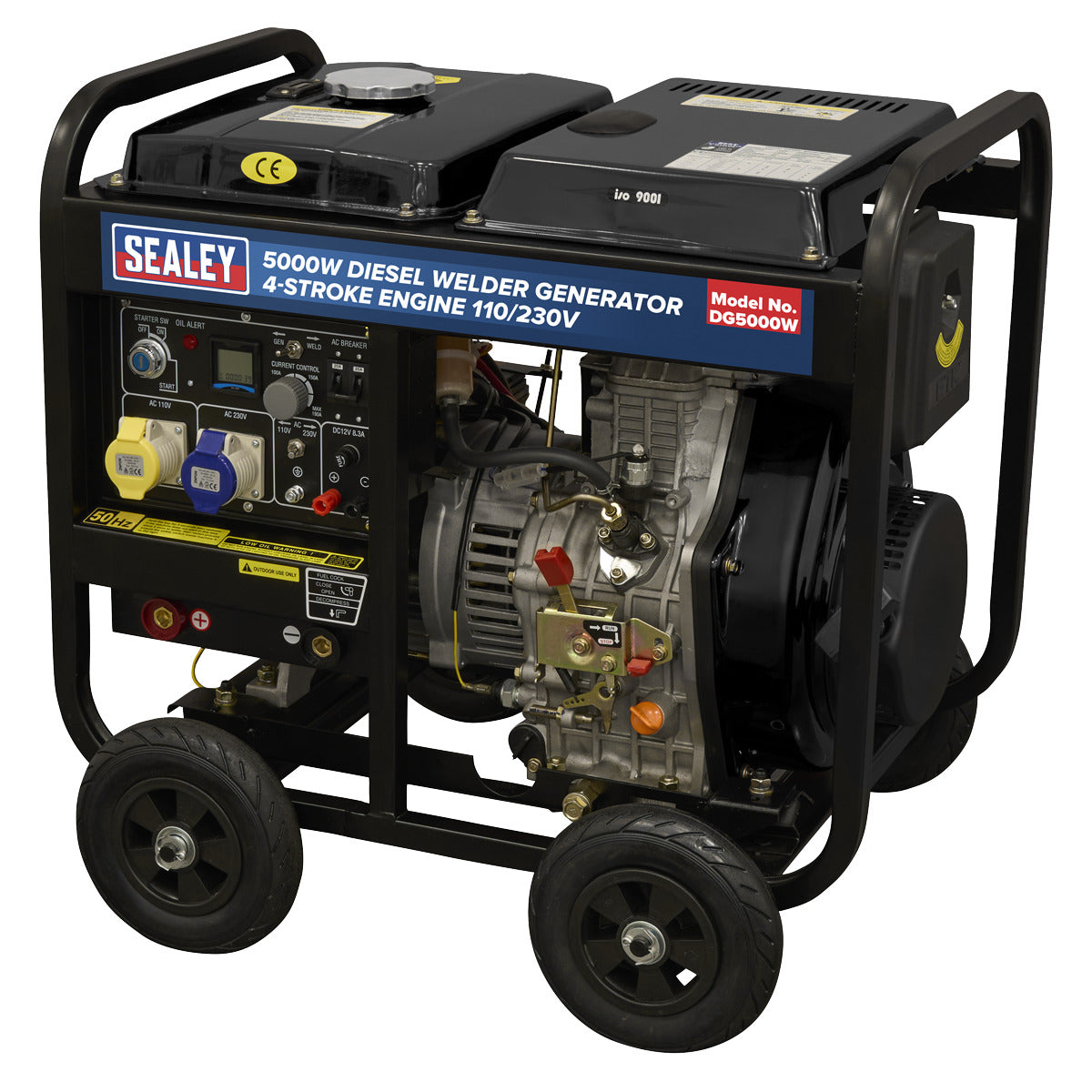

Sealey 5000W Diesel Welder Generator 4-Stroke Engine 110/230V DG5000W
Product Code / SKU: 190186

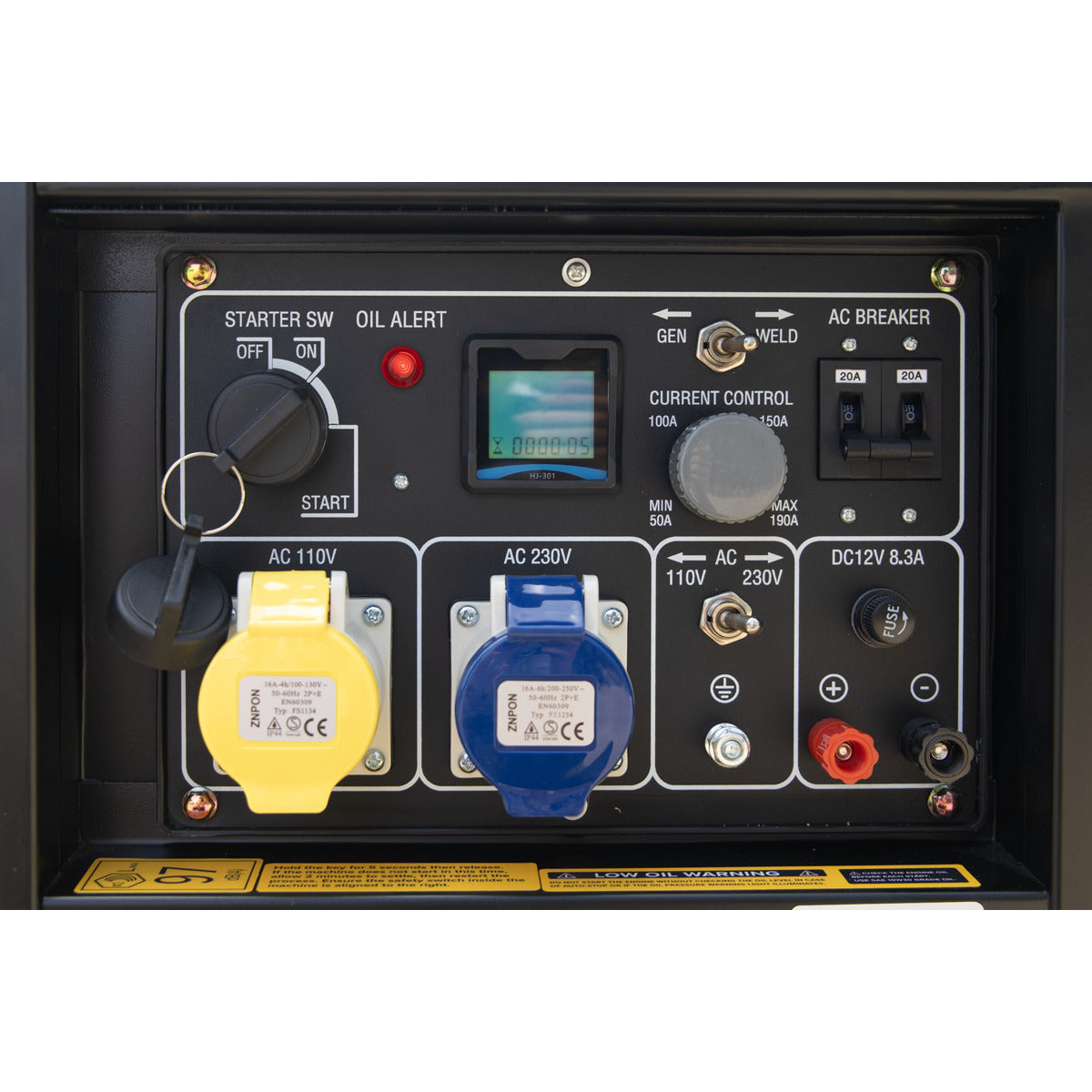

Supplies both 110V and 230V AC for flexible power options on-site. Built-in electric welding capability with adjustable current ranges from 80–180A, suitable for electrodes from Ø2.5-4mm. Driven by a 418cc single-cylinder, 4-stroke diesel engine delivering 5.0kW. Manual recoil start and key start function. 15L fuel tank allows extended operation without frequent refuelling. Rugged frame with two pull handles and four wheels for easy transportation around the worksite. Perfect for construction, agricultural, and industrial applications. Supplied with two keys, 2.8m electrode holder and 2.8m earth clamp. This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
// Supplies both 110V and 230V AC for flexible power options on-site.

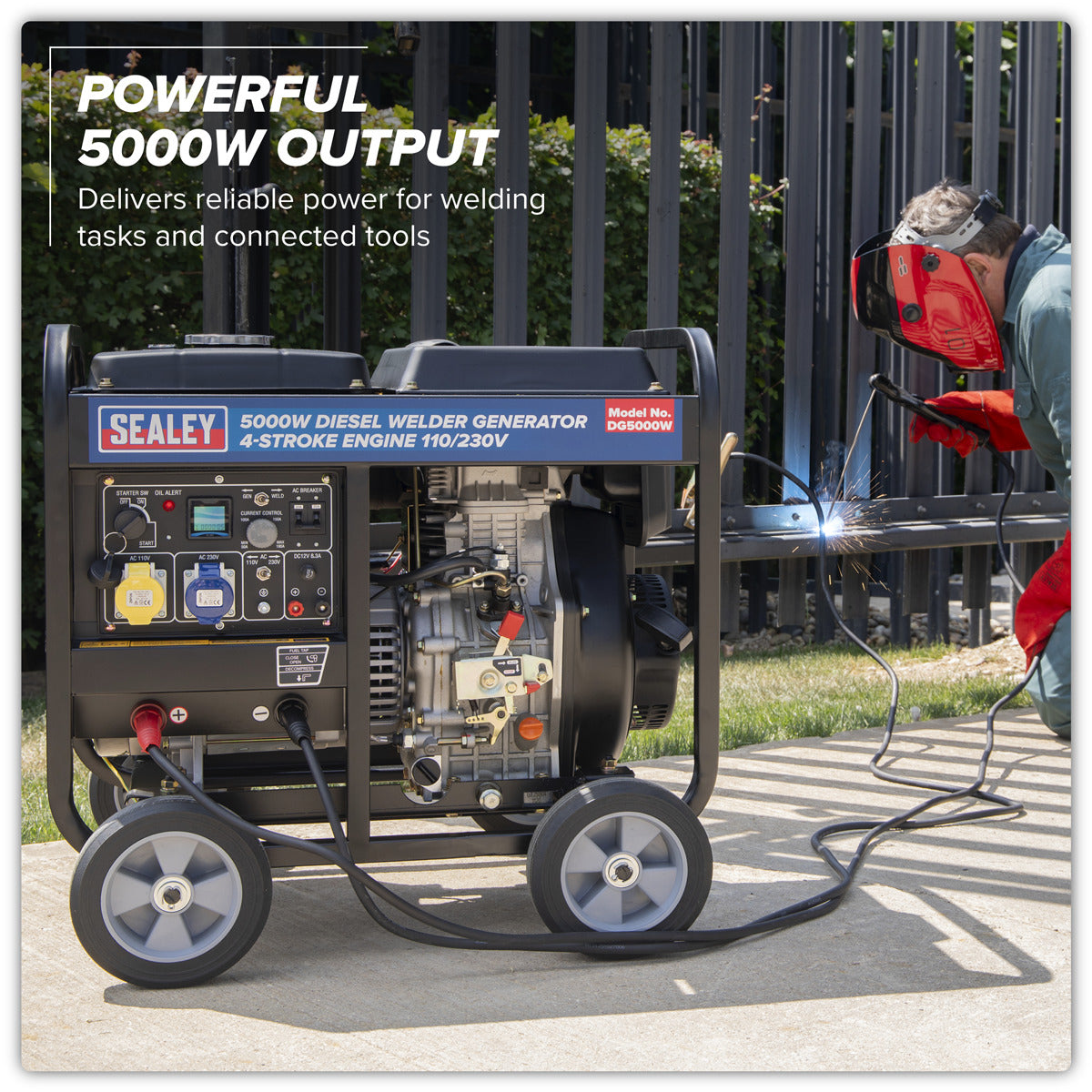

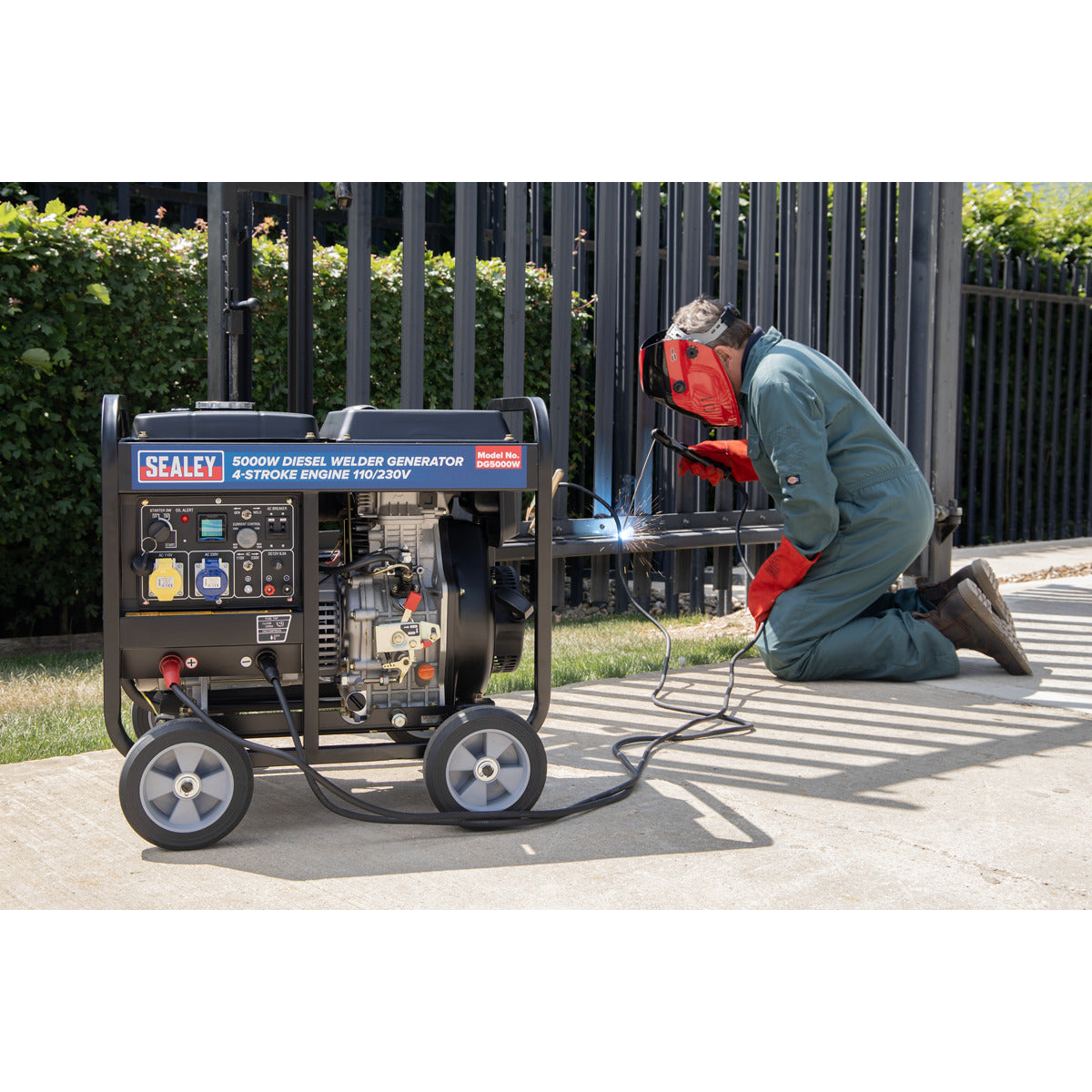

// Built-in electric welding capability with adjustable current ranges from 80-180A, suitable for electrodes from Ø2.5-4mm.
// Driven by a 418cc single cylinder, 4-stroke diesel engine delivering 5kW.

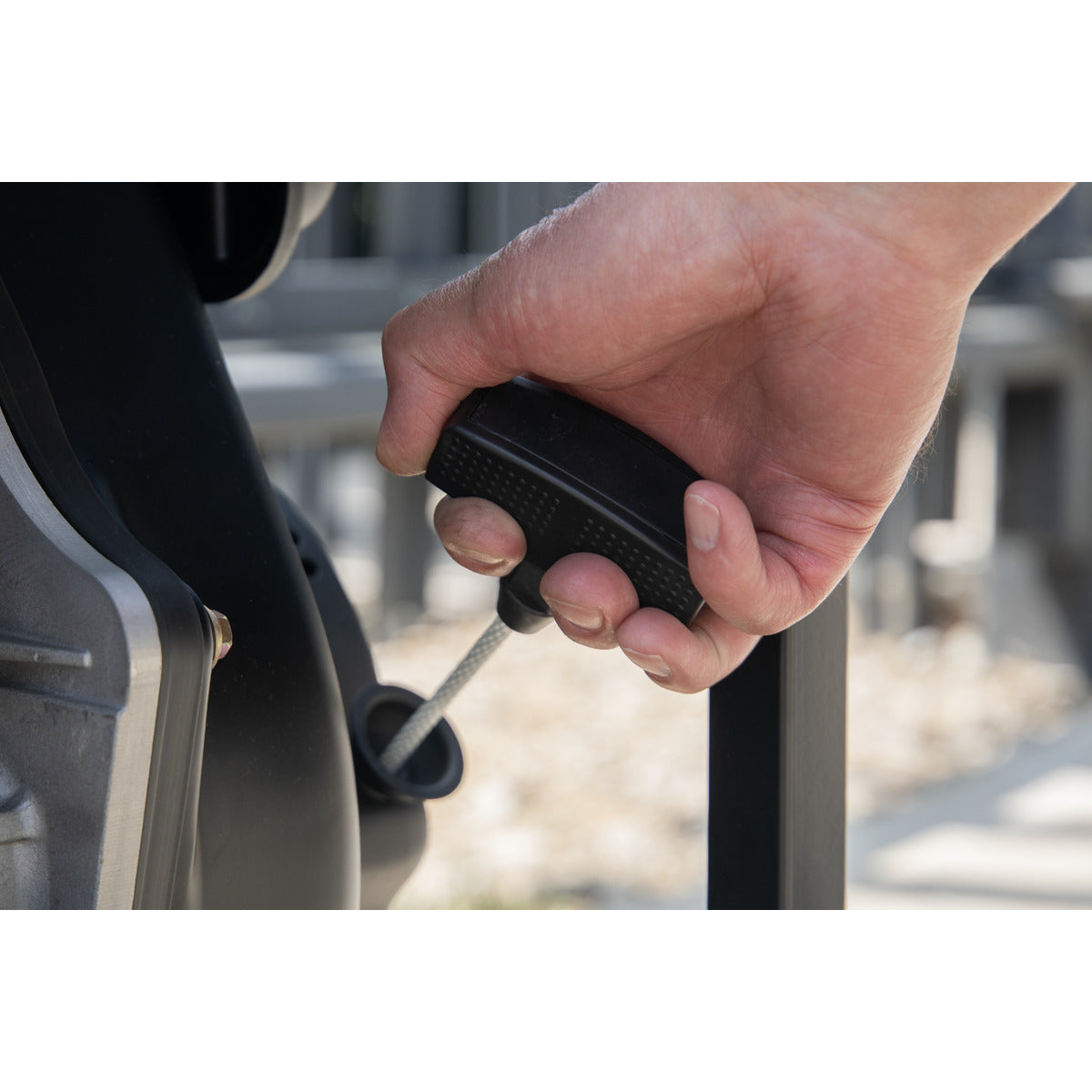

// Manual recoil start and key start function.

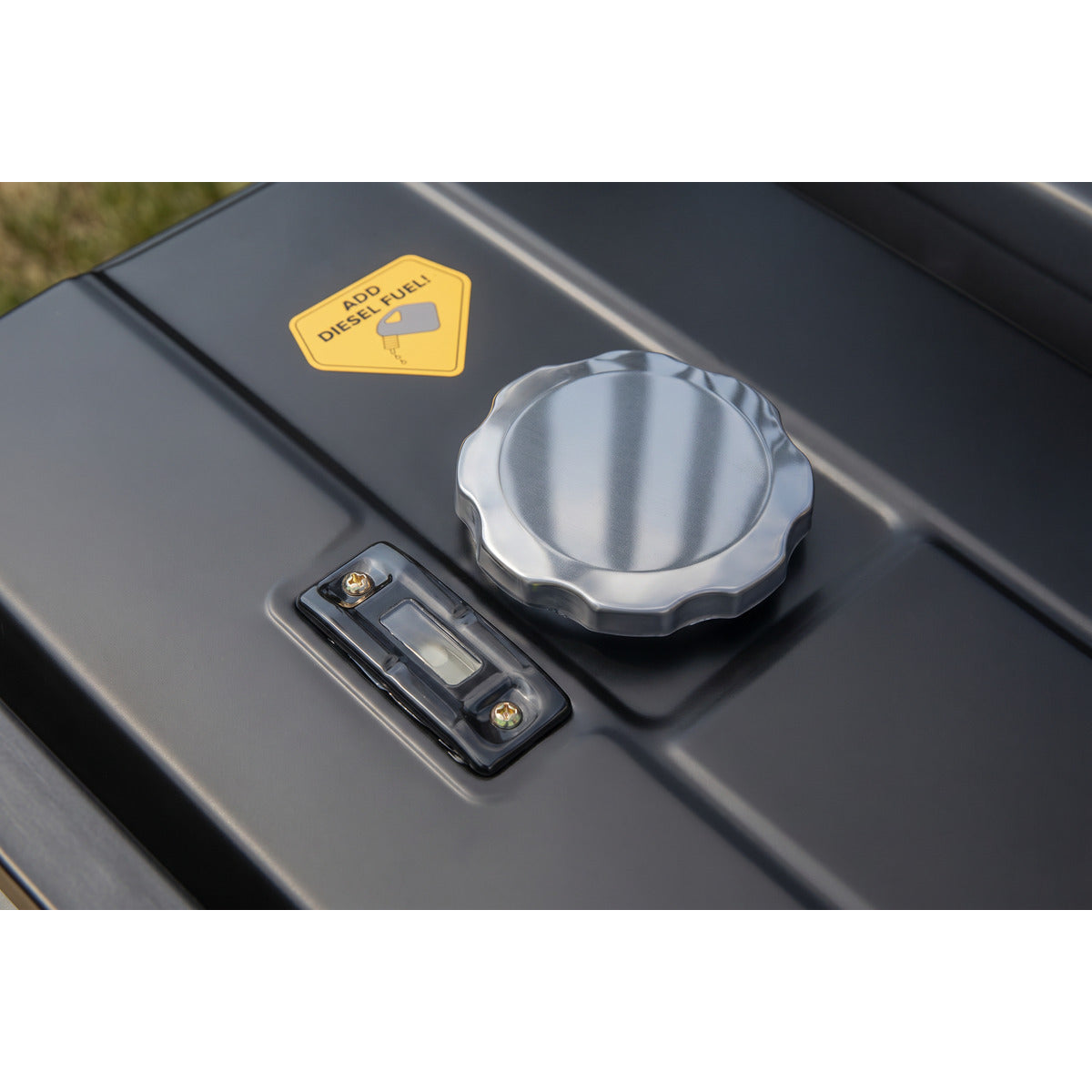

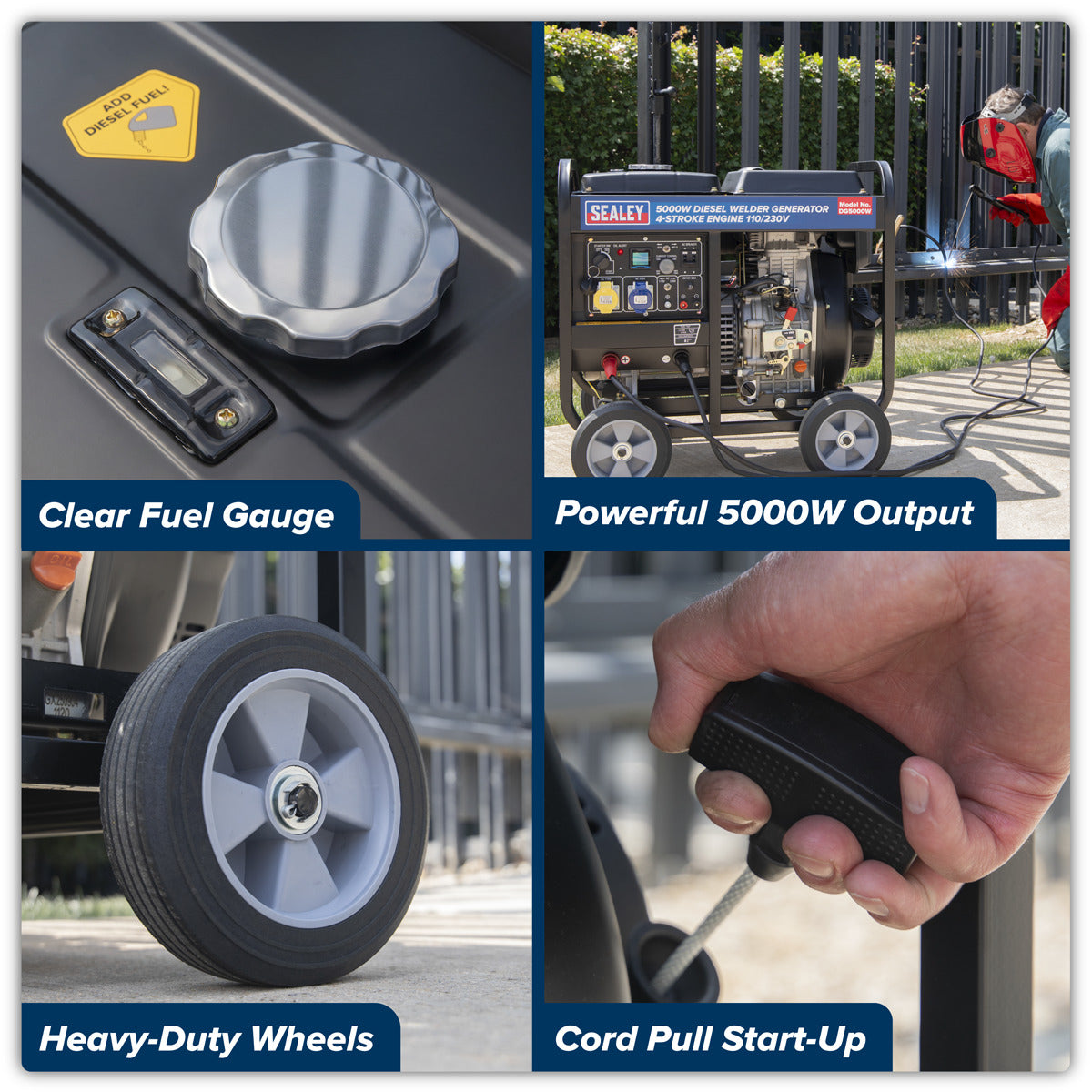

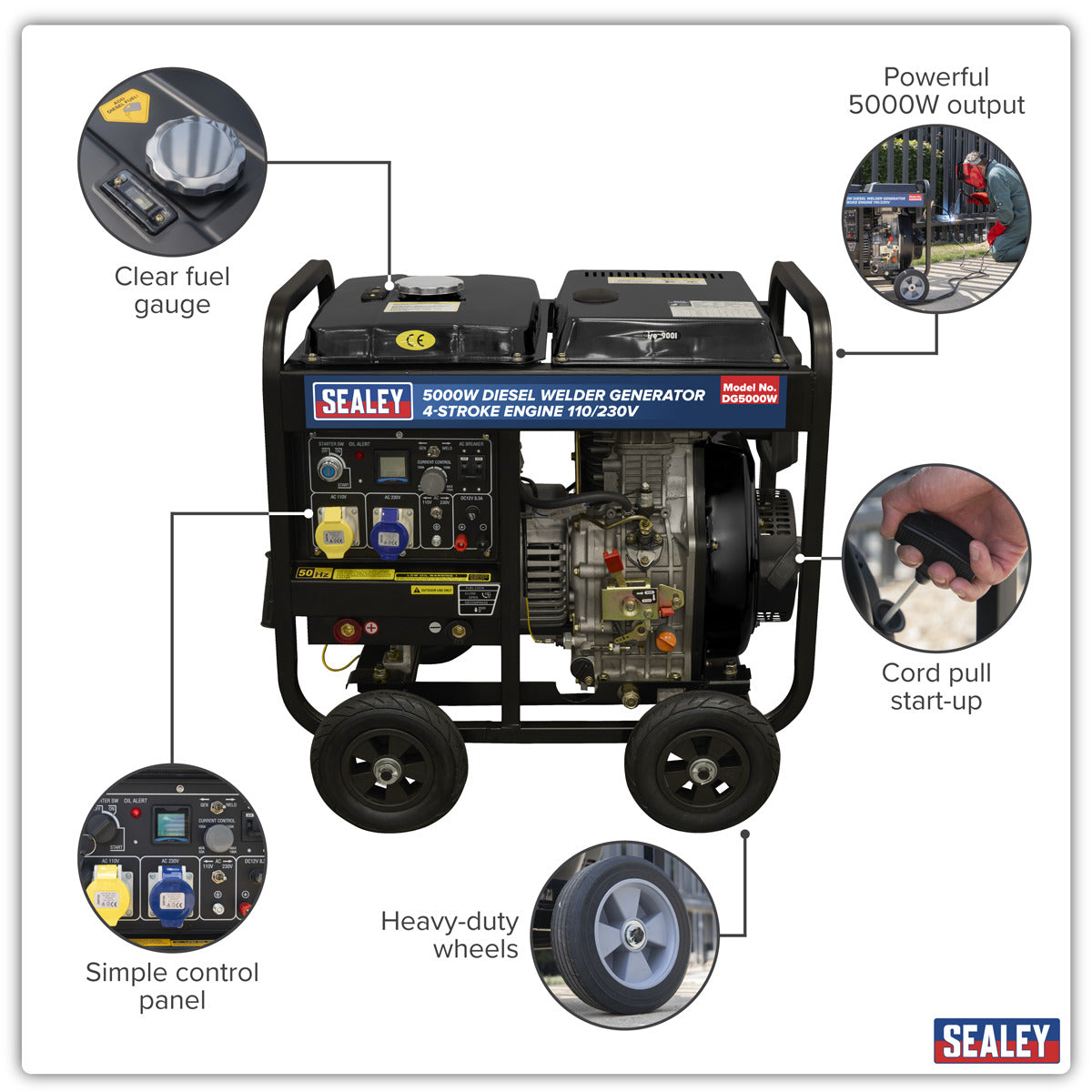

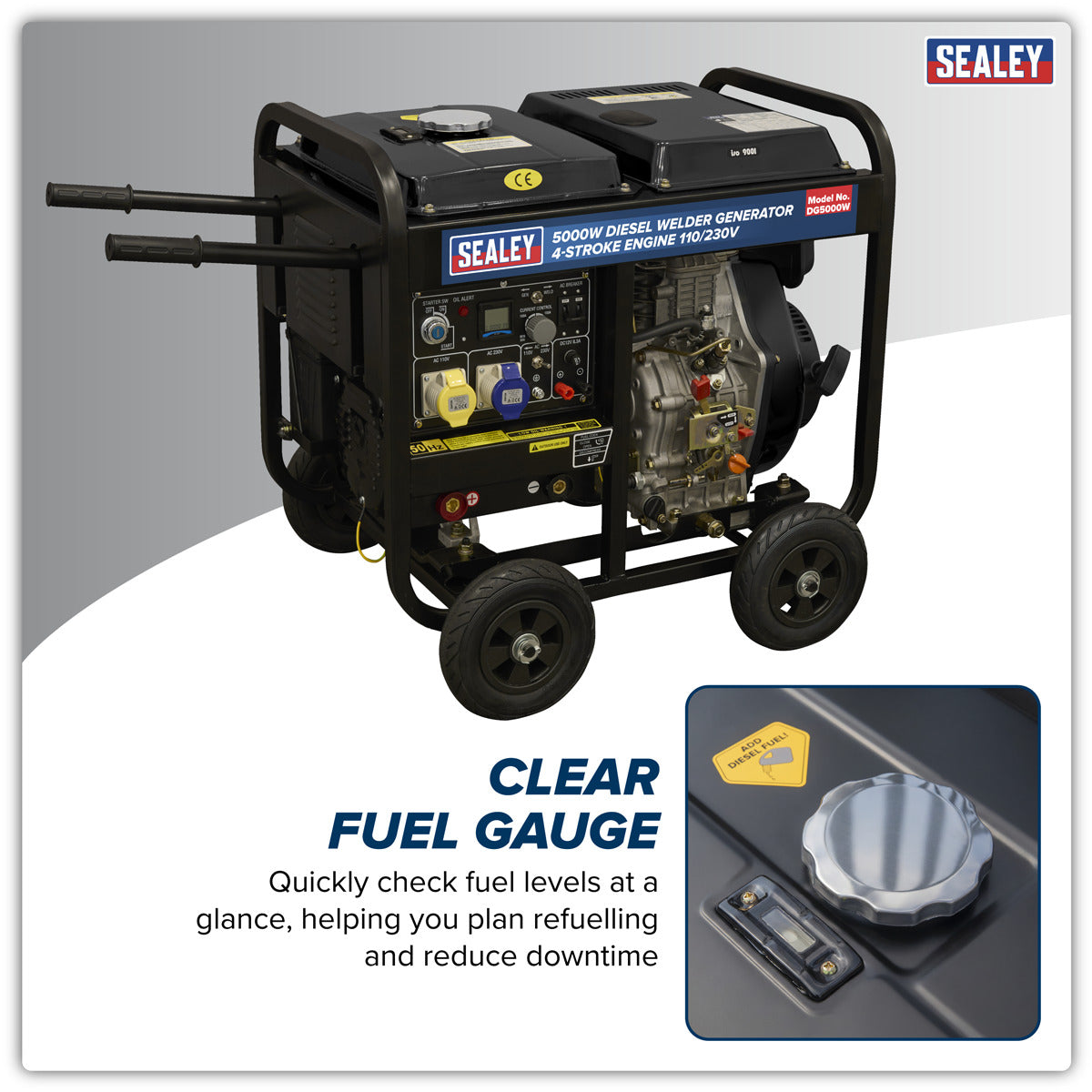

// 15L Fuel tank allows extended operation without frequent refuelling.

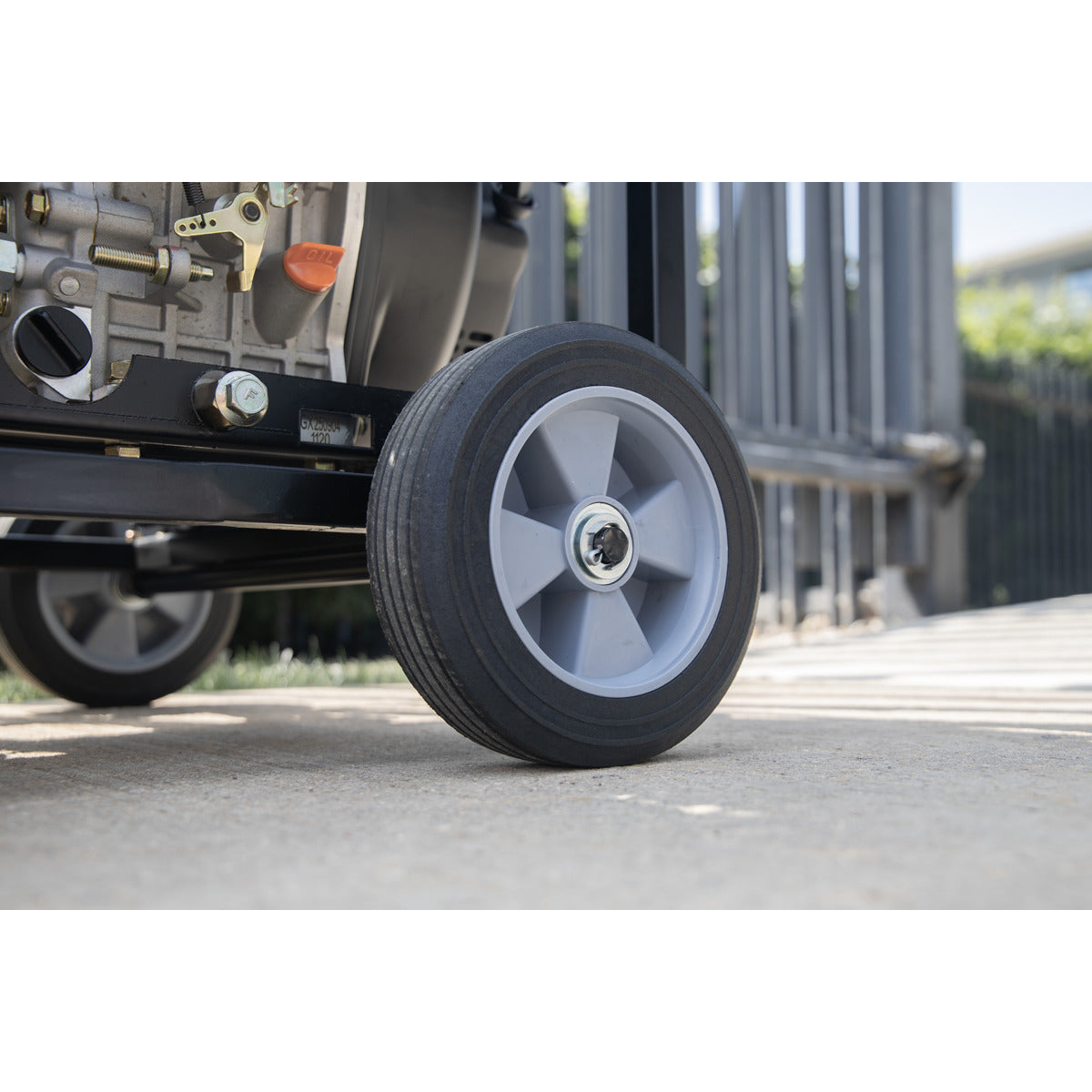

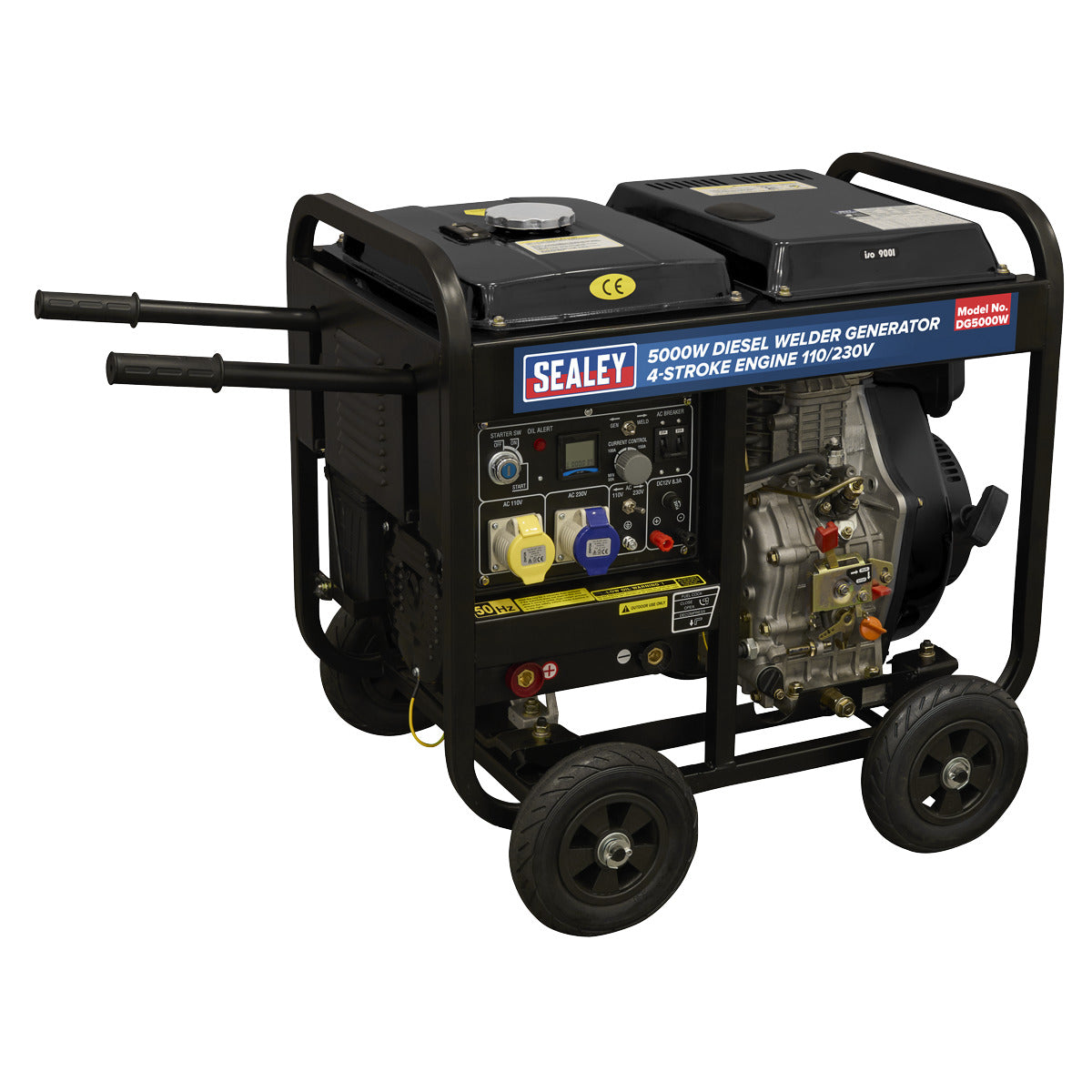

// Rugged frame with two pull handles and four wheels for easy transportation around the worksite.
// Perfect for construction, agricultural and industrial applications.

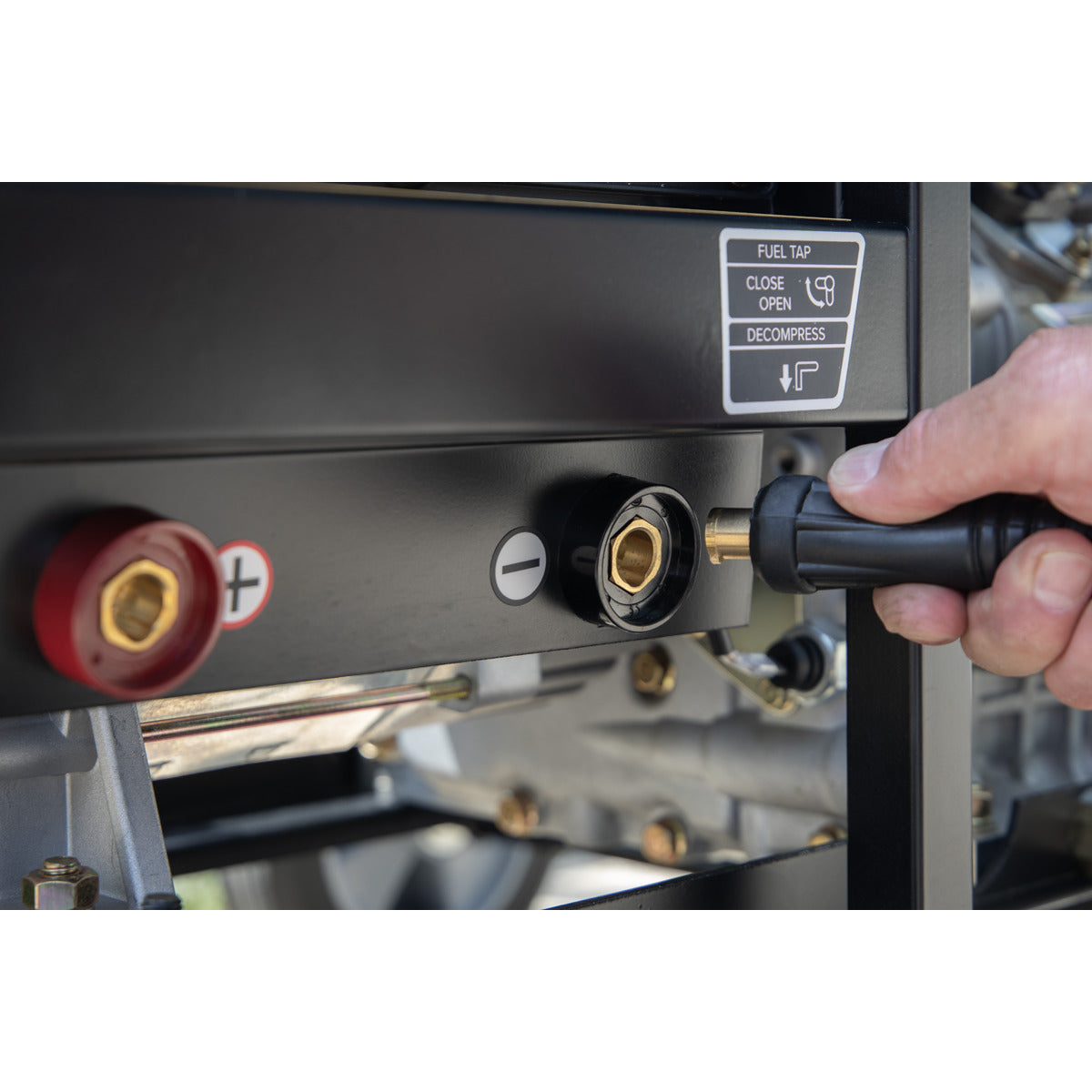

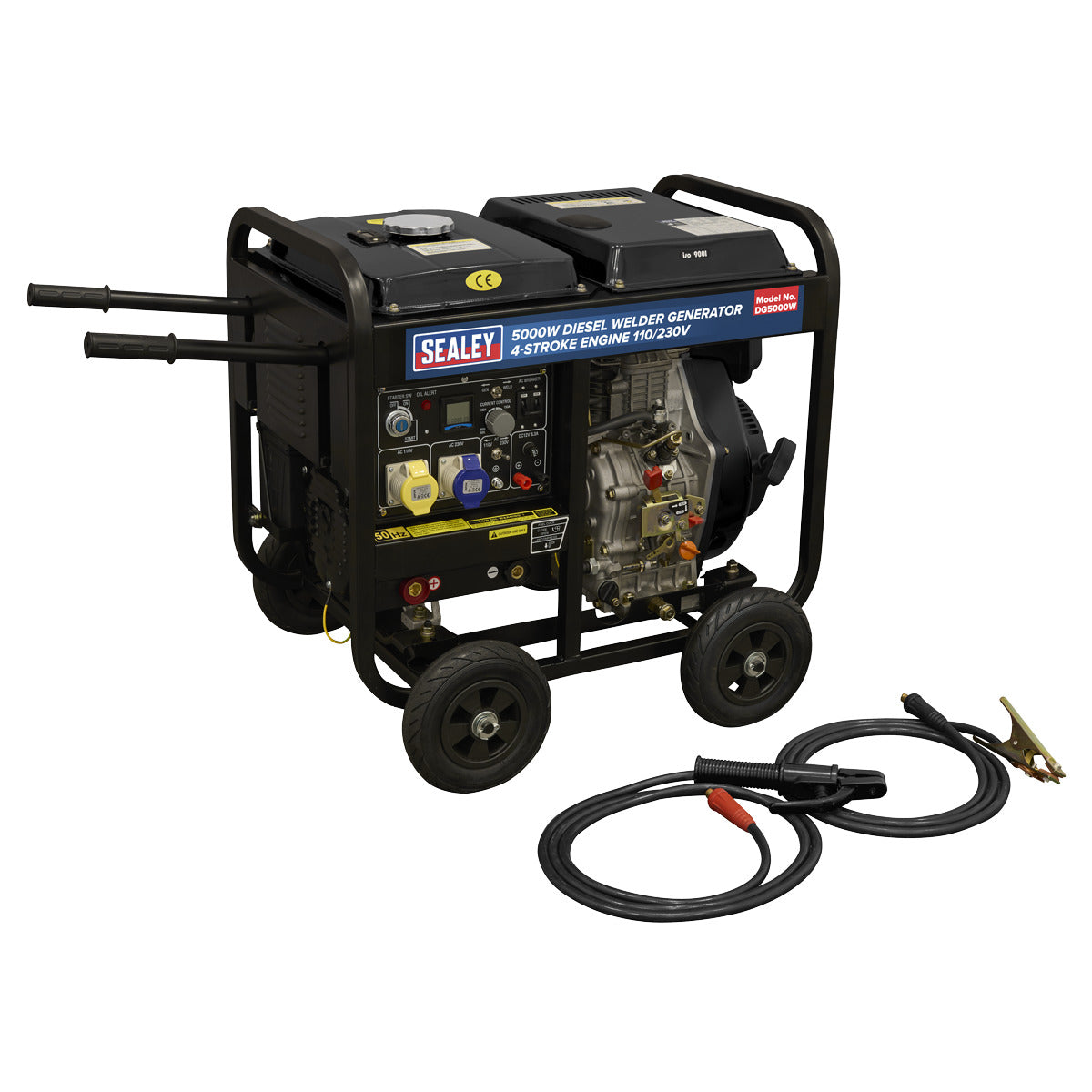

// Supplied with two keys, 2.8m electrode holder and 2.8m earth clamp.
// This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
// Model No. DG5000W
// Supplies both 110V and 230V AC for flexible power options on-site.
// Built-in electric welding capability with adjustable current ranges from 80-180A, suitable for electrodes from Ø2.5-4mm.
// Driven by a 418cc single cylinder, 4-stroke diesel engine delivering 5kW.
// Manual recoil start and key start function.
// 15L Fuel tank allows extended operation without frequent refuelling.
// Rugged frame with two pull handles and four wheels for easy transportation around the worksite.
// Perfect for construction, agricultural and industrial applications.
// Supplied with two keys, 2.8m electrode holder and 2.8m earth clamp.
// This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
// Model No. DG5000W

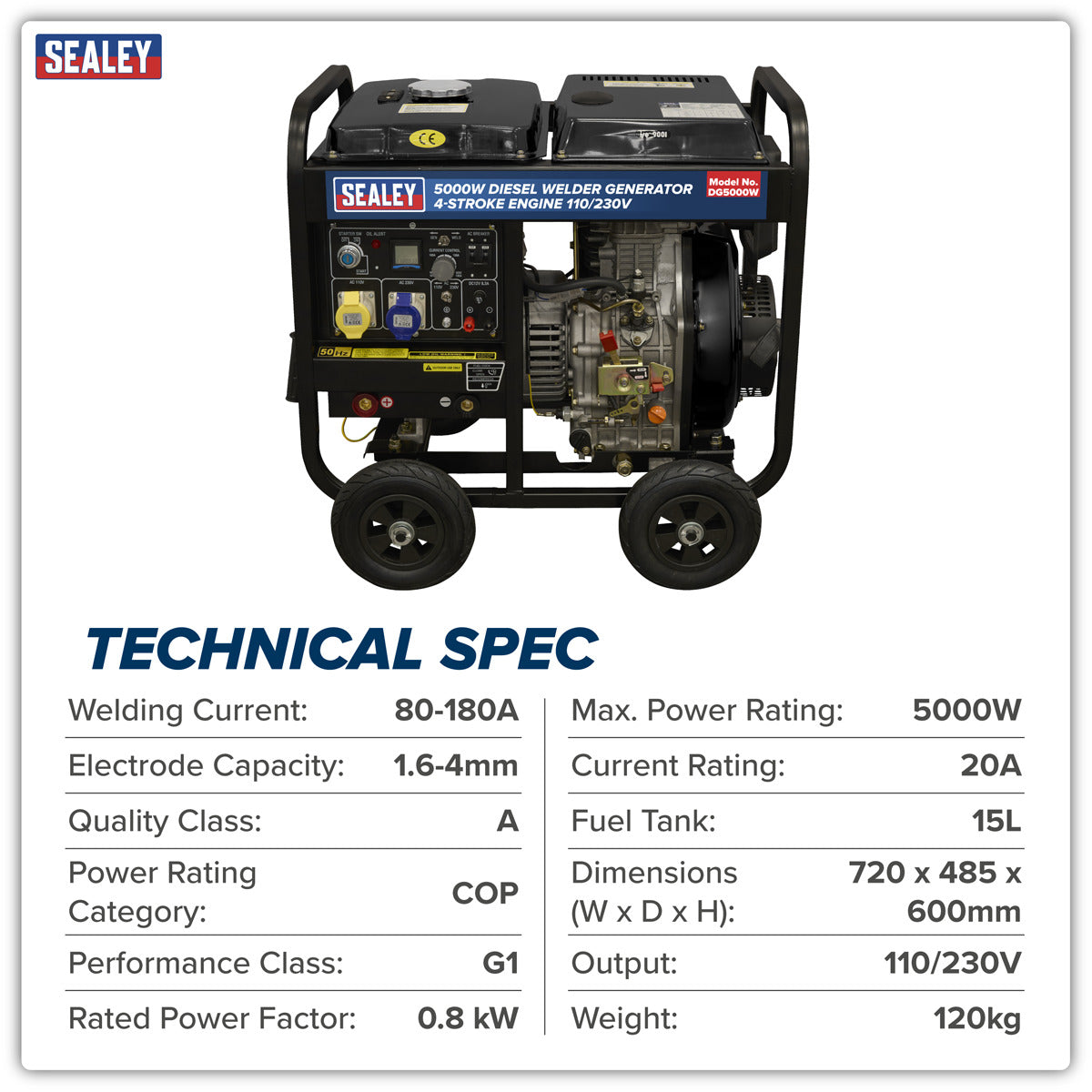

Specification
Specification
| Model No: DG5000W |
Brand: Sealey |
| Continuous Power Rating: 4600W |
Current Rating: 20A |
| Dimensions (W x D x H): 720 x 485 x 600mm |
Fuel Tank: 15L |
| Fuel: Diesel |
IP Rating: IP23 |
| Maximum Power Rating: 5000W |
Maximum Running Time: 12hrs |
| Motor Power: 5.7kw/3600rpm |
Motor Type: 4-Stoke Diesel |
| Nett Weight: 120kg |
Noise Rating: 97dB(A) |
| Oil Capacity: 1.65L |
Output: 110/230V |
| Welding Current: 80-180A |
Electrode Capacity: 1.6-4mm |
| Quality Class: A |
Power Rating Category: COP |
| Performance Class: G1 |
Rated Power Factor: (COS ∮) 0.8 kW |
