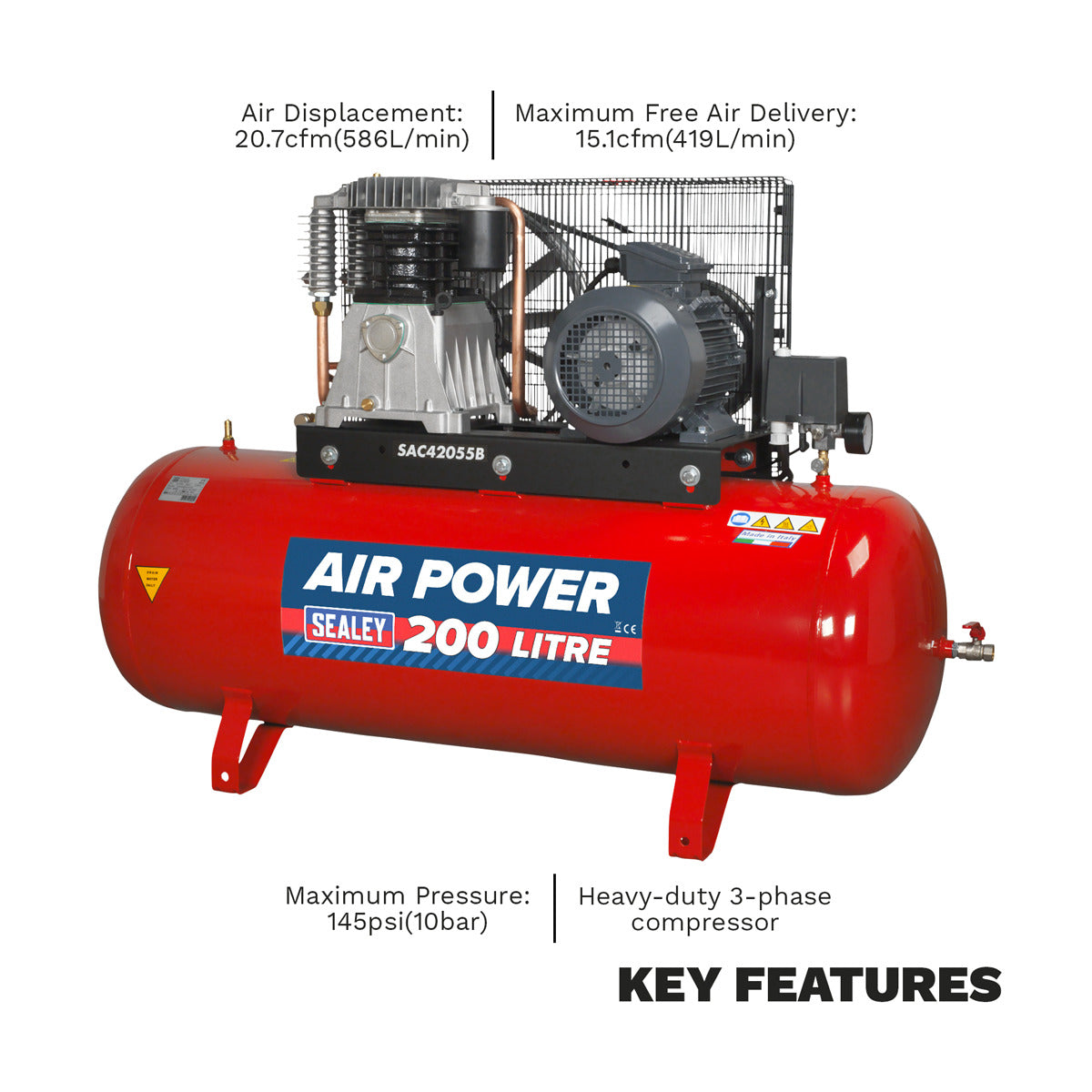

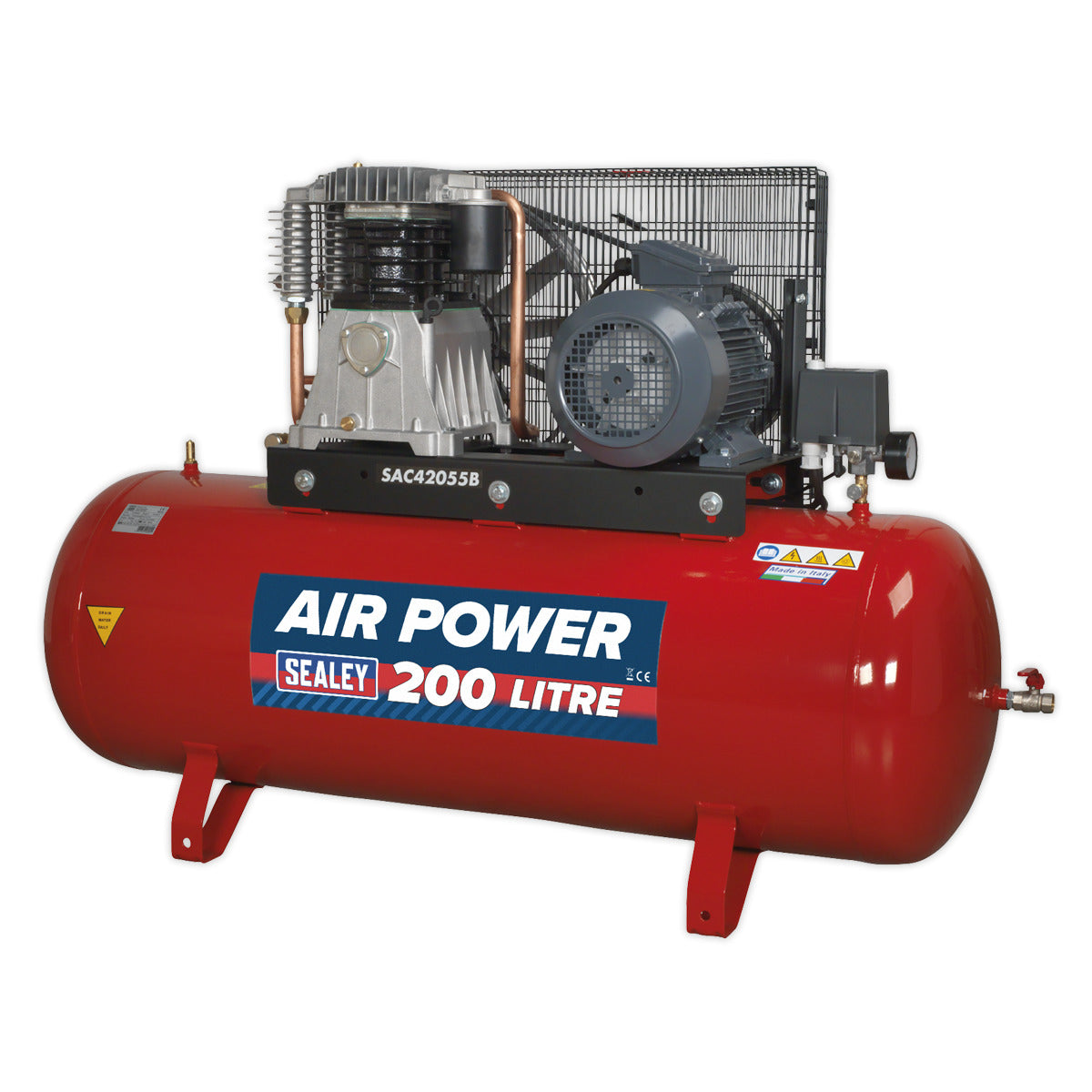

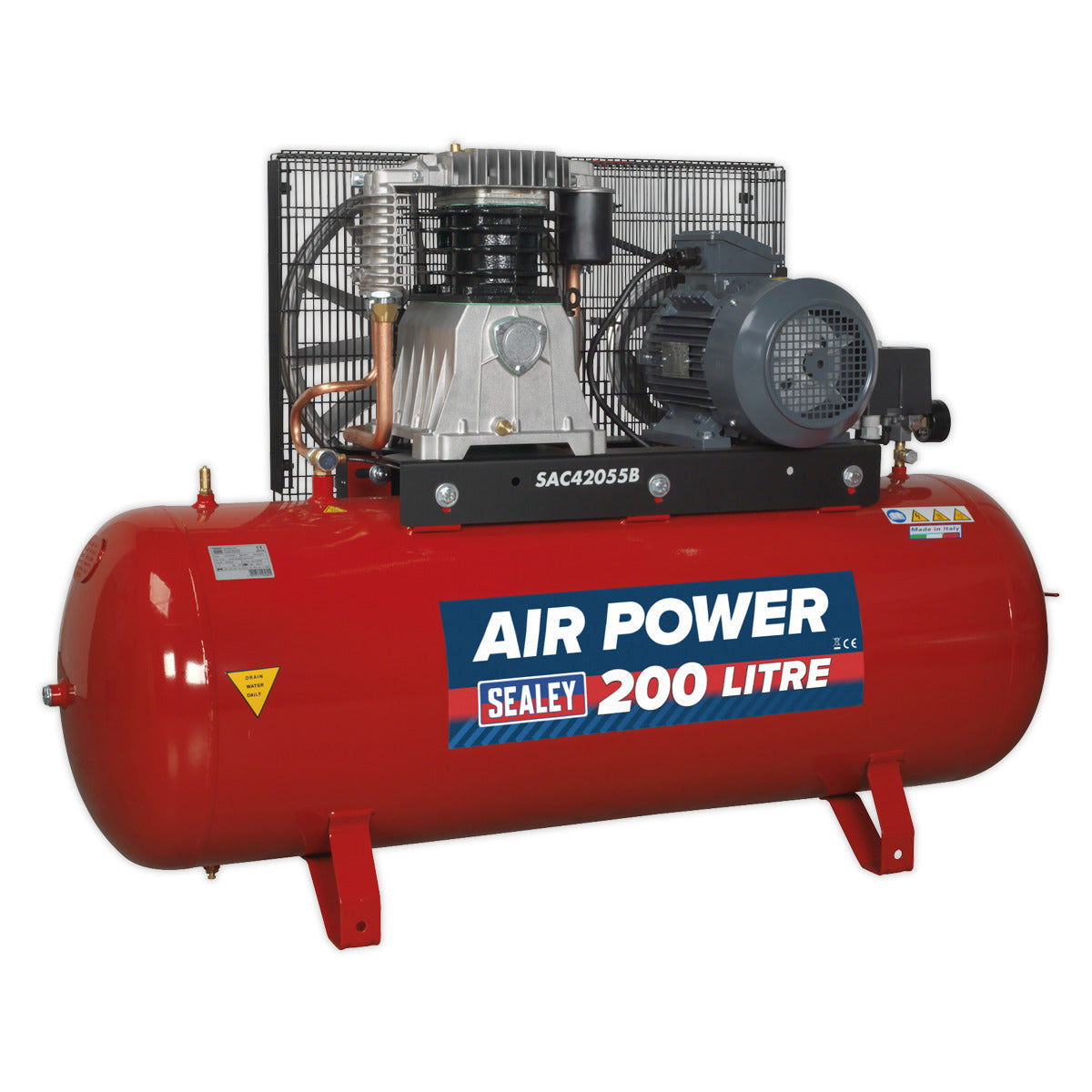

Sealey 200L Belt Drive Air Compressor with Cast Cylinders 5.5hp 2-Stage SAC42055B
Product Code / SKU: 169724
Heavy-duty 3-phase compressors suitable for the professional workshop. 2-Stage pump system coupled with a 5.5hp motor maximizes performance to keep running costs low compared to single stage single phase model. Pump features heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long-life. Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling. Supplied with full CE certification, test certificates and operating/maintenance manual.
// Air Displacement: 20.7cfm(586L/min).
// Maximum Free Air Delivery: 15.1cfm(419L/min).
// Maximum Pressure: 145psi(10bar).
// Heavy-duty 3-phase compressors suitable for the professional workshop.

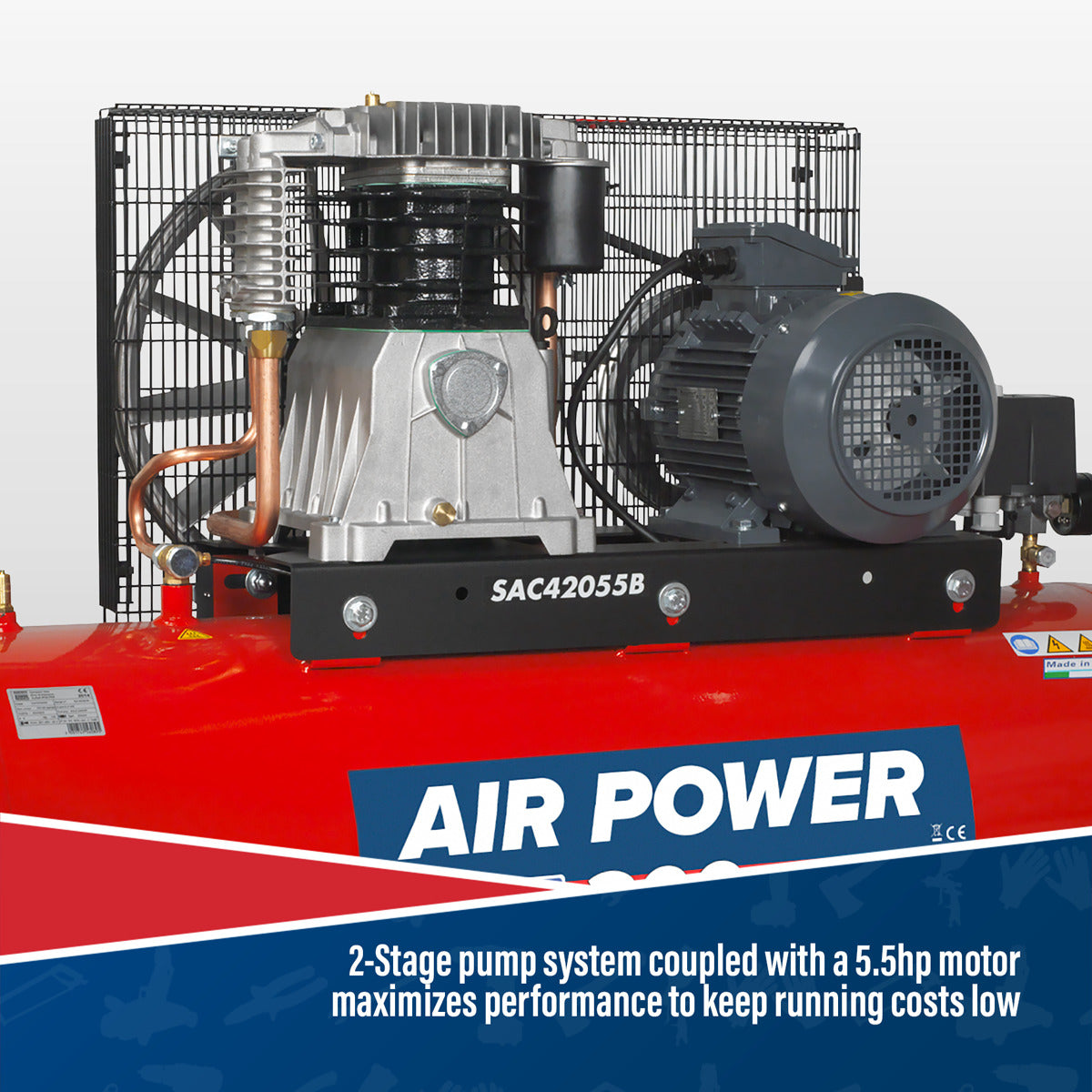

// 2-Stage pump system coupled with a 5.5hp motor maximizes performance to keep running costs low compared to single stage single phase model.

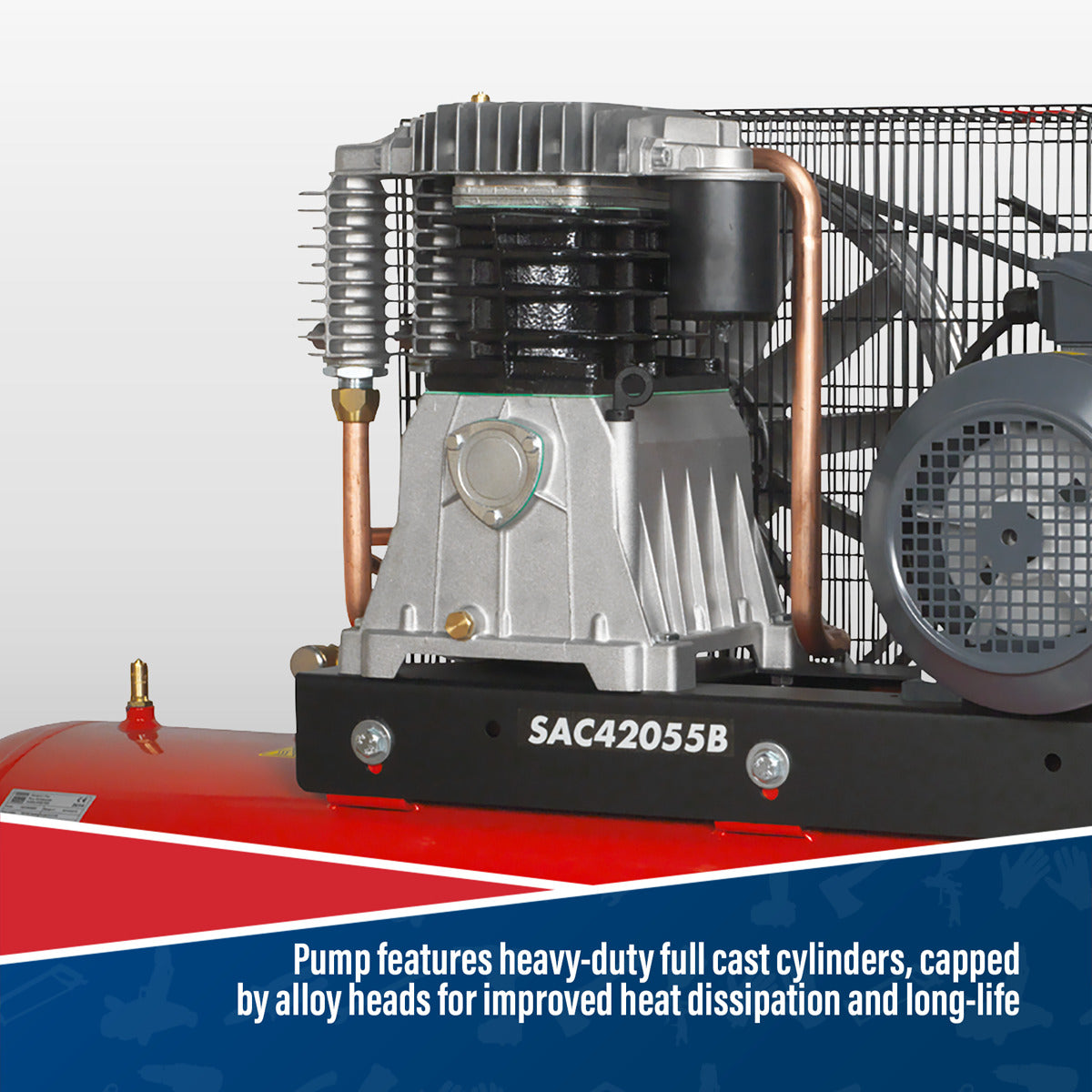

// Pump features heavy-duty full cast cylinders, capped by an alloy head for improved heat dissipation and long-life.

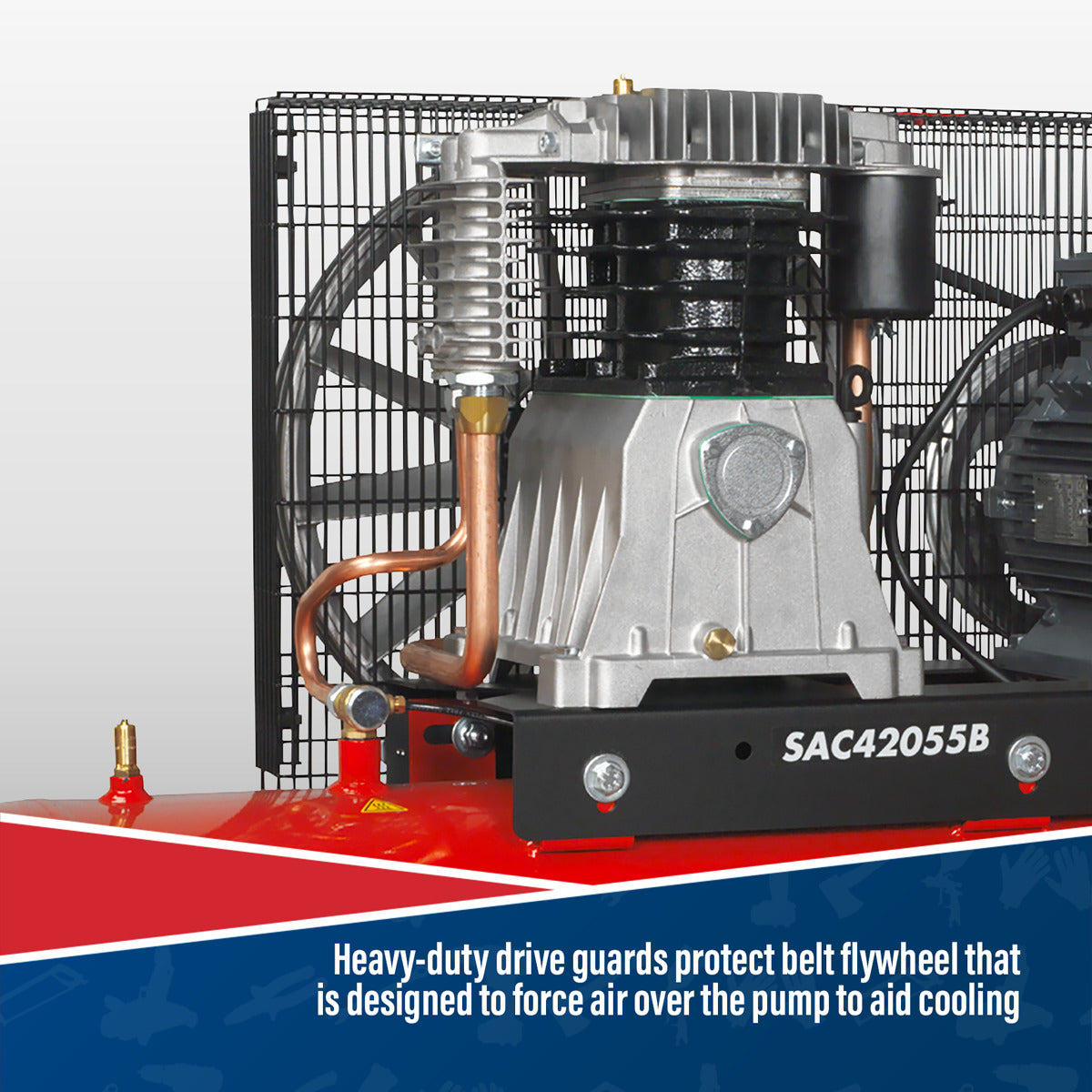

// Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.
// Supplied with full CE certification, test certificates and operating/maintenance manual.
// This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
// Model No. SAC42055B
// Air Displacement: 20.7cfm(586L/min).
// Maximum Free Air Delivery: 15.1cfm(419L/min).
// Maximum Pressure: 145psi(10bar).
// Heavy-duty 3-phase compressors suitable for the professional workshop.
// 2-Stage pump system coupled with a 5.5hp motor maximizes performance to keep running costs low compared to single stage single phase model.
// Pump features heavy-duty full cast cylinders, capped by an alloy head for improved heat dissipation and long-life.
// Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.
// Supplied with full CE certification, test certificates and operating/maintenance manual.
// This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
// Model No. SAC42055B
Specification
Specification
| Model No: SAC42055B |
Air Displacement cfm(L/min): 20.7(586) |
| Brand: Sealey |
Maximum Free Air Delivery cfm(L/min): 15.1(419) |
| Maximum Pressure: 145psi(10bar) |
Minimum Rated Supply: 32A |
| Motor Output: 5.5hp |
Nett Weight: 135kg |
| Oil Capacity: 1.2L |
Outlet: 1/2"BSP Female Tap |
| Phase: 3ph |
Receiver Capacity: 200L |
| Size (W x D x H): 1440 x 440 x 965mm |
Speed: 1490rpm |
| Supply: 400V/32A |
