Sealey 15-Function Digital Automotive Analyser with Inductive Coupler/Infrared Temperature Probe - TA304
Product Code / SKU: 170489

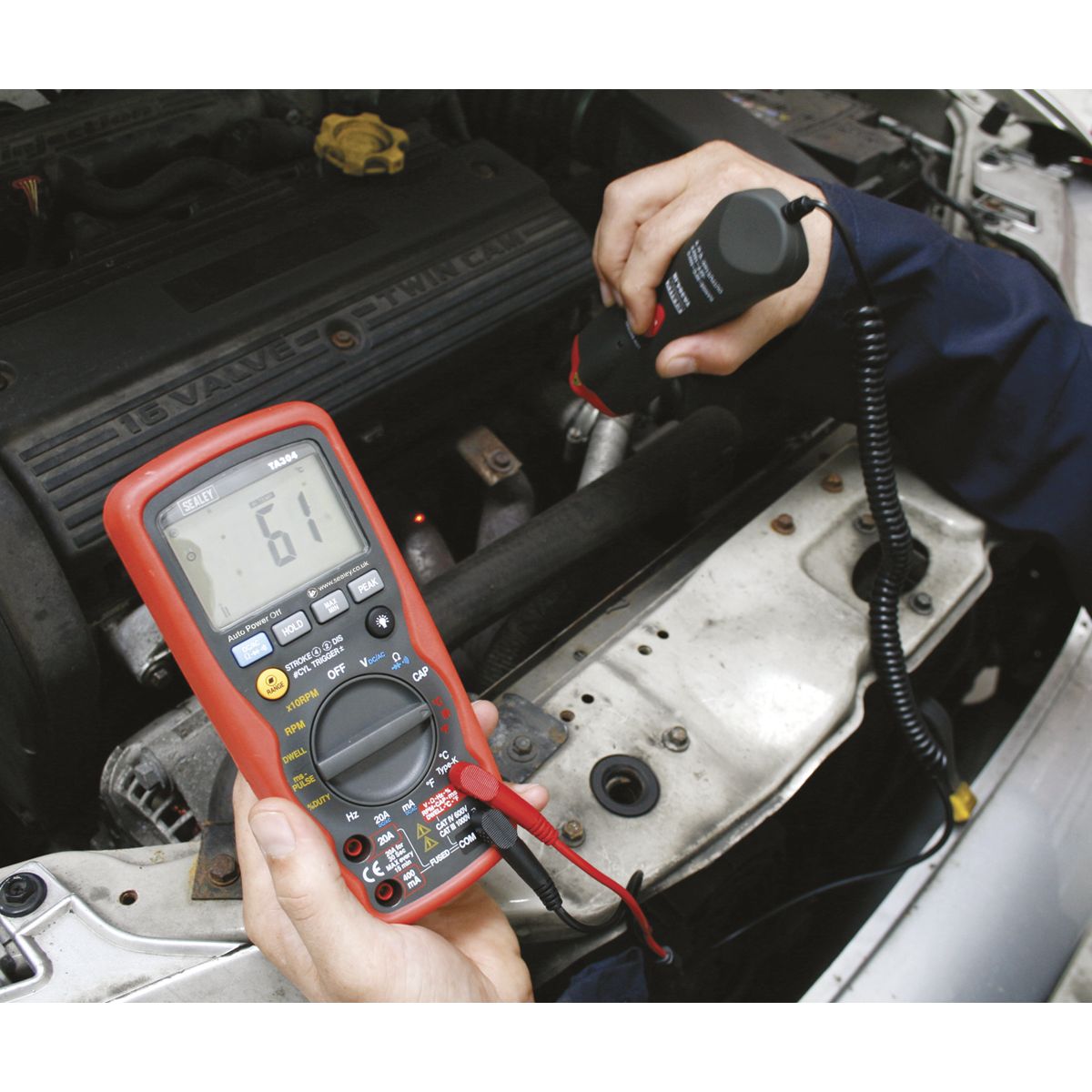

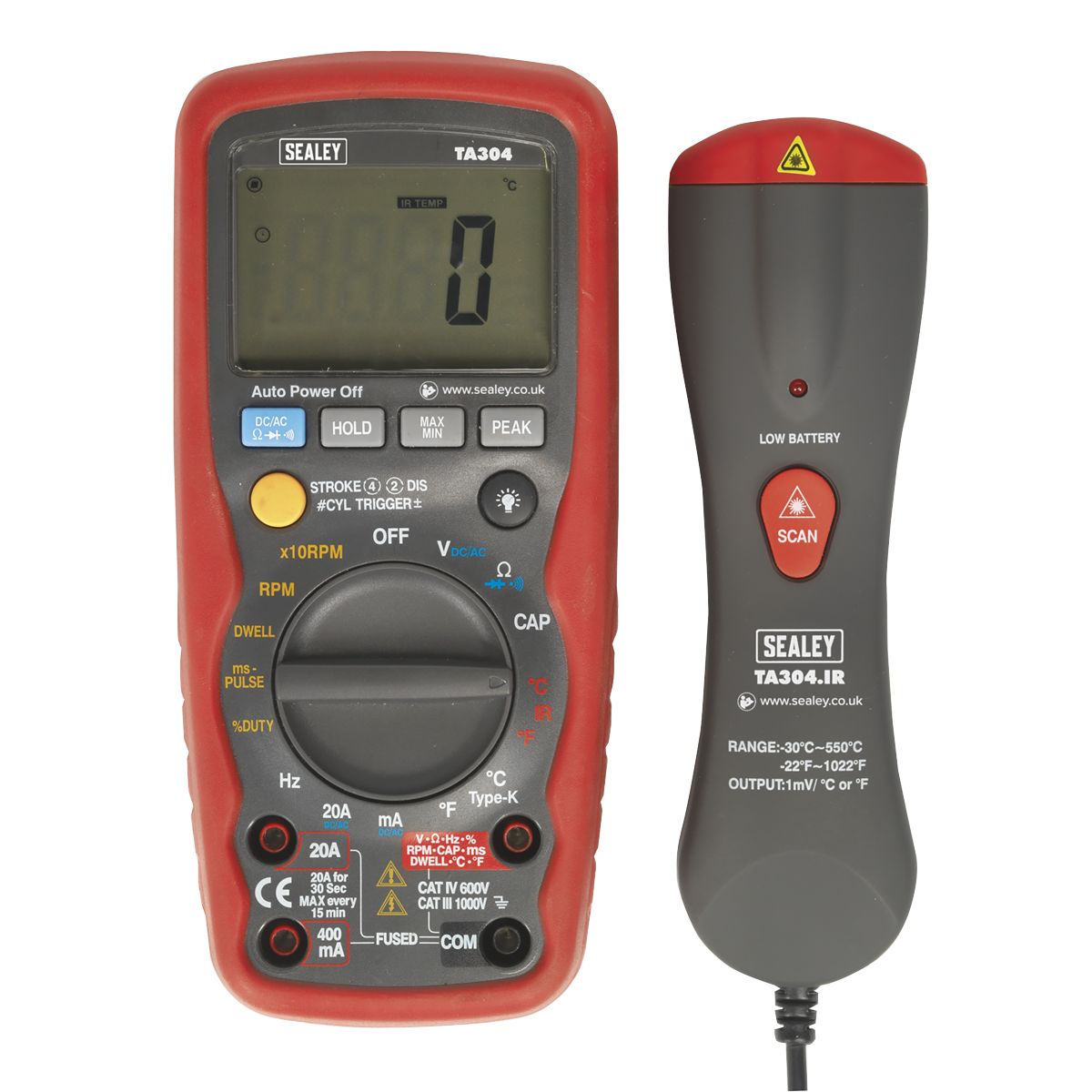

15-Function, auto-ranging automotive diagnostic multimeter with IR thermometer attachment. Combination digital/bar graph display gives accurate indication of component outputs. Large, easy-to-read high contrast display with bright, white back light. Workshop-tough, durable case with integral stand and auto-power shut-off. High-speed processing circuitry reads standard automotive parameters including duty cycle and pulse width making this tool ideal for testing fuel injection systems. Features auto-ranging and data-hold functions with overload protection on all ranges. Includes relative functions including min./max. and peak hold. Supplied with inductive coupler, infrared temperature probe, test probes and thermocouple in storage case.
// 15-Function, auto-ranging automotive diagnostic multimeter with infrared thermometer attachment.
// Combination digital/bar graph display gives accurate indication of component outputs.
// Large, easy-to-read high contrast display with bright, white back light.
// Workshop-tough, durable case with integral stand and auto-power shut-off.
// High speed processing circuitry reads standard automotive parameters including duty cycle and pulse width making this tool ideal for testing fuel injection systems.
// Features auto-ranging and data-hold functions with overload protection on all ranges.
// Includes relative functions including min./max. and peak hold.

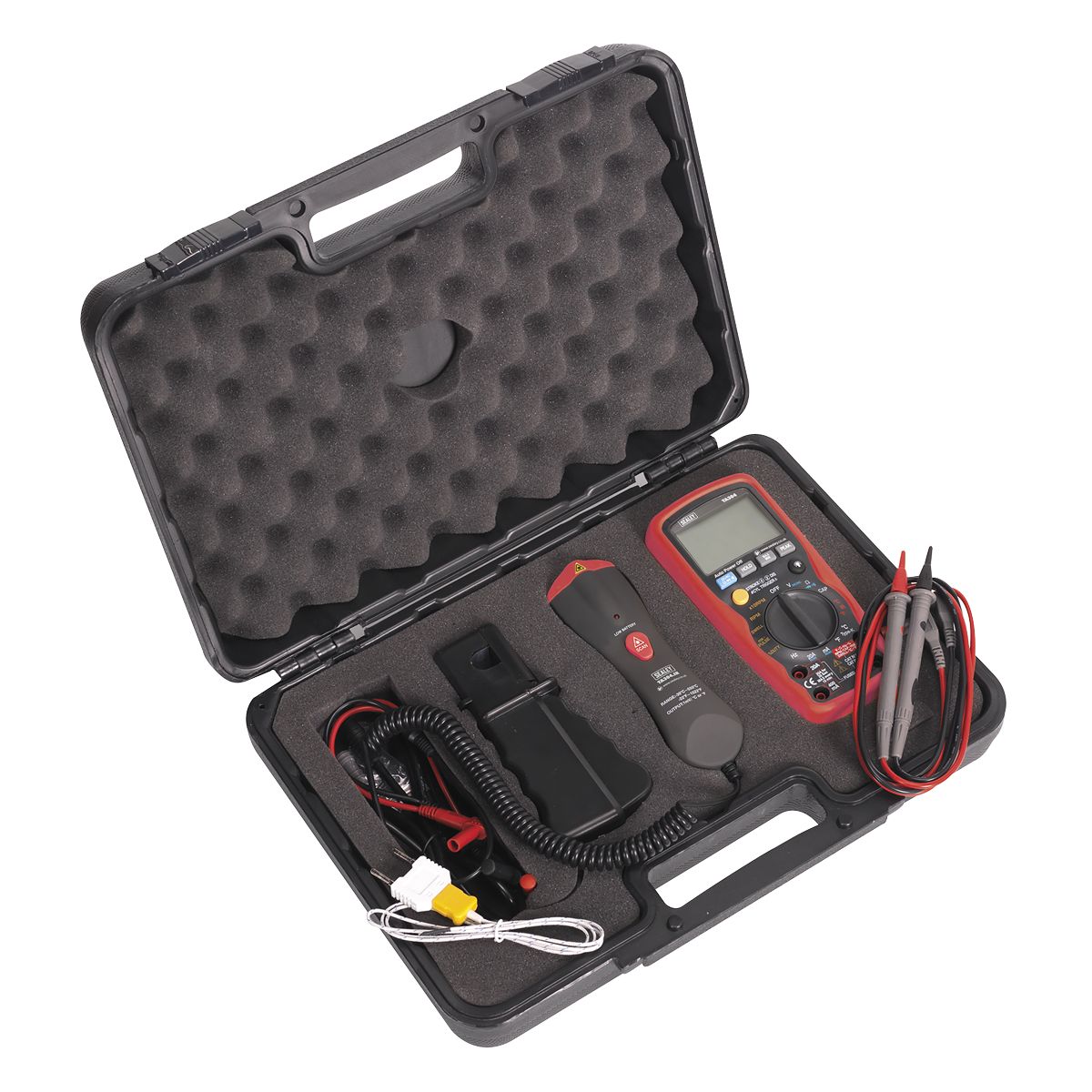

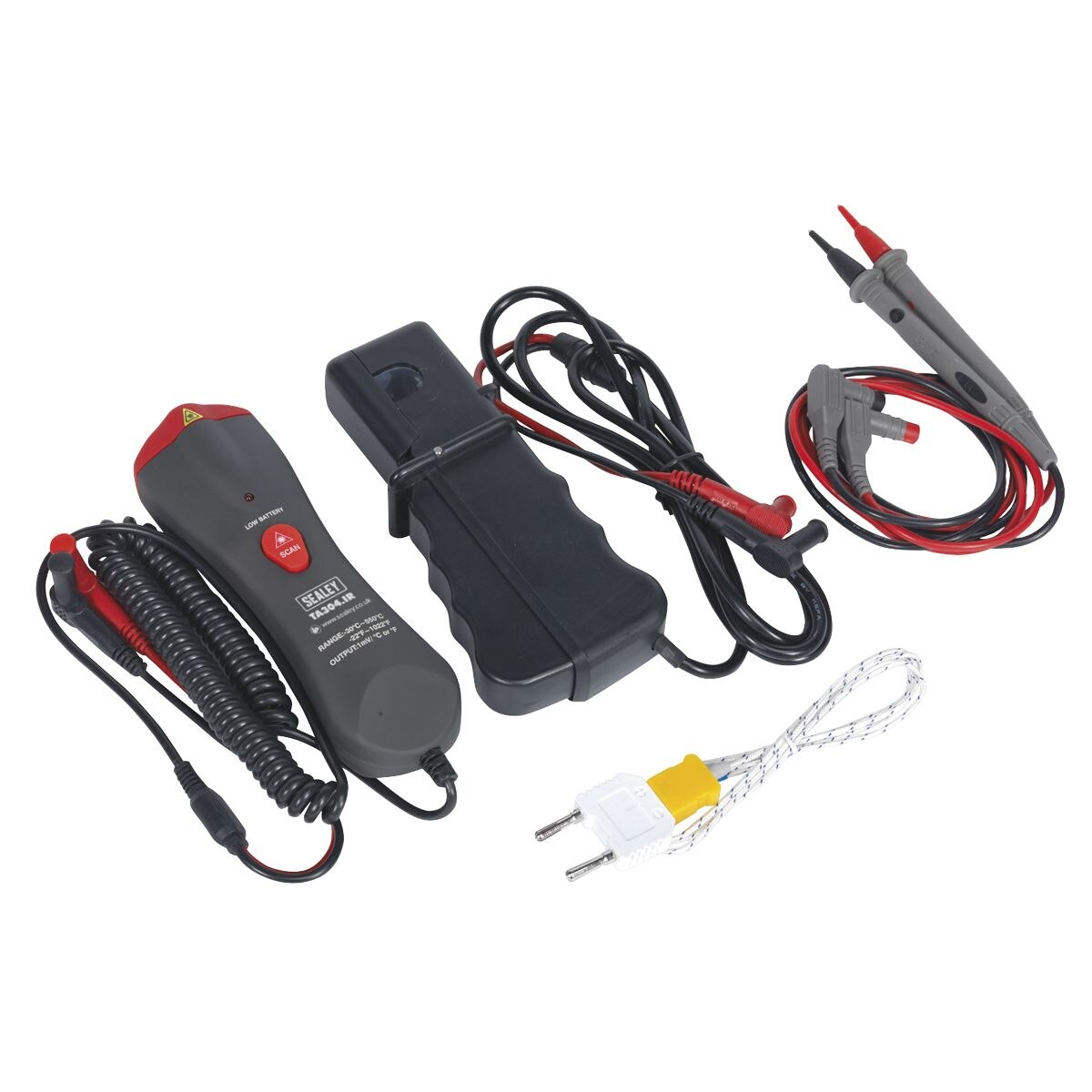

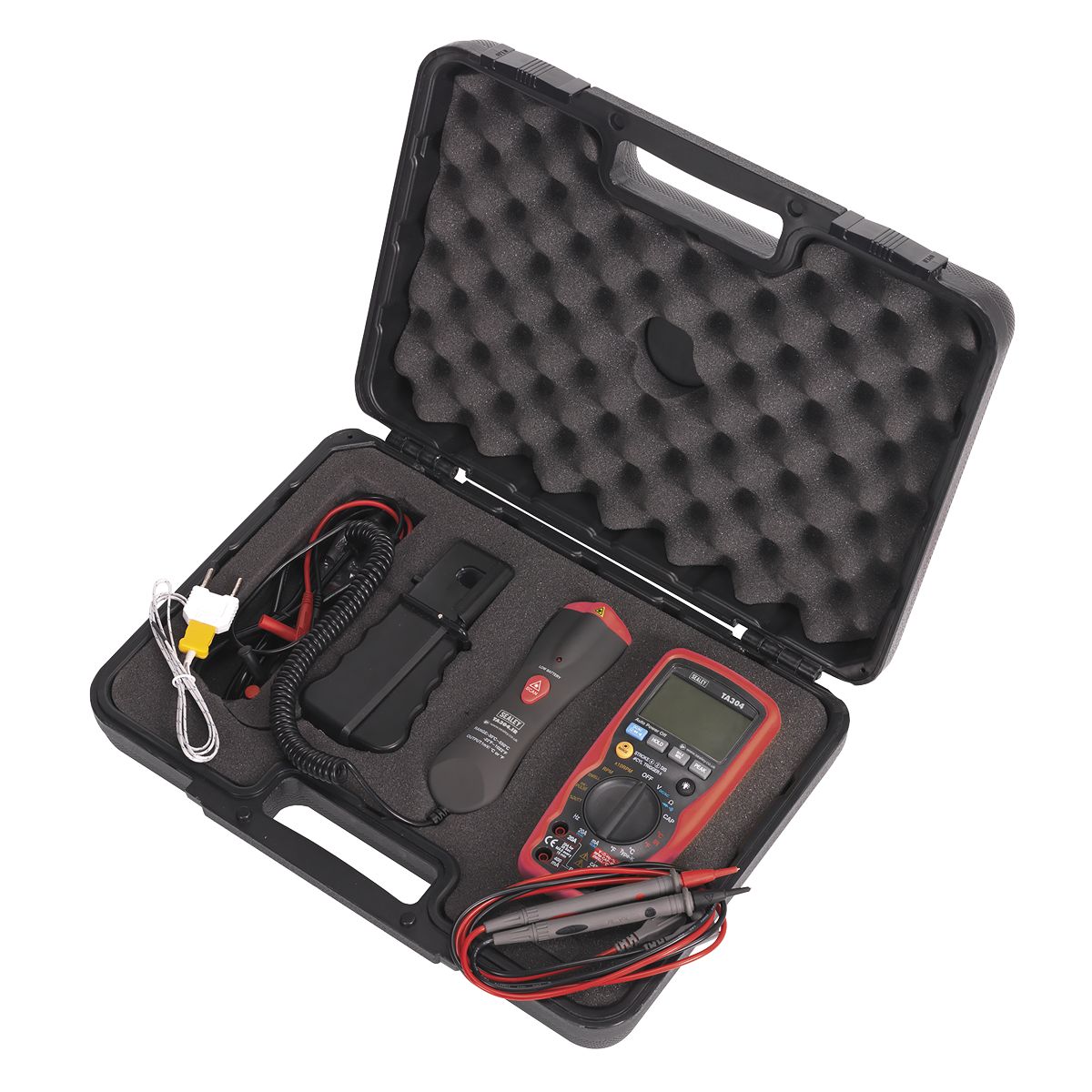

// Supplied with inductive coupler, infrared temperature probe, test probes and thermocouple in storage case.
// Model No. TA304
// 15-Function, auto-ranging automotive diagnostic multimeter with infrared thermometer attachment.
// Combination digital/bar graph display gives accurate indication of component outputs.
// Large, easy-to-read high contrast display with bright, white back light.
// Workshop-tough, durable case with integral stand and auto-power shut-off.
// High speed processing circuitry reads standard automotive parameters including duty cycle and pulse width making this tool ideal for testing fuel injection systems.
// Features auto-ranging and data-hold functions with overload protection on all ranges.
// Includes relative functions including min./max. and peak hold.
// Supplied with inductive coupler, infrared temperature probe, test probes and thermocouple in storage case.
// Model No. TA304
Specification
Specification
| Model No: TA304 |
Brand: Sealey |
| Nett Weight: 360g |
Tach (rpm): 2-10Cyl, 4-Stroke 600-4000 (x1)rpm, 600-12000 (x10)rpm |
| Dwell: 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45° |
AC Voltage: 400mV, 4V, 40V, 400V, 700V (Auto-Ranging) |
| DC Voltage: 400mV, 4V, 40V, 400V, 1000V (Auto-Ranging) |
AC Current: 400µA, 4000µA, 40mA, 400mA, 4A, 20A (Auto-Ranging) |
| DC Current: 400µA, 4000µA, 40mA, 400mA, 4A, 20A (Auto-Ranging) |
Capacitance: 40nF, 400nF, 4µF, 40µF, 400µF, 4mF, 40mF (Auto-Ranging) |
| Frequency: 0.001Hz-9.99MHz (Auto-Ranging) |
Duty Cycle: 0.1-99.9% |
| Pulse Width: 0.1-10ms |
Resistance: 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ (Auto-Ranging) |
| Continuity: <30Ω Continuity Buzzer 2kHz |
Temperature: -20 to +760°C, -4 to +1400°F |
| IR Temperature: -20 to +280°C, -4 to +536°F |
Diode Check: Yes |
| Transistor Test: No |
Back Light: Yes |
| Bar Graph Display: Yes |
Display Hold: Yes |
| Auto-Ranging: Yes |
Inductive Coupler: Yes |
| PC Interface: No |
Digits Height: 20mm |
| Auto Power Off: Yes |
Low Battery Indicator: Yes |
| Batteries (supplied): 9V (PP3) |
Hi-Impact Case: Yes |
| Size (L x W x D): 182 x 82 x 55mm |
