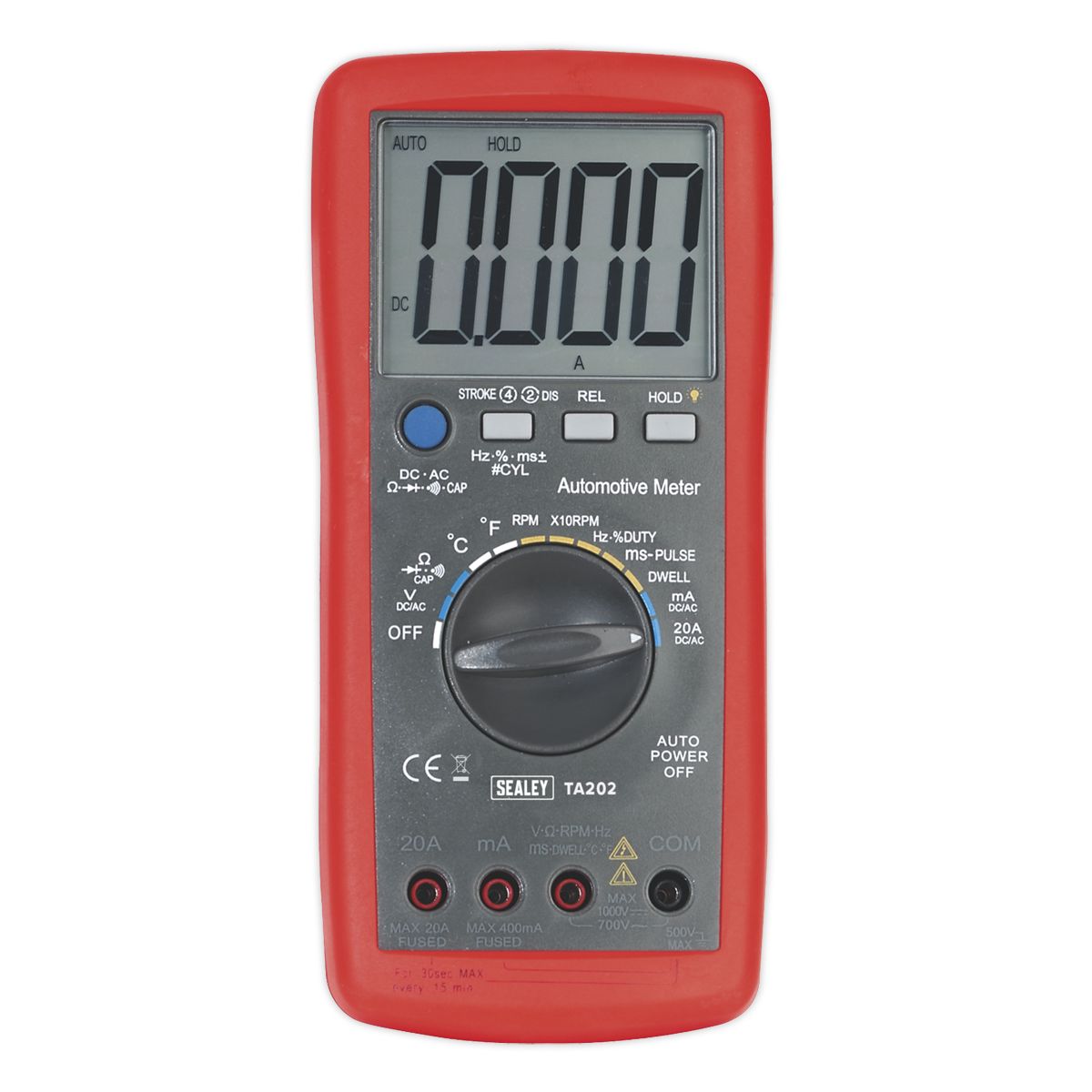

Sealey 14-Function Digital Automotive Analyser with Inductive Coupler - TA202
Product Code / SKU: 170486

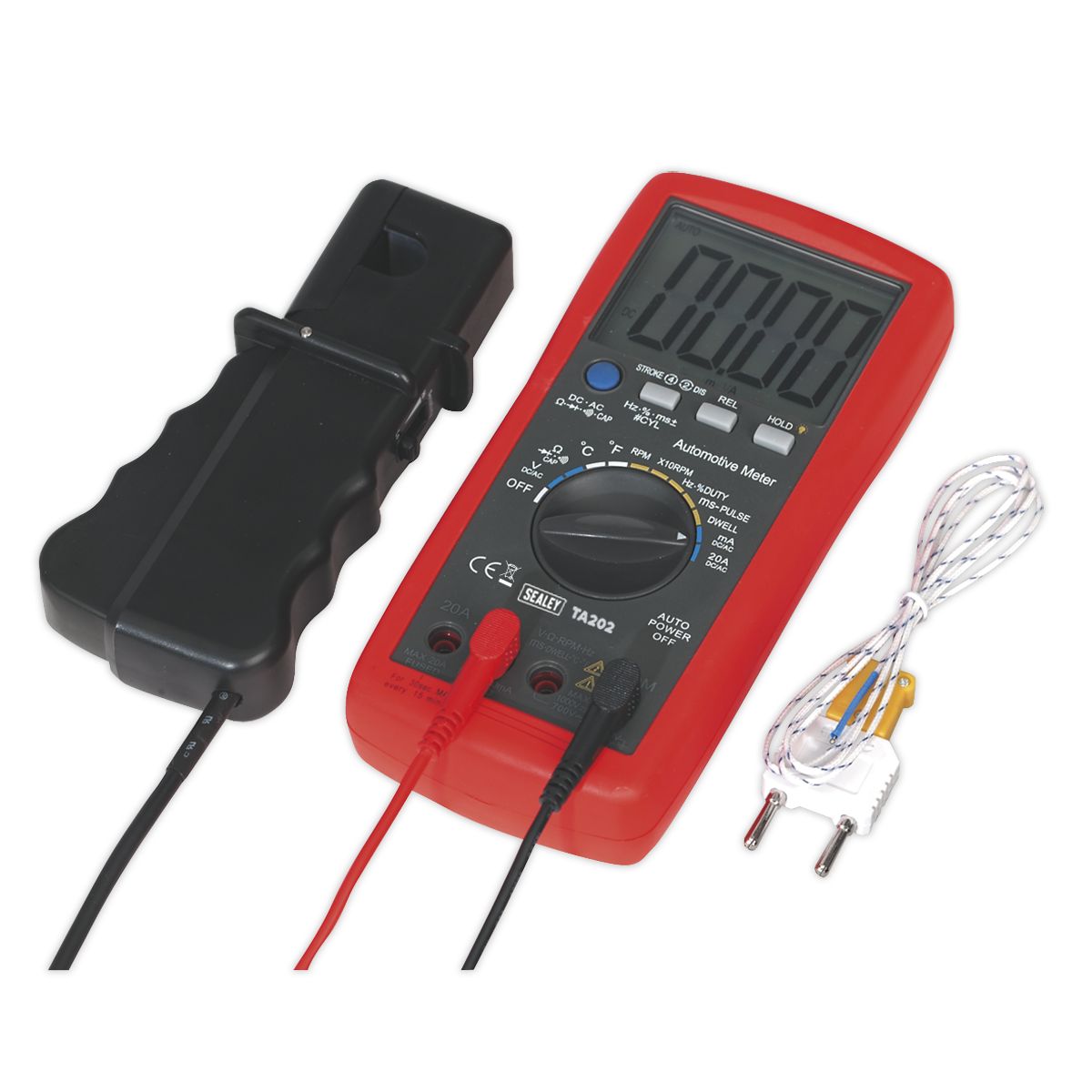

Extra-large, high-contrast LCD display with 36mm high digital read-out and back light. Durable case and integral stand suitable for the toughest workshop conditions. Features millisecond pulse-width function for accurate measurement of fuel injection systems. Includes auto-ranging, data-hold and auto-power-off. Supplied with inductive coupler (IC), test probes, thermocouple and storage case.
// Integrated circuit, high visibility, back lit, LCD display and 5-position stand.
// 14-Functions including pulse-width measurement for fuel injectors, idle air control motors and electronic transmission control systems.
// Auto-ranging and auto-power-off.
// Suitable for AC and DC circuits.

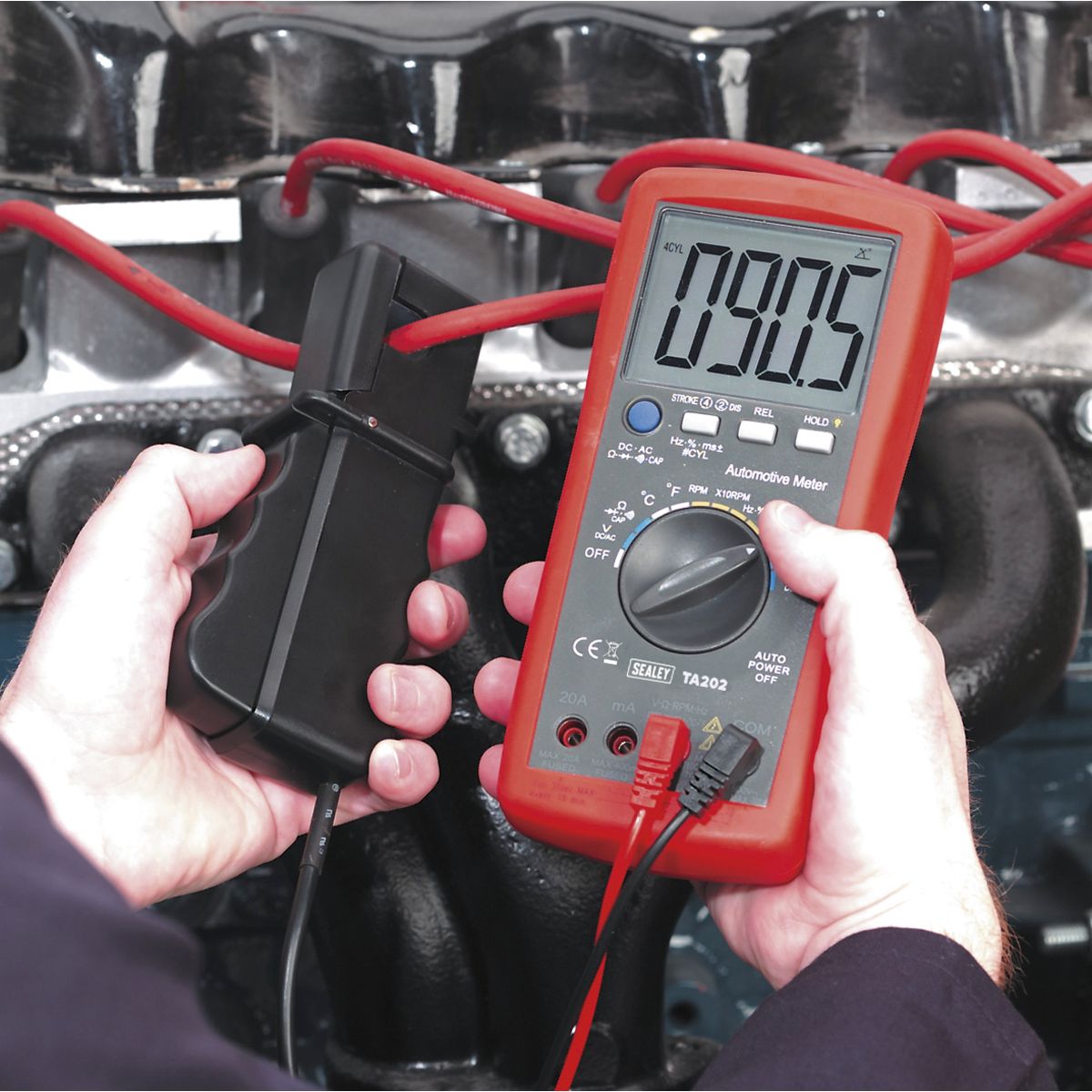

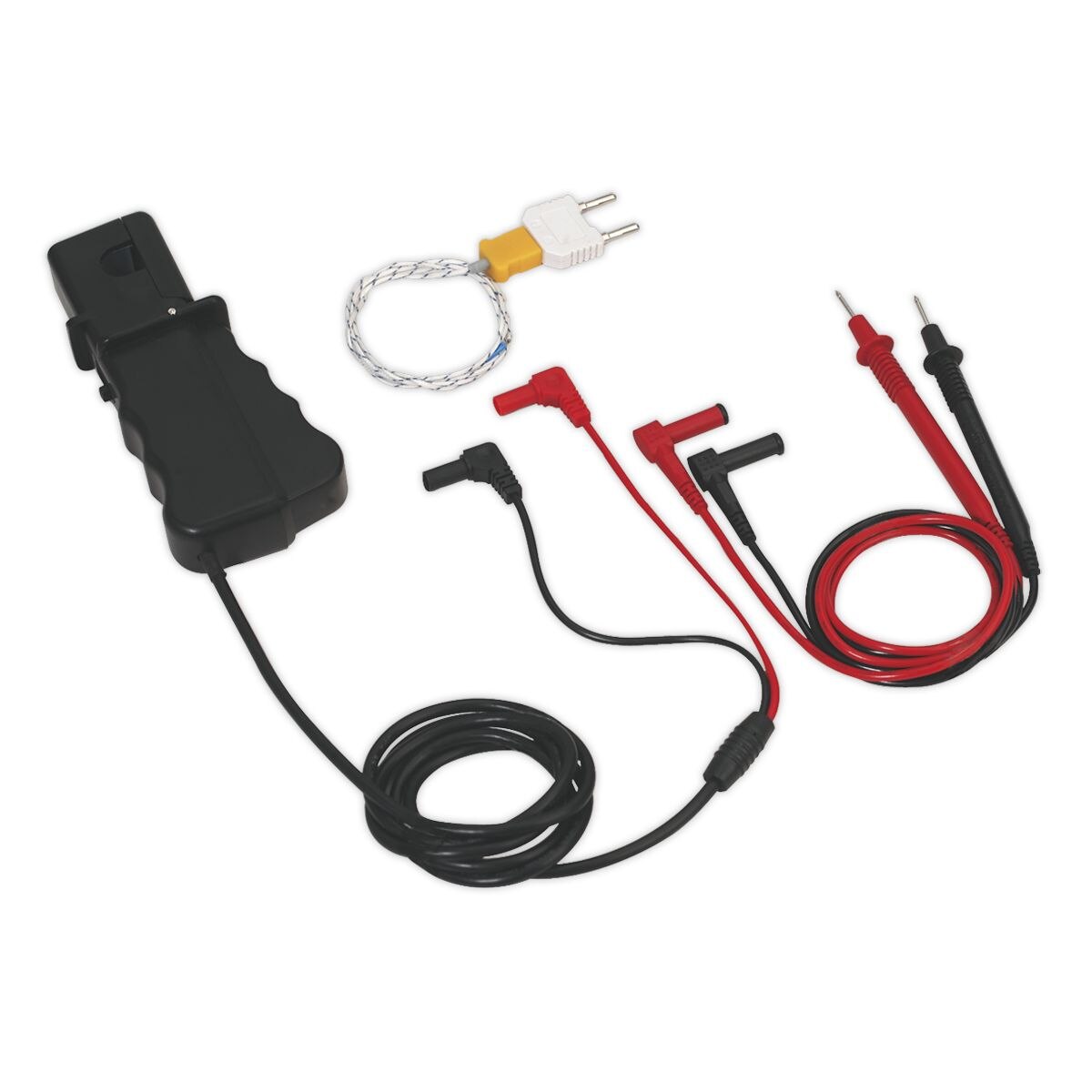

// Supplied with test leads, inductive coupler with adjustable sensitivity, K-type temperature probe and operating instructions.
// Model No. TA202
// Integrated circuit, high visibility, back lit, LCD display and 5-position stand.
// 14-Functions including pulse-width measurement for fuel injectors, idle air control motors and electronic transmission control systems.
// Auto-ranging and auto-power-off.
// Suitable for AC and DC circuits.
// Supplied with test leads, inductive coupler with adjustable sensitivity, K-type temperature probe and operating instructions.
// Model No. TA202
Specification
Specification
| Model No: TA202 |
Brand: Sealey |
| Nett Weight: 394g |
Tach (rpm): 4-Stroke; 600-4000 (x1)rpm, 600-12000 (x10)rpm, 2-Stroke; 300-4000 (x1)rpm, 300-6000 (x10)rpm |
| Dwell: 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45° |
AC Voltage: 400mV, 4V, 40V, 400V, 700V (Auto-Ranging, except 400mV) |
| DC Voltage: 400mV, 4V, 40V, 400V, 1000V (Auto-Ranging) |
AC Current: 400µA, 4000µA, 40mA, 400mA, 4A, 20A (Auto-Ranging for µA & mA) |
| DC Current: 400µA, 4000µA, 40mA, 400mA, 4A, 20A (Auto-Ranging for µA & mA) |
Capacitance: 40nF, 400nF, 4µF, 40µF, 100µF (Auto-Ranging) |
| Frequency: 5Hz, 50Hz, 500Hz, 5kHz, 50kHz, 500kHz, 10MHz (Auto-Ranging) |
Duty Cycle: 0.1-99.9% |
| Pulse Width: 1-10ms |
Resistance: 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ (Auto-Ranging) |
| Continuity: <150Ω |
Temperature: -20 to +760°C/-4 to +1400°F |
| IR Temperature: No |
Diode Check: Yes (Typical Test Current 0.3mA) |
| Transistor Test: No |
Back Light: Yes |
| Bar Graph Display: No |
Display Hold: Yes |
| Auto-Ranging: Yes |
Inductive Coupler: Yes |
| PC Interface: No |
Digits Height: 36mm |
| Auto Power Off: Yes |
Low Battery Indicator: Yes |
| Batteries (supplied): 9V (PP3) |
Hi-Impact Case: Yes |
| Size (L x W x D): 195 x 92 x 36mm |
Weight: 394g |
