Sealey 13-Function Digital Automotive Analyser with Inductive Coupler - TA201
Product Code / SKU: 170485

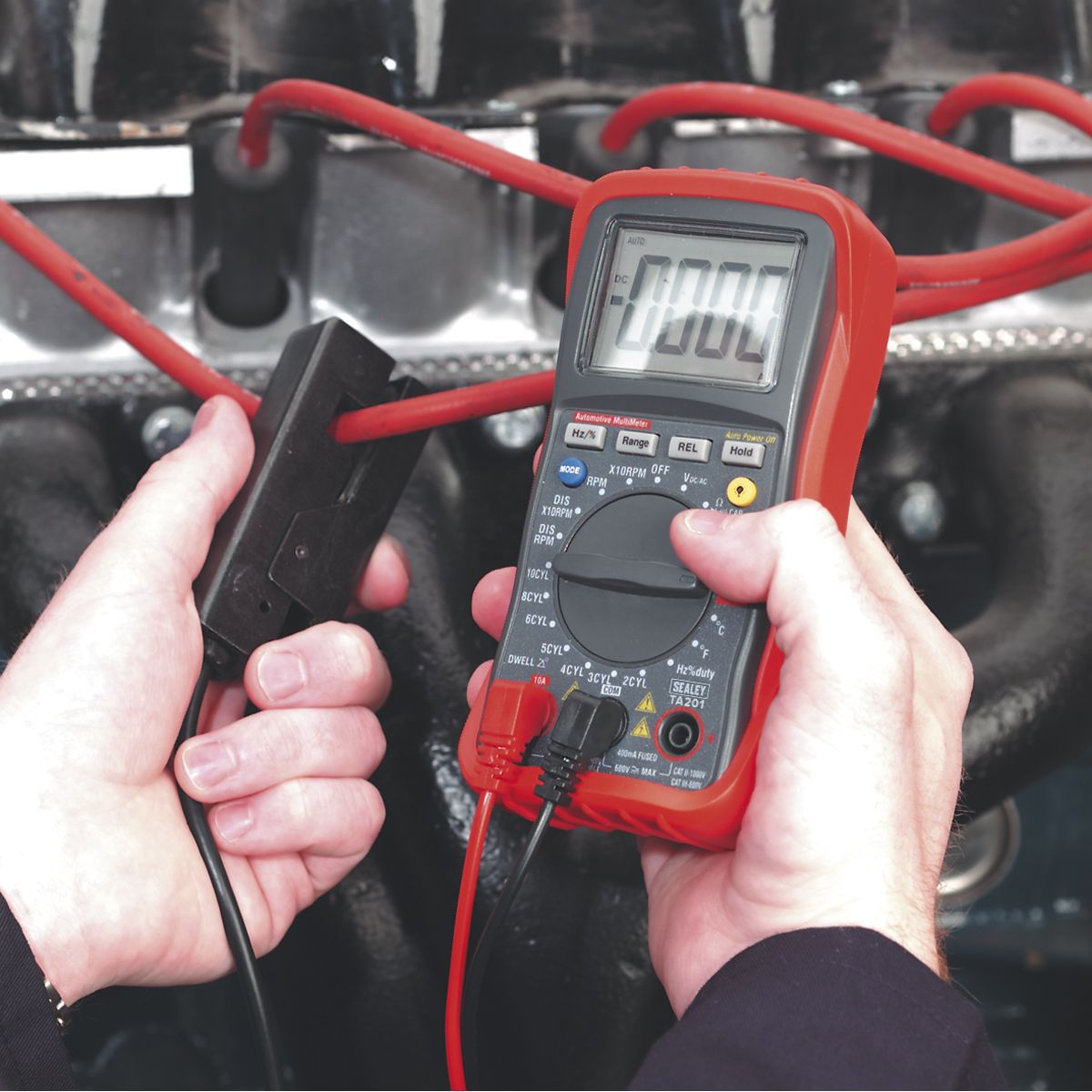

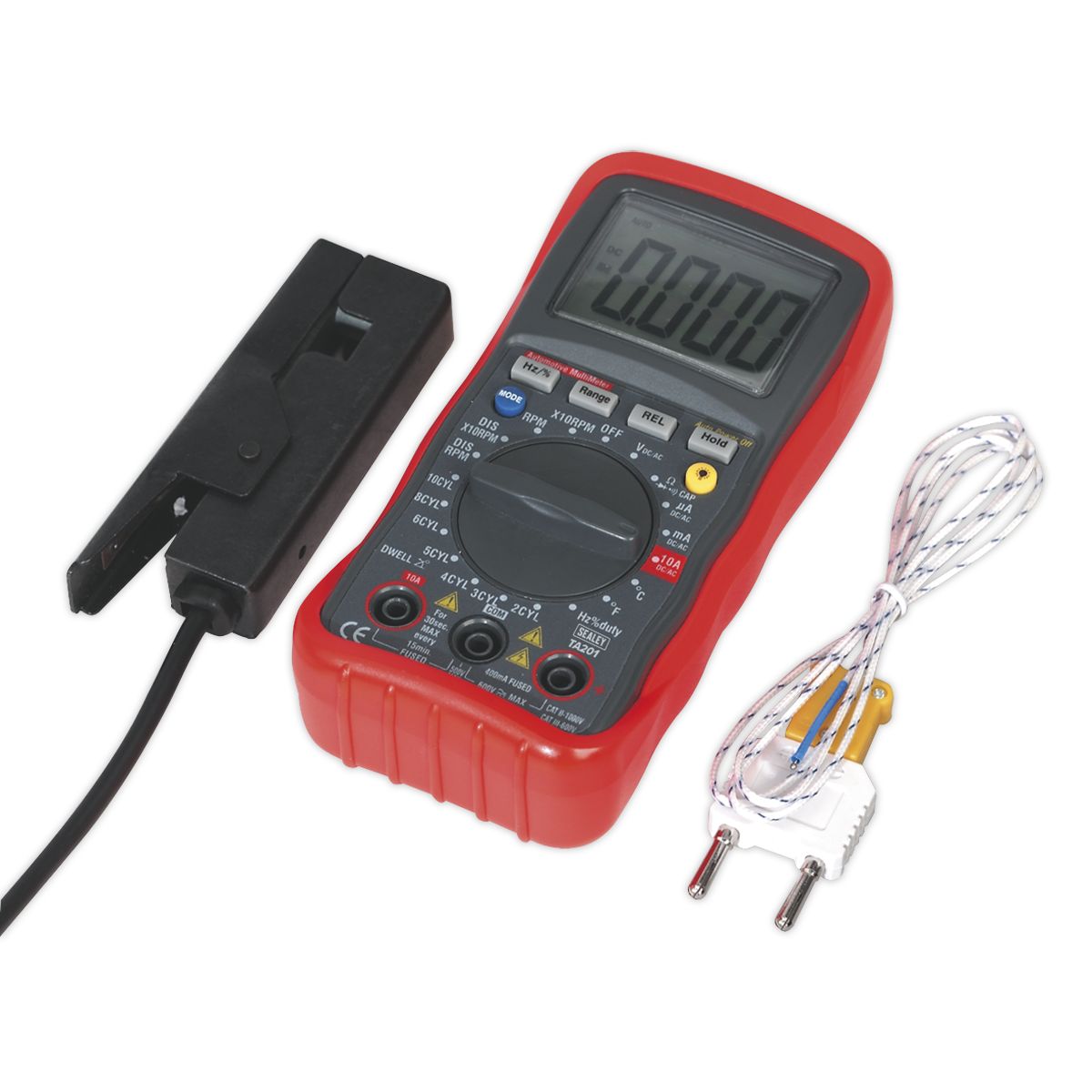

Compact size meter with 4-digit 22mm, high-contrast LCD display and back light. Features auto-ranging, data-hold and auto-power-off functions. Includes inductive coupler (IC) for fast reading of engine rpm. Supplied with probe, crocodile clip and thermocouple leads for easy hook-up.

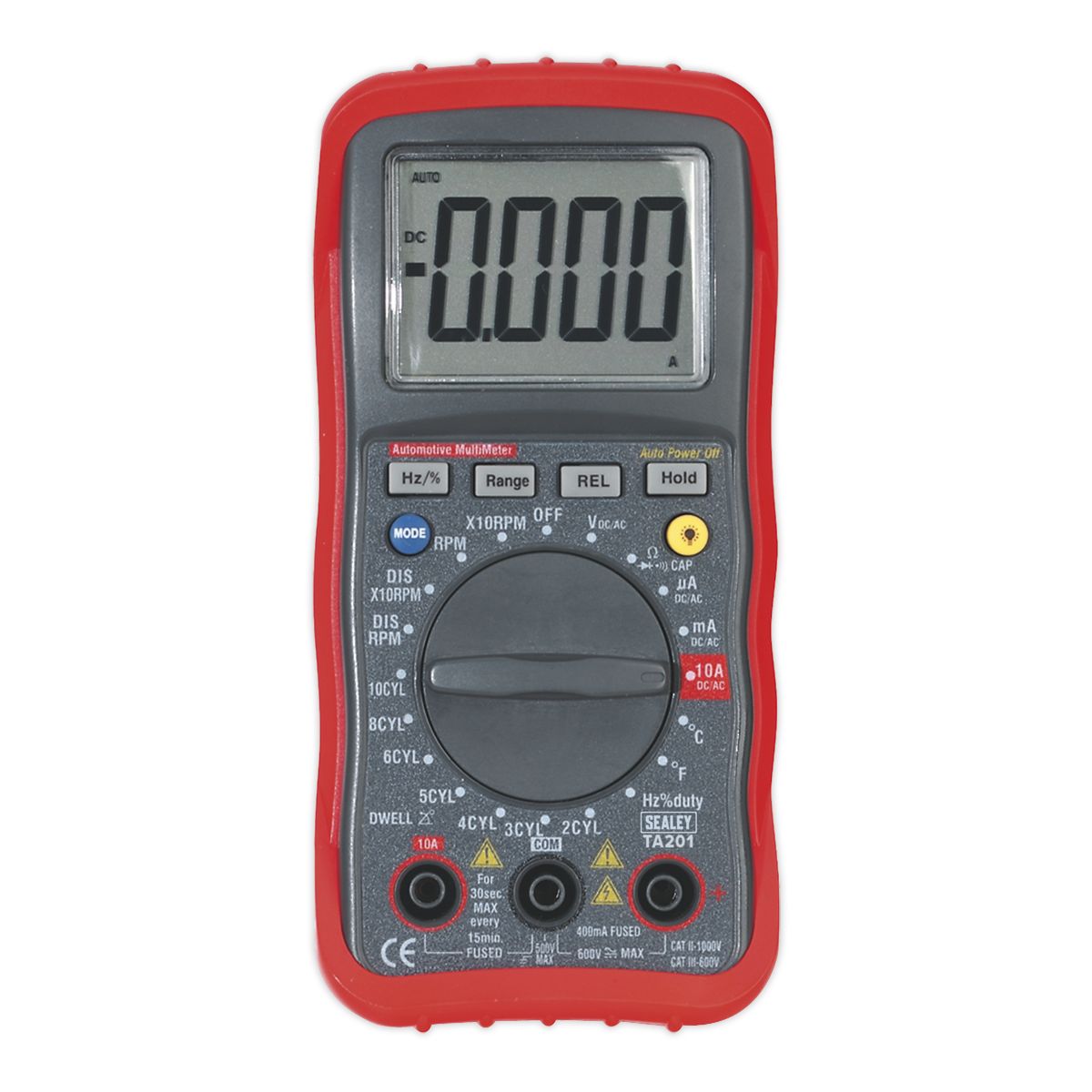

// 4-Digit 22mm, high-contrast LCD display and back light.
// Features auto-ranging, data-hold and auto-power-off functions.
// Includes inductive coupler for fast reading of engine rpm.

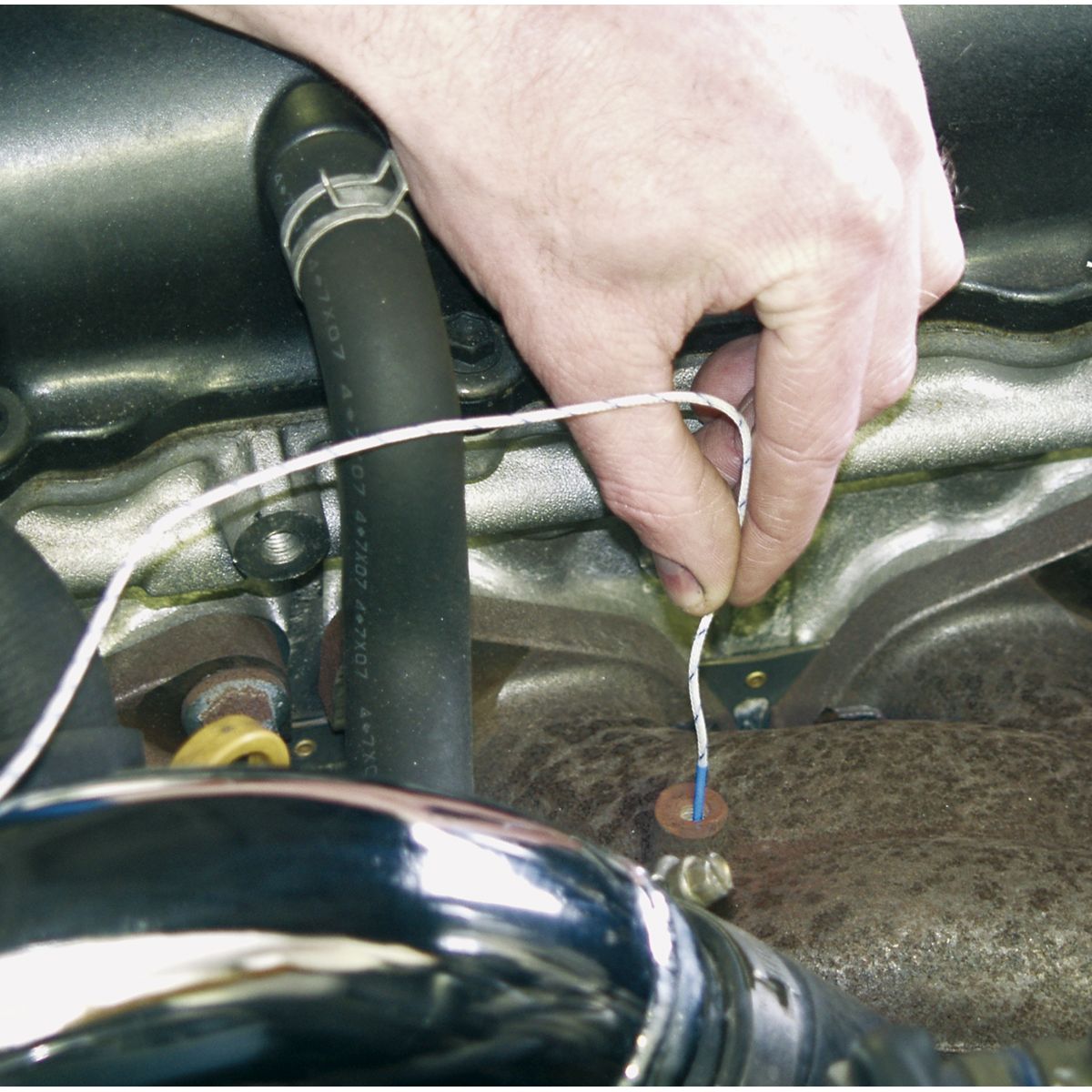

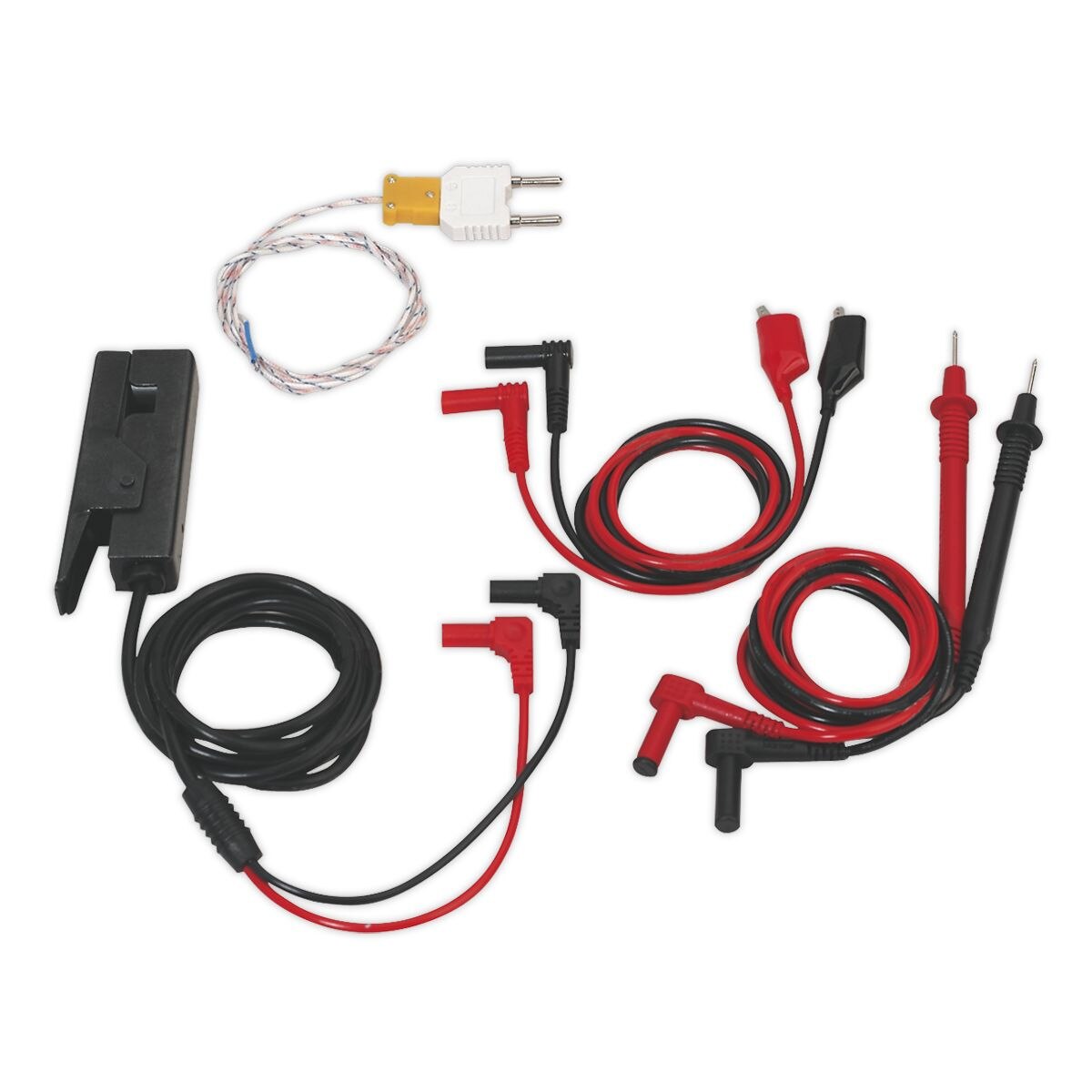

// Supplied with probe, crocodile clip and thermocouple leads for easy hook-up.
// Model No. TA201
// 4-Digit 22mm, high-contrast LCD display and back light.
// Features auto-ranging, data-hold and auto-power-off functions.
// Includes inductive coupler for fast reading of engine rpm.
// Supplied with probe, crocodile clip and thermocouple leads for easy hook-up.
// Model No. TA201
Specification
Specification
| Model No: TA201 |
Brand: Sealey |
| Nett Weight: 330g |
Tach (rpm): 4-Stroke; 600-4000 (x1)rpm, 600-12000 (x10)rpm, 2-Stroke; 300-4000 (x1)rpm, 300-6000 (x10)rpm |
| Dwell: 2Cyl 0-180°, 3Cyl 0-120°, 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45°, 10Cyl 0-36° |
AC Voltage: 400mV, 4V, 40V, 400V, 600V (Auto-Ranging, except 400mV) |
| DC Voltage: 400mV, 4V, 40V, 400V, 600V (Auto-Ranging) |
AC Current: 400µA, 4000µA, 40mA, 400mA, 4A, 10A (Auto-Ranging for µA & mA) |
| DC Current: 400µA, 4000µA, 40mA, 400mA, 4A, 10A (Auto-Ranging for µA & mA) |
Capacitance: 40nF, 400nF, 4µF, 40µF, 100µF (Auto-Ranging) |
| Frequency: 4V Range; 5Hz-10kHz, 40 & 400V Ranges; 5Hz-200kHz, 600V Range; 50Hz-1kHz, 400mA Range; 5Hz-5kHz, 10A Range; 5Hz-1kHz |
Duty Cycle: 0.1-99.9% |
| Pulse Width: No |
Resistance: 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ (Auto-Ranging) |
| Continuity: <150Ω |
Temperature: -20 to +760°C/-4 to +1400°F |
| IR Temperature: No |
Diode Check: Yes (Typical Test Current 0.3mA) |
| Transistor Test: No |
Back Light: Yes |
| Bar Graph Display: No |
Display Hold: Yes |
| Auto-Ranging: Yes |
Inductive Coupler: Yes |
| PC Interface: No |
Digits Height: 22mm |
| Auto Power Off: Yes |
Low Battery Indicator: Yes |
| Batteries (supplied): 9V (PP3) |
Hi-Impact Case: Yes |
| Size (L x W x D): 146 x 66.2 x 41.5mm |
Weight: 330g |
