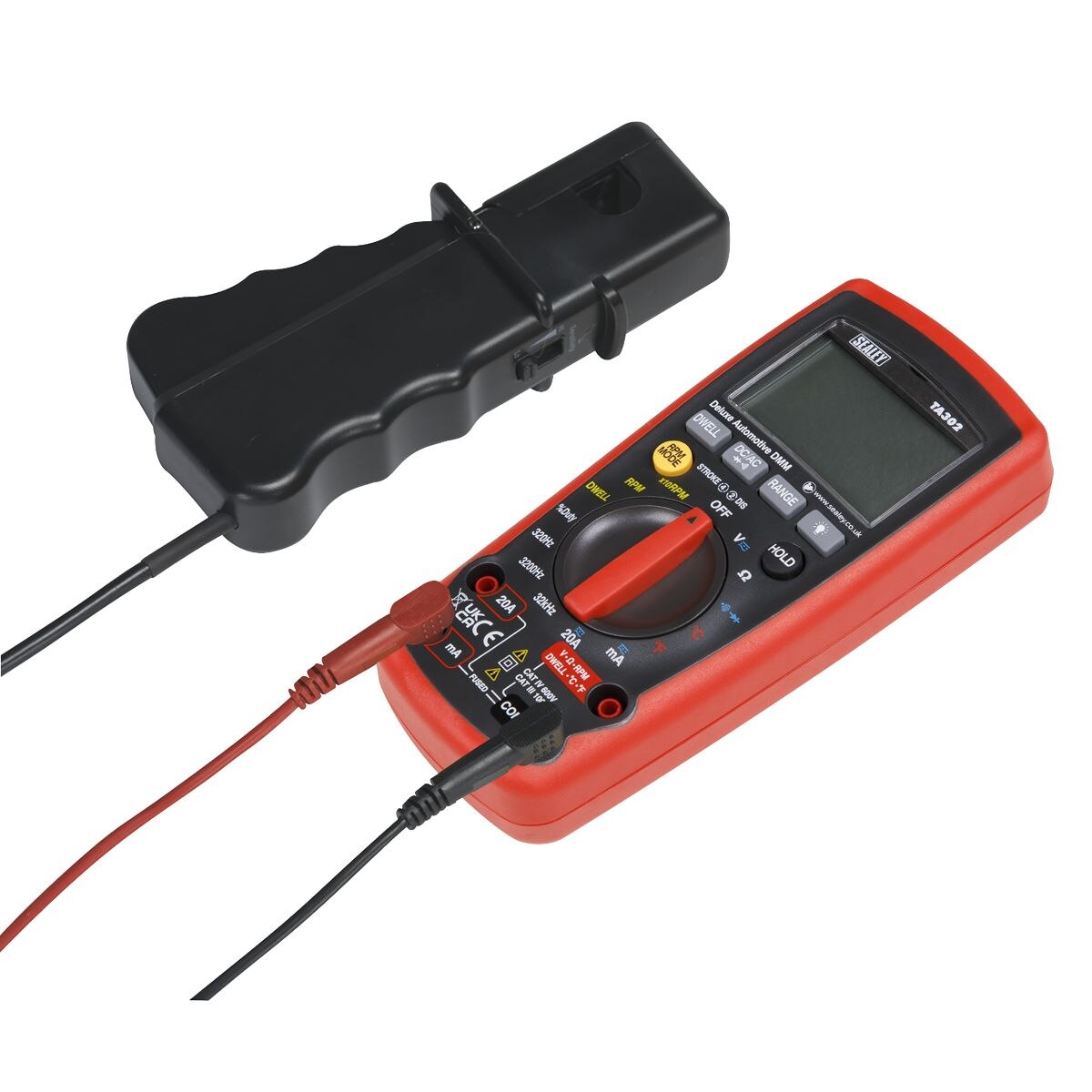

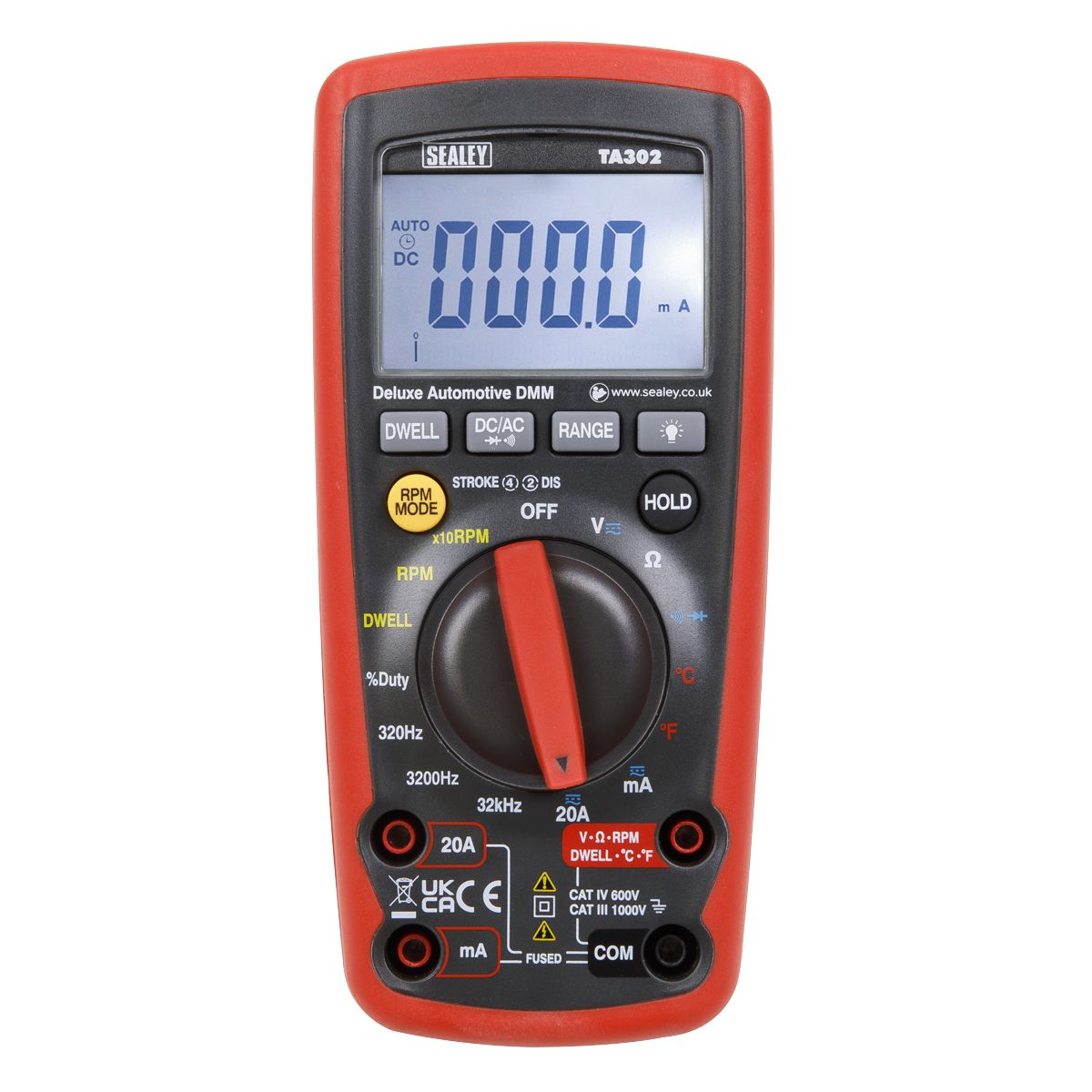

Sealey 12-Function Digital Automotive Analyser with Inductive Coupler - TA302
Product Code / SKU: 170488
12-Function, auto-ranging automotive diagnostic multimeter. Combination digital/bar graph display gives accurate indication of component outputs. Large, easy-to-read high contrast display with bright, white back light. Workshop-tough, durable case with integral stand. Reads standard automotive parameters including duty cycle. Features auto-ranging and data-hold functions with overload protection on all ranges. Supplied with inductive coupler, test probes and thermocouple.
// 12-Function, auto-ranging automotive diagnostic multimeter.
// Combination digital/bar graph display gives accurate indication of component outputs.
// Large, easy-to-read high contrast display with bright, white back light.
// Workshop-tough, durable case with integral stand.
// Reads standard automotive parameters including duty cycle.
// Features auto-ranging and data-hold functions with overload protection on all ranges.

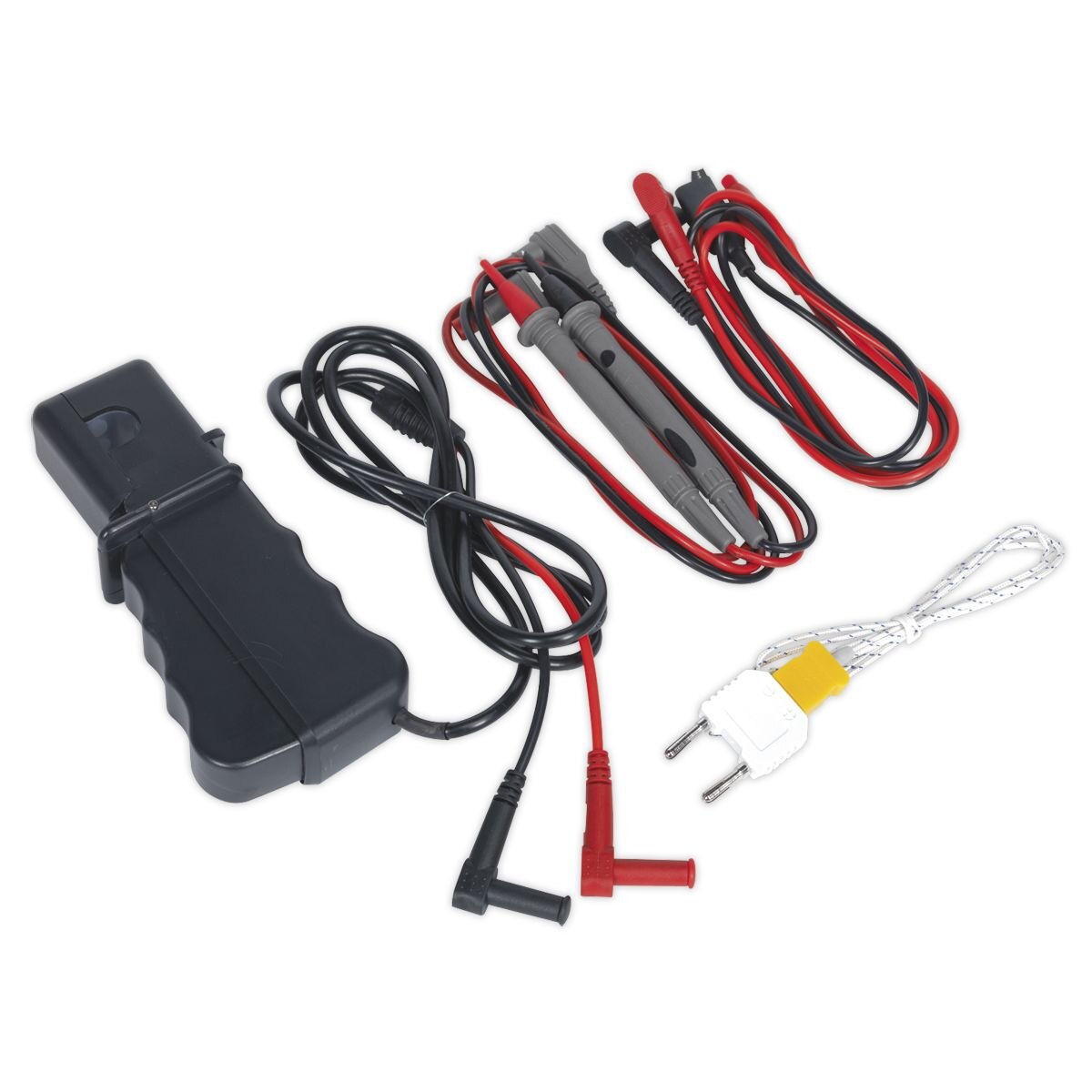

// Supplied with inductive coupler, test probes and thermocouple.
// Model No. TA302
// 12-Function, auto-ranging automotive diagnostic multimeter.
// Combination digital/bar graph display gives accurate indication of component outputs.
// Large, easy-to-read high contrast display with bright, white back light.
// Workshop-tough, durable case with integral stand.
// Reads standard automotive parameters including duty cycle.
// Features auto-ranging and data-hold functions with overload protection on all ranges.
// Supplied with inductive coupler, test probes and thermocouple.
// Model No. TA302
Specification
Specification
| Model No: TA302 |
Brand: Sealey |
| Nett Weight: 366g |
Tach (rpm): 4-8cyl, 2 & 4-Stroke 600-4000 (x1)rpm, 600-12000 (x10)rpm |
| Dwell: 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45° |
AC Voltage: 3.2V, 32V, 320V, 600V (Auto-Ranging) |
| DC Voltage: 320mV, 3.2V, 32V, 320V, 600V (Auto-Ranging) |
AC Current: 320µA, 3200µA, 32mA, 320mA, 10A (Auto-Ranging) |
| DC Current: 320µA, 3200µA, 32mA, 320mA, 10A (Auto-Ranging) |
Capacitance: No |
| Frequency: 320Hz, 3200Hz, 32kHz (Auto-Ranging) |
Duty Cycle: 0.1-99.9% |
| Pulse Width: No |
Resistance: 320Ω, 3.2kΩ, 32kΩ, 320kΩ, 3.2MΩ, 32MΩ (Auto-Ranging) |
| Continuity: <35Ω Continuity Buzzer 2kHz |
Temperature: -20 to +760°C, -4 to +1400°F |
| IR Temperature: No |
Diode Check: Yes |
| Transistor Test: No |
Back Light: Yes |
| Bar Graph Display: Yes |
Display Hold: Yes |
| Auto-Ranging: Yes |
Inductive Coupler: Yes |
| PC Interface: No |
Digits Height: 18mm |
| Auto Power Off: n/a |
Low Battery Indicator: Yes |
| Batteries (supplied): 9V (PP3) |
Hi-Impact Case: Yes |
| Size (L x W x D): 167 x 79 x 50mm |
Weight: 366g |
