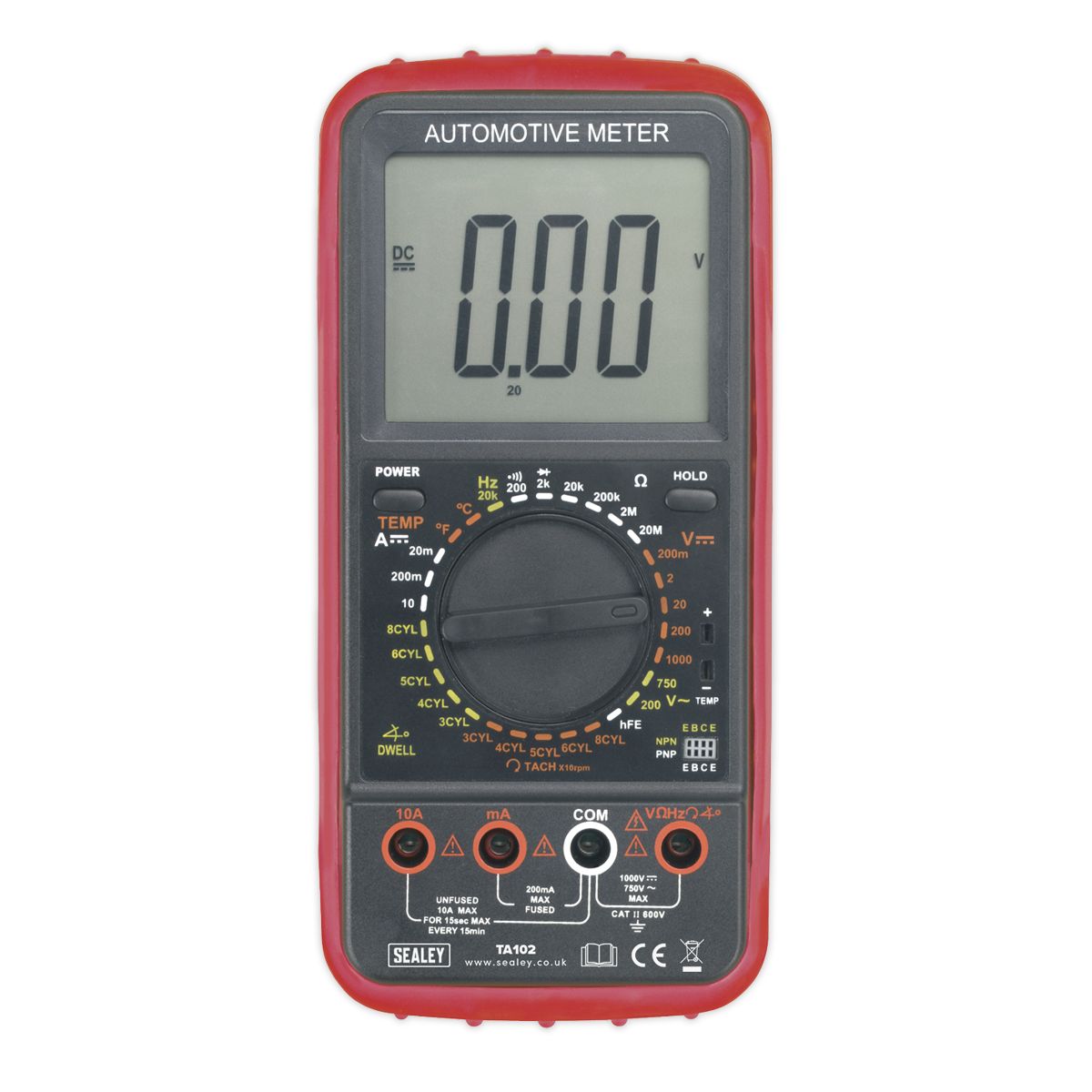

Sealey 11-Function Digital Automotive Analyser - TA102
Product Code / SKU: 170478
Durable case and integral stand suitable for the toughest workshop conditions. Large, high-contrast LCD display with 34mm high digital read-out. Includes over-range indication, auto-zeroing, data-hold, auto-polarity, auto-power-off and low battery display functions. Supplied with capped test probes and K-type thermocouple.
// Durable case and integral stand suitable for the toughest workshop conditions.
// Large, high-contrast LCD display with 34mm high digital read-out.
// Over-range indication, auto-zeroing, data-hold, auto-polarity, auto-power-off and low battery display functions.

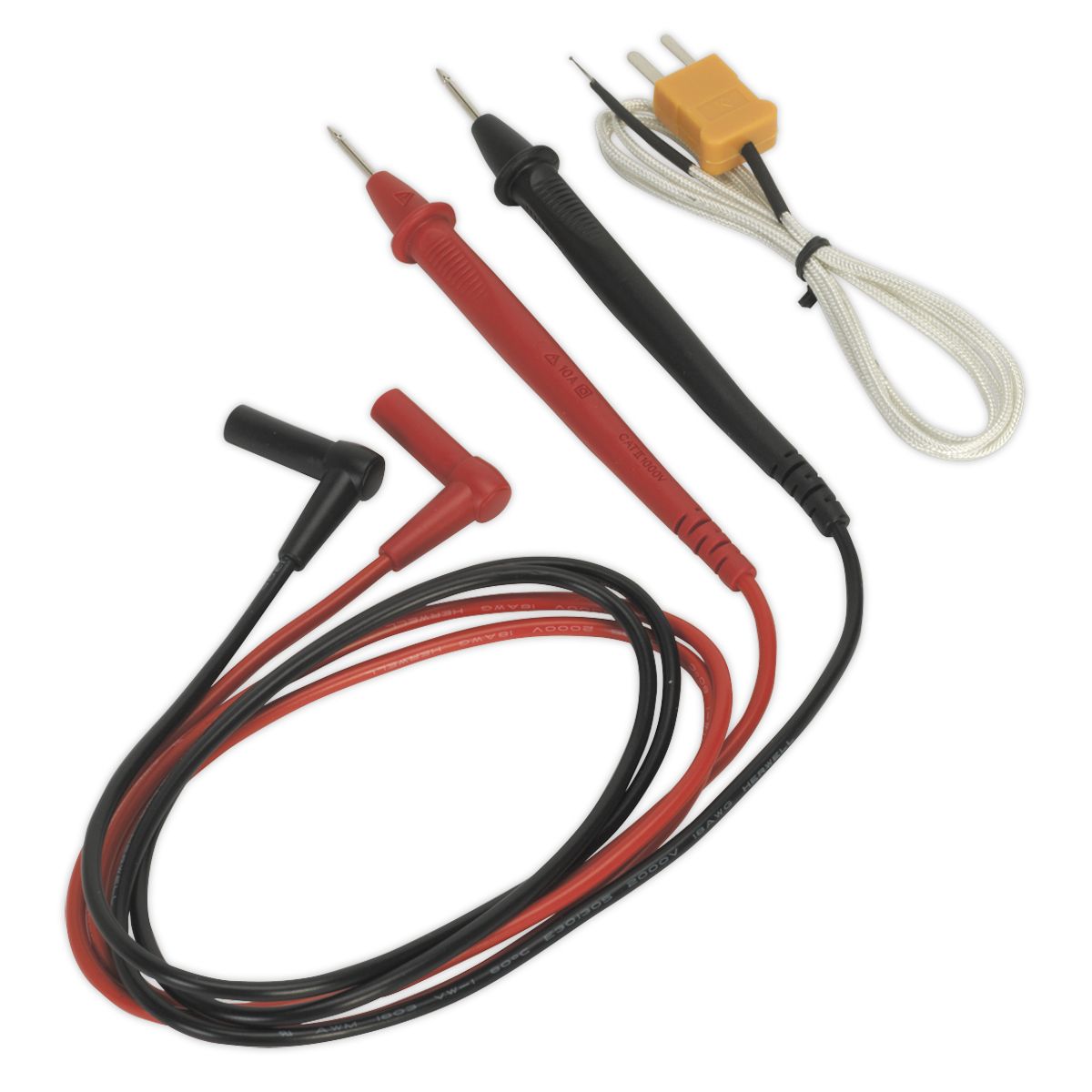

// Supplied with capped test probes and K-type thermocouple.
// Model No. TA102
// Durable case and integral stand suitable for the toughest workshop conditions.
// Large, high-contrast LCD display with 34mm high digital read-out.
// Over-range indication, auto-zeroing, data-hold, auto-polarity, auto-power-off and low battery display functions.
// Supplied with capped test probes and K-type thermocouple.
// Model No. TA102
Specification
Specification
| Model No: TA102 |
Brand: Sealey |
| Nett Weight: 495g |
Tach (rpm): 3/4/5/6/8Cyl 180-10000 (x10)rpm |
| Dwell: 3Cyl 0-120°, 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45° |
AC Voltage: 200-750V |
| DC Voltage: 200mV, 2V, 20V, 200V, 1000V |
AC Current: No |
| DC Current: 20mA, 200mA, 10A |
Capacitance: No |
| Frequency: 20kHz |
Duty Cycle: No |
| Pulse Width: No |
Resistance: 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ, 20MΩ |
| Continuity: <30Ω |
Temperature: -20 to +750°C/-4 to +1382°F |
| IR Temperature: No |
Diode Check: Yes (Typical Test Current 1mA) |
| Transistor Test (hFE): Vce=3V, Ib=10µA |
Back Light: No |
| Bar Graph Display: No |
Display Hold: Yes |
| Auto-Ranging: No |
Inductive Coupler: No |
| PC Interface: No |
Digits Height: 34mm |
| Auto Power Off: Yes |
Low Battery Indicator: Yes |
| Batteries (supplied): 9V (PP3) |
Hi-Impact Case: Yes |
| Size (L x W x D): 200 x 97 x 48mm |
Weight: 495g |
