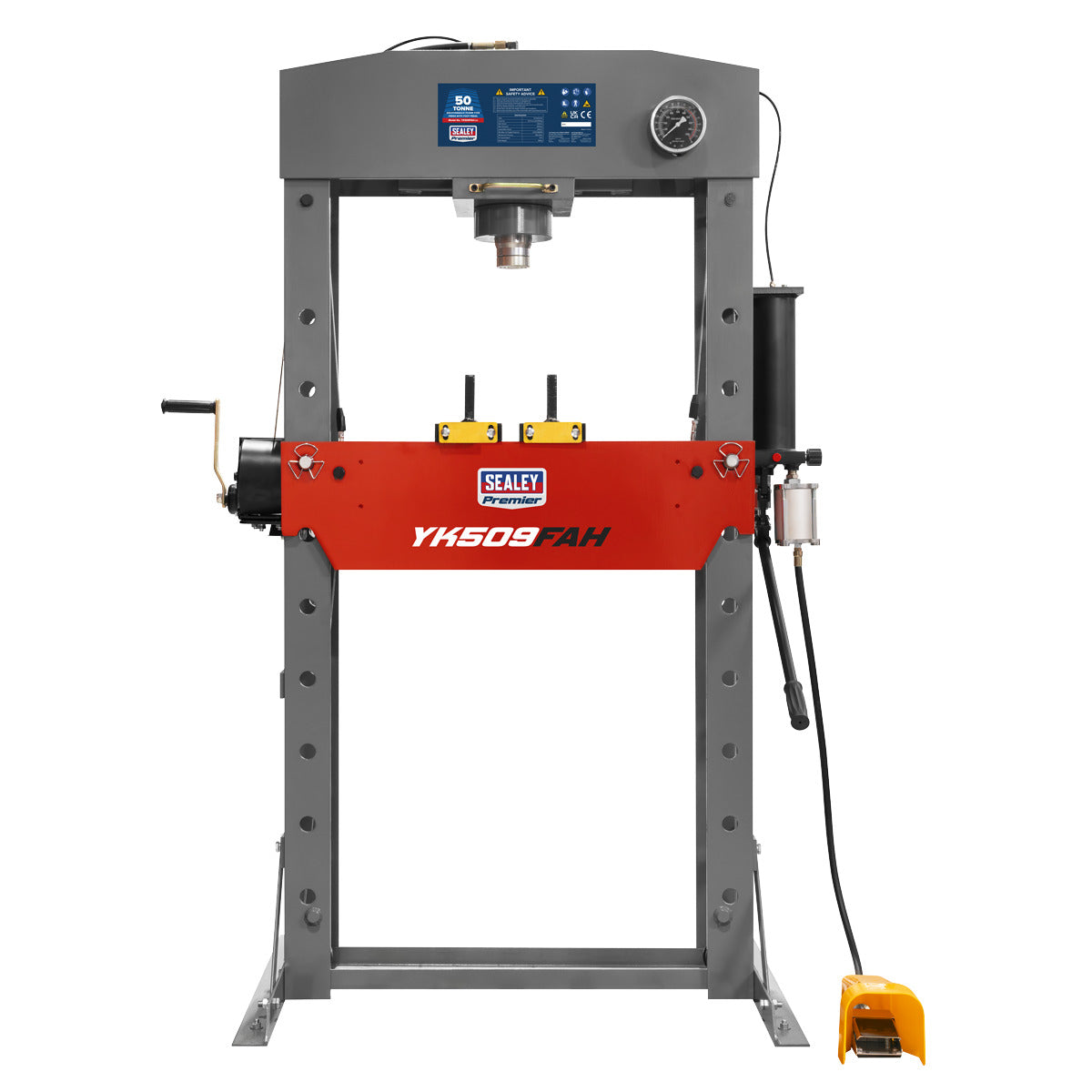

Premier Sealey 50 Tonne Premier Heavy-Duty Floor Type Air/Hydraulic Press with Foot Pedal - YK509FAH YK509FAH
Product Code / SKU: 171346
Steel frame construction with side mounted air motor powering hydraulic pump unit. 2-speed manual operation and sliding hydraulic ram assembly giving 245mm of lateral travel for off-centre pressing applications. Fitted with ram pressure gauge and supplied with table winch and flat pressing plate/V-blocks.
// Heavy-duty steel frame construction.
// Side mounted air motor powering hydraulic pump unit.
// 2-Speed manual operation.
// Sliding hydraulic ram assembly giving 245mm of lateral travel for off-centre pressing applications.
// Fitted with ram pressure gauge.
// Supplied with table winch and flat pressing plate/V-blocks.
// Table Aperture: 235mm.
// Working Table Width: 910mm.
// Ram Stroke: 200mm.
// 5 Year guarantee.
// This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
// A forklift must be available at the delivery point to unload this item.
// Heavy-duty steel frame construction.
// Side mounted air motor powering hydraulic pump unit.
// 2-Speed manual operation.
// Sliding hydraulic ram assembly giving 245mm of lateral travel for off-centre pressing applications.
// Fitted with ram pressure gauge.
// Supplied with table winch and flat pressing plate/V-blocks.
// Table Aperture: 235mm.
// Working Table Width: 910mm.
// Ram Stroke: 200mm.
// 5 Year guarantee.
// This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
// A forklift must be available at the delivery point to unload this item.
Specification
Specification
| Model No: YK509FAH |
Air Consumption: 7cfm |
| Bench or Floor Mounting: Floor |
Brand: Premier |
| Capacity: 50 Tonne |
Gauge Included: Yes |
| Lateral Ram Travel: 245mm |
Maximum Height - Ram to Table: 1047mm |
| Minimum Height - Ram to Table: 67mm |
Nett Weight: 300kg |
| Operating Table Width: 730mm |
Optional Accessories: YKSG50 - Safety Guard, YKPP8 - Press Pin Set |
| Overall Height: 1877mm |
Ram Diameter: 75mm |
| Ram Stroke: 200mm |
Screw Extension: N/A |
| Table Aperture: 235mm |
Type: Air/Hydraulic |
| Working Table Depth: 259mm |
Working Table Width: 910mm |
