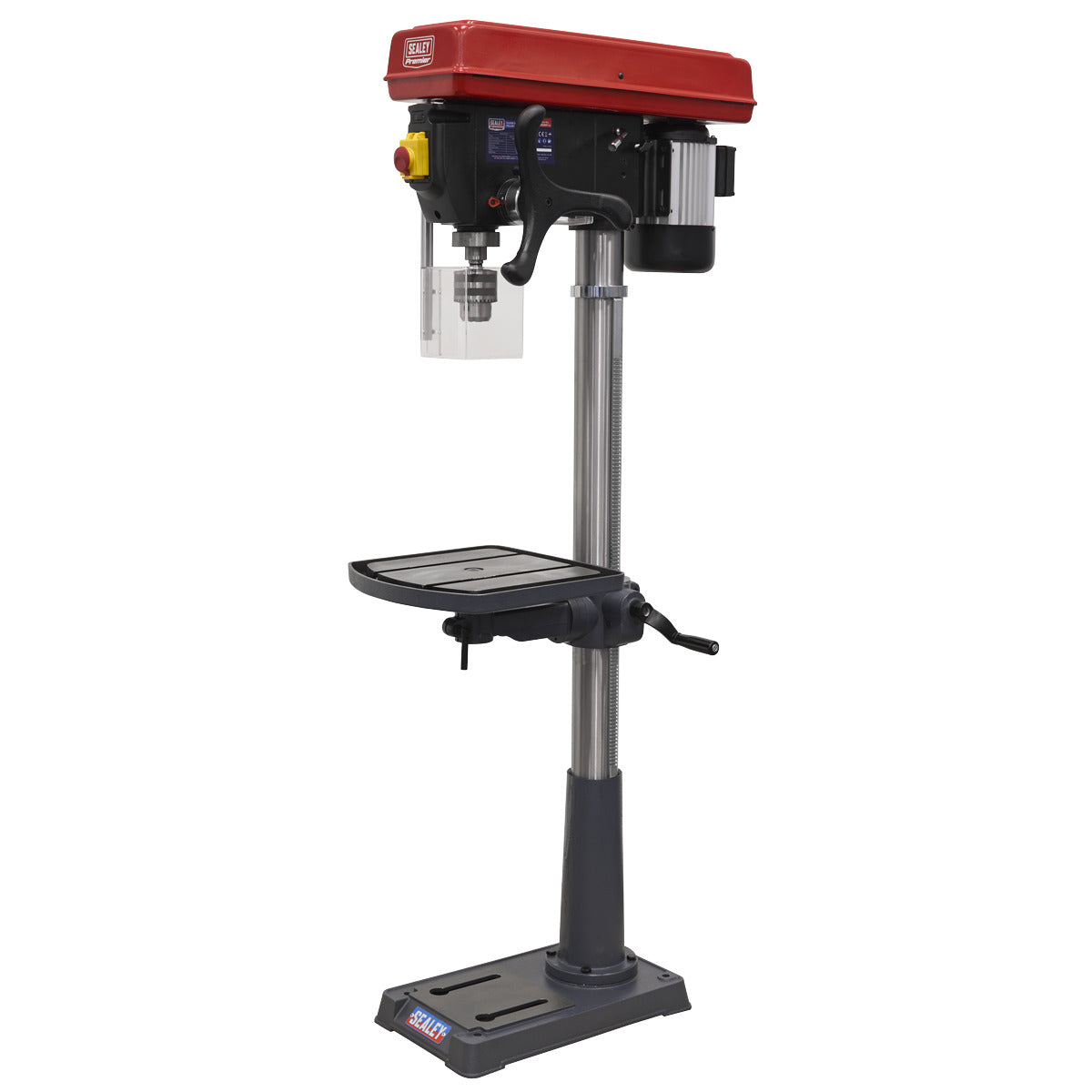

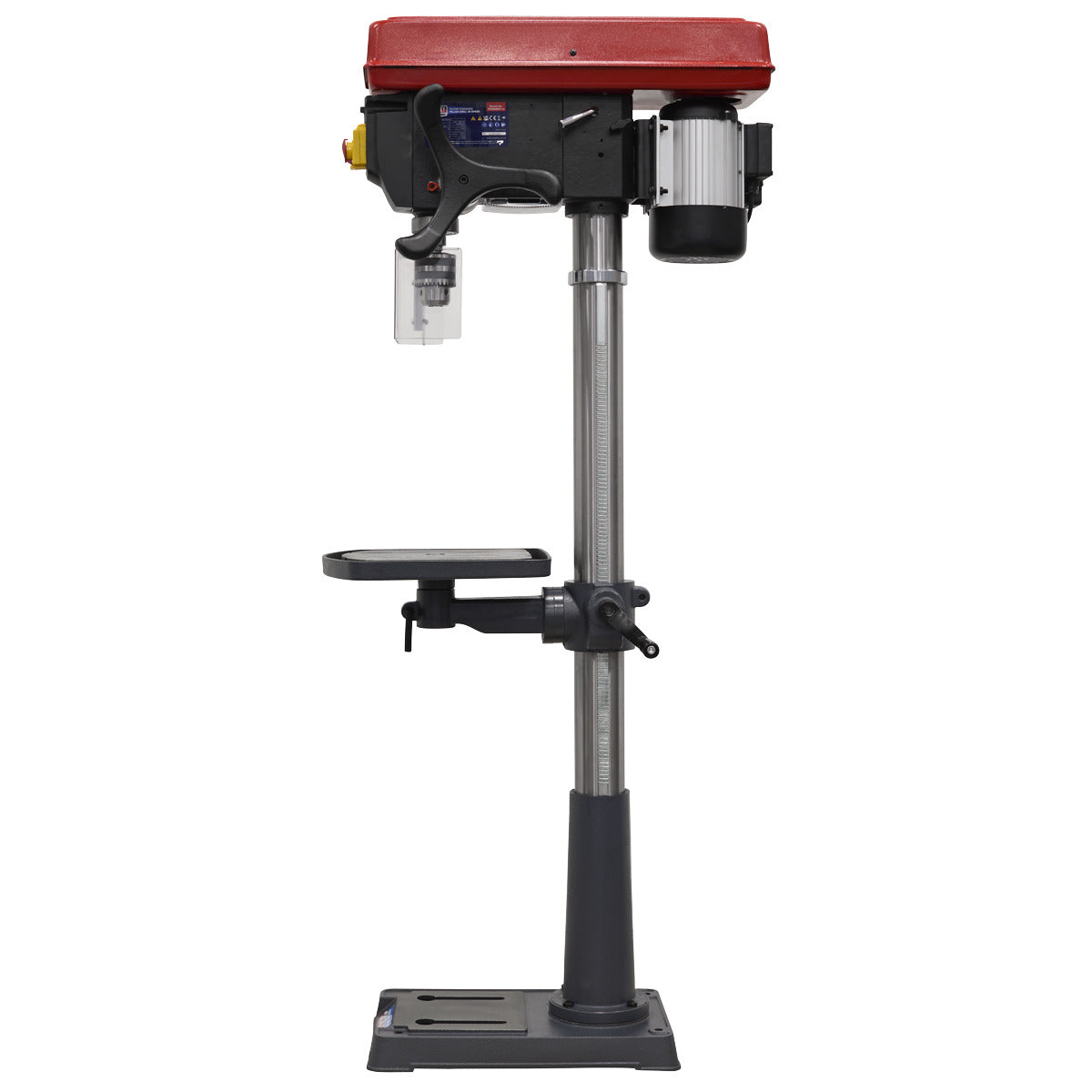

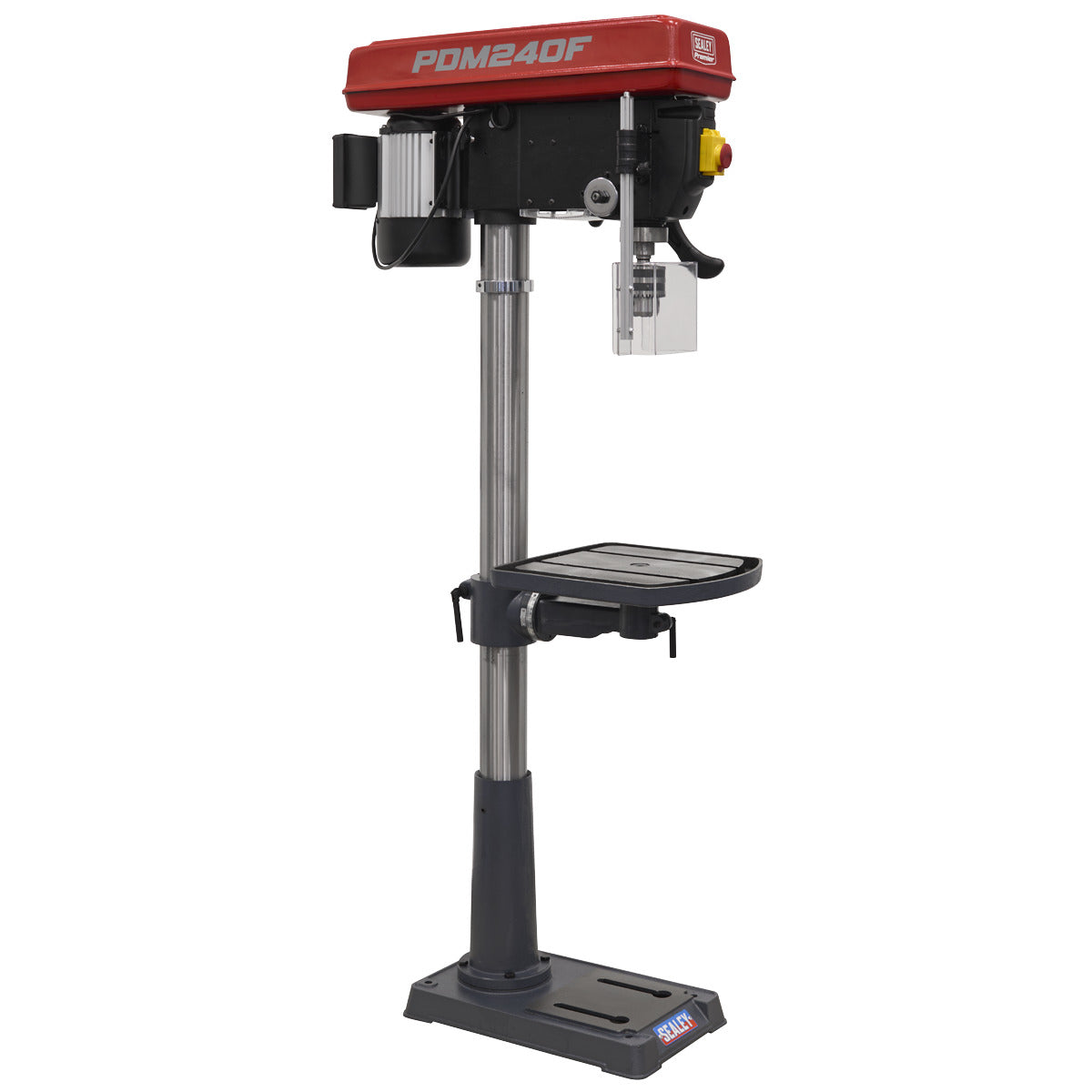

Premier Floor Standing Pillar Drill 16-Speed 750W/230V PDM240F
Product Code / SKU: 154173

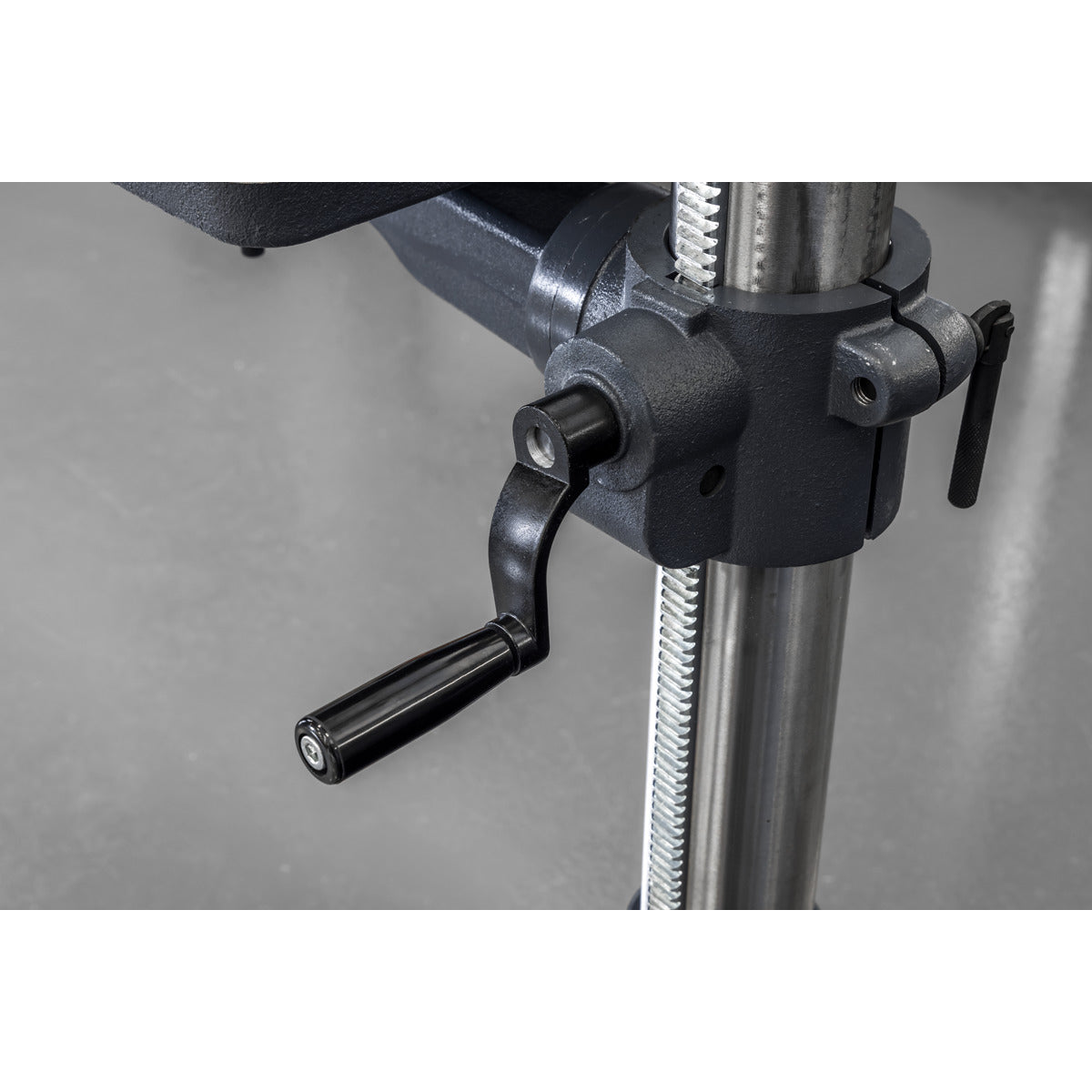

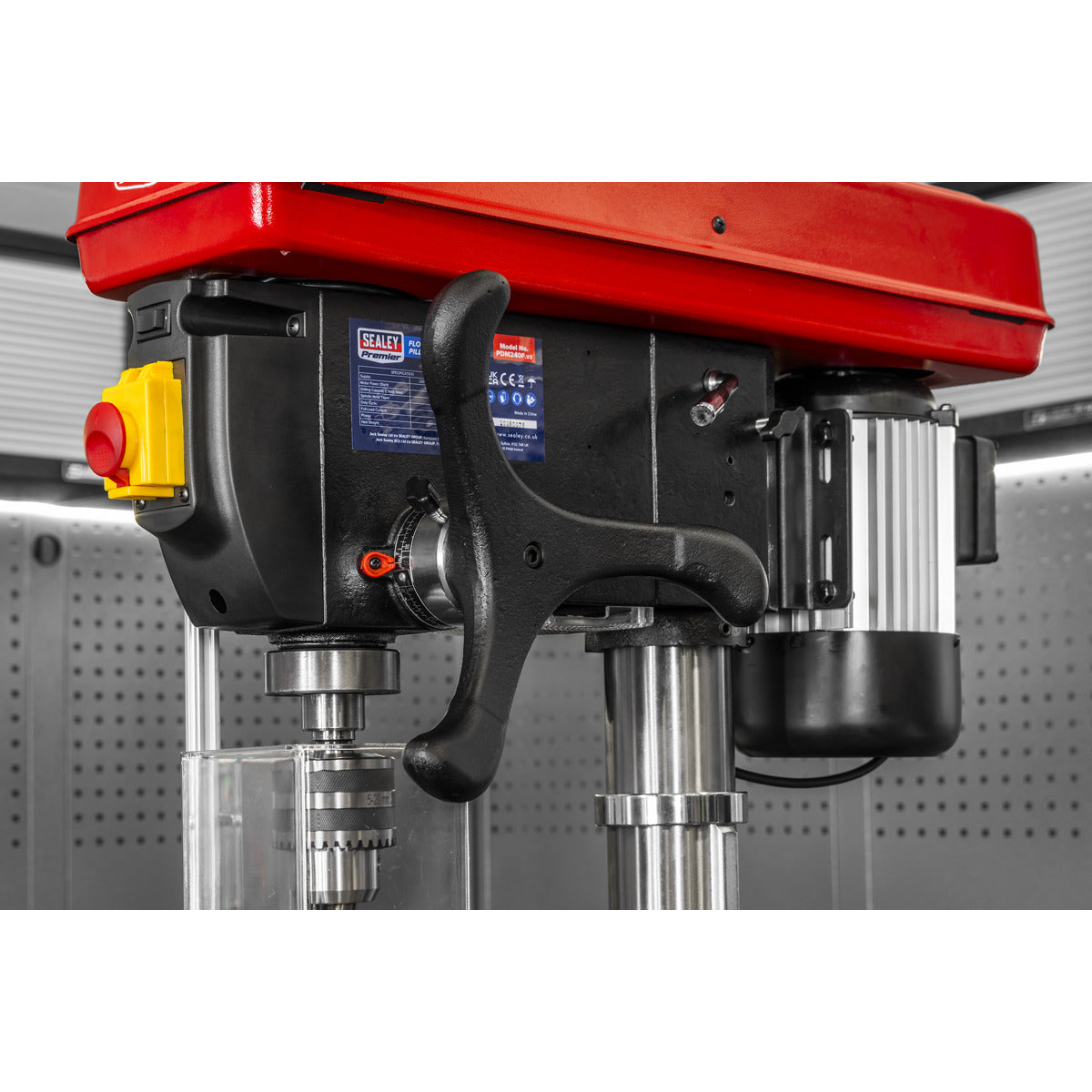

Features heavy-duty aluminium-bodied motor for long and reliable performance. No-volt release switch to prevent inadvertent start-up and pulley cover protected by microswitch to prevent drill operating when cover is open. Fitted with an integral work light which illuminates the drilling table giving operator a clear view of the drilling process (bulb not included). Supplied with an electrically inter-locked chuck guard. Large sized square table fitted with precision rack and pinion height adjustment.

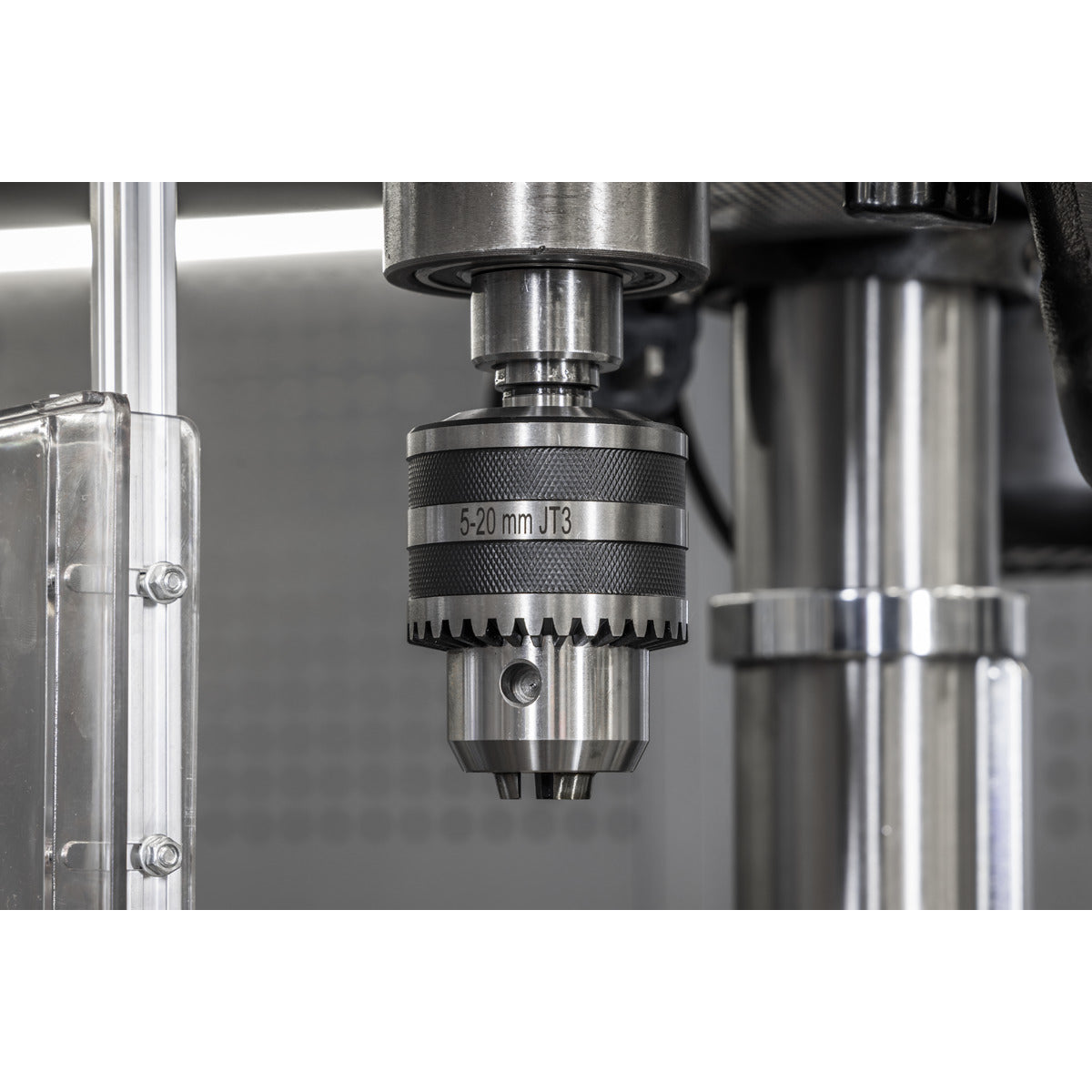

// 20mm(3/4") Capacity chuck, MT3.

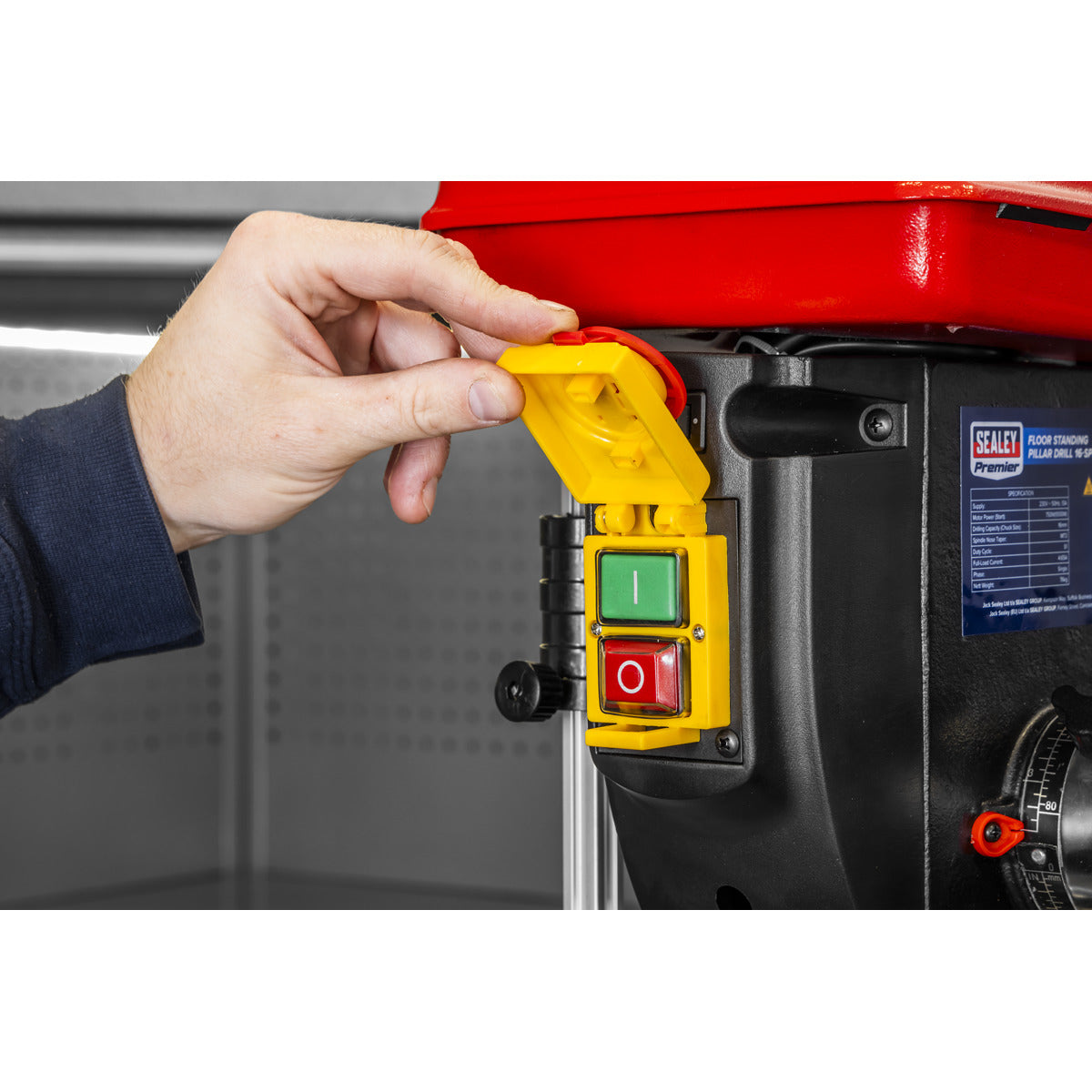

// Fitted with no-load voltage switch and locking cover to prevent accidental starting.
// Supplied with an electrically inter-locked chuck guard.
// Integral worklight (bulb not included).
// Height: 1635mm.
// Spindle Centre to Column: 216mm.
// High torque heavy-duty aluminium-bodied induction motor.
// Motor Power: 750W.
// Column Diameter: Ø80mm.

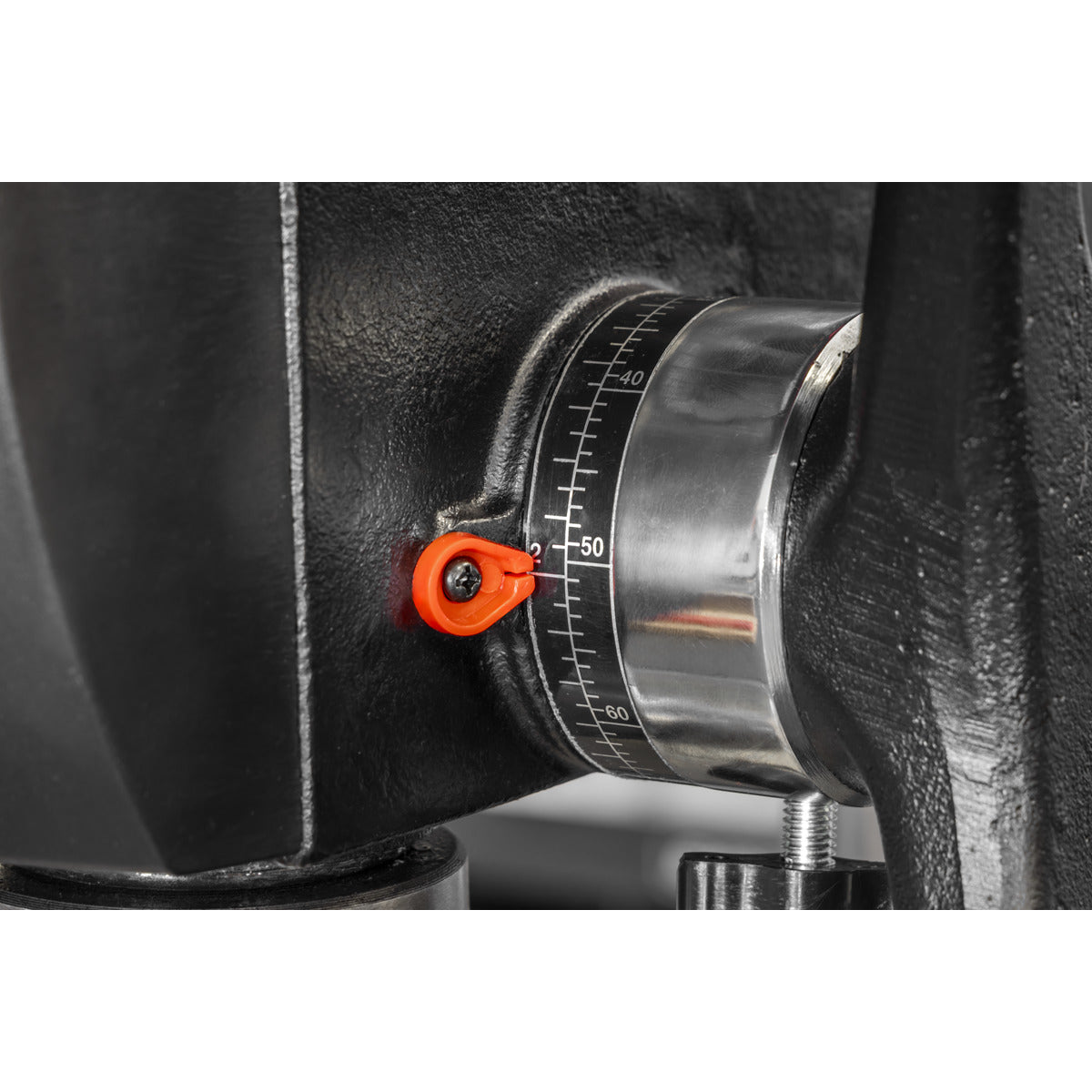

// Spindle Travel: 80mm.
// This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
// 3 Year guarantee.
// Model No. PDM240F
// 20mm(3/4") Capacity chuck, MT3.
// Fitted with no-load voltage switch and locking cover to prevent accidental starting.
// Supplied with an electrically inter-locked chuck guard.
// Integral worklight (bulb not included).
// Height: 1635mm.
// Spindle Centre to Column: 216mm.
// High torque heavy-duty aluminium-bodied induction motor.
// Motor Power: 750W.
// Column Diameter: Ø80mm.
// Spindle Travel: 80mm.
// This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
// 3 Year guarantee.
// Model No. PDM240F
Specification
Specification
| Model No: PDM240F |

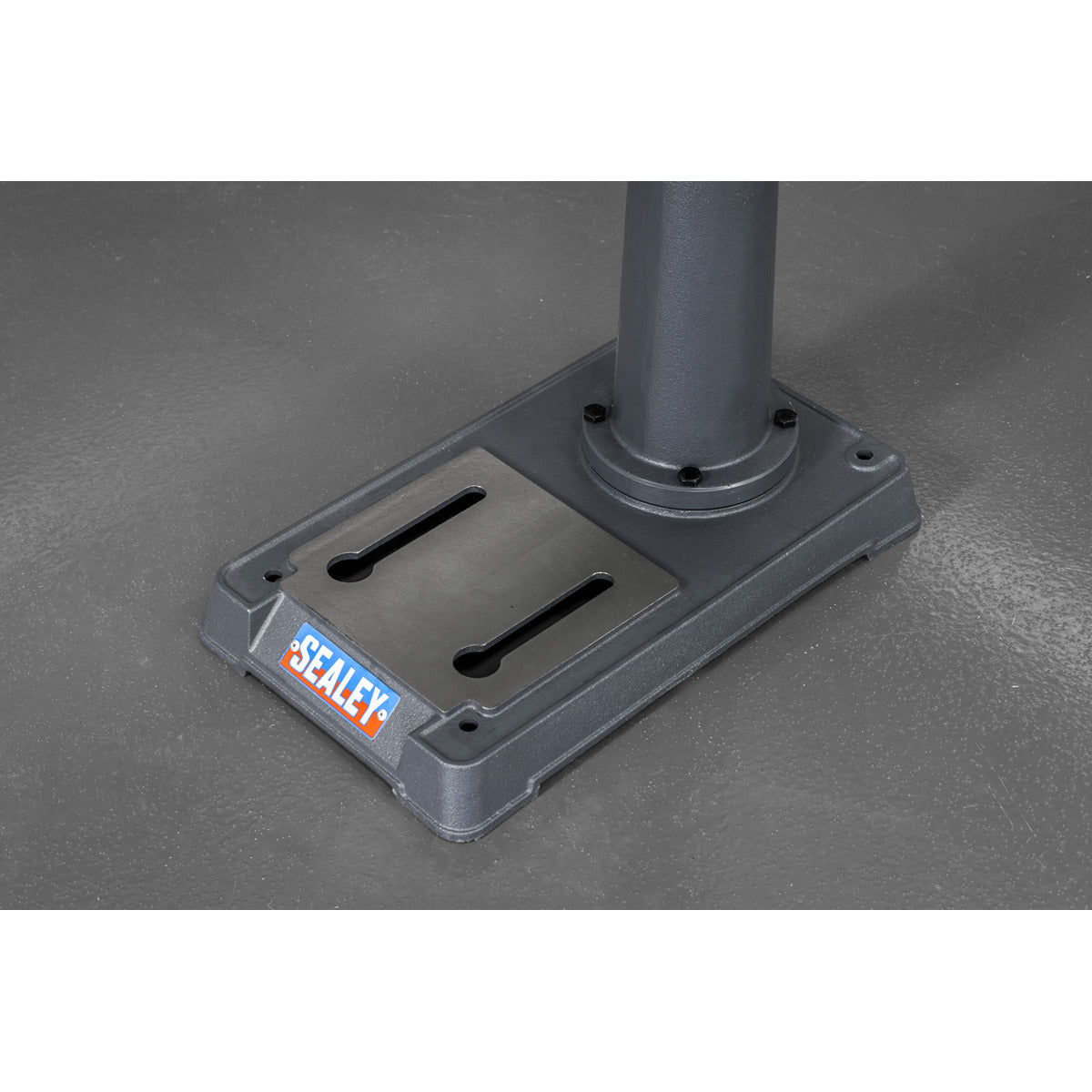

Base Size:: 495 x 290mm |
| Brand:: Premier |
Collar Diameter:: Ø75mm |
| Column Diameter:: Ø80mm |
Drilling Capacity (Chuck Size):: 20mm |
| Integral Work Light:: Yes |
Maximum Distance Spindle to Base:: 1230mm |
| Maximum Distance Spindle to Table:: 720mm |
Motor Power (Start):: 750W(1000W) |
| Nett Weight:: 76kg |
Number of Speeds:: 16 |
| Optional Accessories:: PDM/KC - Keyless Pillar Drill Chuck 16mm |
Overall Height:: 1635mm |
| Speed Range:: 160-3000rpm |
Spindle Centre to Column:: 216mm |
| Spindle Nose Taper:: MT3 |
Spindle Travel:: 80mm |
| Supply:: 230V |
Swing:: 512mm |
| Working Base Surface Size:: 205 x 200mm |

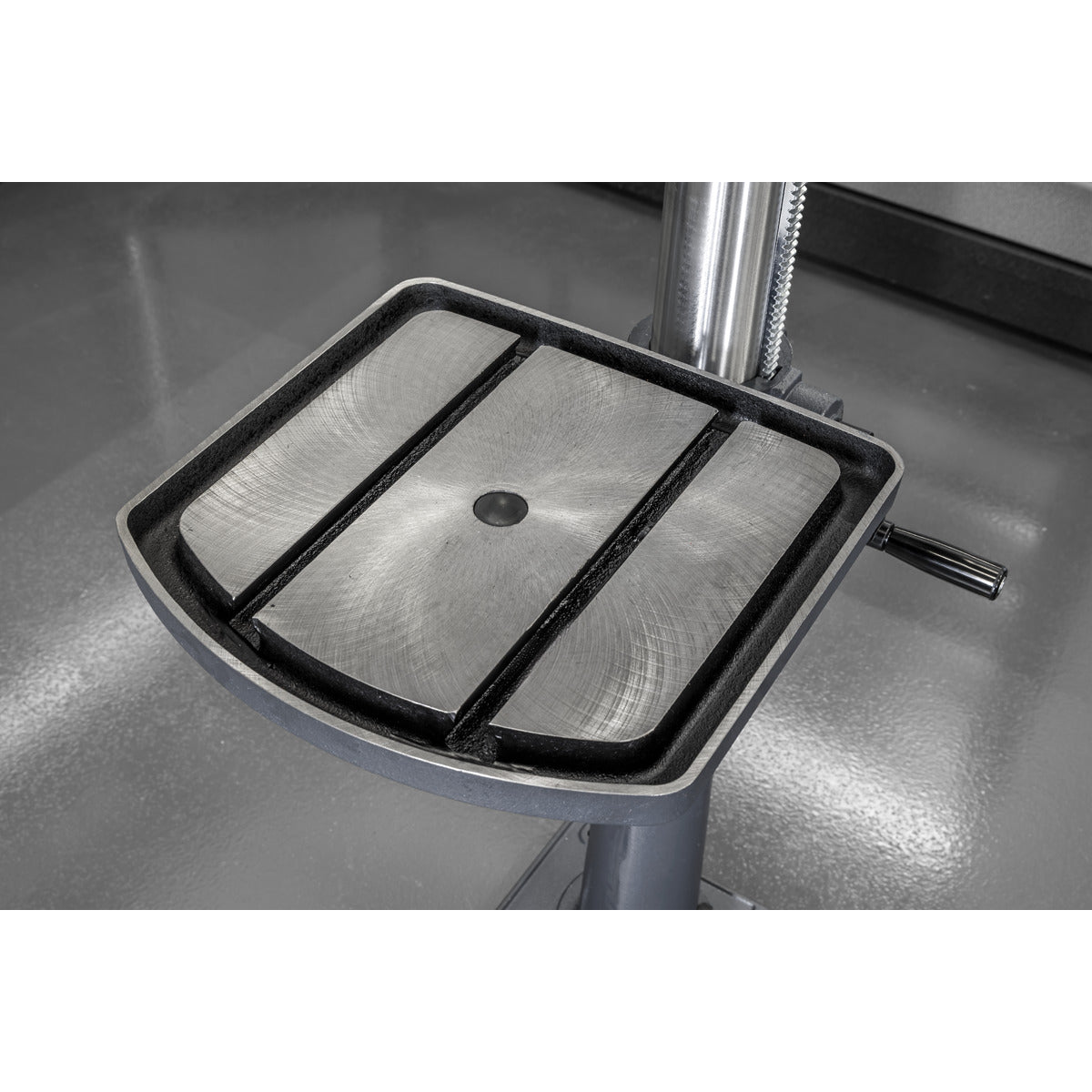

Working Table Surface Size:: 356 x 356mm |
Tax included.
This product is available for in-store purchase only.
Speak to our friendly team via chat, email, or phone for expert product advice.
Premier Floor Standing Pillar Drill 16-Speed 750W/230V PDM240F
Sale price£785.99
