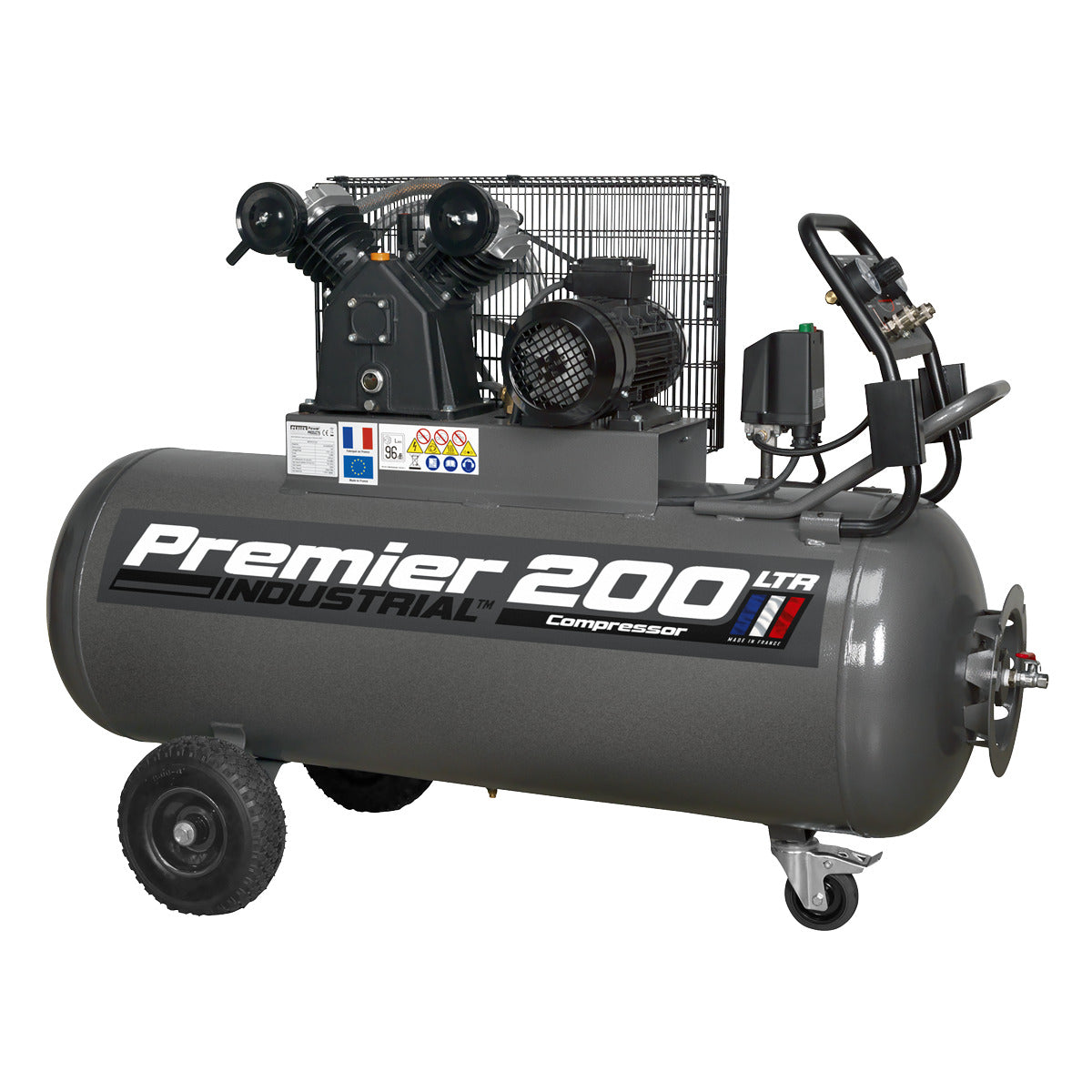

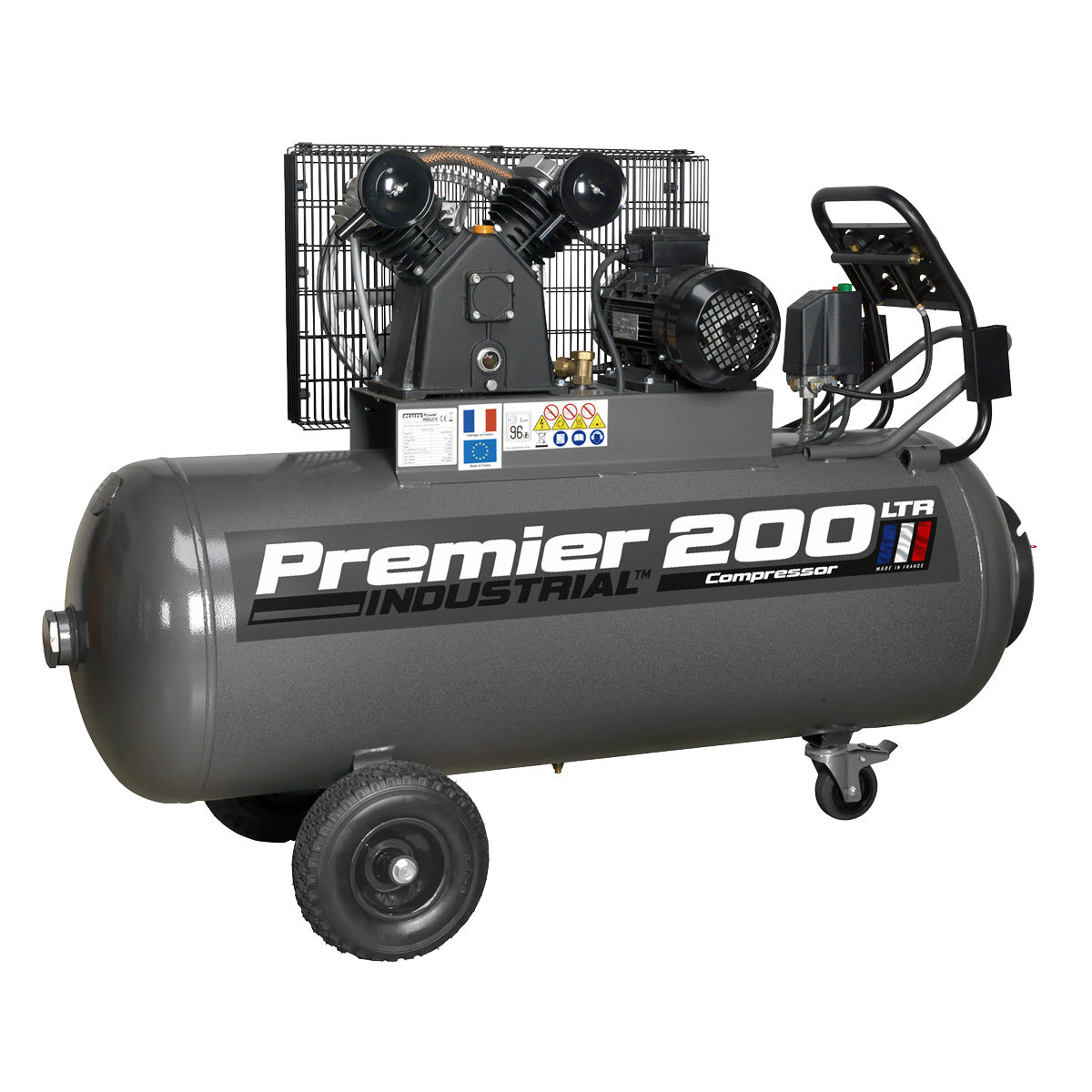

Premier 200L Belt Drive Air Compressor with Front Control Panel SAC3203B3PH
Product Code / SKU: 169717
Heavy-duty 3-phase compressor suitable for the professional workshop. Triple cylinder pump system coupled with a 3hp motor maximizes performance to keep running costs low compared to single stage, single phase models. Pump features heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long-life. Features an easy-to-use bespoke control panel with two outlets, one regulated and one direct. Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling. Heavy-duty metal wheels fitted with needle roller bearings and puncture proof tyres. Supplied with hose reel to keep your workspace tidy. Full CE certification, test certificates and operating/maintenance manual. Includes a drain valve for easy release of condensed water build-up in the tank.
// Air Displacement: 13.4cfm(380L/min).
// Maximum Free Air Delivery: 10.9cfm(310L/min).
// Maximum Pressure: 145psi(10bar).
// Heavy-duty 3-phase compressor suitable for the professional workshop.
// Triple cylinder pump system coupled with a 3hp motor maximizes performance to keep running costs low compared to single stage, single phase models.

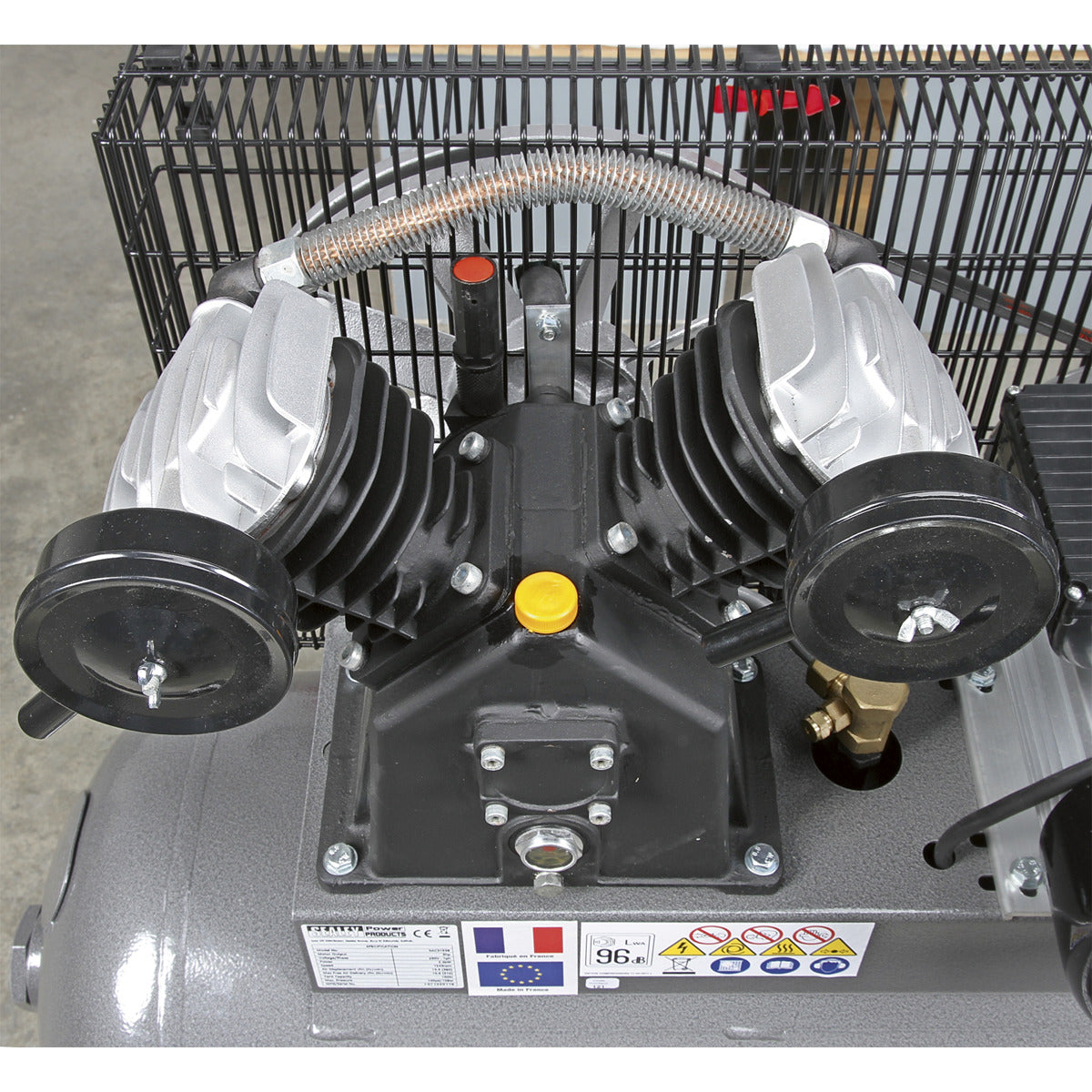

// Pump features heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long-life.
// Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.

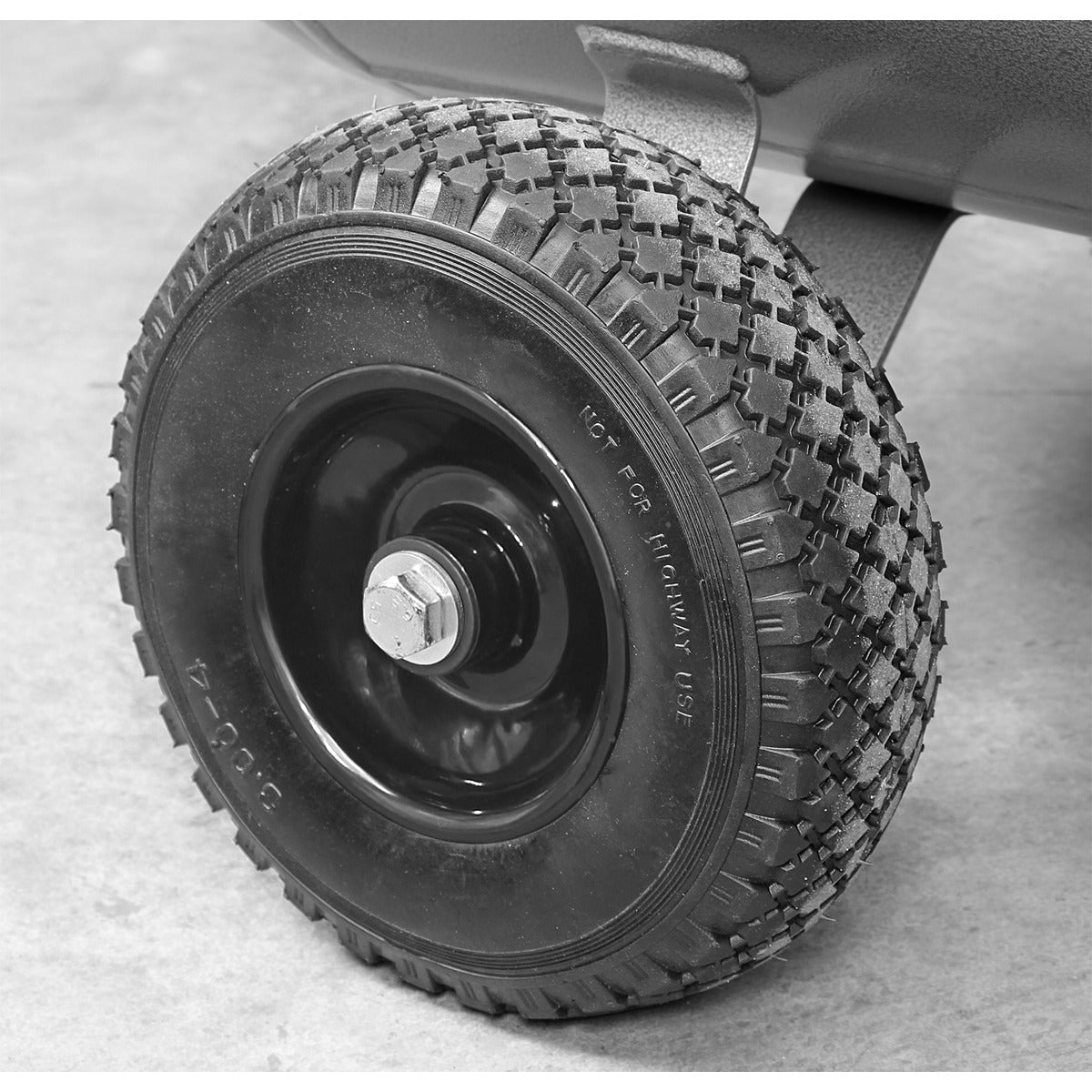

// Heavy-duty metal wheels fitted with needle roller bearings and puncture proof tyres.
// Supplied with hose reel to keep your workspace tidy.
// Full CE certification, test certificates and operating/maintenance manual.

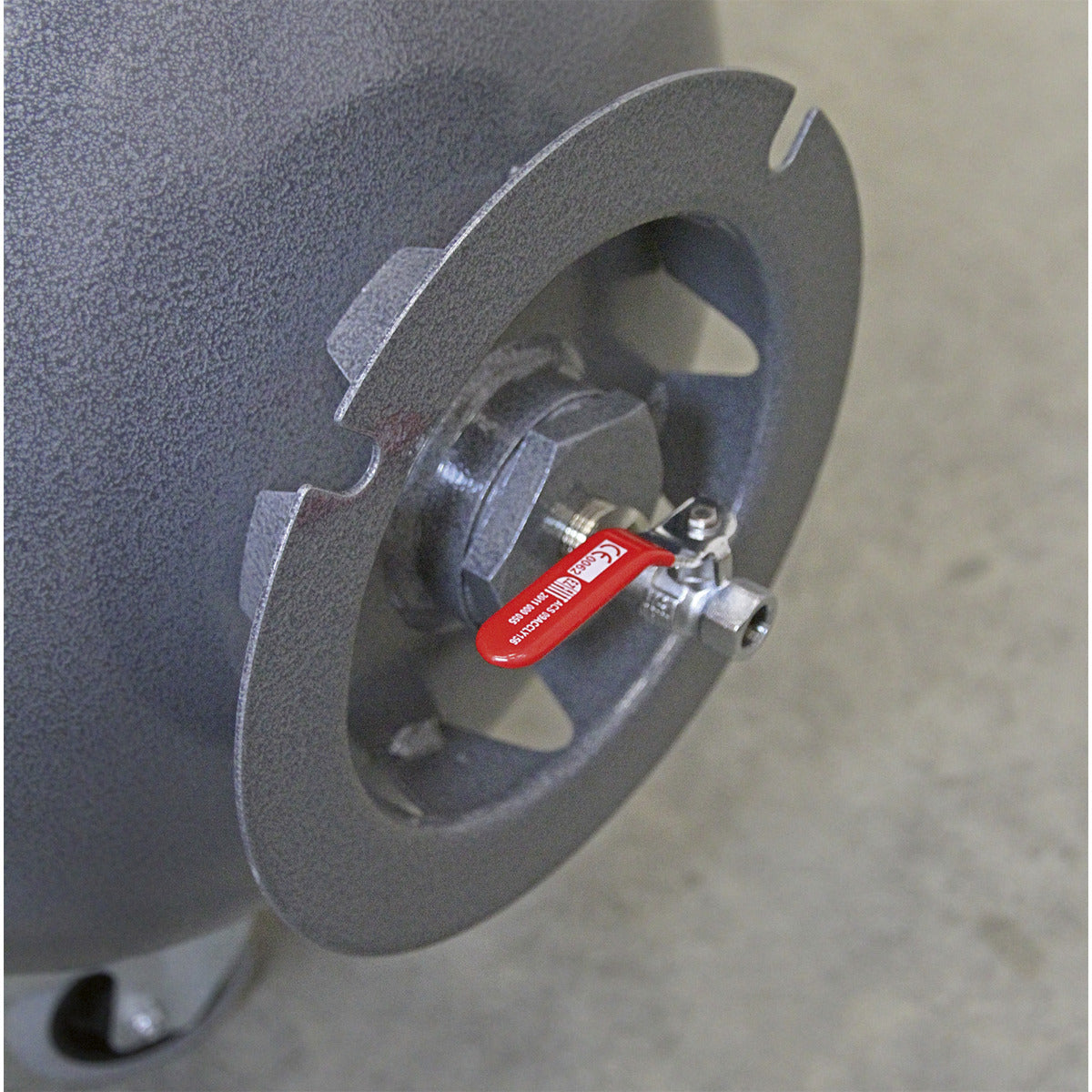

// Includes a drain valve for easy release of condensed water build-up in the tank.
// 3 Year guarantee.
// This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
// Model No. SAC3203B3PH
// Air Displacement: 13.4cfm(380L/min).
// Maximum Free Air Delivery: 10.9cfm(310L/min).
// Maximum Pressure: 145psi(10bar).
// Heavy-duty 3-phase compressor suitable for the professional workshop.
// Triple cylinder pump system coupled with a 3hp motor maximizes performance to keep running costs low compared to single stage, single phase models.
// Pump features heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long-life.
// Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.
// Heavy-duty metal wheels fitted with needle roller bearings and puncture proof tyres.
// Supplied with hose reel to keep your workspace tidy.
// Full CE certification, test certificates and operating/maintenance manual.
// Includes a drain valve for easy release of condensed water build-up in the tank.
// 3 Year guarantee.
// This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
// Model No. SAC3203B3PH
Specification
Specification
| Model No: SAC3203B3PH |
Air Displacement cfm(L/min): 13.4(380) |
| Brand: Premier |
Maximum Free Air Delivery cfm(L/min): 10.9(310) |
| Maximum Pressure: 145psi(10bar) |
Minimum Rated Supply: 32A |
| Motor Output: 3hp |
Nett Weight: 103kg |
| Noise Level: 86 |
Oil Capacity: 1L |
| Outlet: High-Flow Quick Release Coupling |
Phase: 3ph |
| Receiver Capacity: 200L |
Size (W x D x H): 1410 x 600 x 1020mm |
| Speed: 1243rpm |
Supply: 400V/32A |
