Laserliner 036.733E SmartCross-Laser GX Work Set 38164
Product Code / SKU: 198407

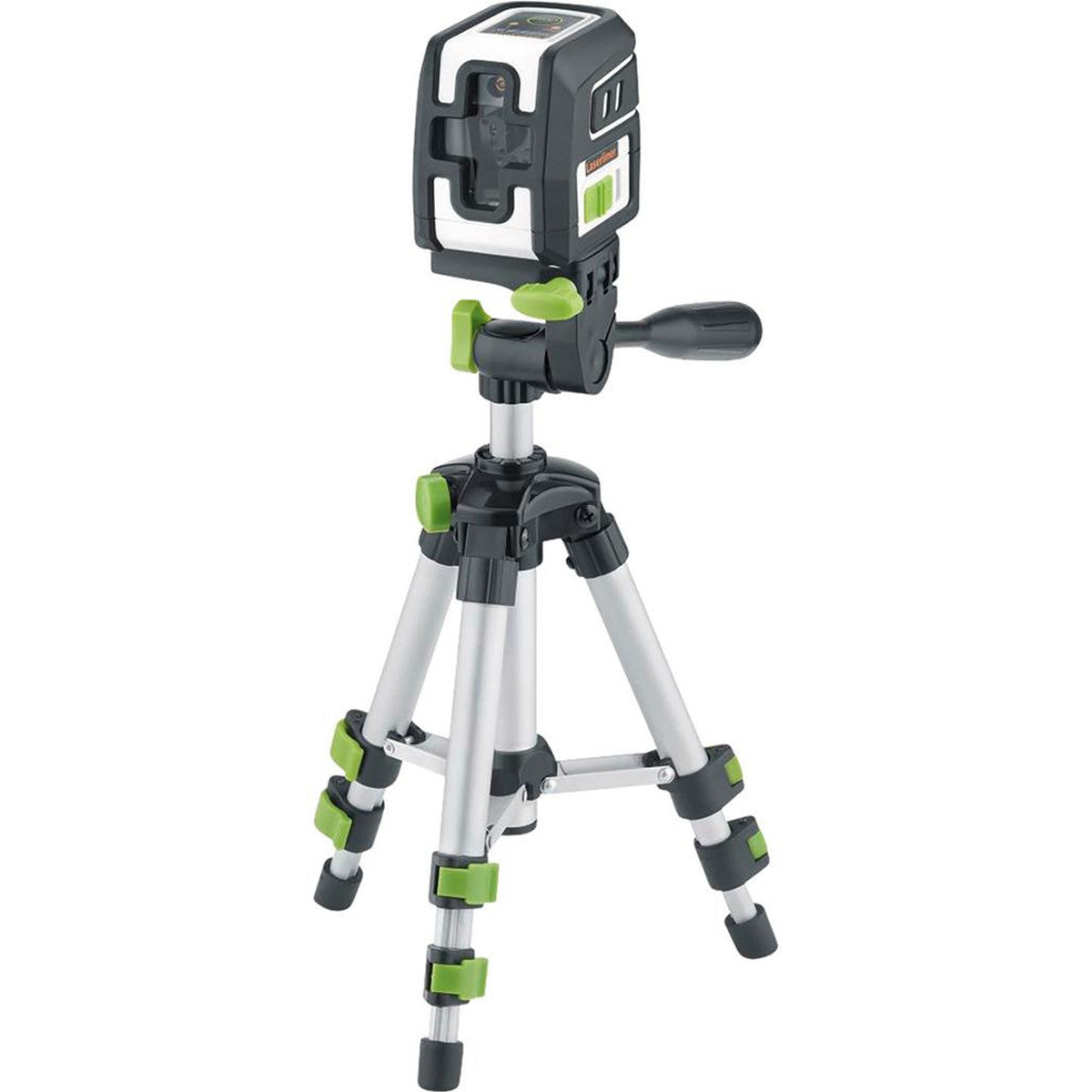

This cross-line laser projects a highly visible green laser cross for precise horizontal and vertical alignment of objects. It also has a manual slope function for easy creation of gradients and a ¼” thread for mounting on the 45 cm compact tripod supplied, making it ideal for low-to-the-ground use. It has multi-section telescopic legs and a three-way tripod head for inclining, lowering, and tilting. The laser can also be used for outdoor applications and alignment work at long distances with the integrated hand-held receiver mode.
// Accurate horizontal and vertical alignment of objects
// Good visibility through green laser technology
// Easy alignment of slopes with manual tilt function
// Light and robust compact 45 cm tripod, ideal for ground level applications
// 3-way tripod head for inclining, lowering and rotating the measuring tool
// Integrated hand-held receiver mode for outdoor applications
// Visual signals indicate when the device is outside its self-levelling range
// Pendulum restraint for safe transport
// Time-saving automatic alignment
// Housing with recycled content
CONTENTS:
1 x SmartCross-Laser GX 1 x Compact tripod 45 cm 1 x Batteries
// Accurate horizontal and vertical alignment of objects
// Good visibility through green laser technology
// Easy alignment of slopes with manual tilt function
// Light and robust compact 45 cm tripod, ideal for ground level applications
// 3-way tripod head for inclining, lowering and rotating the measuring tool
// Integrated hand-held receiver mode for outdoor applications
// Visual signals indicate when the device is outside its self-levelling range
// Pendulum restraint for safe transport
// Time-saving automatic alignment
// Housing with recycled content
CONTENTS:
1 x SmartCross-Laser GX 1 x Compact tripod 45 cm 1 x Batteries
Specification
Specification
| Horizontal/vertical levelling: Yes |
Manual slope function: Yes |
| Battery operation: Yes |
Self-Levelling Range: ± 4° |
| Accuracy: ±0.3 mm/m |
Levelling: Automatic |
| Visibility (Typical): 40m |
Laser Wavelength: 515nm |
| Laser Class: 2 / < 1 mW |
Power Supply: 2 x 1.5V LR6 (AA) |
| Operating Time: approx. 6 hours |
Operating Conditions: -10°C … 50°C, max. humidity 80% rH, no condensation, max. working altitude 4000 m above sea level |
| Storage Conditions: -20°C … 70°C, max. humidity 85% rH |
Dimensions (W x H x D): 84mm x 76mm x 62mm |
| Weight: 276g (incl. battery) |
