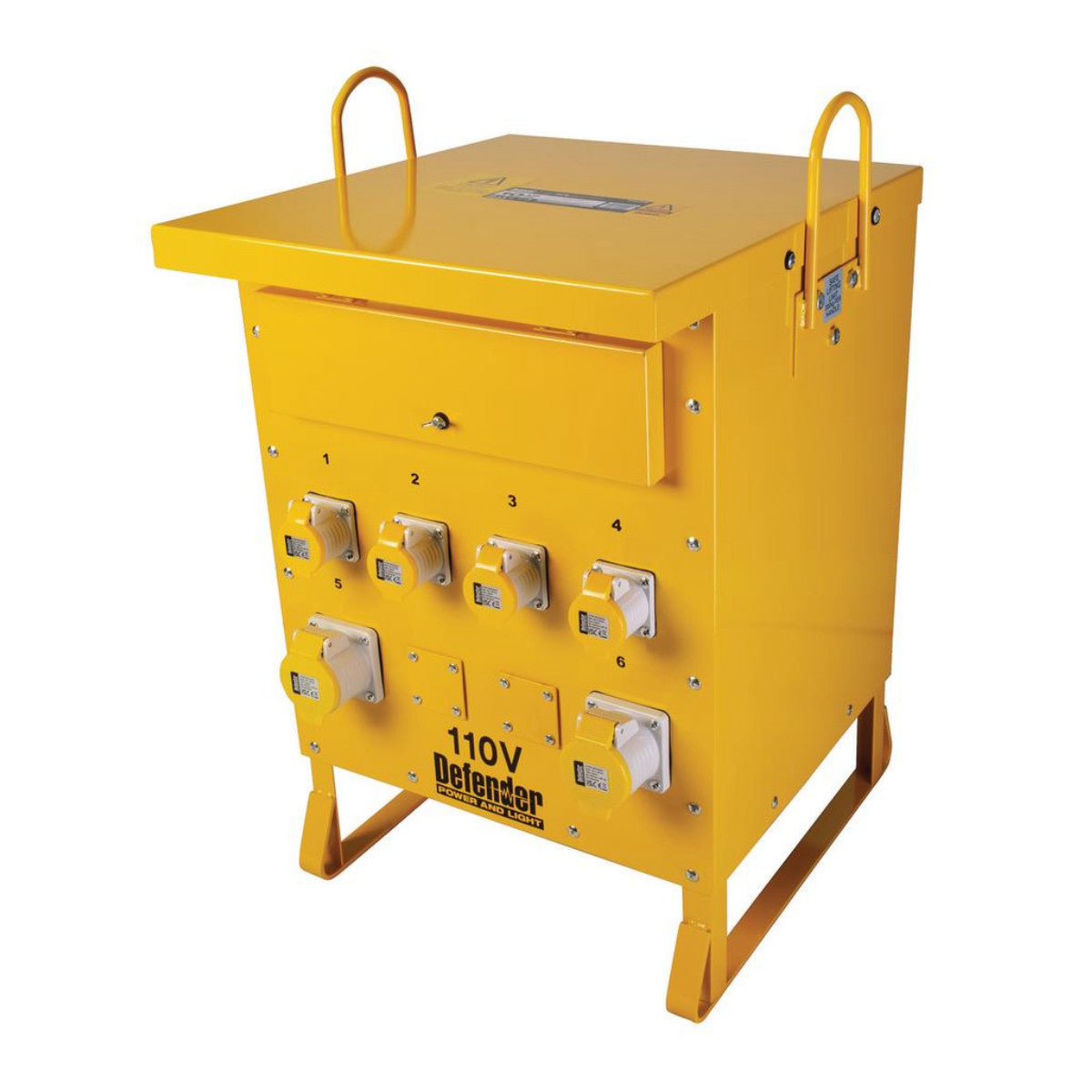

Draper ZE210027 110V 10kVA 3-Phase Transformer, 16A/32A 34886
Product Code / SKU: 185422
3-phase, heavy duty transformer with 4 x 16A and 2 x 32A 110V outlets. Hard-wearing steel enclosure. Elevated underside for improved access. Double wound with safety earth screen. Supplied without plug or cable. Intermittent rating 10000VA. Continuous rating 7000VA. Duty cycle 5 mins on / 15 mins off. Ingress protection rating: IP44. BSEN 61558-1 compliant. Dimensions: 775 x 515 x 800mm. Weight 80kg.
// 3-phase heavy duty transformer with 4 x 16A & 2 x 32A outlets
// Hard-wearing steel enclosure
// Elevated underside for improved access
// Double wound with safety earth screen
// BS EN 61558-2-23 compliant
CONTENTS:
1 x Defender ZE210027 110V 10kVA 3-Phase Transformer, 16A/32A 4 x 16A Socket 2 x 32A socket
// 3-phase heavy duty transformer with 4 x 16A & 2 x 32A outlets
// Hard-wearing steel enclosure
// Elevated underside for improved access
// Double wound with safety earth screen
// BS EN 61558-2-23 compliant
CONTENTS:
1 x Defender ZE210027 110V 10kVA 3-Phase Transformer, 16A/32A 4 x 16A Socket 2 x 32A socket
Specification
Specification
| Input voltage: 400-415V - 3P |
Output voltage: 110V |
| Apparent Power (kVA): 10KVA |
Intermittent duty rated output: 10000VA (10KVA) |
| Continuous duty rated output: 7000VA(7.0KVA |
IP Rating: IP44 |
| Rated Power Factor: 0.93 cos |
Socket Outlet configuration: 4X16A Socket + 2X32A socket |
| Dimensions: 775 x 500 x 545mm |
Weight: 80.5kg |
