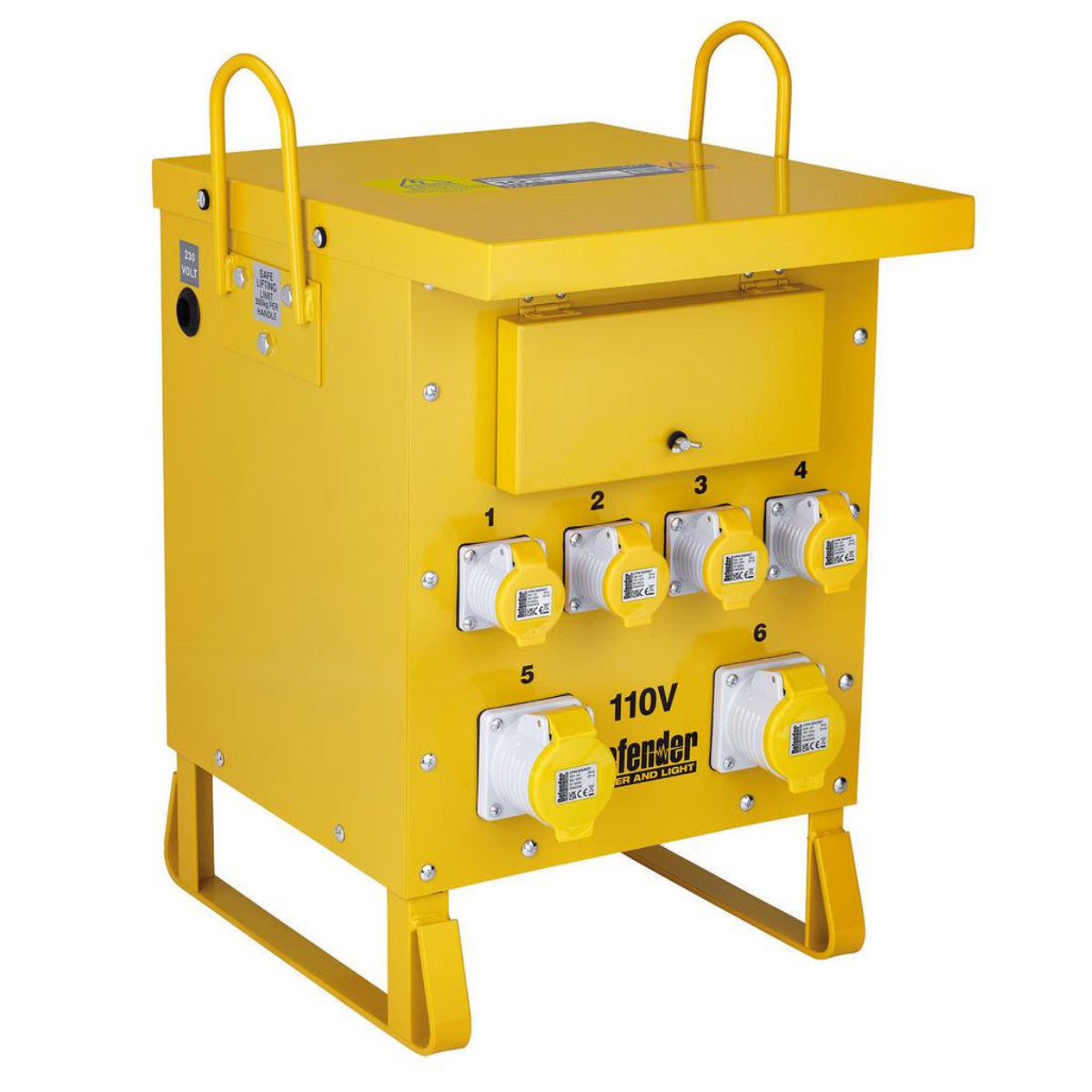

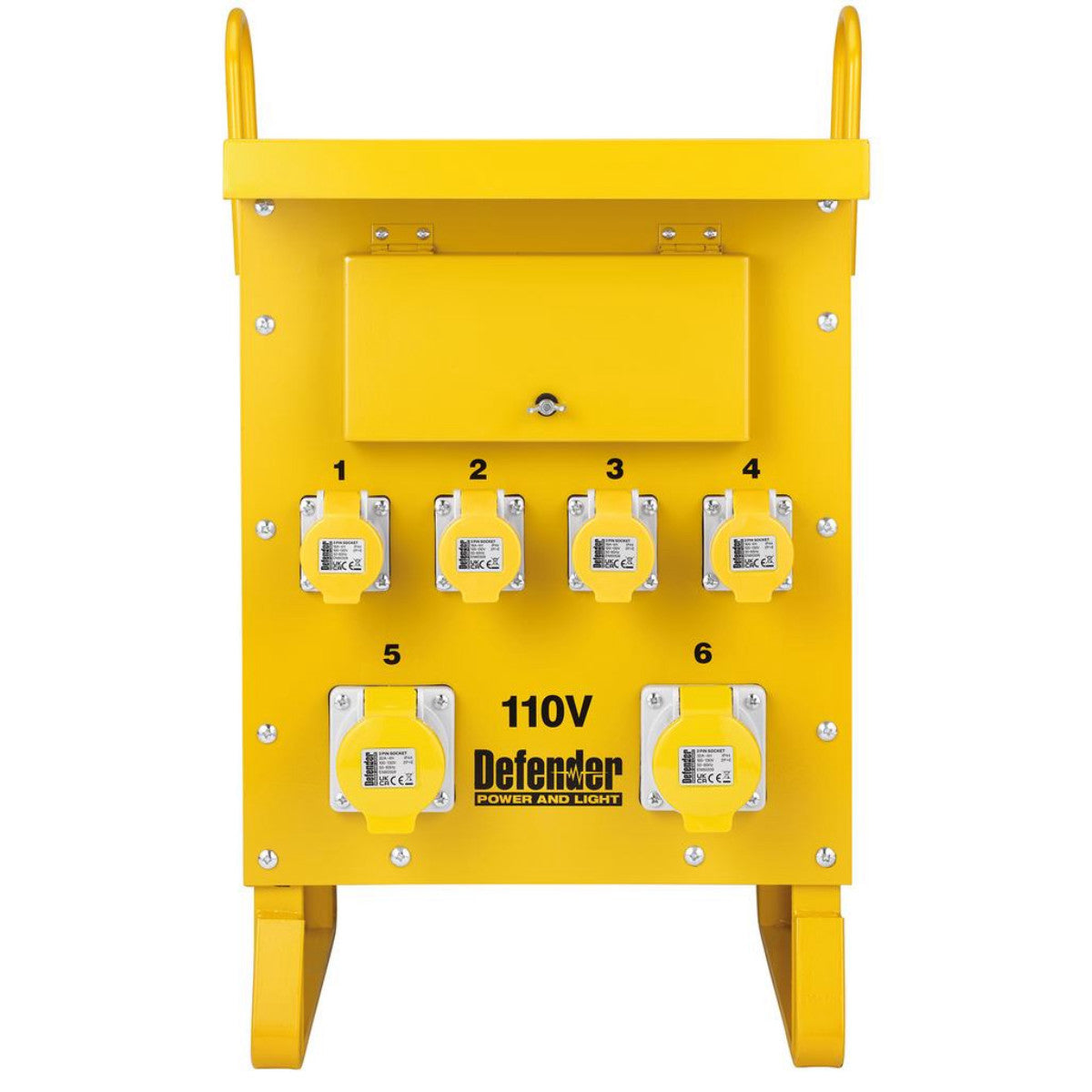

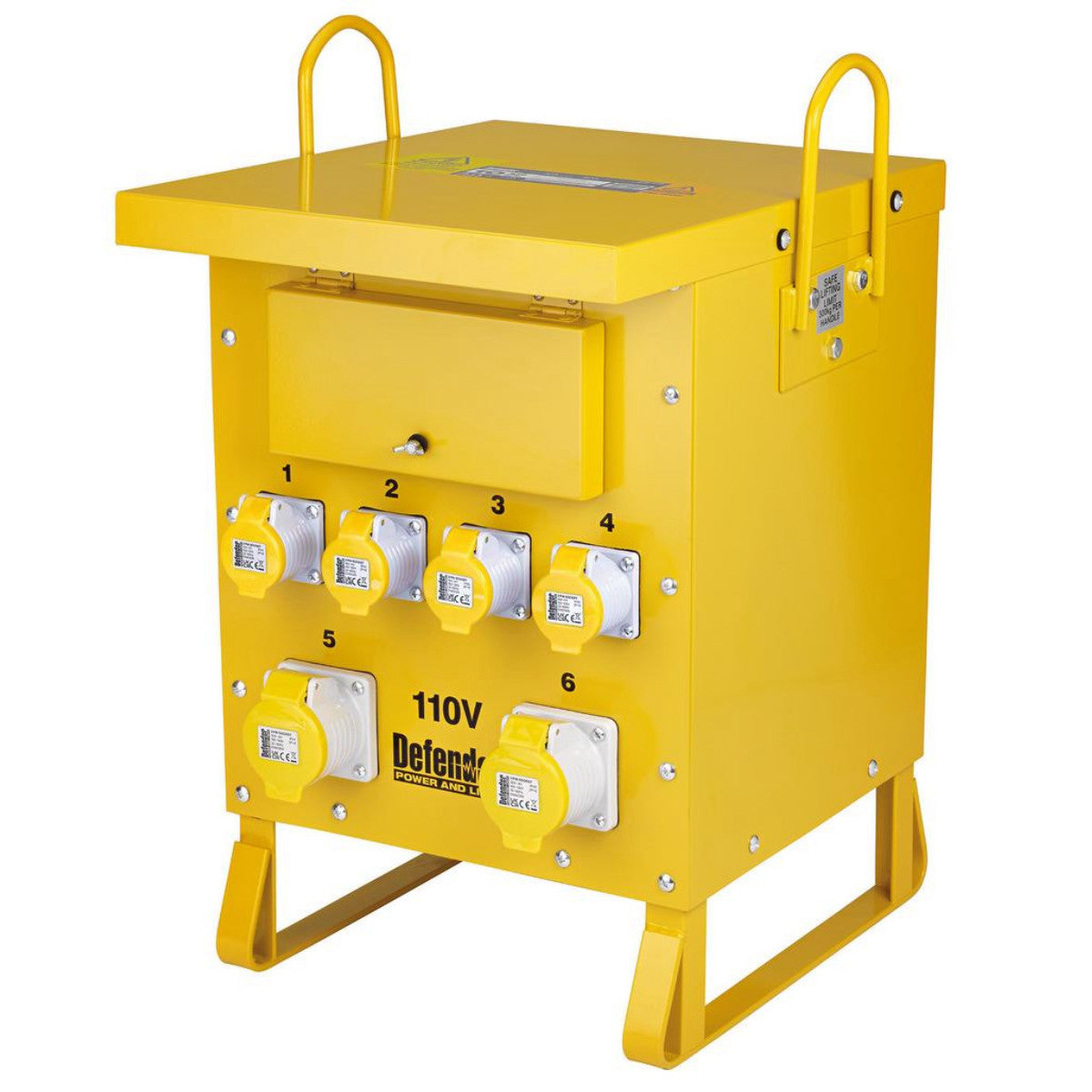

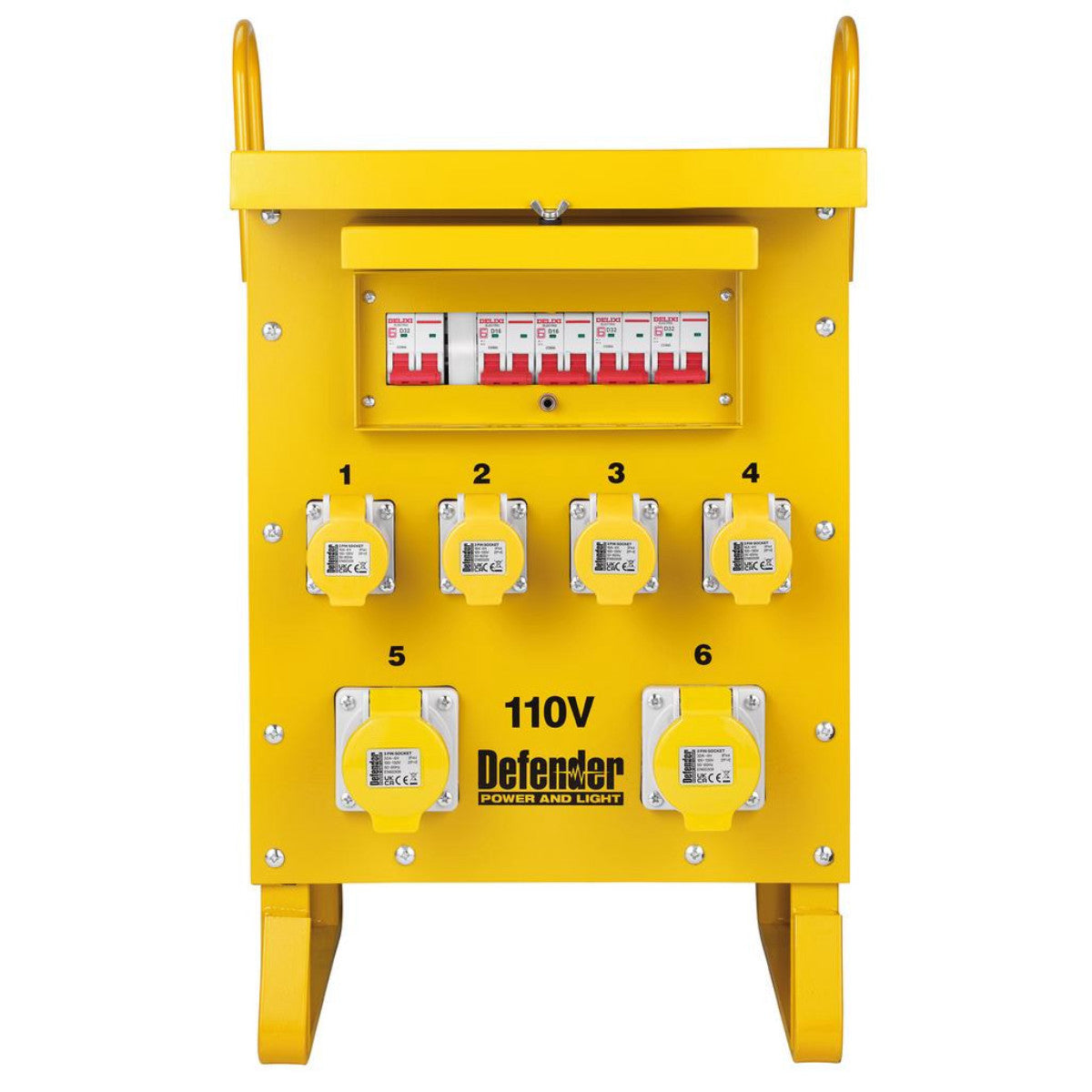

Draper ZE210022 10kVA Single Phase Transformer, 16A / 32A 34959
Product Code / SKU: 185437
Single phase, air-cooled transformer with 4 x 16A and 2 x 32A 110V outlets. Collapsible lifting handles for safer handling and stacking. Elevated underside for improved access. Easily replaceable, bolted feet. Centre tapped to earth for extra safety. Supplied without plug or cable. Intermittent rating 10000VA. Continuous rating 7000VA. Duty cycle 5 mins on / 15 mins off. Ingress protection rating: IP20. BSEN 61558-1 compliant. Dimensions: 470 x 400 x 680mm. Weight 69.5kg.
// Single phase, air-cooled unit with 4 x 16A & 2 x 32A outlets
// Collapsible lifting handles for safer handling & stacking
// Elevated underside for improved access
// Easily replaceable, bolted feet
// BS EN 61558-1 compliant
CONTENTS:
1 x Defender ZE210022 10kVA Single Phase Transformer, 16A / 32A
// Single phase, air-cooled unit with 4 x 16A & 2 x 32A outlets
// Collapsible lifting handles for safer handling & stacking
// Elevated underside for improved access
// Easily replaceable, bolted feet
// BS EN 61558-1 compliant
CONTENTS:
1 x Defender ZE210022 10kVA Single Phase Transformer, 16A / 32A
Specification
Specification
| Input voltage: 230-240V |
Output voltage: 110V |
| Apparent Power (kVA): 10KVA |
Intermittent duty rated output: 10000VA (10KVA) |
| Continuous duty rated output: : 7000VA(7.0KVA) |
IP Rating: IP44 |
| Rated Power Factor: 0.93 cos |
Socket Outlet configuration: 4 x 16A Socket + 2 x 32A socket |
| Dimensions: 655 x 485 x 410mm |
Weight: 69.5kg |
