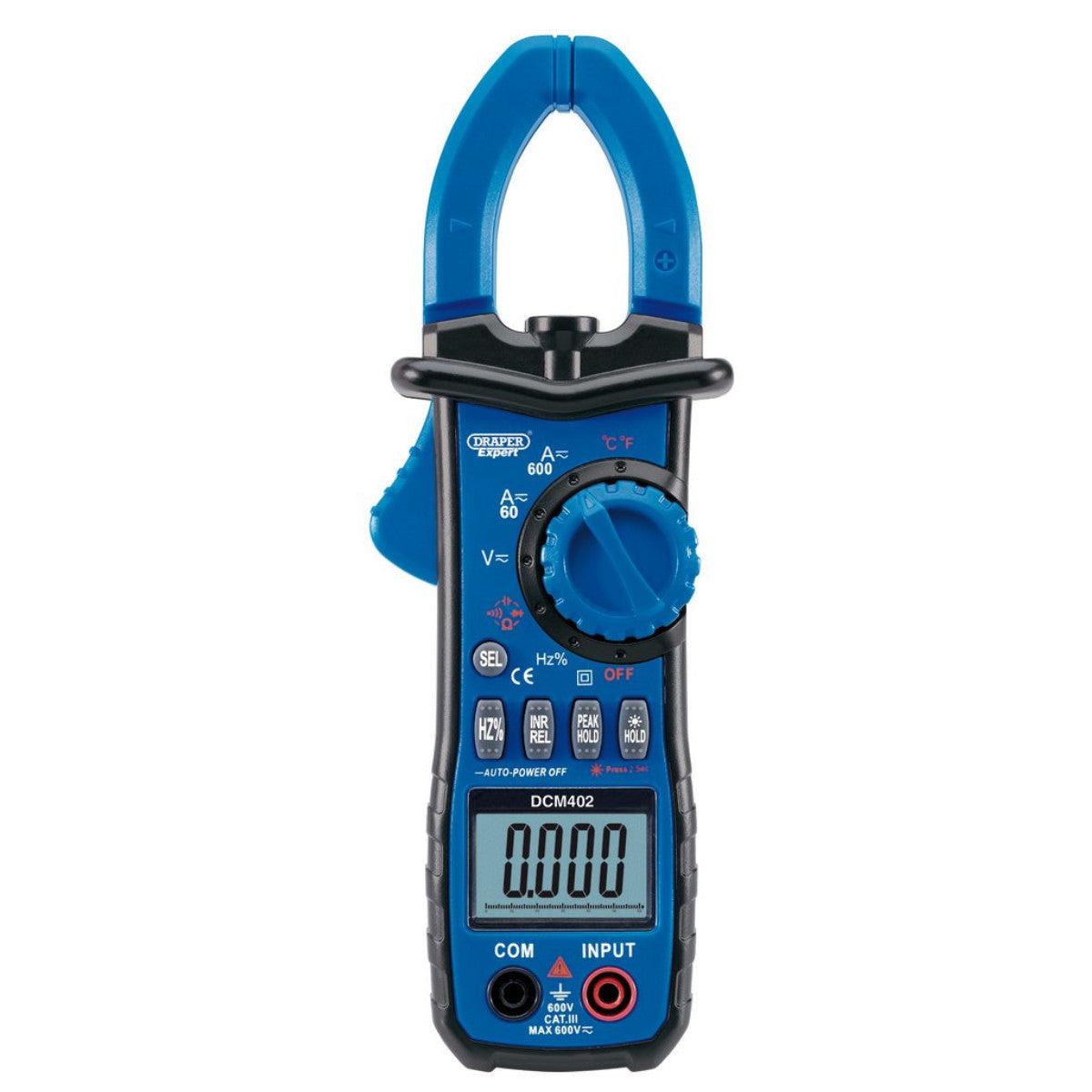

Draper Expert Auto-Ranging Digital Clamp Meter with Linear Bar Graph Function 41967
Product Code / SKU: 186076
Auto and manual ranging clamp meter capable of voltage, current, resistance, diode, continuity, capacitance, frequency, duty cycle and temperature testing. Maximum jaw - opening diameter of 36mm, backlit LCD screen, auto power off, linear bar graph functions and a useful inspection light. Supplied with test leads, temp probe and a case.
// Auto and manual ranging clamp meter capable of voltage, current, resistance, diode, continuity, capacitance, frequency, duty cycle and
// Temperature testing
// Maximum jaw-opening diameter of 36mm
// Backlit LCD screen, auto power off, linear bar graph functions and a useful inspection light
// Supplied with test leads, temp probe and a case
CONTENTS:
1 x Draper Expert Auto-Ranging Digital Clamp Meter with Linear Bar Graph Function
// Auto and manual ranging clamp meter capable of voltage, current, resistance, diode, continuity, capacitance, frequency, duty cycle and
// Temperature testing
// Maximum jaw-opening diameter of 36mm
// Backlit LCD screen, auto power off, linear bar graph functions and a useful inspection light
// Supplied with test leads, temp probe and a case
CONTENTS:
1 x Draper Expert Auto-Ranging Digital Clamp Meter with Linear Bar Graph Function
Specification
Specification
| AC Amps: 60A/600A |
AC Current: 60A/600A |
| AC Voltage: 6V/60V/600V |
Automatic Power Off: Yes |
| Battery: 3 x AAA (not supplied) |
Capacitance: 999nF/99.99nF/999.9nF/9.999µF/99.99µF/999.9µF/9.999mF/99.99mF |
| DC Amps: 60A/600A |
DC Current: 60A/600A |
| DC Voltage: 600mV/6V/60V/600V |
Diode on/off Test: Yes |
| Dimensions: 228mm x 158mm x 58mm |
Duty Ratio: Yes |
| Dwell: N/A |
Frequency: 100Hz/1000Hz/10kHz/100kHz/1MHz/10MHz |
| Resistance (Ohms): 6000Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ |
Symbol Unit Data Hold: N/A |
| TACH: N/A |
Temperature: -50 to 300°C |
| Temperature Range: -50°C - 1000°C/-58°F - 1832°F |
Weight: 400g (approx.) |
