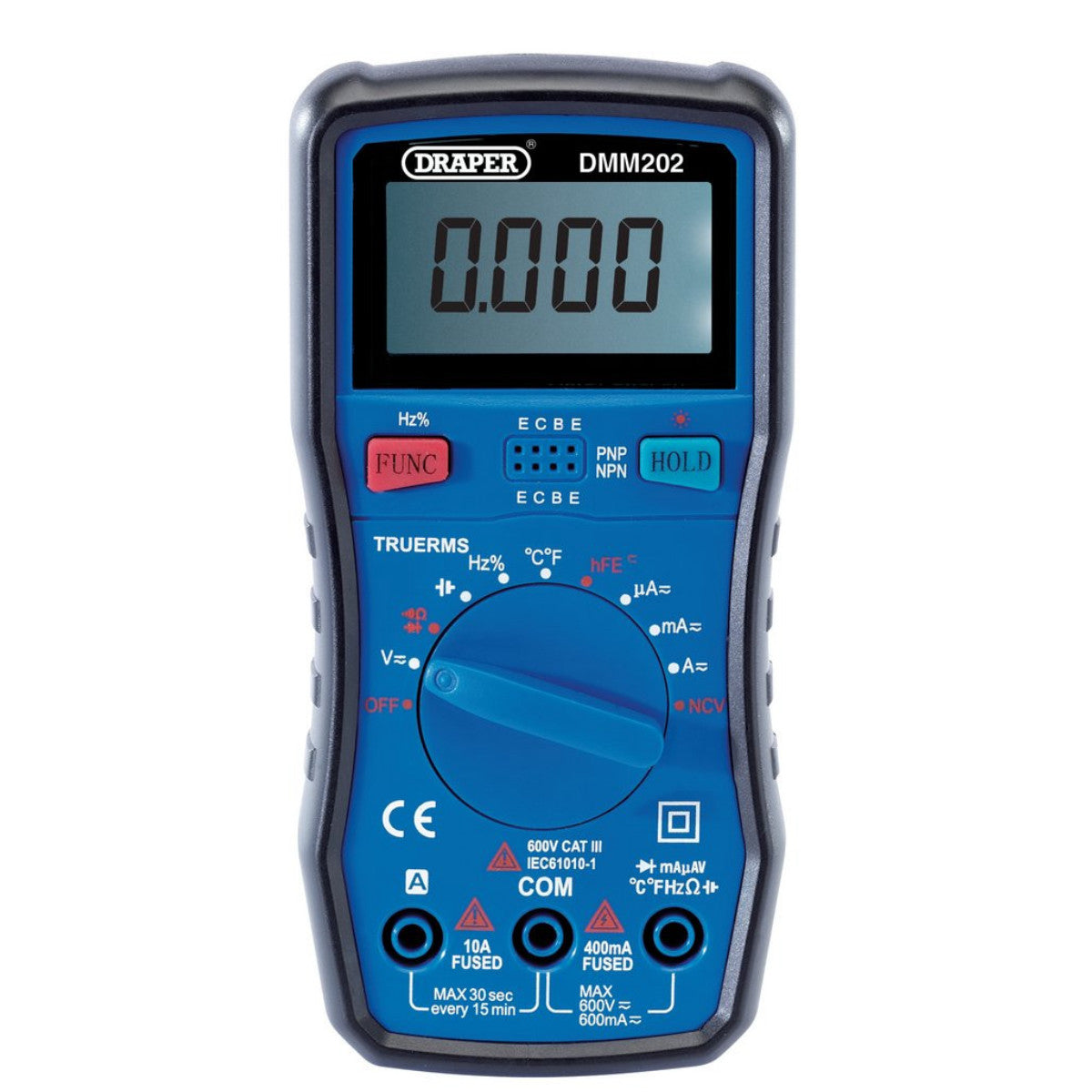

Draper Auto-Ranging Digital Multimeter, 1 x Test Leads, 1 x Temp Probe 41820
Product Code / SKU: 186065
Auto-ranging achieving TRMS 5999 counts and voltage, current, hEF, continuity, resistance, temperature, diode and non-contact voltage testing. Fitted with a backlit LCD screen, auto power-off, continuity buzzer and data hold features. Supplied with test leads and a temp probe.
// Auto ranging multimeter
CONTENTS:
1 x Auto-Ranging Digital Multimeter 1 x Test Leads 1 x Temp Probe
// Auto ranging multimeter
CONTENTS:
1 x Auto-Ranging Digital Multimeter 1 x Test Leads 1 x Temp Probe
Specification
Specification
| AC Amps: 600uA/6000uA/60mA/600mA/6A/10A |
AC Current: 600µA/6000uA/60mA/600mA/6A/10A |
| AC Voltage: 6V/60V/600V |
Automatic Power Off: Yes |
| Capacitance: 10nF/100nF/1µF/10µF/100µF/1000mF/10mF/100mF |
DC Amps: 600uA/6000uA/60mA/600mA/6A/10A |
| DC Current: 600µA/6000uA/60mA/600mA/6A/10A |
DC Voltage: 600mV/6V/60V/600V |
| Diode on/off Test: Yes |
Dimensions: 172mm x 174mm x 50mm |
| Duty Ratio: Yes |
Dwell: N/A |
| Frequency: 100Hz/1000Hz/10kHz/100kHz/1MHz/10MHz |
Resistance (Ohms): 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ |
| Symbol Unit Data Hold: Yes |
TACH: N/A |
| Temperature: -20 to 1000°C |
Temperature Range: -50°C - 1000°C/-58°F - 1832°F |
| Weight: 361g (approx.) |
