Draper Air Bottle Jack, 20 Tonne 26780
Product Code / SKU: 184225

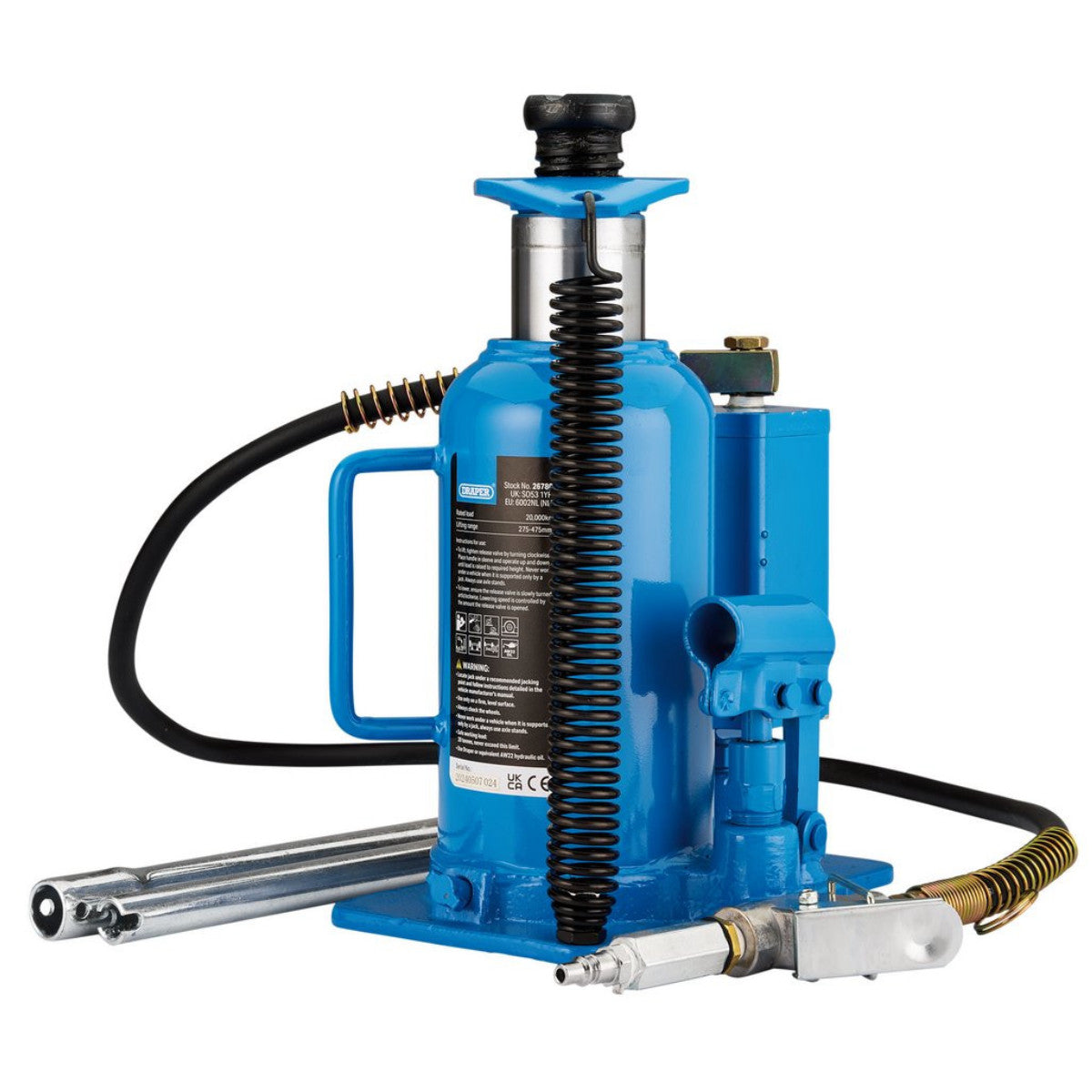

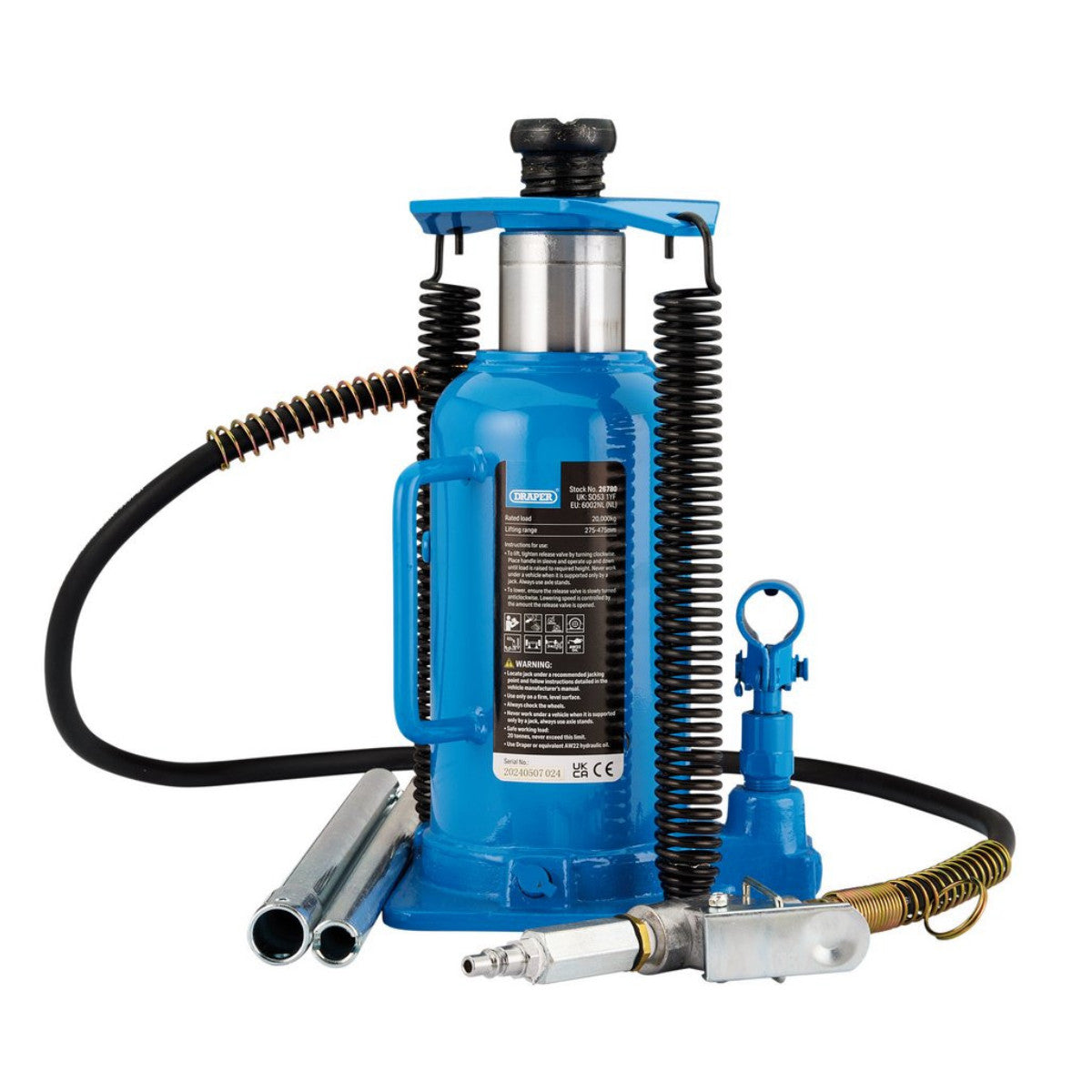

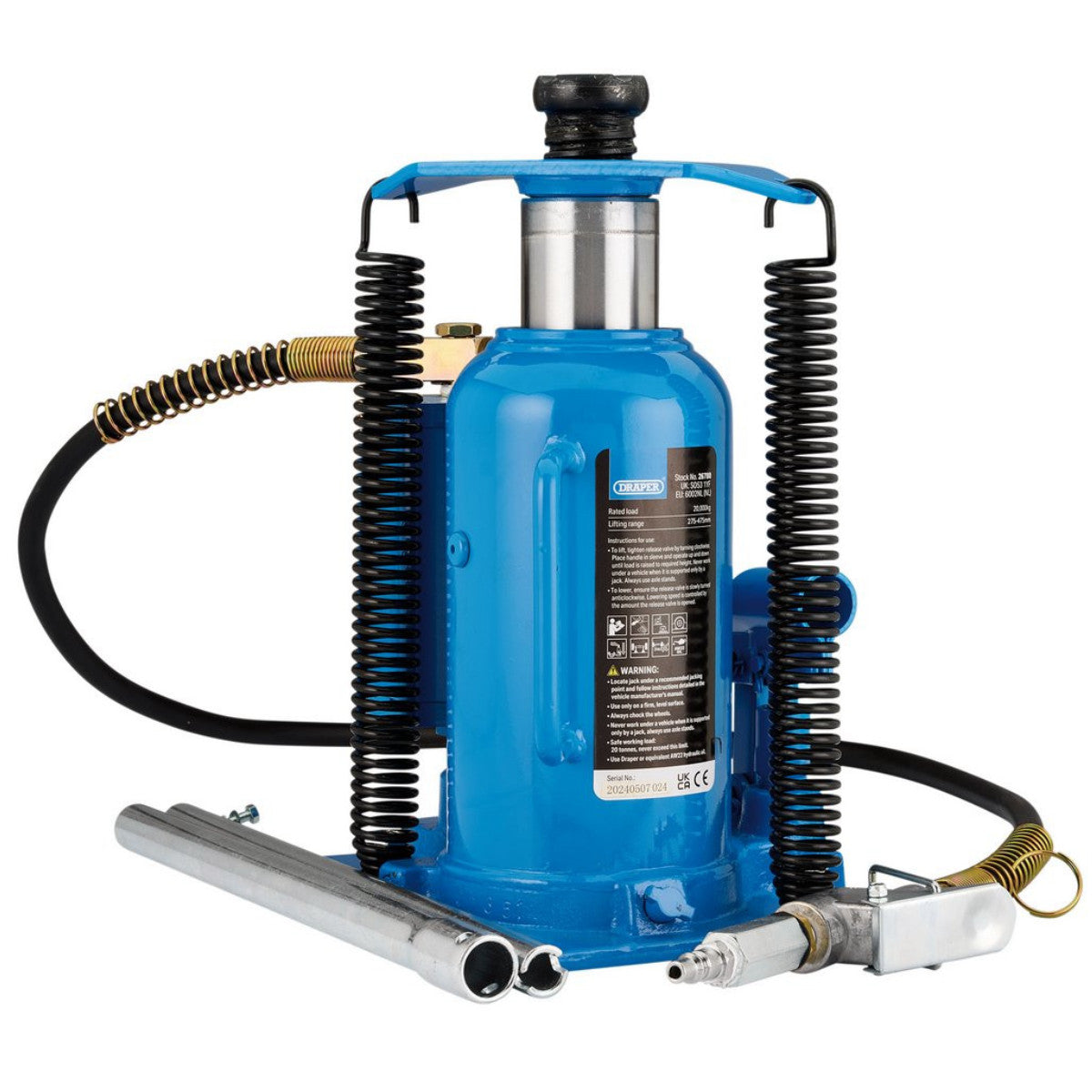

This air bottle jack can effortlessly handle heavy loads up to 20 tonnes. It has a minimum height of 245mm and a maximum height of 474mm, making it versatile and suitable for various lifting needs. The extendable screw reaches up to 80mm, allowing for precise adjustments. You can connect the air compressor for pneumatic lifting and control it by using the air valve, which makes heavy lifting effortless and improves work efficiency. The bottle jack can also be operated hydraulically by hand using the two-piece handle for extra versatility. It is built with a robust welded base and reservoir to improve strength and minimise leaks. Additionally, there is a built-in safety valve to prevent overloading. The jack also features an integrated carry handle for easy transportation and storage.
// 245-474mm lifting range
// Powerful air compressor for pneumatic lifting
// Secure manual pump operation using two-piece handle
// Welded base and reservoir for enhanced strength and leak minimisation
// Carry handle for ease of transportation and storage
CONTENTS:
1 x Air Bottle Jack, 20 Tonne
// 245-474mm lifting range
// Powerful air compressor for pneumatic lifting
// Secure manual pump operation using two-piece handle
// Welded base and reservoir for enhanced strength and leak minimisation
// Carry handle for ease of transportation and storage
CONTENTS:
1 x Air Bottle Jack, 20 Tonne
Specification
Specification
| Capacity: 20 Tonne |
Lifting range: 245-475mm |
| Screw extension: 80mm |
Operating air pressure: 0.7-1mpa |
| Saddle diameter: 45mm |
Air coupler: 1/4" BSP |
| Hydraulic lift: 150mm |
Ram diameter: 72mm |
| Jack handle length: 650mm |
Base size: 220 x 175mm |
| Weight: 16kg |
