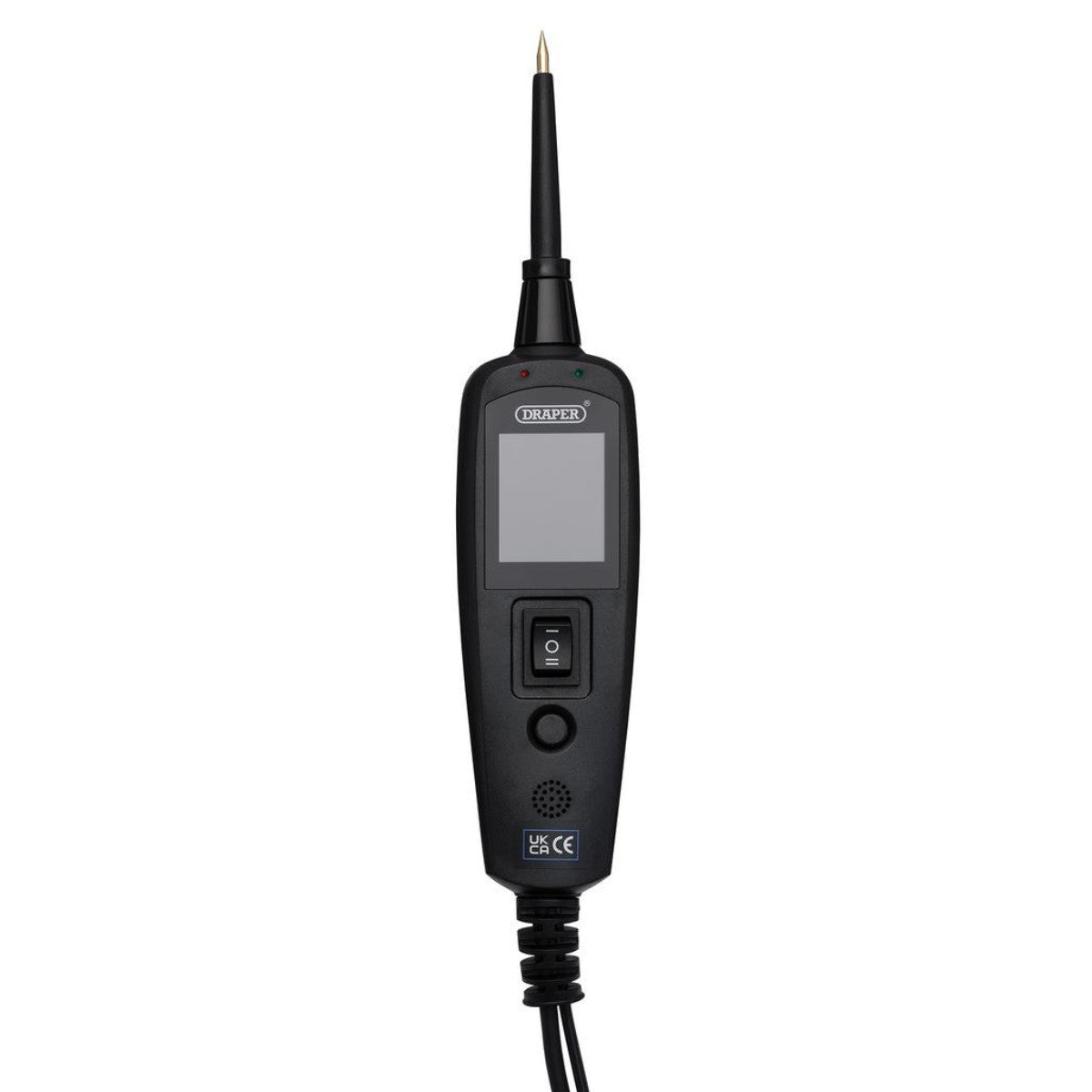

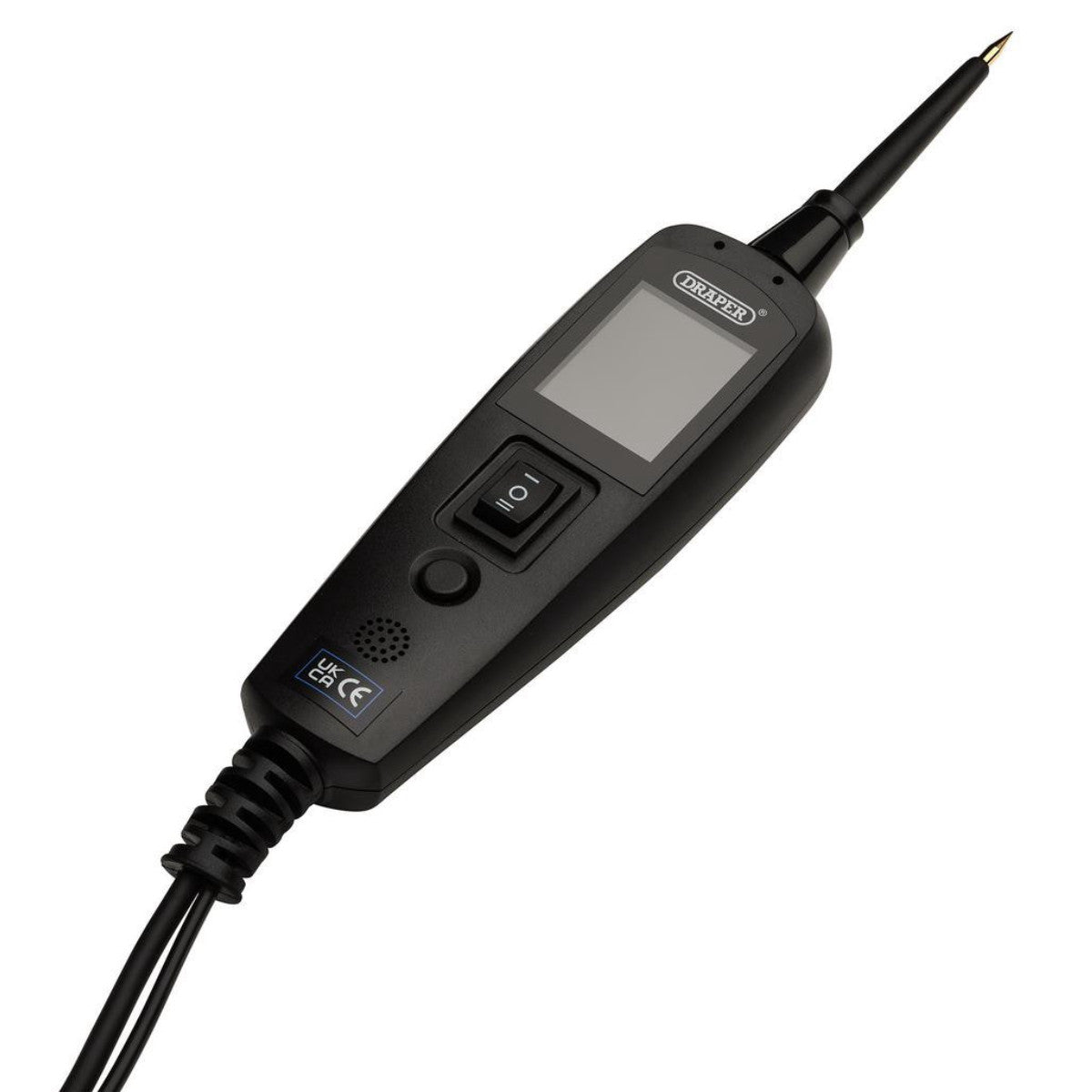

Draper 6-30V Automotive Diagnostic Probe 23820
Product Code / SKU: 183662
This diagnostic probe is suitable for testing 12V and 24V systems. It features a full colour LCD display and a built-in front LED torch for extra visibility. There are pre-set modes for measuring DC voltage, AC voltage, resistance and diode testing. Vehicle components can be activated either in-situ or pre-installation. It comes with a 6m extension cable, ideal for working on the rear of vehicles, trailers and trucks. The probe can be connected directly to the vehicle battery using the clamps or it can be plugged into the auxiliary power socket using the 12V DC adaptor. For convenient portability, it is supplied in a storage carry case.
// Suitable for testing 6V - 30V systems
// Full colour LCD display
// Built-in torch for extra visbility
// DC voltage, AC voltage, resistance testing, diode testing pre-set modes
// Includes power adaptor with black and red lead and clamp, 12V DC adaptor, 6m extension cable
// Supplied inside a storage carry case for portability

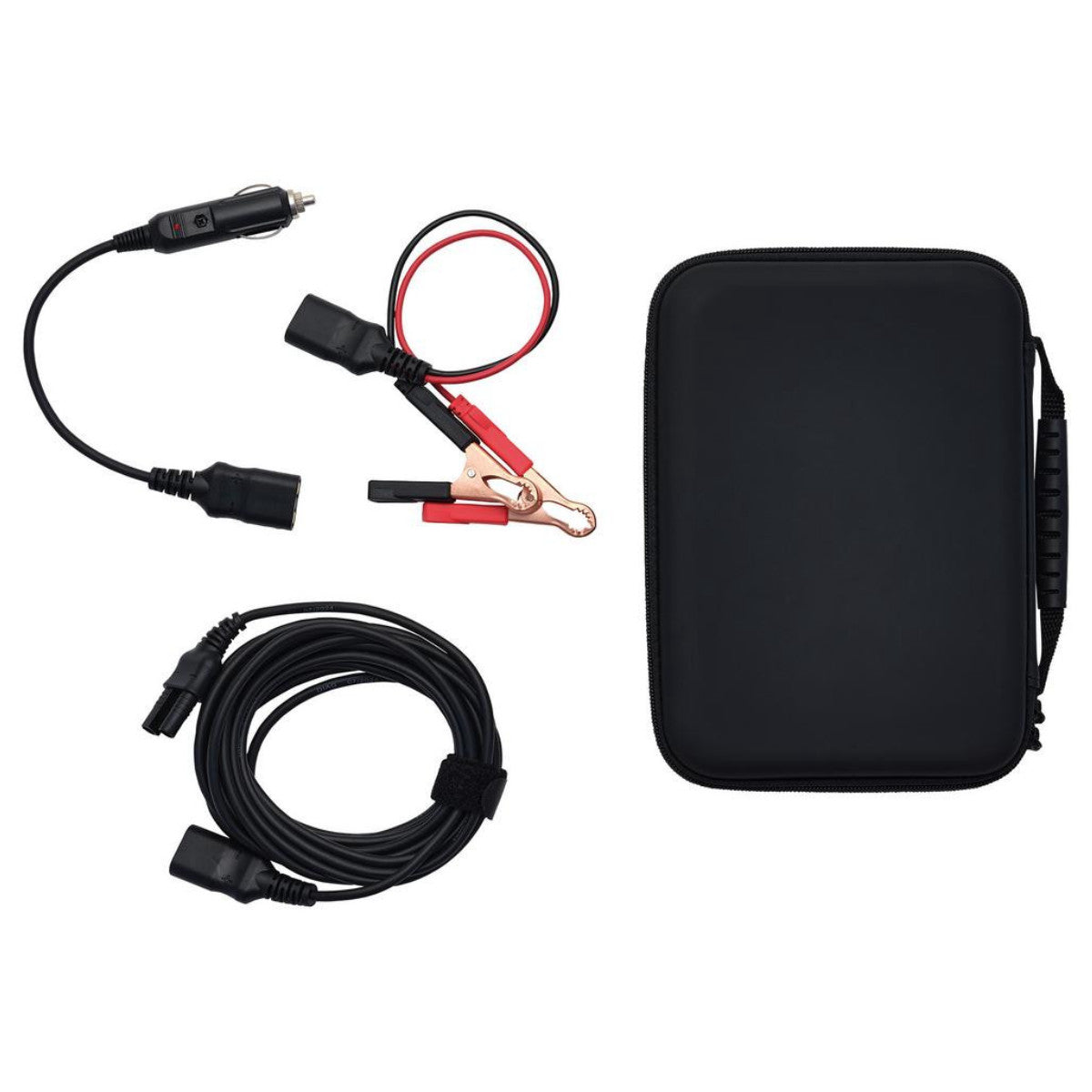

CONTENTS:
1 x Power adaptor with black and red lead and clamp 1 x 12V DC adaptor 1 x 6m Extension cable
// Suitable for testing 6V - 30V systems
// Full colour LCD display
// Built-in torch for extra visbility
// DC voltage, AC voltage, resistance testing, diode testing pre-set modes
// Includes power adaptor with black and red lead and clamp, 12V DC adaptor, 6m extension cable
// Supplied inside a storage carry case for portability
CONTENTS:
1 x Power adaptor with black and red lead and clamp 1 x 12V DC adaptor 1 x 6m Extension cable
Specification
Specification
| Voltage supply: 12/24V DC (vehicle battery) |
Probe length: 90mm |
| Positive and negative leads length: 400mm |
Tester cable length: 6m |
| Extension cable: 6m |
12V DC adaptor length: 30mm |
| Dimensions: 155 x 40 x 30mm |
Weight: 323g |
| Testing range: 6V - 30V |
