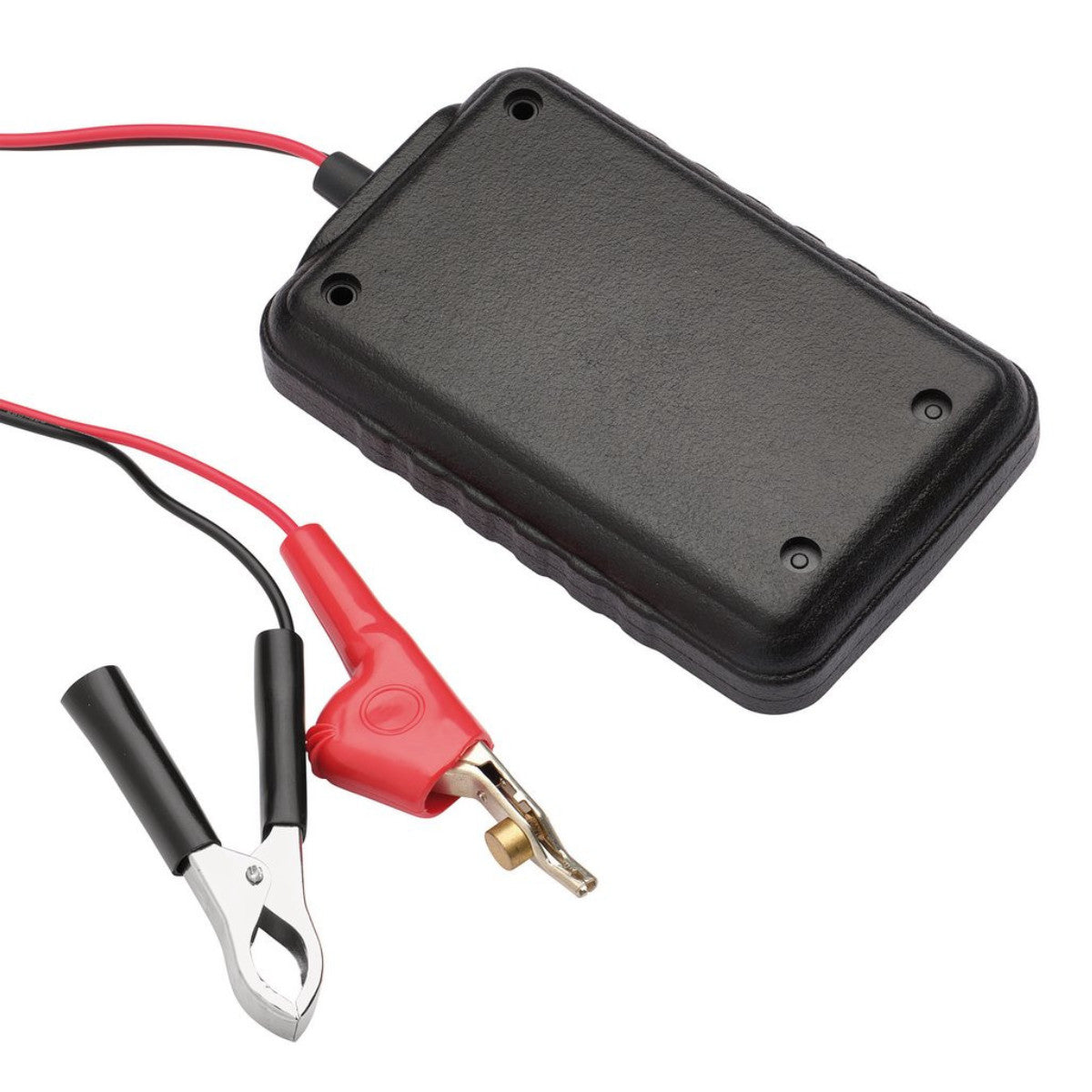

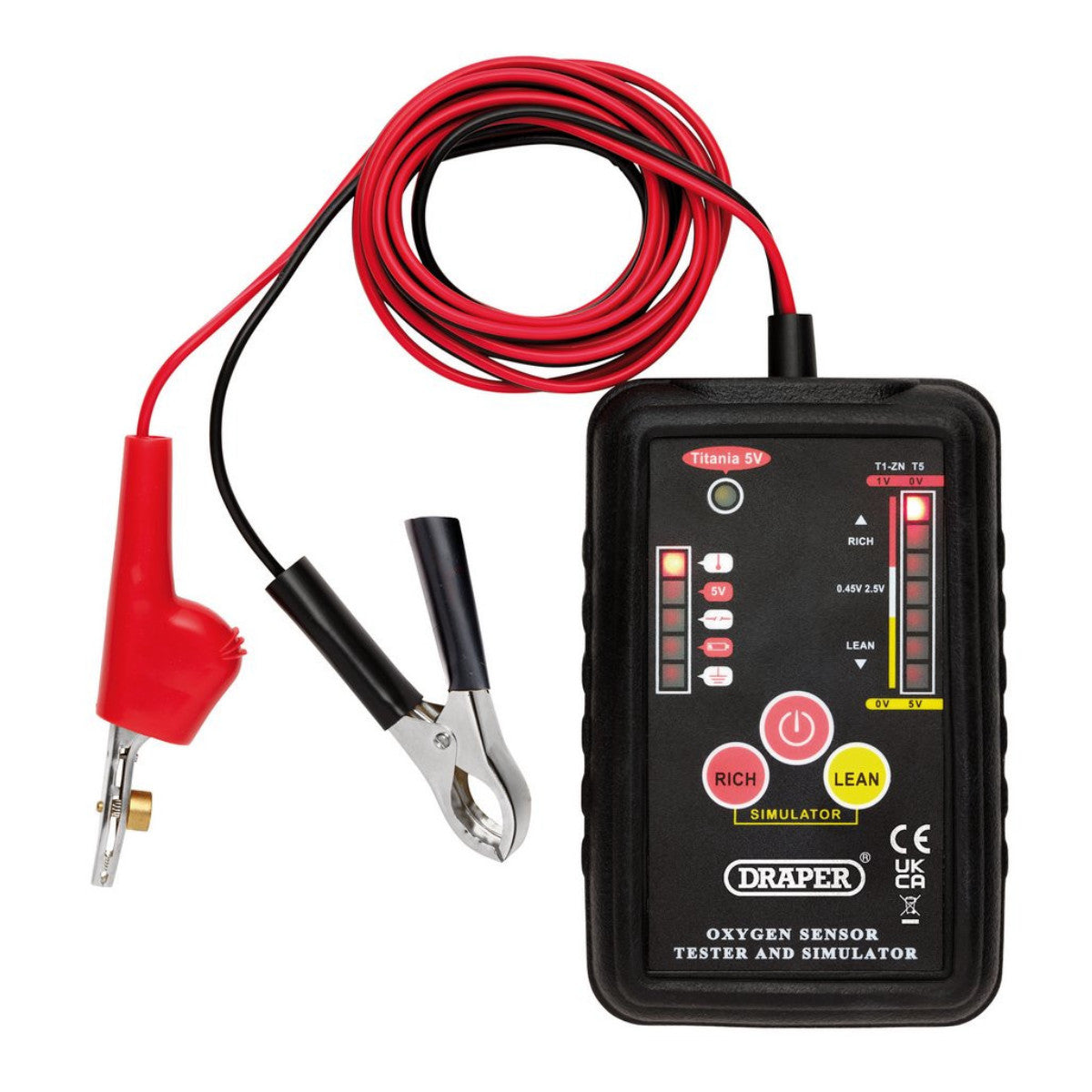

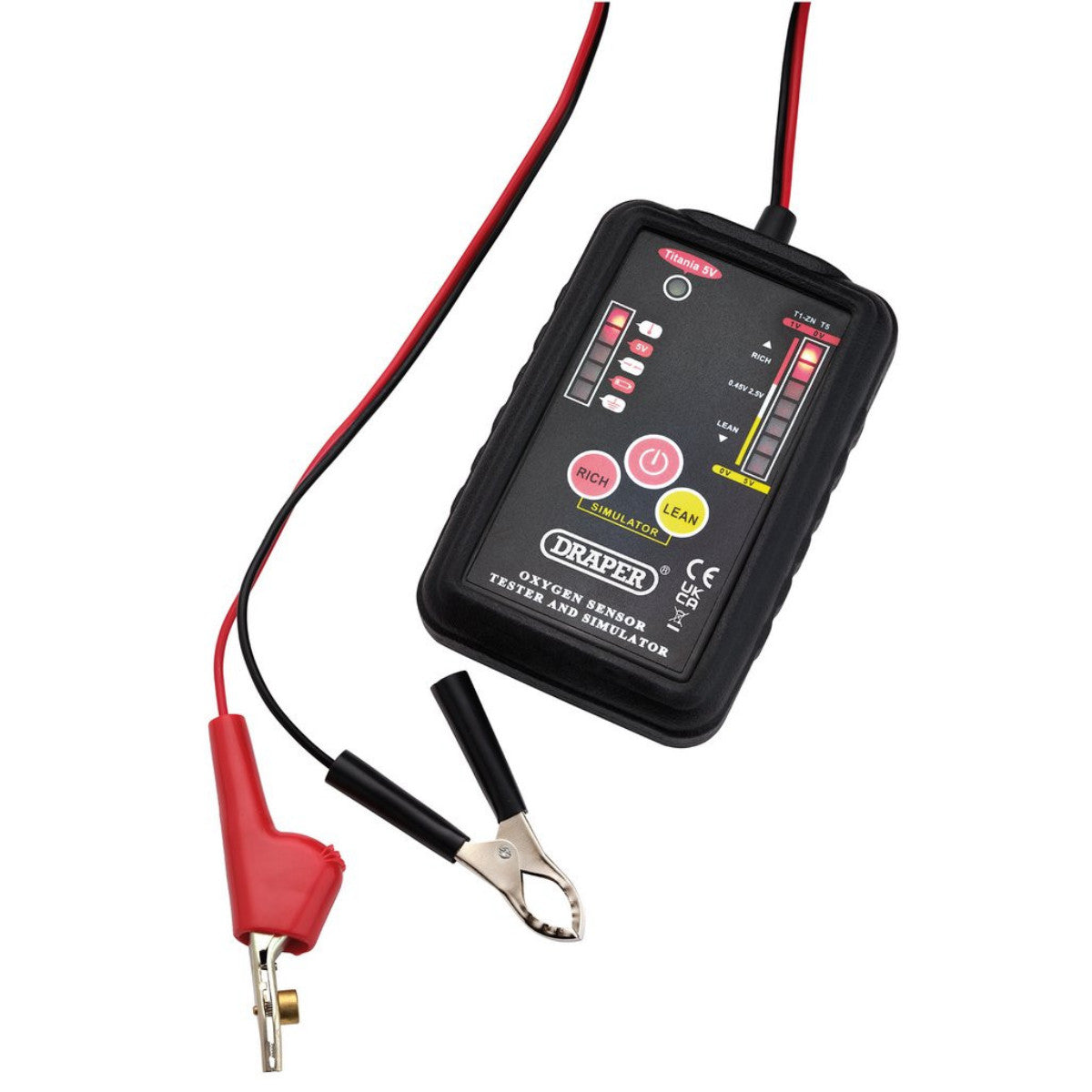

Draper 12V Lambda Tester and Simulator 24708
Product Code / SKU: 183831
This 12V oxygen sensor tester and simulator is designed for testing both Zirconia and Titania lambda/oxygen sensors. It is suitable for testing 1-4 wire lambda/oxygen sensors, both heated and unheated. The device can simulate rich and lean mixtures to monitor the ECU's response. An LED display shows the crossover signal from the sensor. A wire piercing clamp is included for the positive lead, allowing for quick connection checks and confirming wire identity. Requires a 9V battery (available separately).
// Tests and simulates Zircona and Titania lambda/oxygen sensors
// Suitable for 1-4 wire sensors - heated and unheated
// LED indicators
// Includes wire piercing clamp
// Requires 9V battery (not supplied)
CONTENTS:
1 x 12V Lambda Tester and Simulator
// Tests and simulates Zircona and Titania lambda/oxygen sensors
// Suitable for 1-4 wire sensors - heated and unheated
// LED indicators
// Includes wire piercing clamp
// Requires 9V battery (not supplied)
CONTENTS:
1 x 12V Lambda Tester and Simulator
Specification
Specification
| Power supply: 12V vehicle battery |
Zirconia: 1V |
| Titania: 1V and 5V |
Fuel type: Petrol and diesel |
| Positive and negative lead length: 2m |
Test probe lead length: 450mm |
| Tester battery: 9V (not supplied) |
Dimensions: 140 x 90 x 35mm |
| Weight: 311g |
