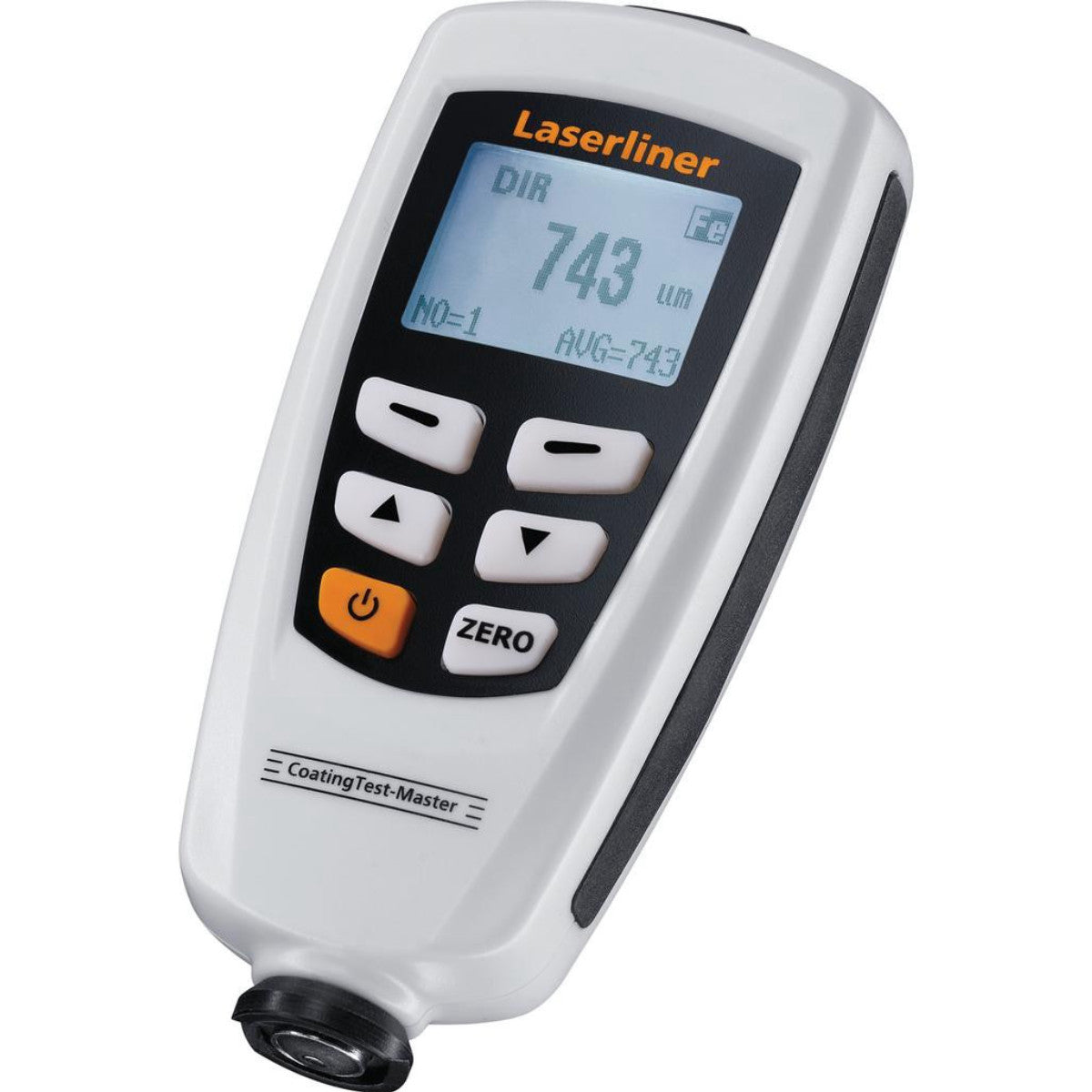

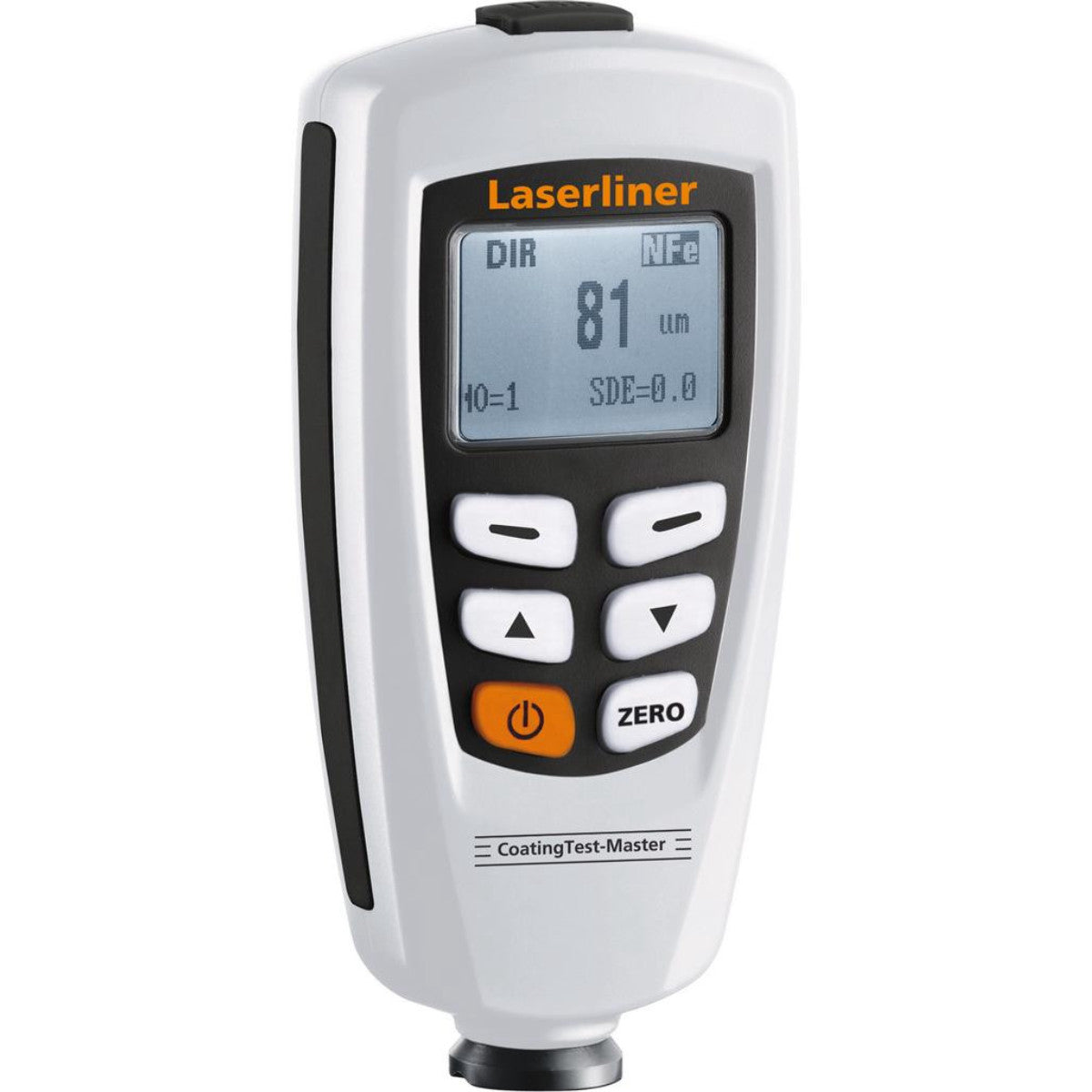

Draper 082.150A CoatingTest-Master Coating Thickness Measuring Device 32005
Product Code / SKU: 185006
This point precise coating thickness measuring instrument is suitable for insulating and non-magnetic coatings on non-ferrous metals. The base material is identified automatically (ferrous/ferromagnetic, non-ferrous/non-ferromagnetic). The device features one-point or two-point calibration to increase the measuring accuracy. 400 measured values can be saved to the internal memory and transferred to a PC via the USB interface for further analysis. Supplied with USB cable, batteries and carrying case.
// Point precise coating thickness measurement based on induction and eddy current principle
// Measurable coatings: non-magnetic (paint, zinc on steel) and insulating (paint, anodised coatings)
// Automatic identification of base material (ferrous/ferromagnetic, non-ferrous/non-ferromagnetic)
// Comprehensive data backup due to internal memory for 400 measured values
// Increased measuring accuracy due to one-point and two-point calibration
// USB interface for analysis on PC
// Min/Max/AVG display
// Easy-to-read display
// Supplied with USB cable, batteries and carrying case
CONTENTS:

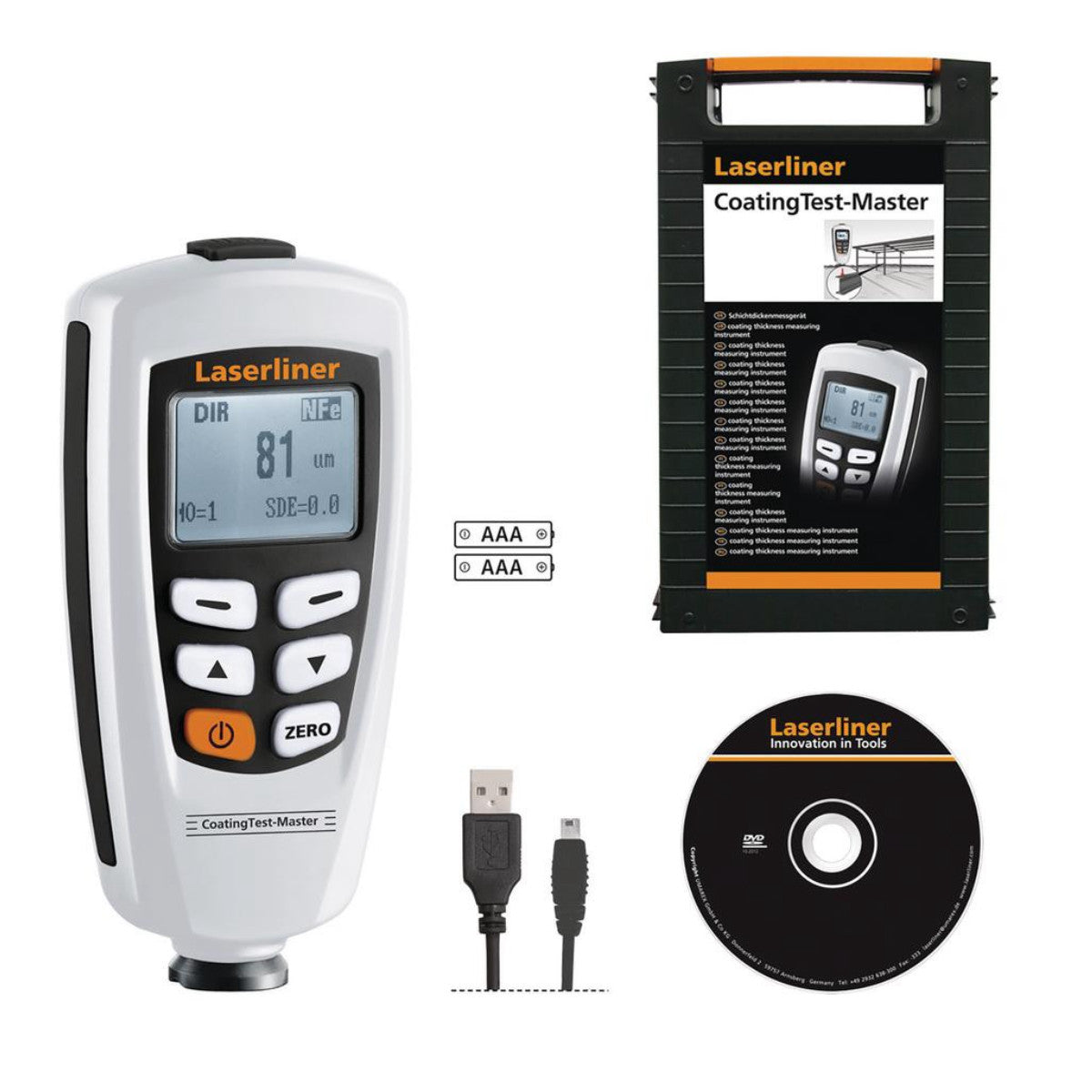

1 x Laserliner 082.150A CoatingTest-Master Coating Thickness Measuring Device 1 x Calibration references 1 x Software 1 x USB cable 1 x Batteries 1 x Carrying case
// Point precise coating thickness measurement based on induction and eddy current principle
// Measurable coatings: non-magnetic (paint, zinc on steel) and insulating (paint, anodised coatings)
// Automatic identification of base material (ferrous/ferromagnetic, non-ferrous/non-ferromagnetic)
// Comprehensive data backup due to internal memory for 400 measured values
// Increased measuring accuracy due to one-point and two-point calibration
// USB interface for analysis on PC
// Min/Max/AVG display
// Easy-to-read display
// Supplied with USB cable, batteries and carrying case
CONTENTS:
1 x Laserliner 082.150A CoatingTest-Master Coating Thickness Measuring Device 1 x Calibration references 1 x Software 1 x USB cable 1 x Batteries 1 x Carrying case
Specification
Specification
| Coating thickness: Yes |
Data transfer: Yes |
| Ferrous and non-ferrous: Yes |
Single and continuous measurement: Yes |
| Mean value: Yes |
Standard deviation: Yes |
| Zero adjustment: Yes |
User calibration: Yes |
| Measured Variable: Coating thickness |
Coating Thickness Measuring Range: 0 … 1250 µm |
| Sensor Type: Magnetic-inductive (Fe), eddy current (NFe) |
Port: USB |
| Memory: 80 measurements / mode |
Power Supply: 2 x 1.5V LR03 (AAA) |
| Dimensions (W x H x D): 23 mm x 110 mm x 50 mm |
Weight: 116 g |
