Draper 075.400A CenterScanner Compact Drilling Guide Device 32088
Product Code / SKU: 185037

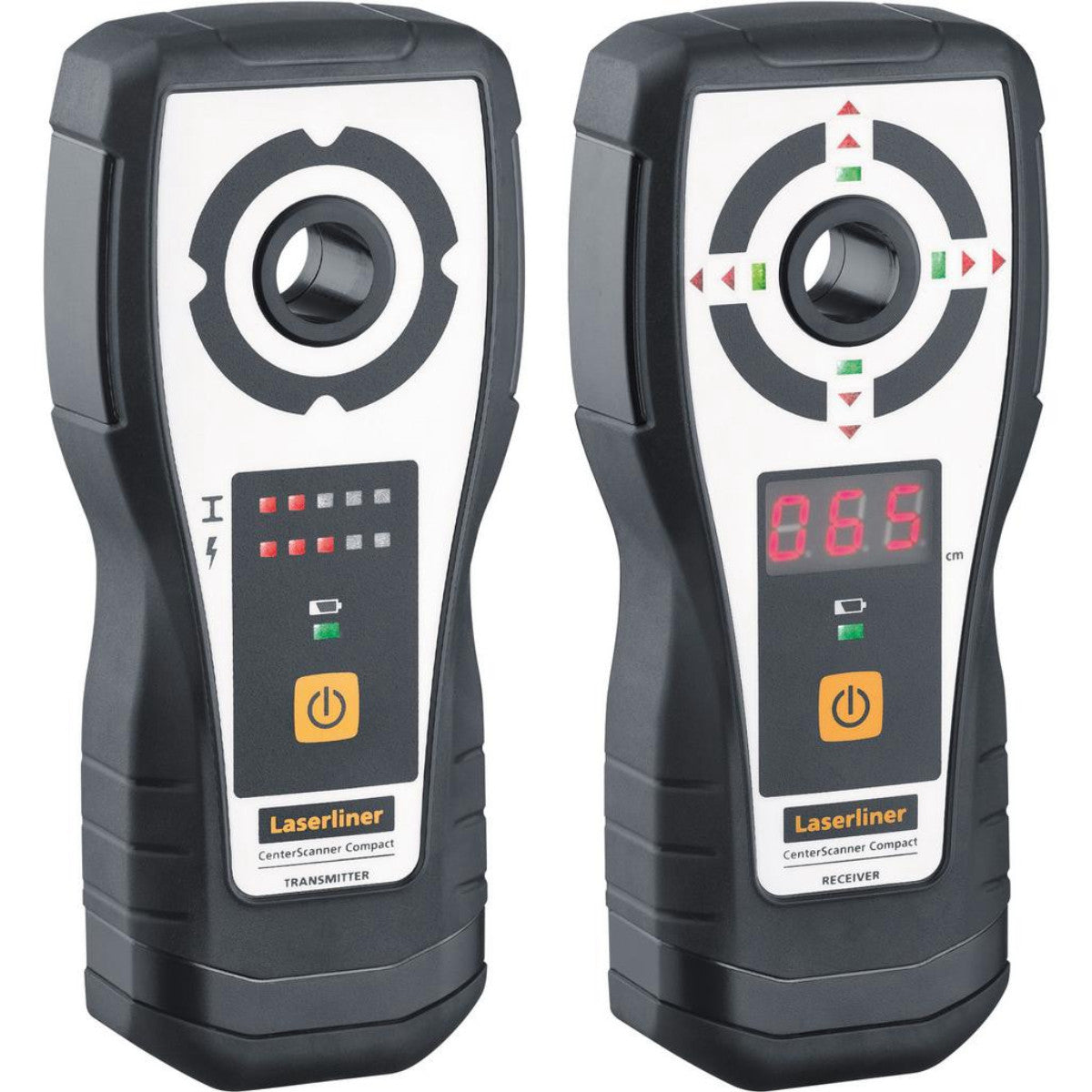

This highly accurate drill guide consists of a transmitter and a receiver and provides safe alignment of the drill channel when drilling through walls and ceilings up to a depth of 120 cm. Easily visible LED indicators and acoustic signals that can be switched off provide the location. Highly accessible marking aids in the sender and receiver provide the centring. The required drilling depth can be determined up to 150 cm using the integral LCD display. A visual and acoustic warning is sent when foreign objects are detected. The sender and receiver fit comfortably in the hand thanks to their ergonomic design. Supplied with receiver RECV, adhesive kit, sliding pads (x4) batteries & a carrying case.
// Easy and safe alignment of the drill channel when drilling through walls and ceilings up to a depth of 120 cm
// Precise location of the entry and exit points using LED indicators
// Highly accessible marking aids in the sender and receiver provide the centring
// Determination of the required drilling depth up to 150 cm
// Optical and acoustic warning when foreign objects detected
// The sender and receiver fit comfortably in the hand thanks to their ergonomic design
// Supplied with receiver RECV, adhesive kit, sliding pads (x4) batteries & a carrying case
CONTENTS:
1 x Laserliner CenterScanner Compact Drilling Guide Device 1 x Receiver RECV 1 x Adhesive kit 1 x Sliding pads (x4) 1 x Batteries 1 x Carrying case
// Easy and safe alignment of the drill channel when drilling through walls and ceilings up to a depth of 120 cm
// Precise location of the entry and exit points using LED indicators
// Highly accessible marking aids in the sender and receiver provide the centring
// Determination of the required drilling depth up to 150 cm
// Optical and acoustic warning when foreign objects detected
// The sender and receiver fit comfortably in the hand thanks to their ergonomic design
// Supplied with receiver RECV, adhesive kit, sliding pads (x4) batteries & a carrying case
CONTENTS:
1 x Laserliner CenterScanner Compact Drilling Guide Device 1 x Receiver RECV 1 x Adhesive kit 1 x Sliding pads (x4) 1 x Batteries 1 x Carrying case
Specification
Specification
| Operating instructions: Yes |
Drill channel alignment: Yes |
| Wall thickness display: Yes |
Measuring depth display: Yes |
| Warning for 230 V wires: Yes |
Metal detection: Yes |
| Accuracy: typically 3% of measured depth |
Detection Range AC: 2 cm |
| Power Supply: RECV: 3 x 1.5V LR03 (AAA) / TX: 3 x 1.5V LR03 (AAA) |
Operating Time: RECV: approx. 20 hours / TX: approx. 12 hours |
| Storage Conditions: -20°C … 60°C, Luftfeuchtigkeit max. 85% rH, nicht kondensierend |
Dimensions (W x H x D): 77 mm x 179 mm x 31 mm |
| Weight: (RECV und TX inc. Batteries) |
