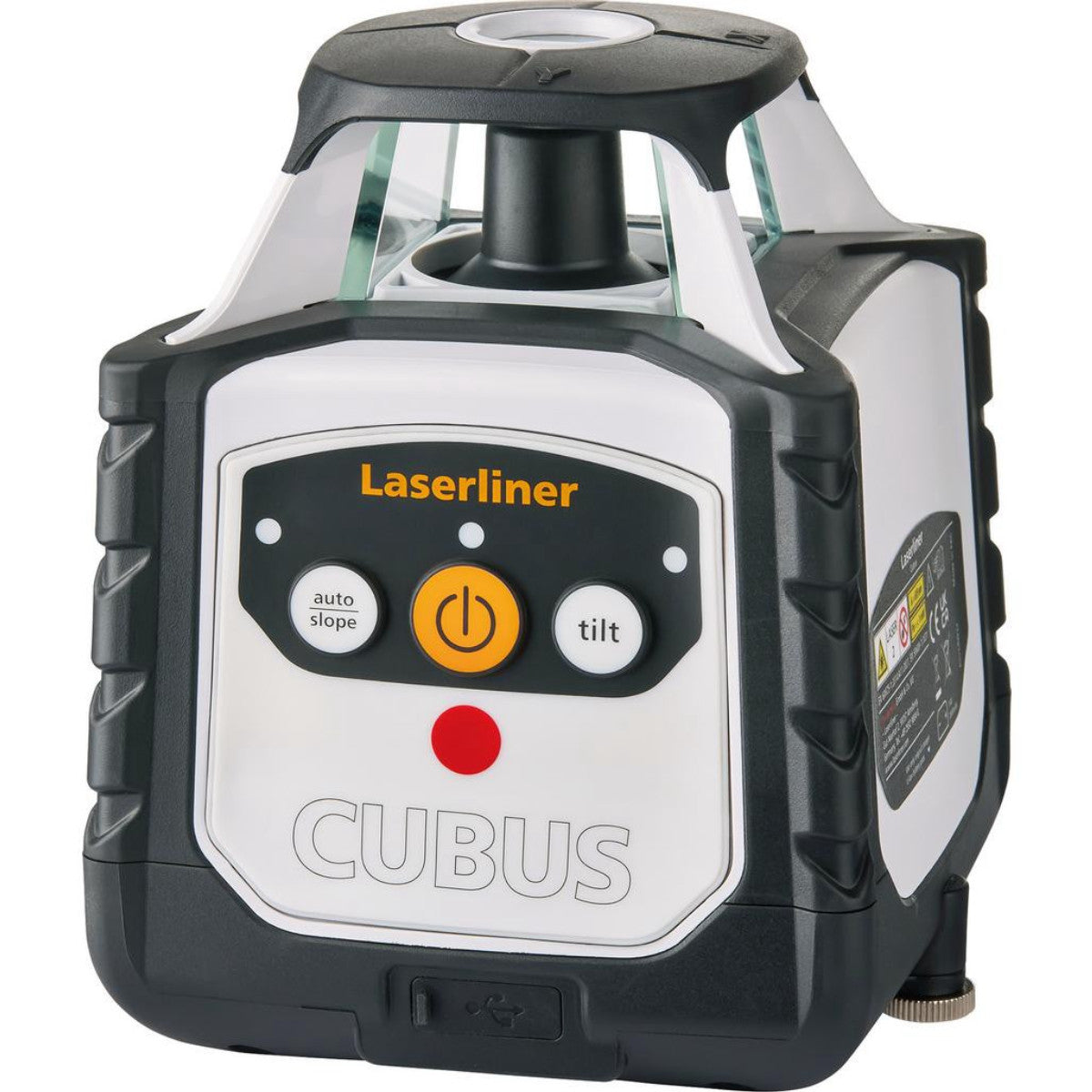

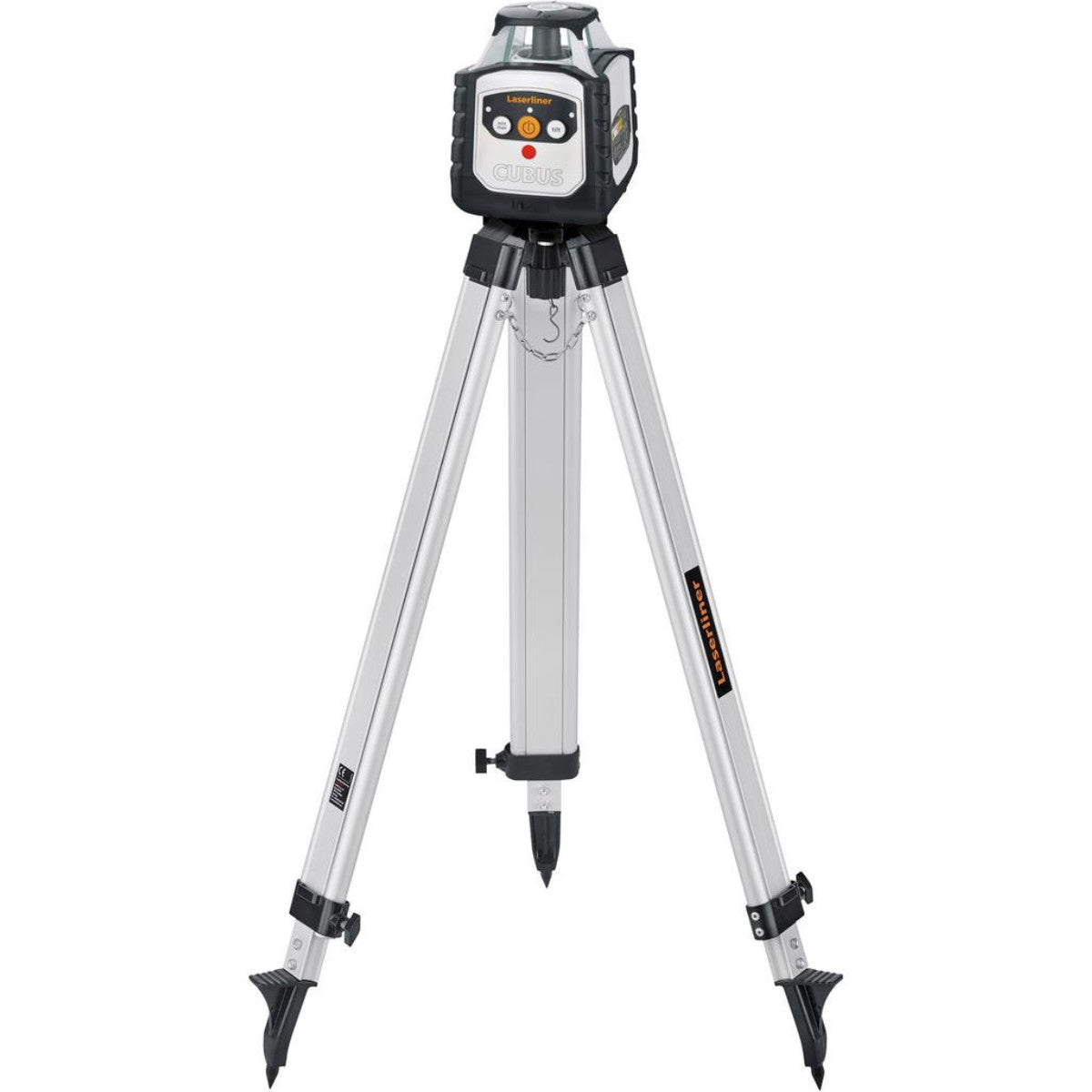

Draper 052.325A Cubus 110 S Set Fully Automatic Rotating Laser, 150cm 32173
Product Code / SKU: 185068
The sturdy, fully automatic rotary laser is perfect for precise alignment of horizontals. Furthermore, the device can be used for the levelling of verticals and slopes. Aligning partitions is easy thanks to an additional reference beam. The laser receiver can be easily attached to measuring staffs and allows a height reference to be marked. This has the advantage that the laser can be reset to the specified height at any time. The remote control for operating all of the functions at a distance of up to 40 metres is particularly handy. In the event of external influences, the automatic shut down prevents measurement errors. The HighCapacityPack with lithium-ion technology can be used and charged at the same time which means users can work without interruption.

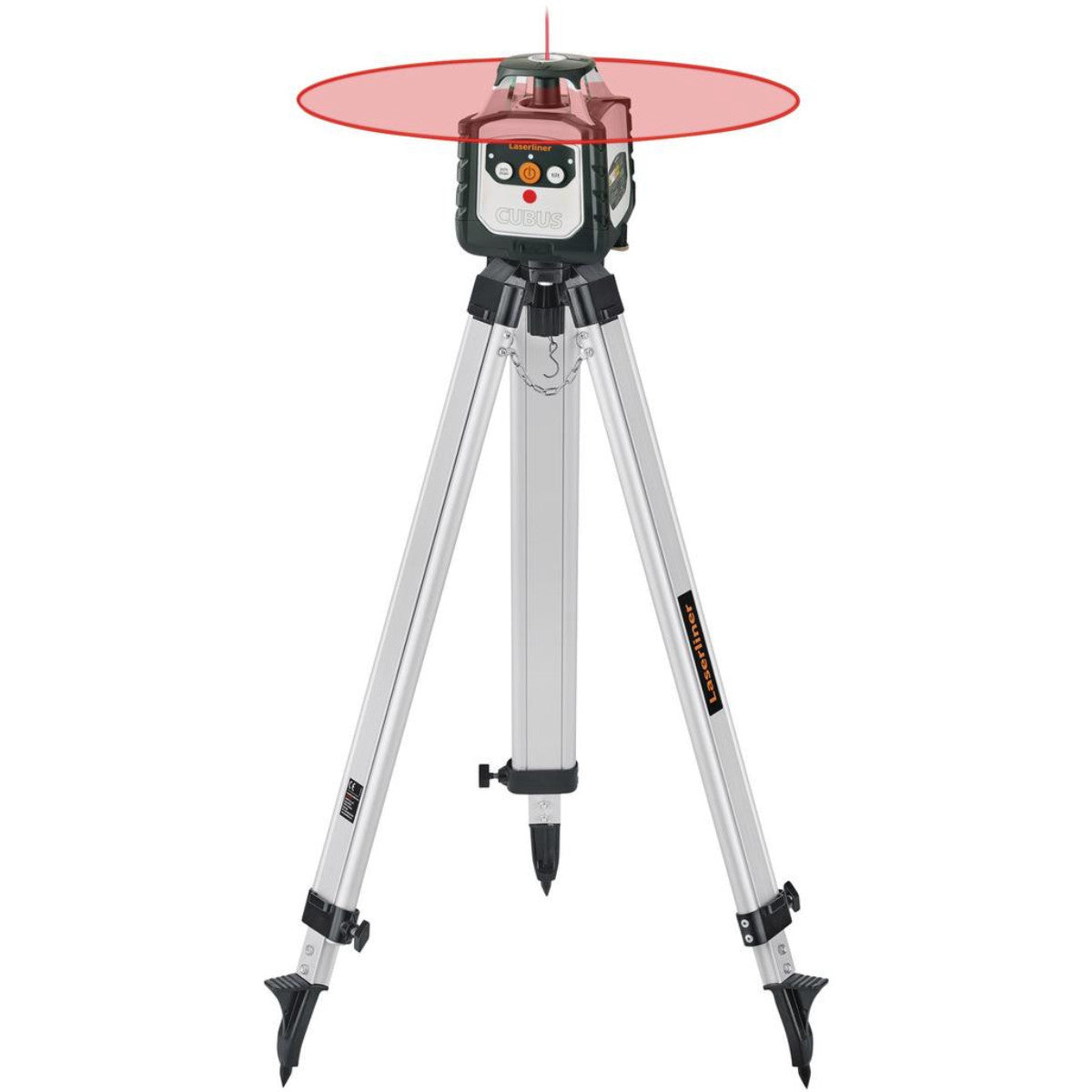

// Precise alignment of horizontals
// Time-saving fully automatic alignment by means of automatic sensor
// Manual alignment of slopes
// The 90° reference beam is provided to plumb and align partition walls
// Long operating life due to powerful HighCapacityPack with lithium-ion technology
// Extremely simple operation for practical use
// All functions can be controlled with the remote control up to a max. distance of 40 m
// Plug-on stand/wall bracket with 5/8“ thread for vertical use
// Reliable measurement through automatic power off with ADS tilt
// Supplied with batteries

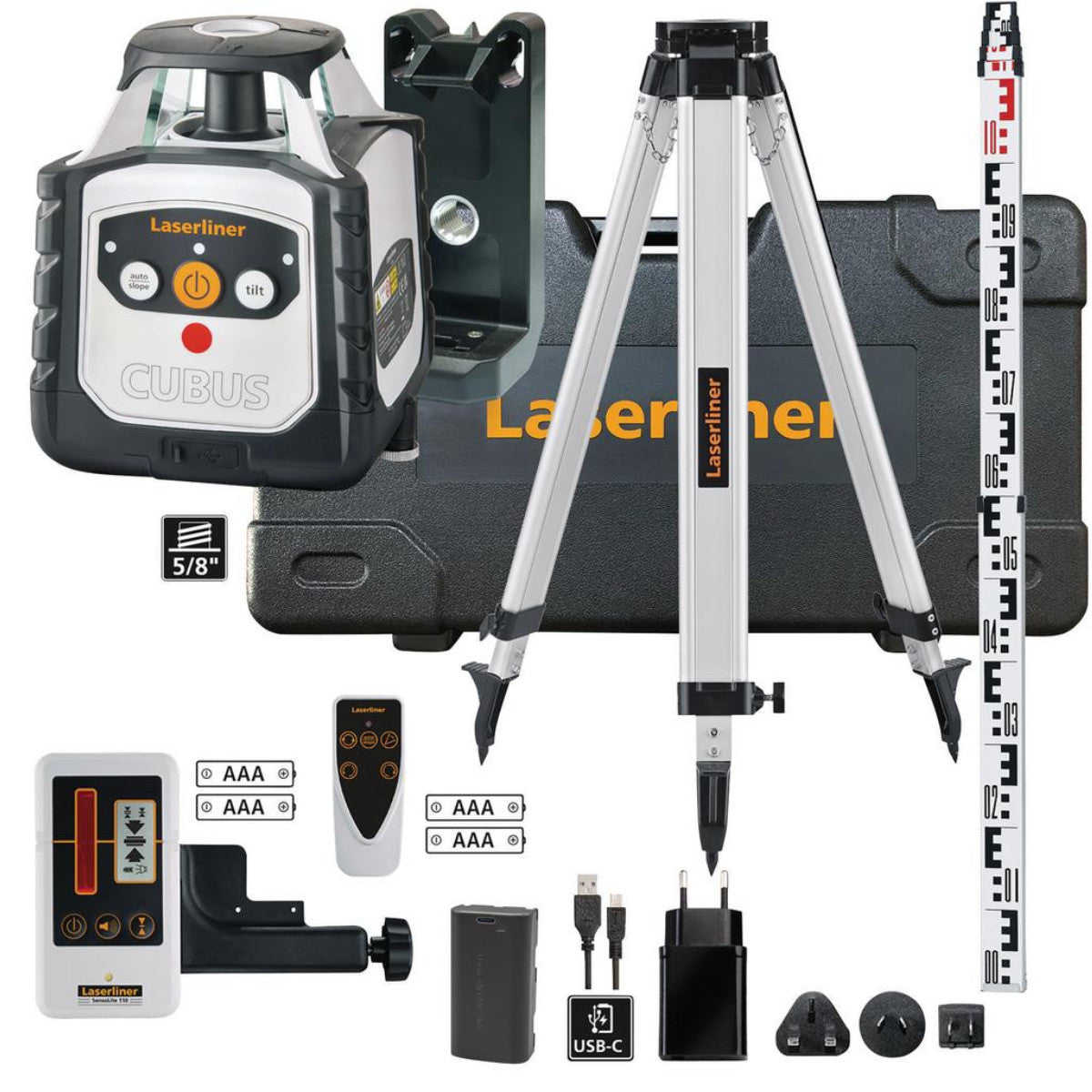

CONTENTS:
1 x Laserliner 052.325A Cubus 110 S Set Fully Automatic Rotating Laser, 150cm 1 x SensoLite 110 1 x Light-weight tripod 150 cm 1 x Tripod/wall bracket 1 x Universal mount 1 x Telescopic levelling staff LT 4 m 1 x Remote control 1 x HighCapacityPack ( Li-Ion) 1 x Batteries 1 x Network/charging device incl. international adapter 1 x Carrying strap 1 x Carrying case
// Precise alignment of horizontals
// Time-saving fully automatic alignment by means of automatic sensor
// Manual alignment of slopes
// The 90° reference beam is provided to plumb and align partition walls
// Long operating life due to powerful HighCapacityPack with lithium-ion technology
// Extremely simple operation for practical use
// All functions can be controlled with the remote control up to a max. distance of 40 m
// Plug-on stand/wall bracket with 5/8“ thread for vertical use
// Reliable measurement through automatic power off with ADS tilt
// Supplied with batteries
CONTENTS:
1 x Laserliner 052.325A Cubus 110 S Set Fully Automatic Rotating Laser, 150cm 1 x SensoLite 110 1 x Light-weight tripod 150 cm 1 x Tripod/wall bracket 1 x Universal mount 1 x Telescopic levelling staff LT 4 m 1 x Remote control 1 x HighCapacityPack ( Li-Ion) 1 x Batteries 1 x Network/charging device incl. international adapter 1 x Carrying strap 1 x Carrying case
Specification
Specification
| Horizontal/vertical/angle levelling: Yes |
Anti-Drift-System (ADS): Yes |
| Hand receiver mode: Yes |
Scan mode: Yes |
| Spot mode: Yes |
Manual slope function: Yes |
| Precision sensor levelling: Yes |
Battery and mains operation: Yes |
| Tilt warning function: Yes |
Self-Levelling Range: ± 4° |
| Accuracy: ±0.15 mm/m |
Levelling: Automatic horizontal / vertical levelling with electronic levels and motors |
| Laser Wavelength: 635 nm |
Laser Class: 2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021) |
| Laser Reception Range: 1 - 100 m |
Protection Class: IP 66 |
| Power Supply: Li-ion battery pack 7.4V / 2.6Ah / 19.24Wh |
Operating Time: approx. 20 hours |
| Battery Recharging Time: approx. 4 hours |
Dimensions (W x H x D): 130 mm x 160 mm x 145 mm |
| Weight: 1300g |
