Draper 036.703A PocketPlane-Laser 3G Set Three-Dimensional Laser, 150cm 32165
Product Code / SKU: 185062

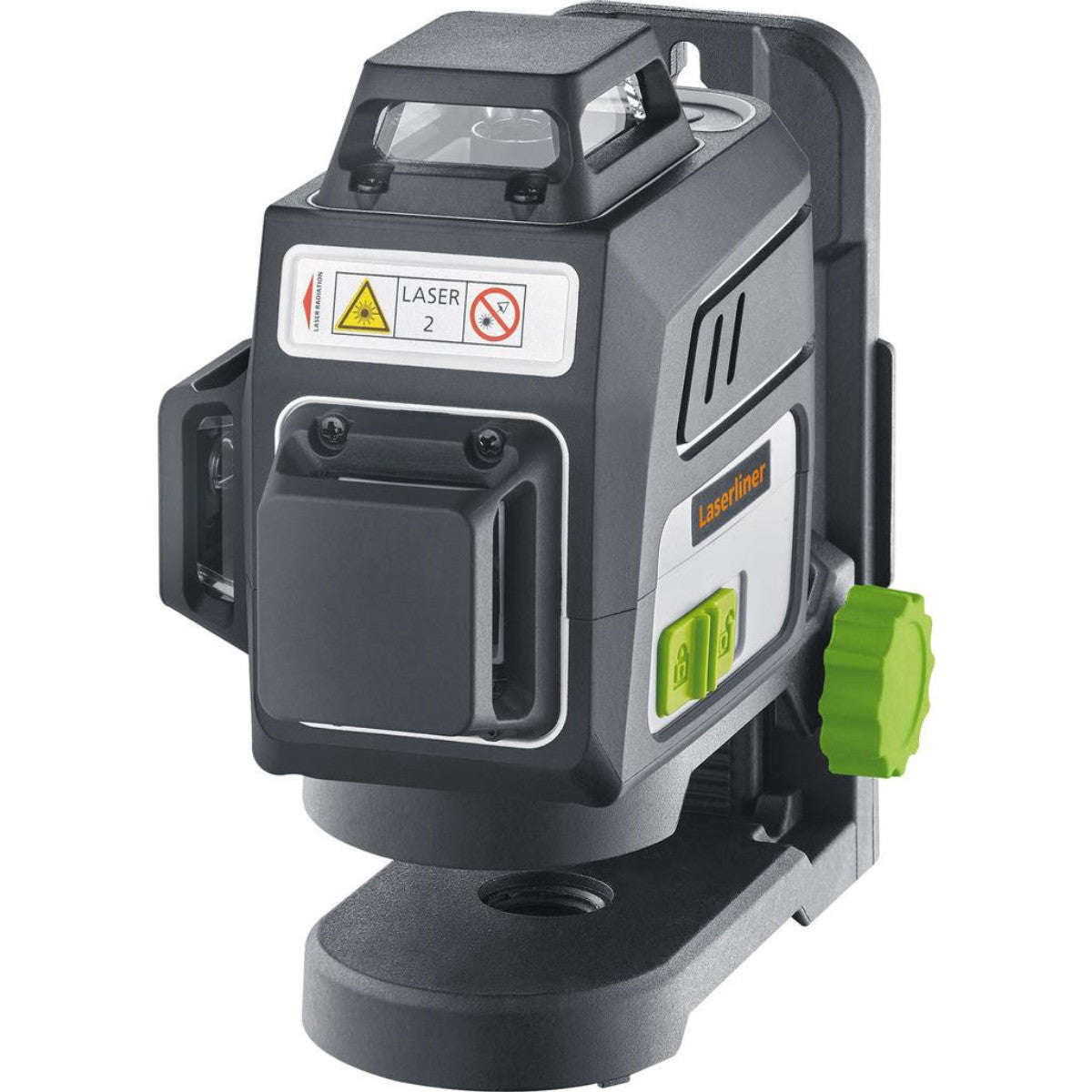

This three-dimensional, compact and highly visible green laser projects one horizontal and two vertical laser circles for precise alignment of objects. The laser crosses form a plumb function for working simultaneously on floors and ceilings. A manual slope mode is available for creating gradients. This laser is all you need for demanding projects thanks to the comprehensive range of accessories. Multi-section telescopic tripod legs and a 30 cm crank on this compact tripod provide an extensive adjustment range. The PocketWallHolder is a multi-functional, height-adjustable, magnetic bracket for attaching to walls, metal items and tripods with a 1/4” or 5/8” thread. Supplied with battery.
// Three-dimensional laser with a horizontal and two vertical 360° laser circles
// Accurate horizontal and vertical alignment of objects
// Good visibility through green laser technology
// Easy alignment of slopes with manual tilt function
// Plumb function for synchronous working on floor and ceiling

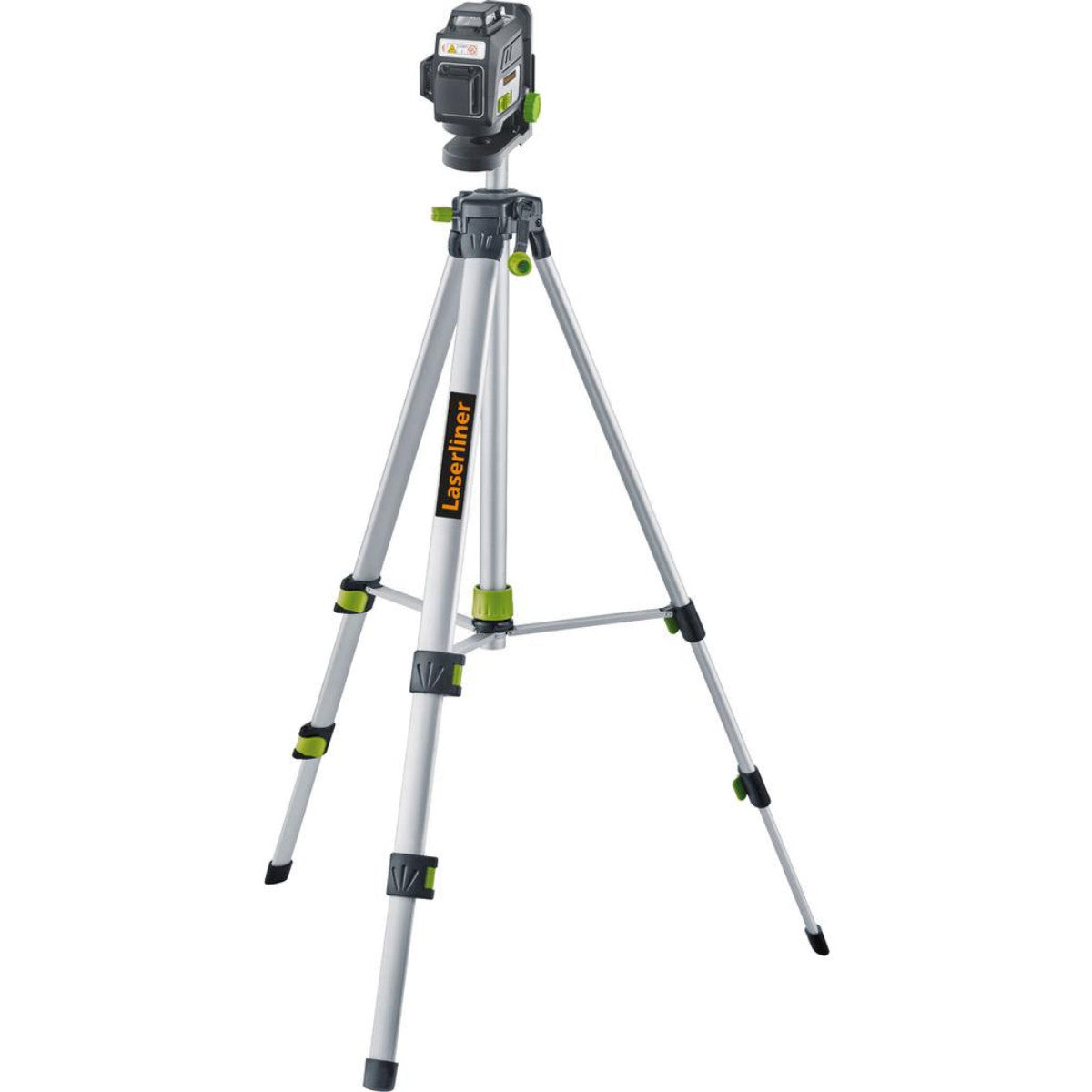

// Light and robust compact tripod 150cm
// Crank height adjustment and telescopic tripod legs
// Height-adjustable, magnetic, multi-function bracket with 1/4” and 5/8” thread for attaching to walls, metal items and tripods
// Magnetic target plate with stand, nail hole and dual scale – perfect for working close to ceilings
// Supplied with battery

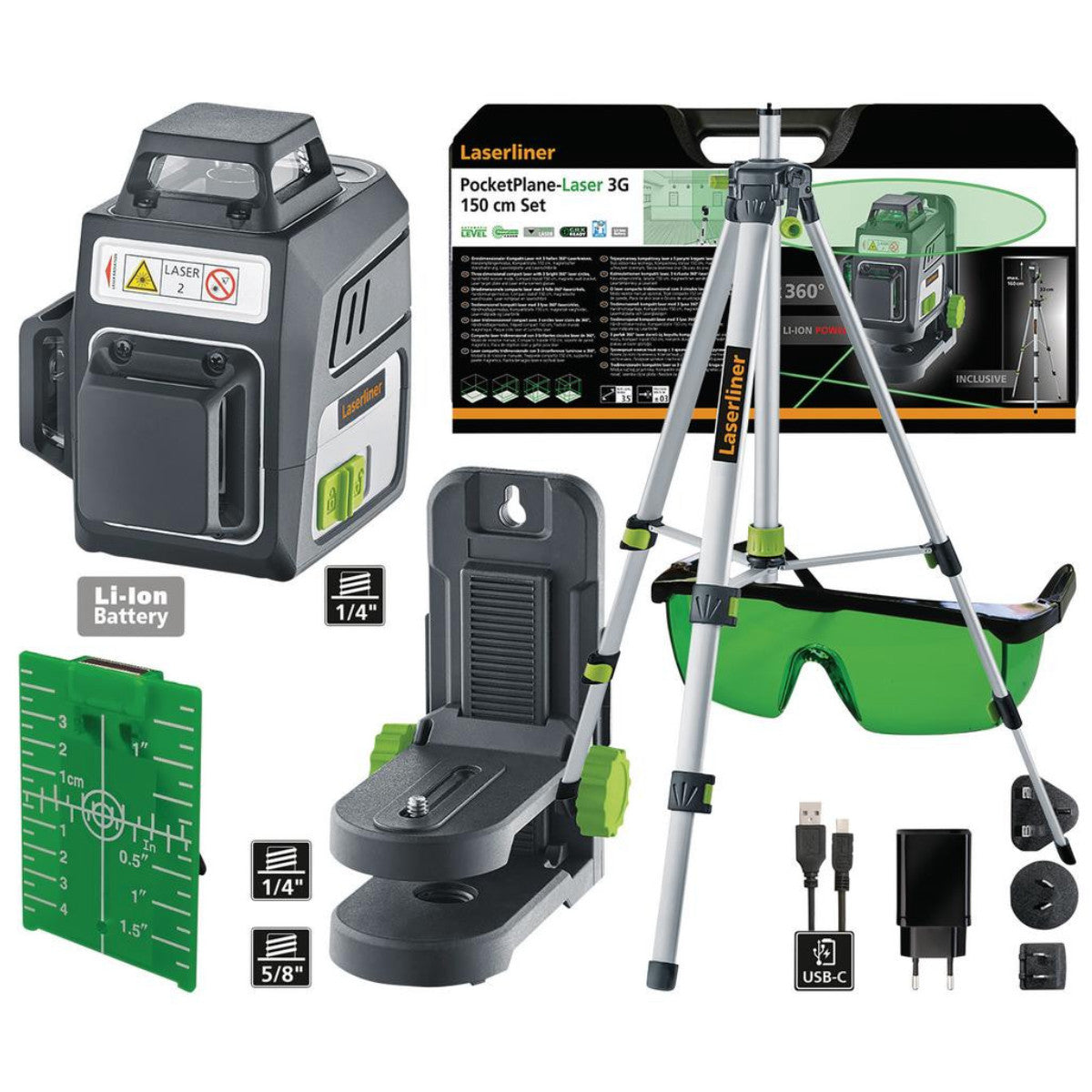

CONTENTS:
1 x Laserliner 036.703A PocketPlane-Laser 3G Set Three-Dimensional Laser, 150cm 1 x Compact tripod 150 cm 1 x PocketWallHolder 1 x Magnetic target plate green 1 x Laser enhancement glasses 1 x Li-ion battery pack 1 x Network/charging device incl. int ernational adapter 1 x USB-C-cable 1 x Carrying case
// Three-dimensional laser with a horizontal and two vertical 360° laser circles
// Accurate horizontal and vertical alignment of objects
// Good visibility through green laser technology
// Easy alignment of slopes with manual tilt function
// Plumb function for synchronous working on floor and ceiling
// Light and robust compact tripod 150cm
// Crank height adjustment and telescopic tripod legs
// Height-adjustable, magnetic, multi-function bracket with 1/4” and 5/8” thread for attaching to walls, metal items and tripods
// Magnetic target plate with stand, nail hole and dual scale – perfect for working close to ceilings
// Supplied with battery
CONTENTS:
1 x Laserliner 036.703A PocketPlane-Laser 3G Set Three-Dimensional Laser, 150cm 1 x Compact tripod 150 cm 1 x PocketWallHolder 1 x Magnetic target plate green 1 x Laser enhancement glasses 1 x Li-ion battery pack 1 x Network/charging device incl. int ernational adapter 1 x USB-C-cable 1 x Carrying case
Specification
Specification
| Horizontal/vertical levelling: Yes |
Battery and mains operation: Yes |
| Manual slope function: Yes |
Hand receiver mode: Yes |
| Self-Levelling Range: ± 3.5° (horizontal) |
Accuracy: ±0.3 mm/m |
| Levelling: Automatic |
Visibility (Typical)*: 30 m |
| Laser Wavelength: 515 nm |
Laser Class: 2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021) |
| Power Supply: Li-ion battery pack 3.7V / 3.6Ah / 13.32Wh Power adapter 5V / DC / 2A |
Operating Time: with 3 laser levels: approx. 9 hours |
| Operating Conditions: 0°C … 50°C |
Storage Conditions: -10°C … 70°C |
| Dimensions (W x H x D): 104 mm x 97 mm x 76 mm |
Weight: 388g (incl. Akkupack) |
