Draper 031.430L MasterCross-Laser XPG Pro Cross-Line Laser 32163
Product Code / SKU: 185060
// Accurate horizontal and vertical alignment of objects
// Good visibility through green laser technology
// 4 Point Projection: Laser points top, bottom and at the side in 90° configuration for exact marking transfer from wall to wall
// Plumb function for synchronous working on floor and ceiling
// Especially bright plumb points for use in buildings with high rooms

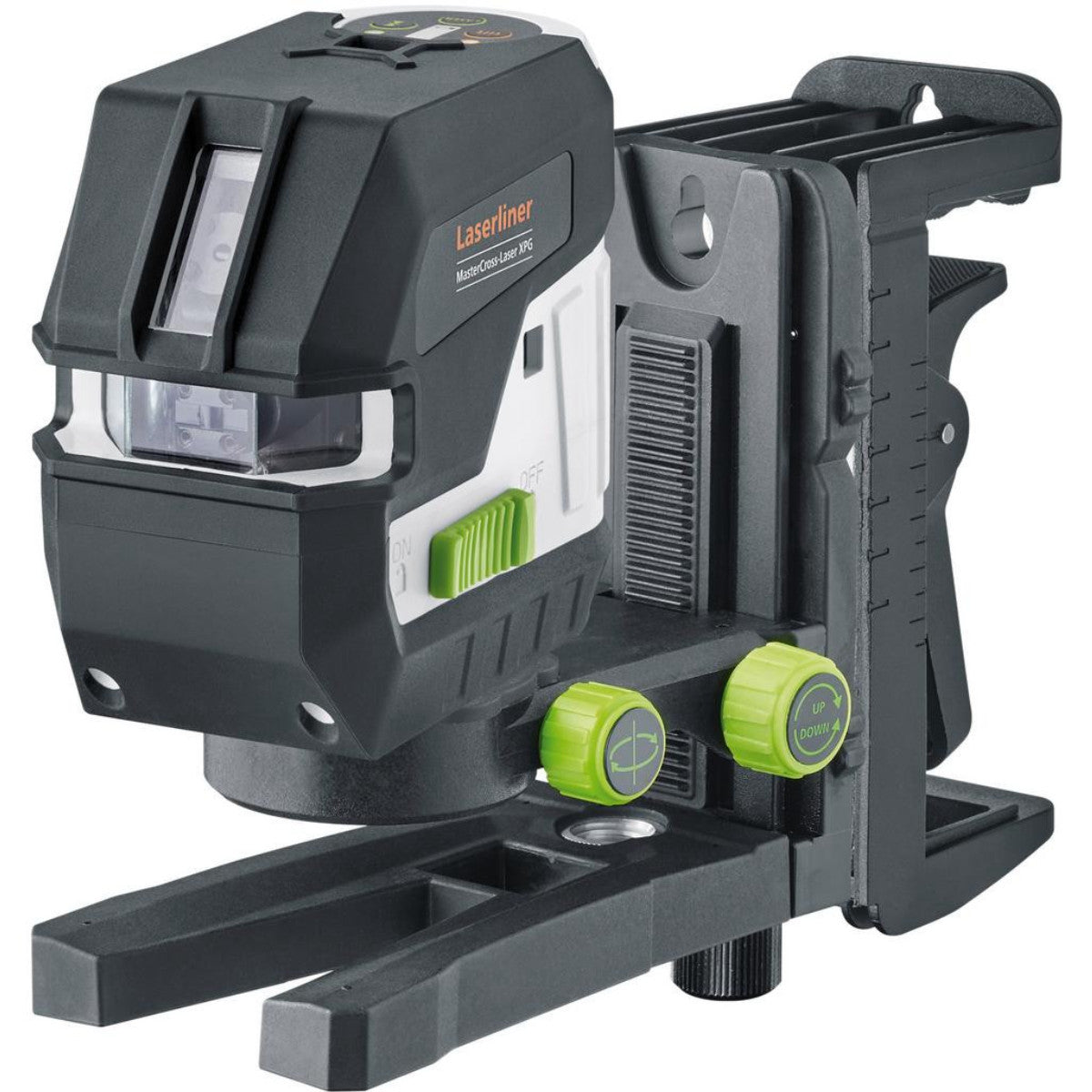

// Magnetic clamp and wall bracket for hanging, horizontal and vertical clamping to profiles, and attaching to metallic surfaces
// MicroControl: Vernier adjustment mechanism for precise vertical adjustment of the laser lines to edges and adjusting screw to adapt the bracket to different profile thicknesses
// Easy alignment of slopes with manual tilt function
// Reliable measurement through automatic power off with ADS tilt
// Supplied with battery pack

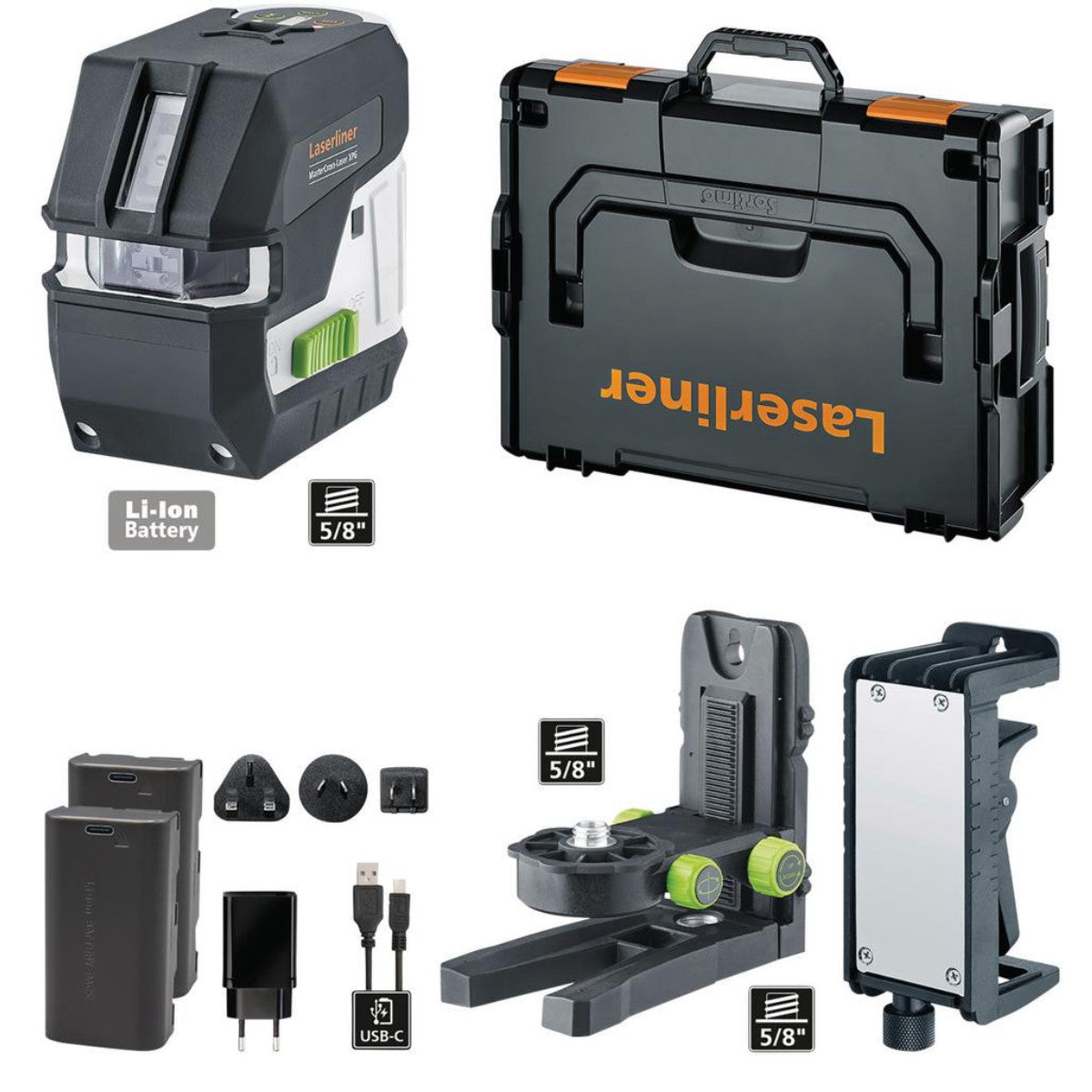

CONTENTS:
1 x Laserliner 031.430L MasterCross-Laser XPG Pro Cross-Line Laser 1 x CrossGrip Plus 2 x HighCapacityPack (Li-Ion) 1 x Network/charging device incl. international adapter 1 x USB-C-cable 1 x Carrying case
| Horizontal/vertical levelling: Yes |
Self-Levelling Range: ± 2.5° |
| Manual slope function: Yes |
Plumb laser (up/down): Yes |
| Laser points (left/right): Yes |
Replaceable battery system: Yes |
| Hand receiver mode: Yes |
Tilt warning function: Yes |
| Accuracy: ±0.2 mm/m |
Levelling: Automatic |
| Visibility (Typical)*: 55 m |
Laser Wavelength: 515 nm |
| Laser Class: 2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021) |
Power Supply: Li-ion battery pack 7.4V / 2.6Ah / 19.24Wh |
| Operating Time: approx. 8 hours |
Operating Conditions: 0°C … 50°C |
| Dimensions (W x H x D): 128 mm x 110 mm x 67 mm |
Weight: 588g (incl. Akkupack) |
