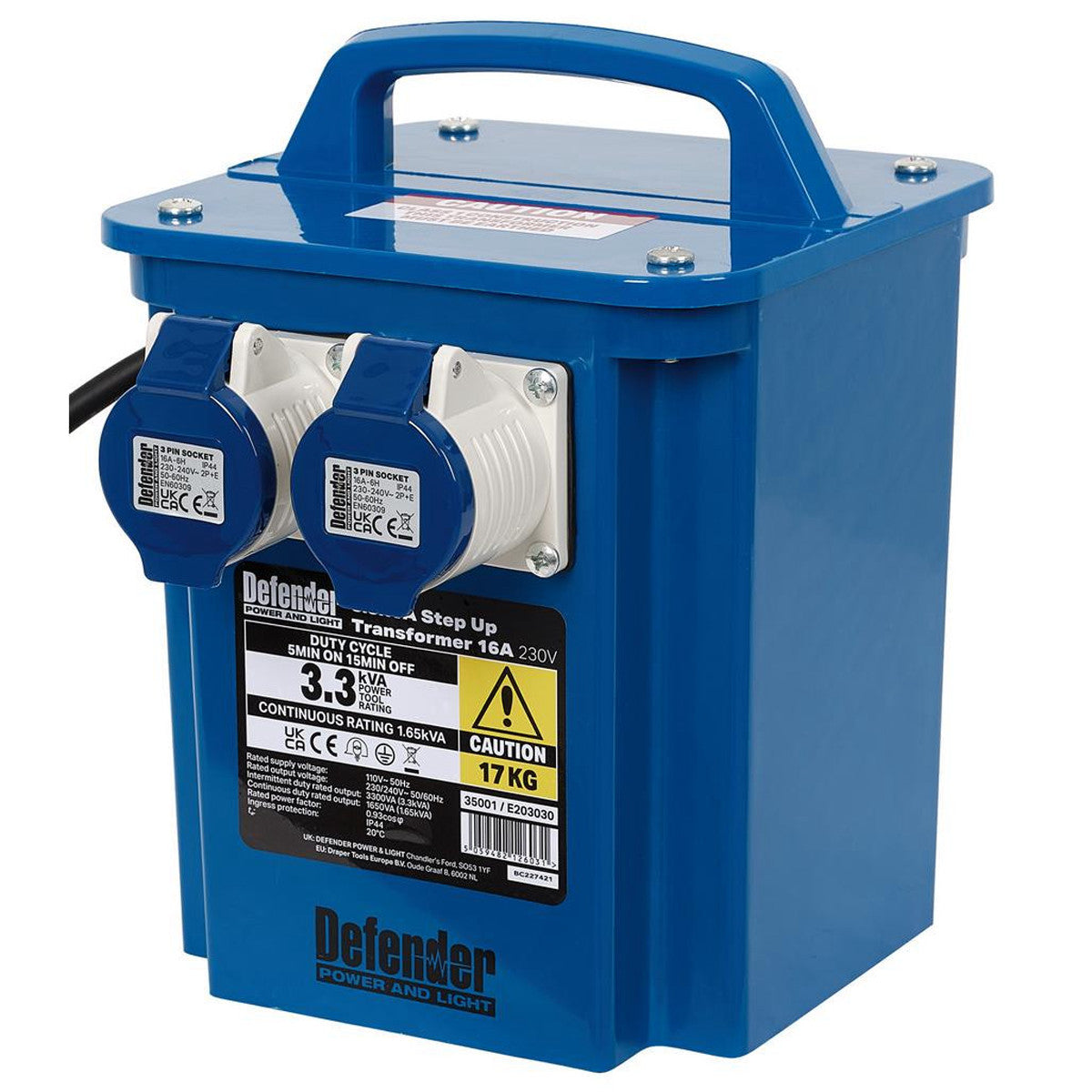

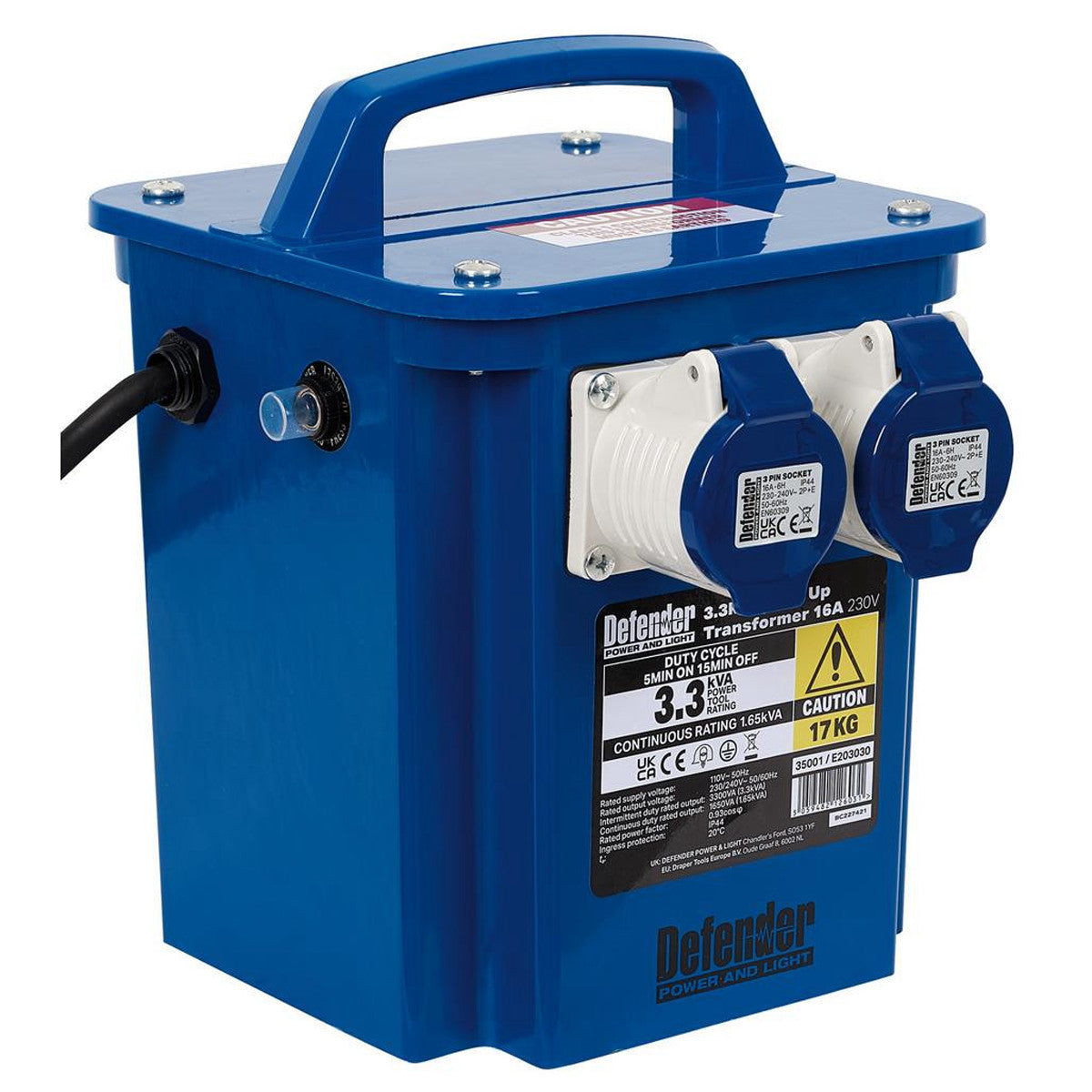

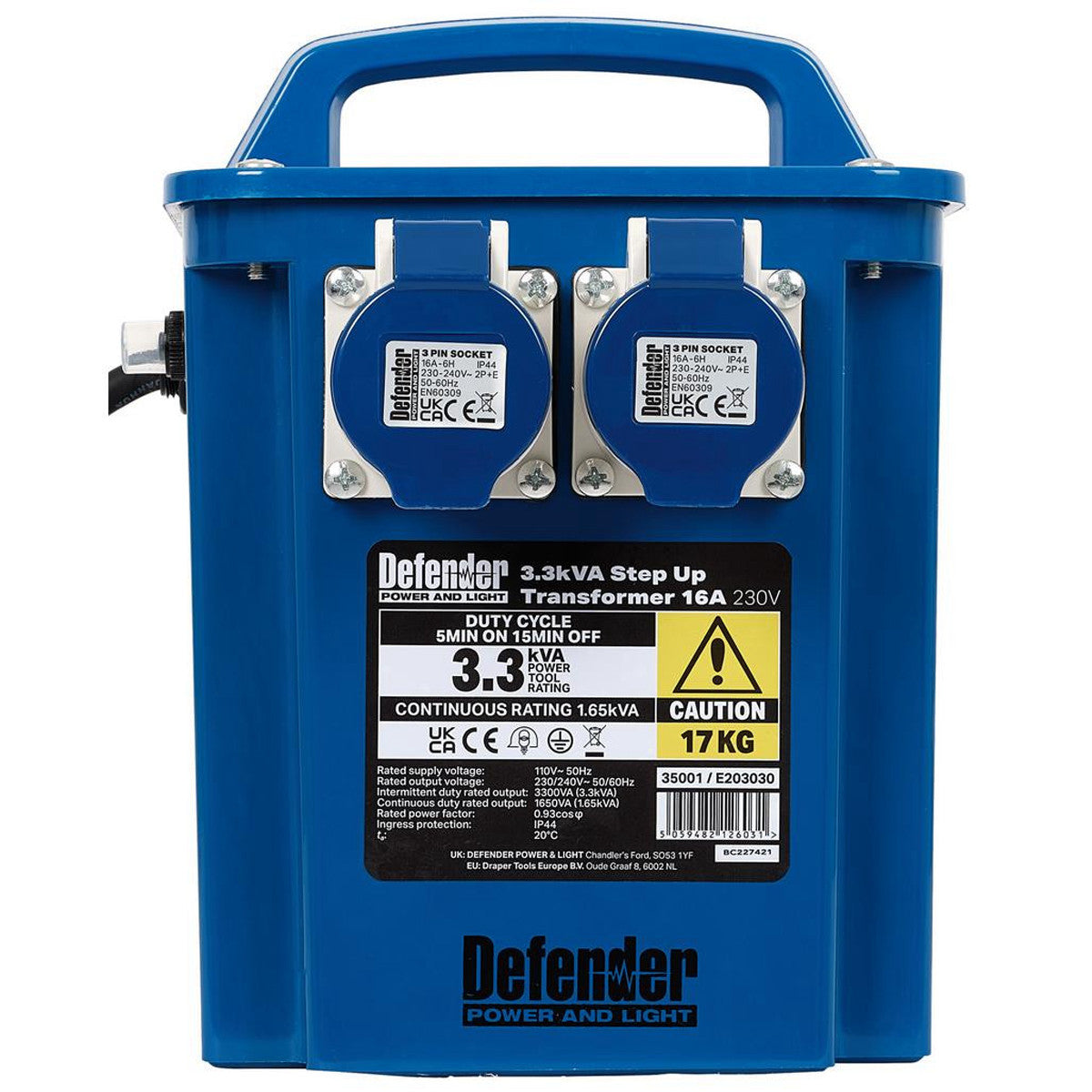

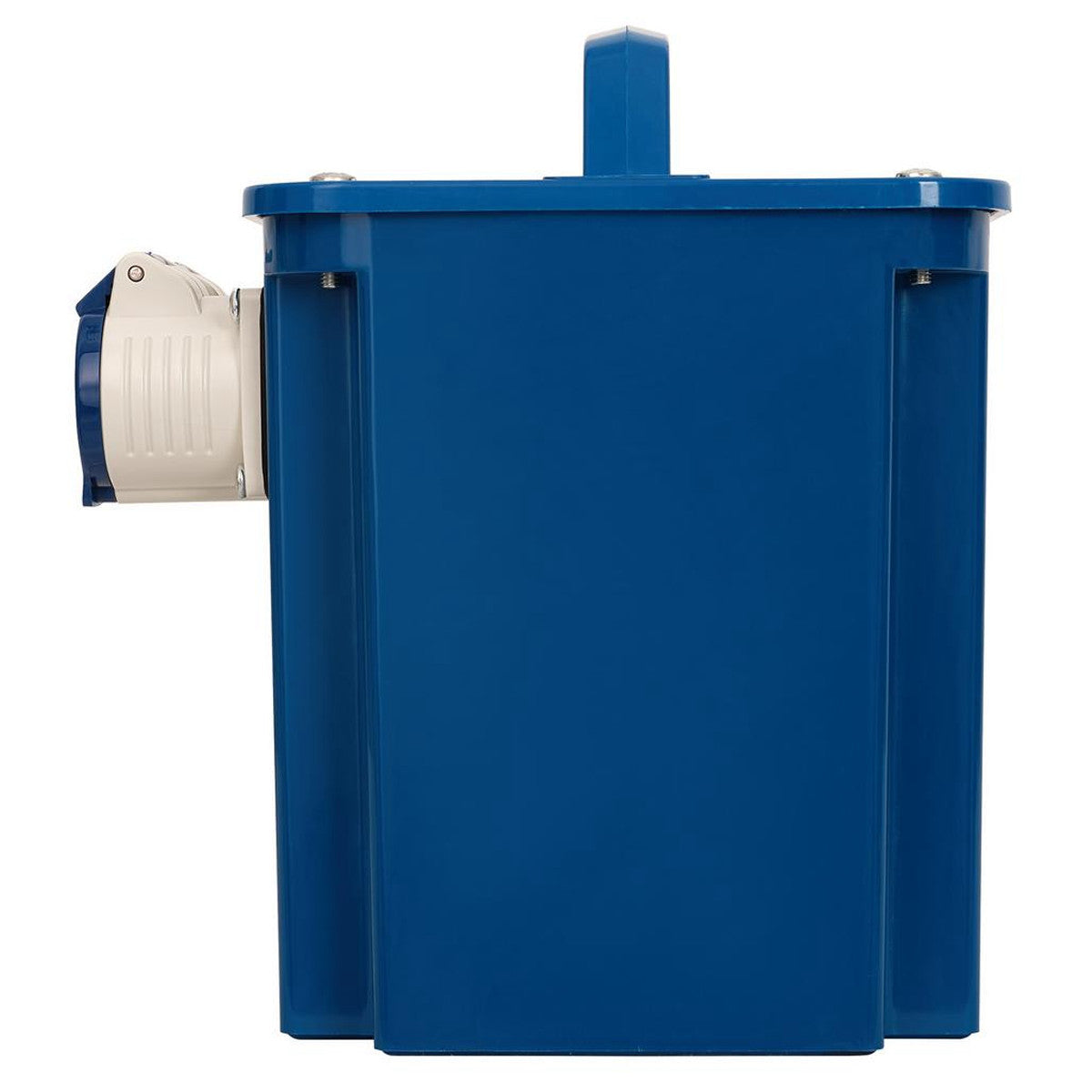

Defender E203030 3.3kVA 230V Step Up Transformer, 16A 35001
Product Code / SKU: 198366
Step-up transformer with tough GRP case to withstand harsh conditions for site use. Features 2 x 16A outlets. Enables users to operate 240V 16A tools by attaching to a 110V electrical circuit. Provides isolation from mains and eliminates the need for a second set of tools. Centre tapped to earth for extra safety. Intermittent rating 3300VA. Continuous rating 1650VA. Duty cycle 5 mins on / 15 mins off. Ingress protection rating: IP44. Supplied with 110V 16A plug and 1.7m cable. BSEN 61558-1 compliant. Dimensions: 190 x 240 x 260mm. Weight 17kg.
// Tough GRP impact-resistant case
// Converts 110V to 230V
// Provides isolation from mains
// Suitable for industrial power tools and site lighting
// BS EN 61558-1 compliant
// Supplied with 16A Plug
CONTENTS:
1 x Defender E203030 3.3kVA 230V Step Up Transformer, 16A 2 x 16A Socket 1 x 1.8 m H05VV-F 3x1.5mm Yellow PVC cable 1 x 16A Plug
// Tough GRP impact-resistant case
// Converts 110V to 230V
// Provides isolation from mains
// Suitable for industrial power tools and site lighting
// BS EN 61558-1 compliant
// Supplied with 16A Plug
CONTENTS:
1 x Defender E203030 3.3kVA 230V Step Up Transformer, 16A 2 x 16A Socket 1 x 1.8 m H05VV-F 3x1.5mm Yellow PVC cable 1 x 16A Plug
Specification
Specification
| Input Voltage: : 110V AC, 50Hz |
Output voltage: 230–240V AC, 50/60Hz |
| Apparent Power (kVA): 3.3KVA |
Dimensions: 260 x 240 x 192mm |
| Weight: 17kg |
Intermittent Rating: 3300VA(3.3KVA) |
| Continuous Rating: 1650VA(1.65KVA) |
Sockets: 2 × 16A 230V |
| Ingress Protection: IP44 |
